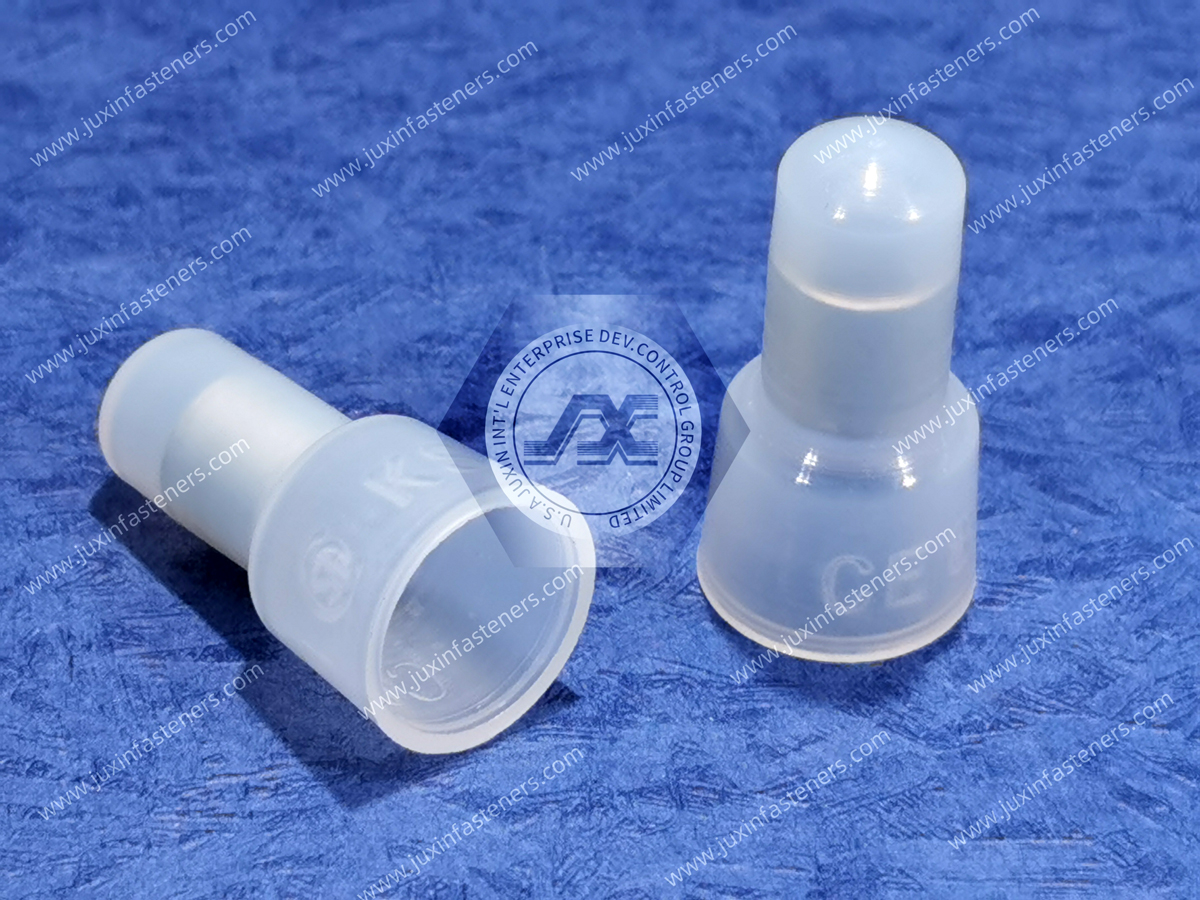

Closed-End Wire Connector

Name: Closed-End Crimp Connectors and Terminals

• Crimping Tool: JX-0801-CE

• For copper wire only

• 300 Volt Rating

• Max. temperature 105°C/221°F

• UL, CSA & RoHS compliant

Used for a variety of electrical products, the closed-end terminal is actually a five-core interface, with two-way visual luminance signals, two-way video chrominance signals, and a public shielded ground line, for a total of five cores.

The material is made of UL-recognized nylon 66 material, fire rating 94V-2 and 94V-0.

Shell for the nylon injection molding, internal copper tube extra long, increase the wire crimping range to make it easier to conduct electricity, and more able to clamp the

Wire, even if strong vibration will not fall off.

Voltage: 300V.

②Temperature: 105 degrees (semi-transparent rubber case) and 750 degrees burning wire test (milky white rubber case). 105 degrees

③Tools used: pneumatic tools MR-30A, AC-5ND, hand tools AK-25, AK-28, .

④Use: Used in a variety of electrical products, lighting, home wiring, and other wiring devices.

Shell - The electrical connector shell is the shell of the plug and socket, connecting nut, and tail attachment. Shell's role is to protect the insulator and contact body (pin jack of the common name) and other internal parts of the electrical connector from damage. The upper positioning keyway ensures that the plug and socket are positioned. A connection nut is used to connect and separate the plug seat. Tail accessories are used to protect wires and contacts from damage at the end of the connection and for fixing cables. The housing also provides some electromagnetic shielding. 　　

The shell is generally made of aluminum alloy processing (machining, cold extrusion, die casting) and become. Steel shell is mostly used for glass sealing welding and high temperature electrical connectors. 　　

Insulator: by loading pin insulator, loading jack insulator, interface sealing body, sealing line body, and other components. It is used to keep the pin jack in the set position and make contact between the body and the shell of mutual electrical insulation. Through the insulator plus interface, the sealing body is used to obtain sealing measures to improve the environmental performance of the electrical connector. 　　

To adapt to the product of high temperature, low temperature, and flame retardant, the geometry of the parts must be stable and reliable. Most of the insulators use thermosetting plastic molding. The interface sealing body and sealing line body use silicone rubber molding and other molding.

Contact body: Pin jack is a general term for the contact body, divided into welding, crimping, winding type, etc., used to realize the circuit connection. 　　

Pin jack is a key component of the electrical connector, which directly affects the reliability of the electrical connector. Most of the pins and jacks are made of flexible copper alloy materials with good conductivity, and the surface is silver-plated and gold-plated to achieve small contact resistance and corrosion prevention.

The closed-end terminal structure is characterized by environmental resistance, bayonet (fast) connection, multi-key (anti-wrong plug), and contact.
