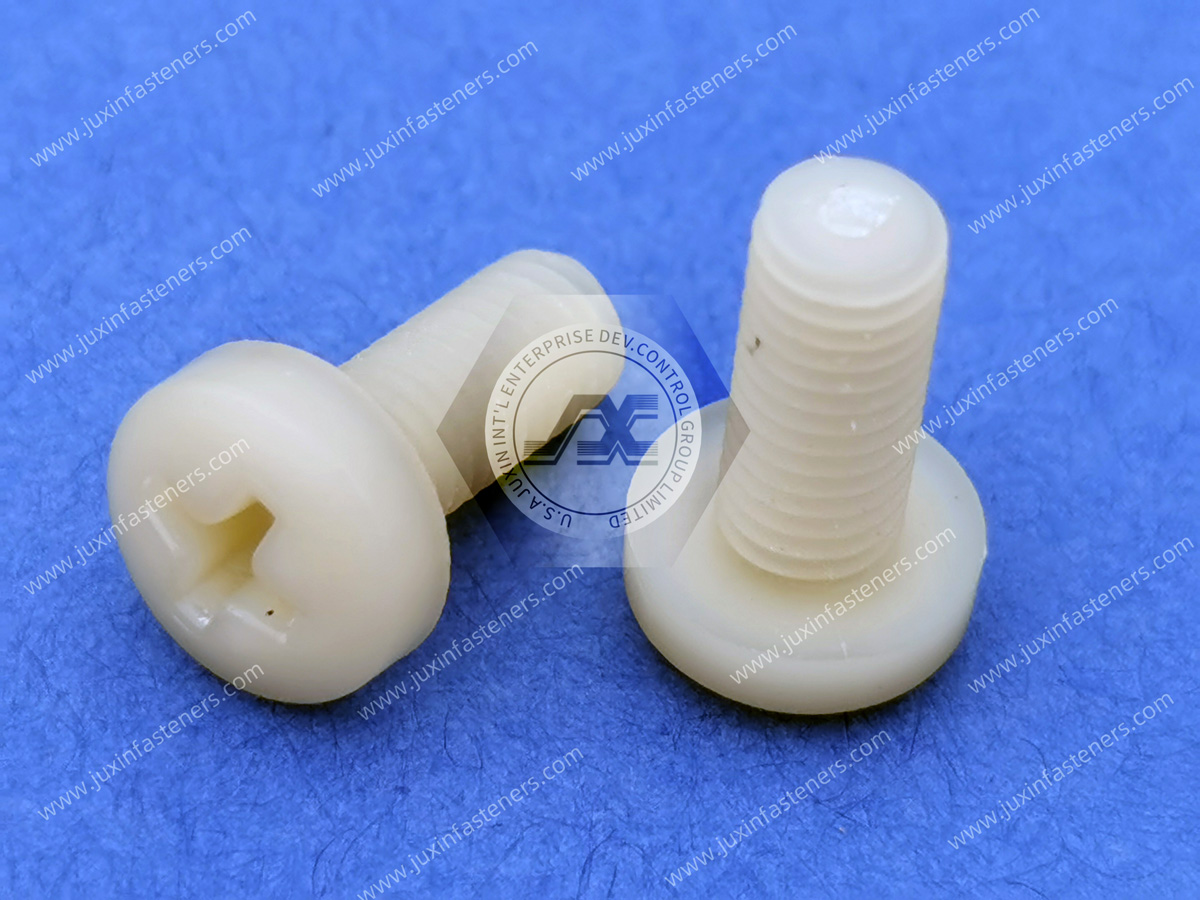

Name: PA+30% glass fiber high-temperature resistant Pan Head Phillips Screws
Size: M2,M2.5,M3,M4,M5,M6,M8
Material: PA66, PA+50%GF, PA+50%GF, PEEK, PVDF, PPS, PTFE, PP, PVC, PC.
Standard:ISO7045,DIN7985,ANSI/ASMEB18.6.3,JISB1111-96
PA+30% glass fiber high-temperature resistant pan head screws are chemical and oil resistant, nonconductive, and lightweight. Exposure to moisture may cause them to expand. Length is measured from under the head.
1. PA66-polyamide, insulation, environmental protection, acid and alkali resistance,
operating temperature: 80-120°c flame retardant grade: UL94V-2/UL94V-0
2. PVDF-polyvinylidene fluoride, use temperature: 140°c flame retardant grade: UL94V-0
3. PPS-polyphenylene sulfide, use temperature: 200°C flame retardant grade: UL94V-0
4. PP-polypropylene, use temperature: 260°C flame retardant grade: UL94HB
5. PVC-polyvinyl chloride, use temperature: 55°C flame retardant grade: non-flammable
6. PC-polycarbonate, use temperature: 115°c flame retardant grade: UL94V-2
7. PA+GF-glass fiber reinforced nylon, use temperature: 105°c flame retardant grade: UL94HB
8. PEEK (engineering plastic)-polyetheretherketone, use temperature: 180°c flame retardant grade: UL94V-0
1. Material: Fire-proof level PA66（Nylon66) UL94-V2，PA66(Nylon66) UL94-V0
2. Color Available: White、Black、Natural
3. ROHS Compliant Certification
Remark: All products manufactured in UL94 -V2 Nylon 66
or UL94 -V0 Nylon 66 are natural colors as standard. Unless otherwise
noted. These materials can be colored to match your requirements.
Product Specification
1. High strength and stiffness: PA66 + 30% GF material with an added glass fiber reinforcing agent can significantly improve the strength and stiffness of the material, giving it good tensile, compressive, bending, and other mechanical properties.
2. Good heat resistance: PA66 has good heat resistance; it can be used in high-temperature environments by adding a glass fiber reinforcing agent to enhance its resistance.
3. Good corrosion resistance: PA66 + 30% GF material has good resistance to acid, alkali, oil, and other chemicals' corrosive properties, making it suitable for use in some highly corrosive environments.
4. Excellent dimensional stability: PA66+30%GF material has a small coefficient of thermal expansion, good dimensional stability, and is not easily deformed, shrunk, or warped.
5. Good surface quality and appearance effect: PA66+30%GF material has a smooth and delicate surface, which can make fine parts and products with a good appearance effect. Based on the above characteristics, PA66+30% GF material is widely used in automotive, electronic and electrical appliances, machinery, aerospace, and other fields, such as automotive hoods, instrument panels, door interior panels, TV housings, electrical sockets, engineering machinery parts and so on.
Product Pictures
