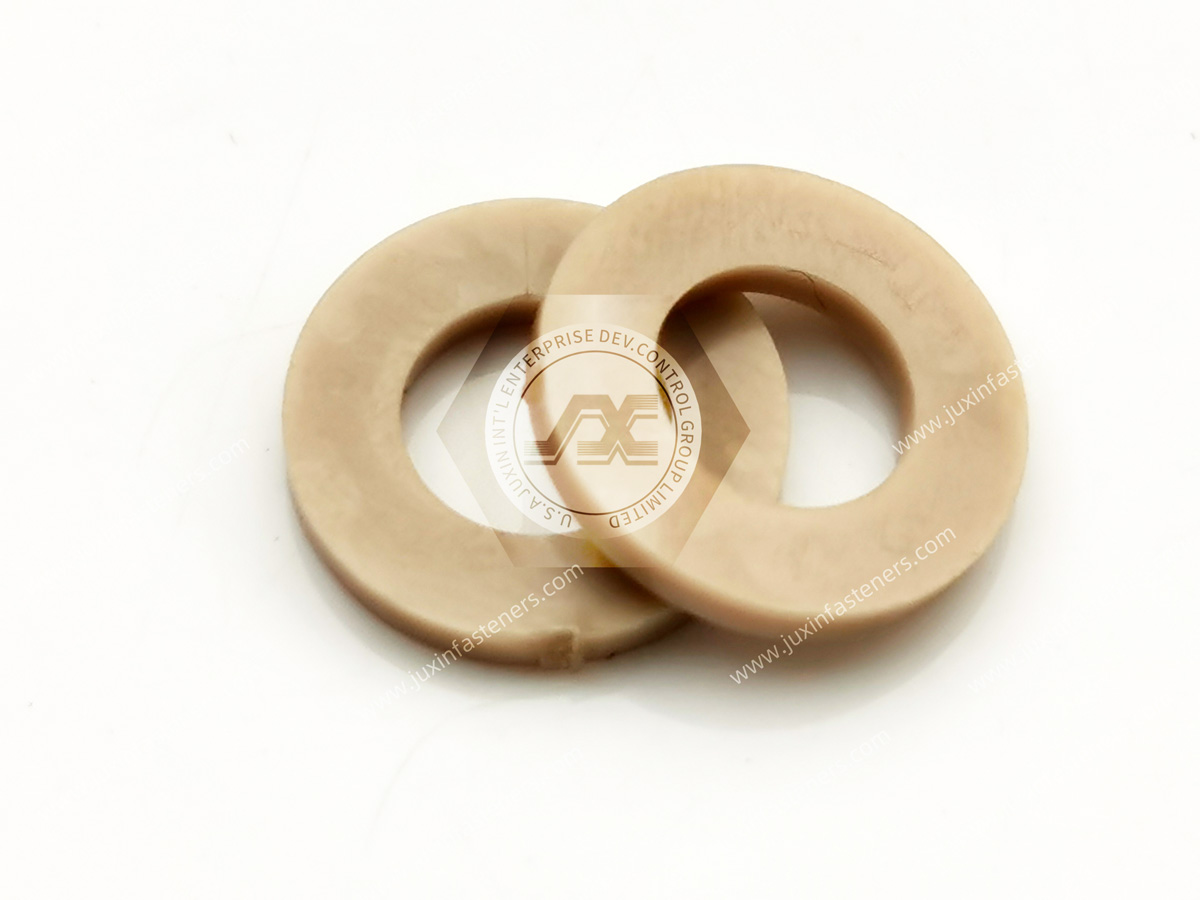

PEEK Flat Washer

1. Brownish Gray PEEK Plastic Flat Washers: PEEK-1000 is manufactured from pure polyether ether ketone resin, which is the toughest and most impact-resistant of all PEEK grades. PEEK-1000 can be sterilized using the most convenient sterilization methods (steam, dry heat, ethanol, and Y-rays), and the raw material composition used to manufacture PEEK-1000 meets European Union and U.S. FDA regulations for food safety, making it suitable for a wide range of applications in the medical, pharmaceutical, and food processing industries.

2. Black PEEK flat washers: The addition of PTFE, graphite, and carbon fiber makes PEEK-HPV a bearing-grade plastic. Its superior friction properties (low coefficient of friction, wear resistance, high peak pressure limit) make this grade ideal for friction applications.

3. Brownish-gray PEEK Flat Washers: A reinforced grade plastic filled with 30% glass fibers, this material has better rigidity and creep resistance than PEEK-1000, as well as better dimensional stability, making it ideal for structural parts. It is ideal for structural parts because it can withstand fixed loads at high temperatures for long periods of time. If PEEK-GF30 is used as a sliding part, its suitability should be carefully examined because the glass fibers scratch the mating surface.

4. Black plastic PEEK flat washers: the material is filled with 30% carbon fiber reinforced, has better mechanical properties (higher modulus of elasticity, mechanical strength, and creep), and more wear-resistant than PEEK-GF30, and carbon fiber reinforced plastic than unreinforced PEEK plastic with 3.5 times the thermal conductivity - faster heat dissipation from the bearing surface.

PEEK plastic flat washers are very common in the aerospace, medical, semiconductor, pharmaceutical, and food processing industries, such as satellite gas separator components, and heat exchanger scrapers; because of their superior friction properties, PEEK plastic flat washers in friction applications become the ideal material seals, such as sleeve bearings, plain bearings, valve seats, sealing rings, pump wear rings and so on. Various production line parts, semiconductor liquid crystal manufacturing equipment parts and components, specialty stores, inspection equipment parts, manufacturing fixtures, atomic energy-related parts, electronic components, various precision machine parts, food processing line related parts, chemical machinery and equipment related parts, fusion machine related parts, plating processing machine related parts sealing PEEK flat washer, metal surface treatment related parts. Parts, insulation parts and other important tips specifications size: 1-100MM * 610/1000MM * 1000MM - in 150 ℃ or more (higher than the glass phase transition temperature), all PEEK level of mechanical properties of plastic flat washers decreased rapidly, and the linear coefficient of thermal expansion increases rapidly, such as in the temperature of more than 150 ℃ in line with the work of the larger, you can choose to manufacture high-temperature parts PAI and flat washers. and flat washers.
