Material:
Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.
Floating self-clinching, locking thread fasteners JX-LA4, JX-LAC, JX-LAS
Locking and Non-locking Threads. These fasteners provide load-bearing threads in thin sheets and permit up to .030" adjustment for mating hole misalignment.
The self-clinching feature offers fast and straightforward assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked.
The floating nut's threads extend fully into the retainer shank, obtaining extra strength and support in assembly. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to the applicable NASM25027 specifications.
Non-locking Type A4 and self-locking Type JX-LA4 fasteners provide load-bearing threads in stainless steel sheets as thin as .038" with hardness up to HRB 88 on the Rockwell "B" scale.
Product Specification

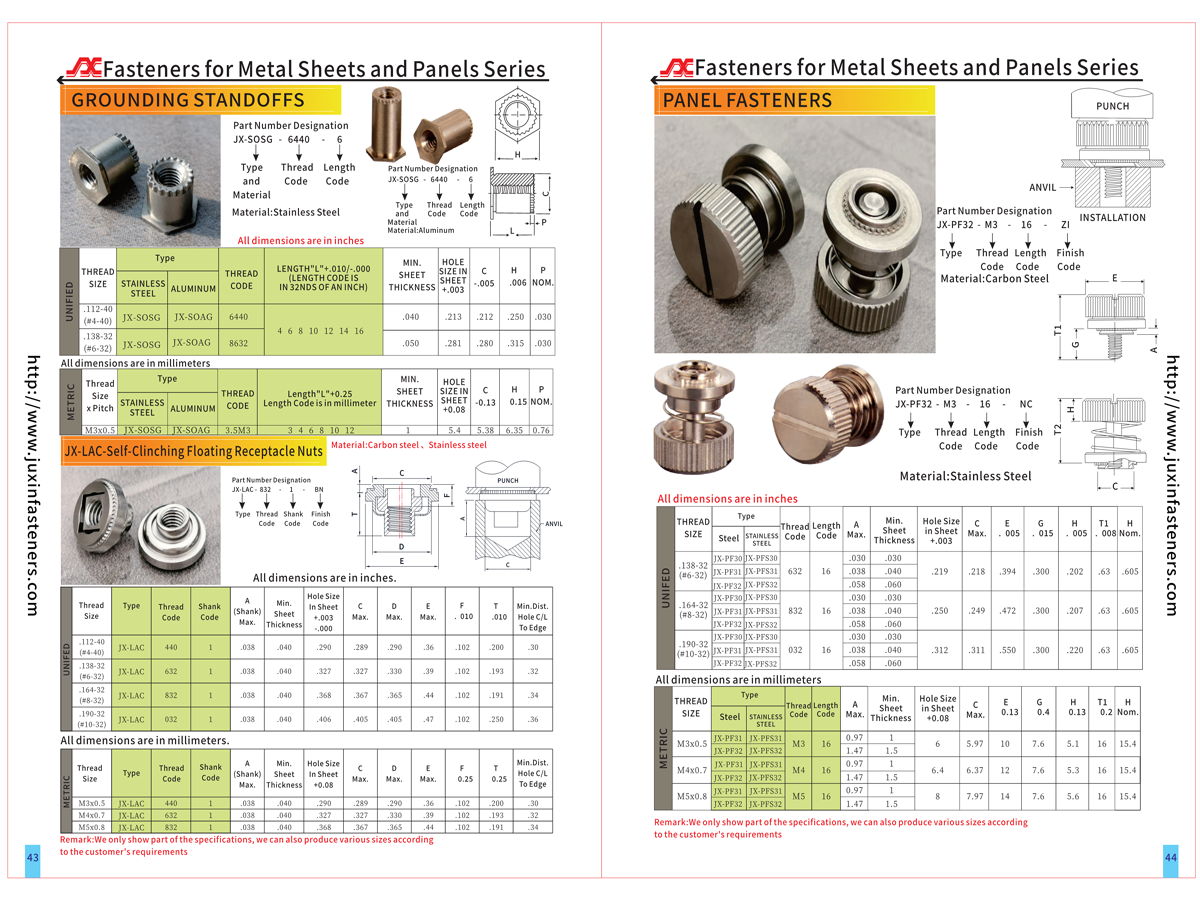

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 43-44Page See more product details.
Locking Threads nuts. These fasteners provide load-bearing threads in thin sheets and permit up to .030” adjustment for mating hole misalignment. The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked in place. Extra strength and support in the assembly are obtained by the threads of the floating nut extending fully into the retainer shank. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to applicable specifications.
Product Packaging
E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

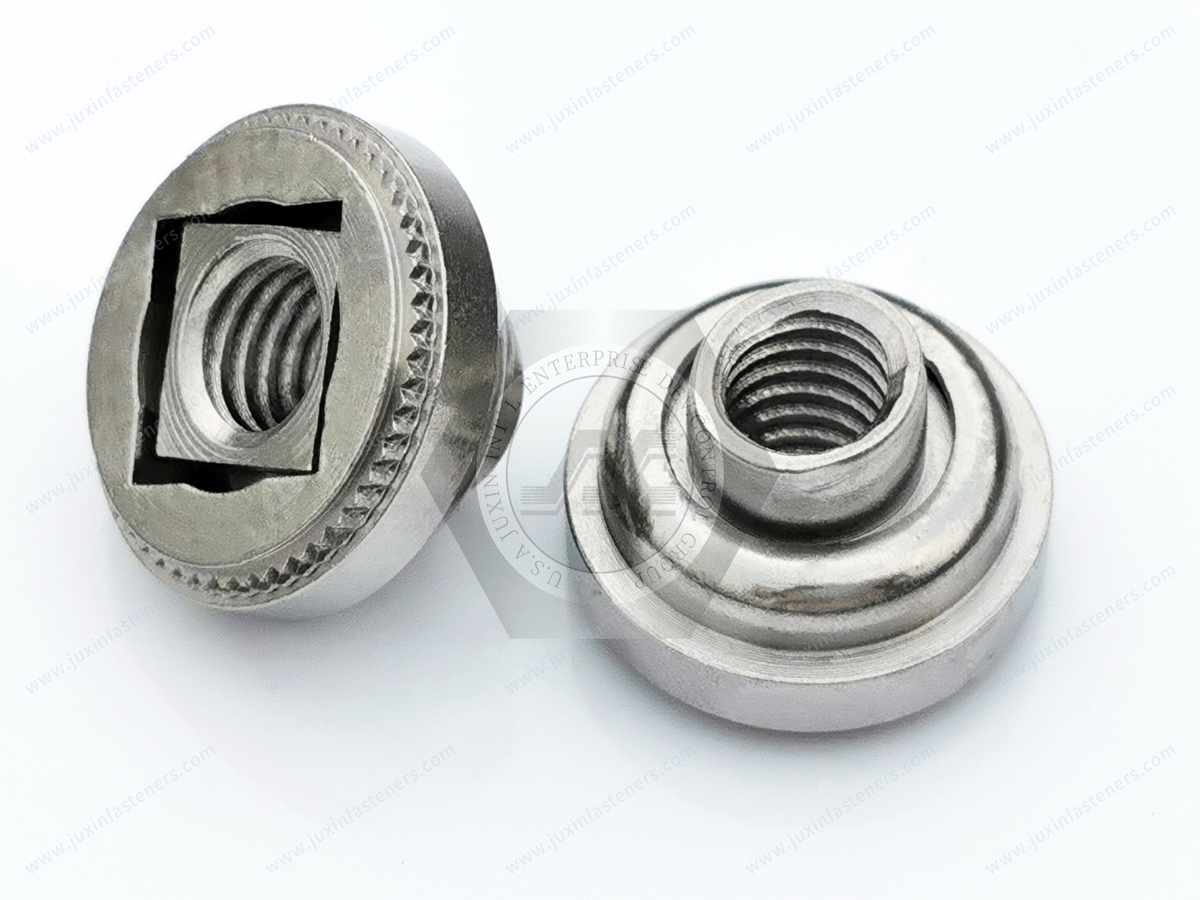

Product Pictures
