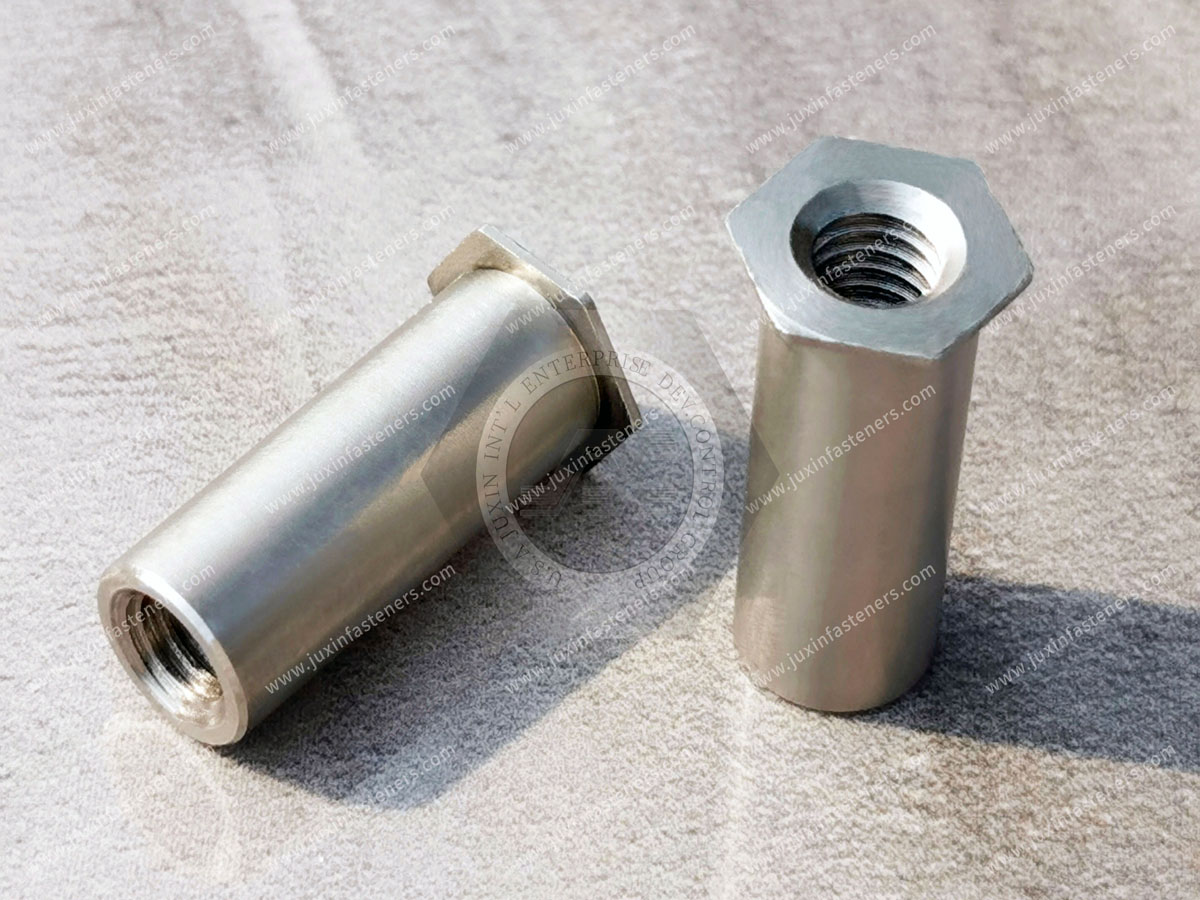

Thru-Hole Threaded Standoffs for Installation into Stainless Steel - Type JX-SOO, JX-SOOS

Material:

Stainless Steel

Overview

Standoffs are a versatile family of fasteners designed to hold a fixed gap between two panels via some static attachment. They are either cut from rigid bar stock in round or hex profiles based on the application requirements or formed from round wire. A standoff with a male attachment has external threads like a screw or bolt, while a female attachment has internal threads like a nut. Standoffs can forego threads to solve specific application problems.

Application

A typical application for threaded standoffs is mounting PC Boards to manage potential short circuits. The housing of a gaming PC is essentially a large, current-carrying box of sheet metal; raising the motherboard away from the housing helps eliminate the risk of a short circuit between components. Blind standoffs, in particular, can provide threads without a through-hole, compromising the internal components.

Alternative Solutions

Some prebuilt PCs have integrated standoffs or 'nubs' designed into the housing to minimize the number of loose parts. While this may be cost-effective for a mass-produced assembly, it limits customization opportunities. For custom PCs, developing several cases with standoff nubs in every possible location for different components wouldn't be reasonable. Fasteners allow for more freedom of placement, with concealed head clinch features maintaining a continuous, level surface on the outside of the housing.

Common Attachment Technologies

On the manufacturing side, if a company has several models of prebuilt PCs, self-clinching standoffs can achieve greater placement flexibility. They can decrease tooling or assembly costs and facilitate production modifications for new designs. Broaching and surface-mounted (SMT) standoffs allow press fit or soldered attachment points for spacing an additional panel or component above a circuit board in a PCB-to-PCB junction.
