Captivated Screws for Automotive & EV Applications

Captivated Screws for Automotive & EV Applications

OEM-Grade Panel Retained Fastening Solutions

What Are Captivated Screws?

Captivated screws, also known as captive fasteners, are engineered fastening systems designed to remain permanently retained within a panel or enclosure while allowing repeated assembly and disassembly.

Unlike standard loose screws, captivated screws eliminate detached hardware, reducing the risk of:

Short circuits

Foreign object damage (FOD)

Assembly errors

Lost components during maintenance

They are widely adopted in:

EV charging stations

Battery enclosures

Automotive ECUs

Industrial electrical cabinets

Energy storage systems

Why Automotive & EV Manufacturers Choose Captivated Screws

In electric vehicle and high-voltage applications, loose hardware presents a serious safety concern. A dropped screw inside an energized enclosure can result in:

Electrical short circuits

Fire hazards

Costly recalls

Safety compliance violations

Captivated screw systems permanently retain the fastener within the cover or panel, ensuring technicians can service equipment without the risk of dropped components.

For EV charging infrastructure and battery pack assemblies, this is not optional — it is a safety requirement.

Engineering Design Options

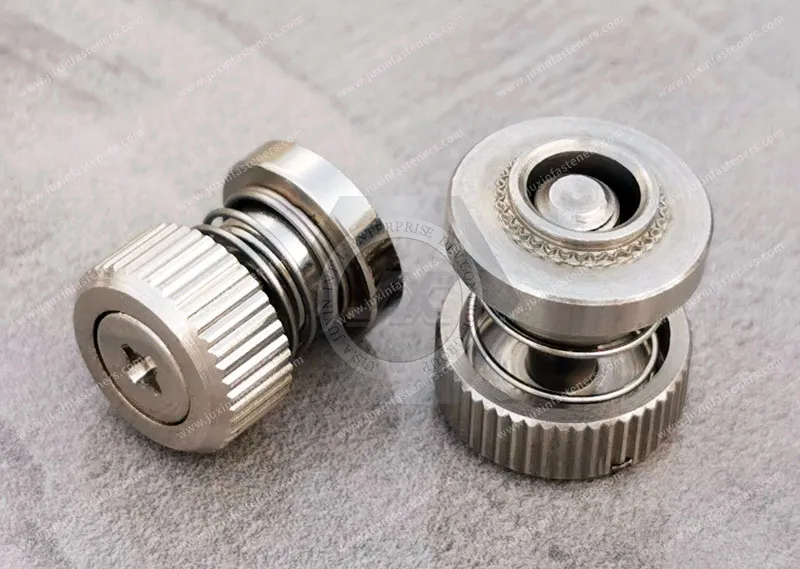

1. Tool-Less Access Designs

Knob head screws

Thumb screws

Quick-service configurations

Ideal for maintenance panels requiring frequent access.

2. Tamper-Resistant Designs

Recessed screw heads

Limited manual access

Enhanced security retention

Used in public infrastructure and safety-sensitive applications.

Attachment Technologies for Captivated Screws

Depending on panel material, thickness, and structural load requirements, captivated screws can be integrated using multiple attachment technologies.

Self-Clinching Integration

One of the most reliable attachment methods is self-clinching technology.

The retainer is pressed into ductile sheet metal, displacing material into a precision undercut, creating a permanent mechanical interlock.

Advantages:

High torque-out resistance

Strong push-out performance

No heat distortion (unlike spot welding)

Fully compatible with automated production lines

Clean and energy-efficient installation

Self-clinching assemblies.

Broaching Installation

Broaching provides strong interference locking for thicker panels or higher-load applications.

Surface Mount Technology (SMT)

For PCB-level fastening in control units and electronics, captivated fasteners may integrate with SMT processes.

Common in:

Automotive electronics

Industrial control systems

Communication equipment

Flare Mounting & Floating Designs

Flare-mounted retainers deform during installation and can accommodate materials that are difficult to clinch or broach.

Floating designs compensate for:

Tolerance stack-up

Panel misalignment

Thermal expansion

Captivated Screws vs Loose Screws: Total Cost Analysis

While loose screws may reduce initial sourcing cost, captivated screws deliver:

Lower assembly error rates

Faster technician servicing

Reduced warranty exposure

Improved electrical safety compliance

In high-volume EV production, eliminating dropped hardware dramatically improves overall manufacturing reliability.

Custom OEM Captivated Screw Solutions

As an OEM fastening manufacturer, we provide:

Custom-engineered captive screws

Build-to-print panel retained fasteners

Automotive-grade material options (Carbon steel / Stainless steel)

Zinc, zinc-nickel, and corrosion-resistant coatings

Design support for torque-out and push-out requirements

Prototype and mass production capability

We support:

Automotive Tier suppliers

EV charging system manufacturers

Energy storage integrators

Industrial equipment OEMs

Why Work With an Engineering-Driven Fastener Manufacturer?

Captivated screws are multi-component systems. Precision between the screw body, retainer geometry, and panel interface is critical.

We focus on:

Optimized undercut geometry

Controlled displacement performance

Energy-efficient installation force

High repeatability in automated production

Our goal is not just to supply fasteners — but to engineer fastening systems that improve production reliability and long-term field safety.
