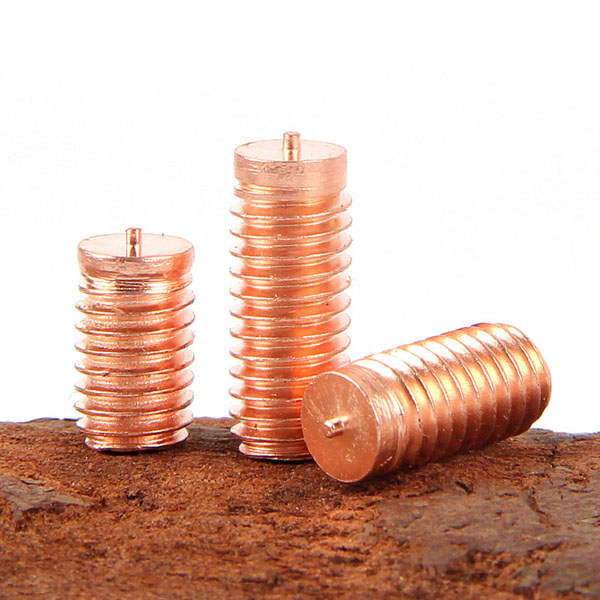

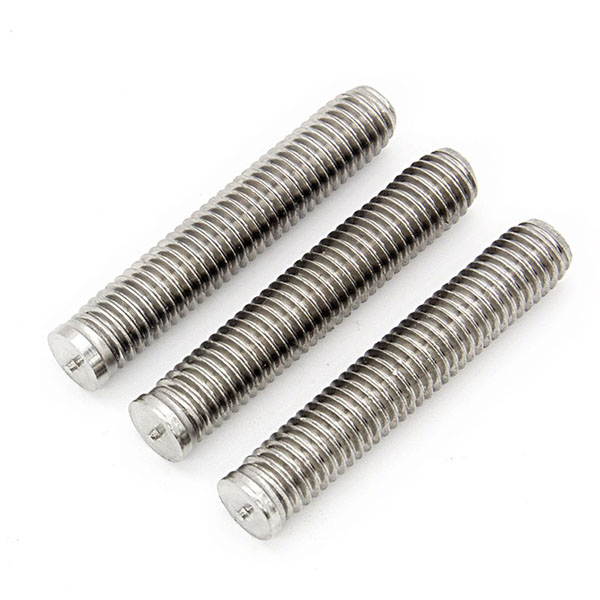

Non-Flanged CD Weld Studs

Non-Flanged CD Weld Studs – Inch / Metric

A capacitor discharge (CD) Non-Flanged Weld Stud is an ideal choice for applications that cannot use a flanged weld stud due to potential interference between the flange and the mated component. These weld studs are well-suited for welding to sheet-metal-grade material. These industrial fasteners are available from Monroe-Juxin Fasteners in a variety of materials, dimensions, and thread sizes (inch and metric).

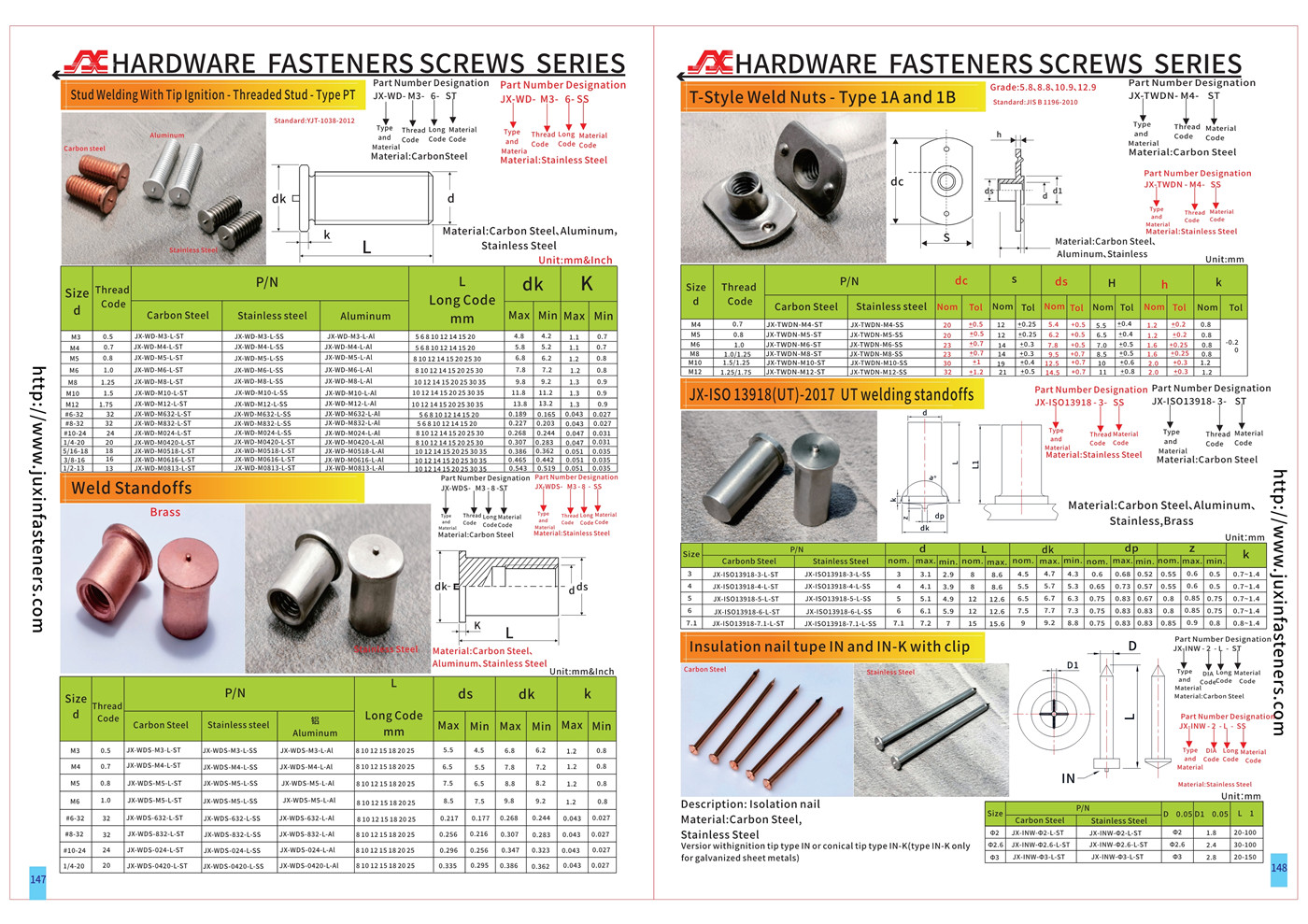

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 147-148 Page See more product details.

Non-Flanged & Flanged CD Weld Studs (Inch / Metric)

Precision Fastening Solutions for Thin Sheet Metal & High-Quality Surface Applications

In modern manufacturing environments where thin materials, aesthetic surfaces, and high-speed production are critical, CD (Capacitor Discharge) welding technology has become a preferred fastening method.

Our Non-Flanged CD Weld Studs – Inch / Metric and Flanged CD Weld Studs – Inch / Metric (CDF / ACD series) are engineered to deliver high-precision, low-distortion fastening solutions across automotive, electronics, and industrial sheet metal applications.

 What Are CD Weld Studs?

CD Weld Studs (Capacitor Discharge Weld Studs) are fasteners designed for ultra-fast welding cycles using stored electrical energy. The process delivers a complete weld in just 4–6 milliseconds, minimizing heat input and preserving material integrity.

Key Product Variants:

• Non-Flanged CD Weld Studs (Inch / Metric)

• Flanged CD Weld Studs (Inch / Metric – CDF / ACD Series)

Available Configurations:

• Thread Types: External Thread, Internal Thread, Unthreaded

• Materials:

• Stainless Steel CD Weld Studs

• Mild Steel CD Weld Studs (Copper Plated for Conductivity)

• Aluminum CD Weld Studs

• Brass CD Weld Studs

 Core Advantages of CD Weld Stud Technology

1. Ultra-Low Heat Input for Thin Materials

CD welding generates minimal thermal distortion, making it ideal for thin sheet metal (<1mm) without burn-through.

2. No Back-Side Marking

One of the biggest advantages of Non-Flanged CD Weld Studs is:

• No visible marks on the reverse side

• Maintains surface aesthetics and structural integrity

This is essential for:

• Decorative panels

• Electronic enclosures

• Automotive interior components

3. High-Speed Production Efficiency

With weld times of 4–6 milliseconds, CD studs significantly improve:

• Production throughput

• Automation compatibility

• Manufacturing consistency

4. Precision & Repeatability

Perfect for applications requiring:

• Tight tolerances

• Consistent weld quality

• Minimal post-processing

 Flanged vs Non-Flanged CD Weld Studs – How to Choose

Non-Flanged CD Weld Studs

Best for:

• Ultra-thin sheets

• Applications requiring zero backside deformation

• High cosmetic surface requirements

Typical Applications:

• PCB mounting systems

• Electronic housings

• Precision sheet metal assemblies

 Flanged CD Weld Studs (CDF / ACD Series)

Best for:

• Applications requiring increased load distribution

• Improved pull-out strength and torque resistance

Advantages:

• Flange provides larger weld area

• Enhanced mechanical stability

• Better performance under vibration

Typical Applications:

• Automotive body structures (BIW)

• Electrical cabinets

• Industrial enclosures

 Industrial Application Solutions

1. Automotive Body-in-White (BIW)

CD weld studs are widely used in automotive manufacturing, where thin steel panels require:

• High-strength fastening without deformation

• Compatibility with robotic welding systems

Solution Benefits:

• No damage to painted or coated surfaces

• Ideal for interior mounting points

• Reduced rework and improved yield

 2. Electrical Cabinets & Power Equipment

In power distribution systems, fastening reliability is critical.

Our CD Weld Stud Solution Provides:

• Strong electrical grounding (especially with copper-plated      mild steel studs)

• Clean internal layouts

• High repeatability in automated assembly lines

 3. PCB & Electronic Component Mounting

For sensitive electronics:

Non-Flanged CD Weld Studs ensure:

• Zero backside marking on thin metal sheets

• Stable mounting points for circuit boards

• No thermal damage to nearby components

 4. Sheet Metal Fabrication & Enclosures

Used extensively in:

• HVAC systems

• Industrial cabinets

• Metal structural components

Key Advantages:

• Clean external surfaces

• Reduced secondary finishing

• High-speed automated production

 Process Optimization for CD Welding

To maximize performance of CD Weld Studs, the following factors are critical:

1. Equipment Selection

• Use capacitor discharge welding machines with precise      energy control

• Ensure compatibility with stud size and material

2. Parameter Control

• Discharge voltage

• Contact pressure

• Weld time (typically 4–6 ms)

Accurate parameter tuning ensures:

• Strong weld integrity

• Consistent results across batches

3. Surface Preparation

• Clean, oxide-free surfaces

• Proper plating (e.g., copper coating for mild steel studs)      enhances conductivity

Why Choose Our CD Weld Stud Solutions?

As a professional manufacturer with 21+ years of industry experience, we provide:

• Full range of Non-Flanged & Flanged CD Weld Studs (Inch / Metric)

• Custom solutions for automotive, electronics, and industrial sectors

• Stable quality for high-volume OEM production

• Engineering support for application-specific optimization

 Keywords Strategically Integrated for SEO

• Non-Flanged CD Weld Studs Inch Metric

• Flanged CD Weld Studs Inch Metric

• Capacitor Discharge Weld Studs

• CD Stud Welding for Thin Sheet Metal

• Stainless Steel CD Weld Studs

• Copper Plated Mild Steel Weld Studs

• Automotive CD Welding Fasteners

• PCB Mounting Weld Studs

• Sheet Metal Fastening Solutions

 Conclusion

Whether your application demands aesthetic perfection, high-speed production, or precision fastening on thin materials, our Non-Flanged and Flanged CD Weld Studs (CDF / ACD Series) provide a reliable, efficient, and scalable solution.

If you are sourcing high-quality CD weld studs for automotive, electronics, or industrial sheet metal applications, our engineering team is ready to support your project with optimized fastening solutions.
