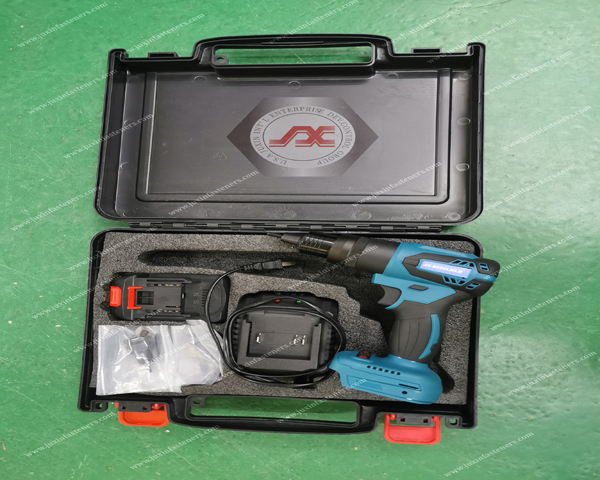

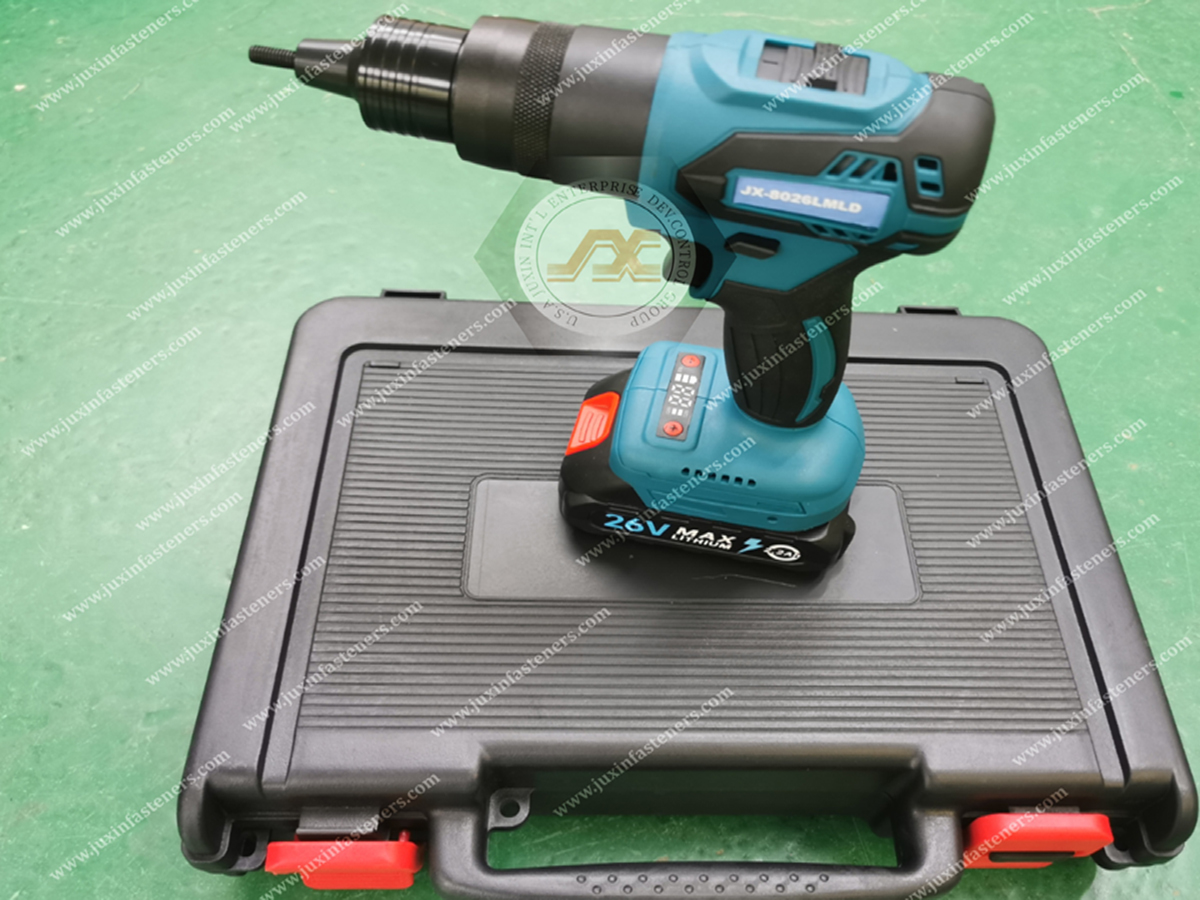

Fully Automatic Electric Rivet Nut Tool

Key Features

High-Power Brushless Motor

The industrial-grade brushless motor delivers stronga, stable pulling force, enabling efficient installation of rivet nuts up to M12.

Digital Smart Control System

The upgraded digital display control panel allows operators to adjust the pulling speed to 1-99 levels easily, ensuring precise control for different rivet nut sizes and materials.

Automatic and Manual Operation Modes

The tool supports both automatic riveting mode and manual control, allowing operators to adapt to different working conditions and installation requirements.

Modular Dual-Purpose Design

The modular design enables the tool to support both rivet nuts and blind rivets, reducing the need for multiple tools in production environments.

Quick-Change Rivet Heads

The quick-change system allows fast replacement of rivet heads for different sizes, improving work efficiency and reducing downtime during production.

High-Capacity Industrial Battery

Equipped with a 5200mAh lithium battery, the tool provides long operating time and stable power output for continuous industrial use.

Typical Applications

The fully automatic rivet nut tool is widely used in various industries:

Automotive manufacturing

Sheet metal fabrication

Electrical cabinet assembly

Mechanical equipment manufacturing

Metal furniture production

Aerospace structural assembly

Industrial equipment installation

It is particularly suitable for installing blind threaded inserts in thin metal sheets where conventional tapping is not possible.

Operating Guidelines

Stroke Adjustment in Automatic Mode

When setting the stroke in automatic mode, it is recommended to start with the loosest setting and gradually adjust according to the actual riveting condition.

Operators should maintain a consistent operating technique to ensure the rivet head fully retracts after each installation.

Lead Screw Maintenance

Before installing rivet nuts, apply a small amount of grease to the lead screw to improve durability and reduce wear.

If the lead screw shows fraying or whitening, it should be replaced immediately to prevent malfunction.

Correct Hole Size Selection

To prevent the rivet nut from rotating during installation:

Use a drill bit slightly smaller than the rivet nut diameter.

Example:

When installing an M8 rivet nut (10.9 mm outer diameter), a 10.5 mm drill bit is recommended.

This ensures a tighter fit and prevents loosening during installation.

If Rivet Nut Does Not Retract

If the rivet nut does not retract after installation, possible reasons include:

Incorrect stroke setting

Rivet nut rotating with the drill bit

In such cases:

Stop the operation immediately.

Switch the tool to the retraction mode.

Remove the rivet nut before attempting installation again.

Do not continue pulling as it may damage the tool.

Model Selection Guide

Two versions of this tool are available:

Industrial Grade Model

High-power motor

Stronger pulling force

Riveting capacity up to M12

Suitable for high-volume industrial production

Budget Model

Same functional design

Lower motor power

Riveting capacity up to M8

Suitable for light-duty applications and maintenance work.

Material Compatibility

This rivet nut tool is designed for:

✔ Aluminum Rivet Nuts

✔ Steel Rivet Nuts

Not suitable for:

✖ Stainless Steel Rivet Nuts
