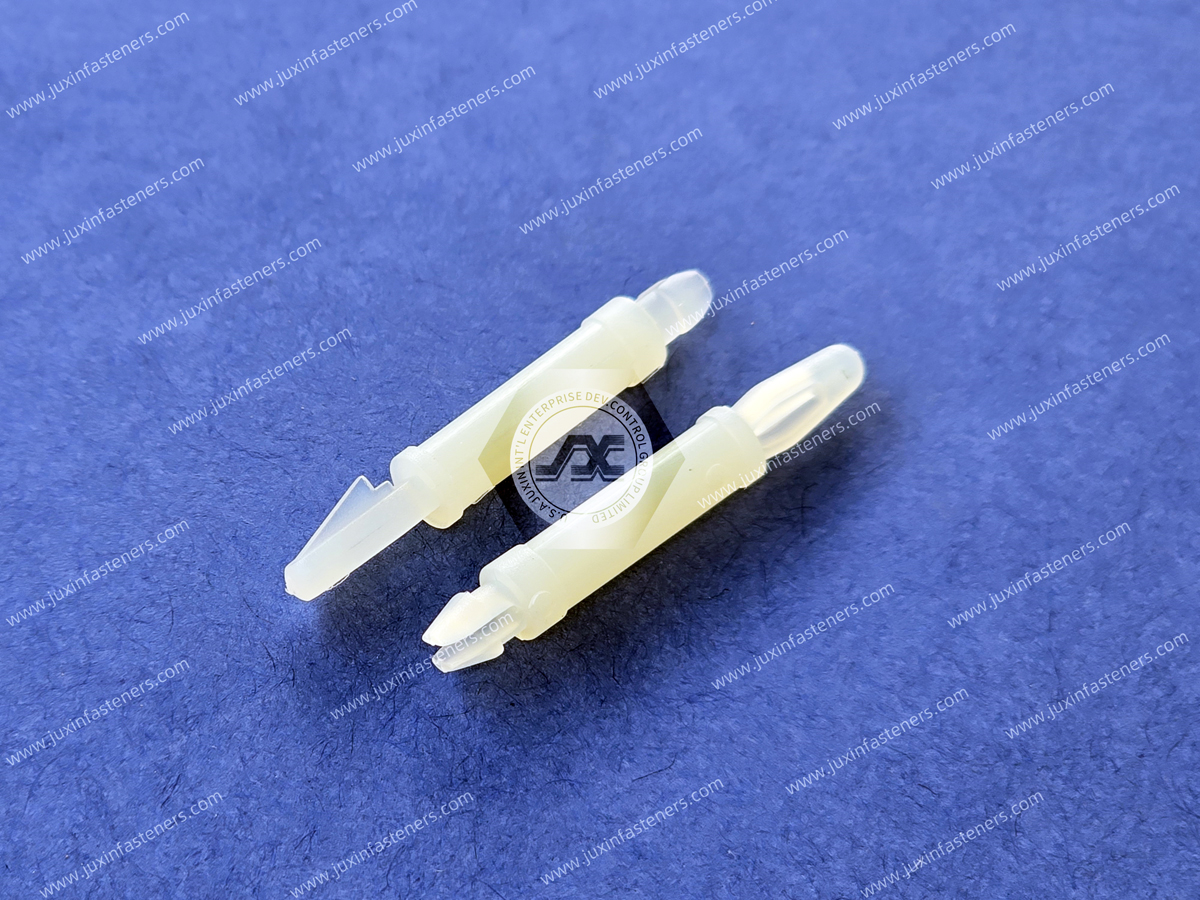

Name: Locking Circuit Board Support
Material: PC board isolation column JX-GLMSPM type. Qualified NYLON66 (natural color), fireproof level 94V-2, not easy to age, high insulation.
Usage: No tools are required, and loading and unloading by hand is easy. When using, first drill a 3.2mm hole in the base plate, fix the isolation column, and then insert the PC board.
Use: For fixing the PC board.
Top Hole: 3.18±0.08mm
Panel Thickness: 1.8mm
Bottom Hole: 4.0±0.08mm
Panel Thickness: 1.5mm
Product Specification
PCB Support - Spacer, Locking Two Prong, Bayonet, Teardrop, Spacer, Non-Locking Extended Bayonet Arrowhead, Snap Lock, Quarter Turn, Cupped.
Both ends snap and lock in place for a permanent connection. Made of nylon, these supports are excellent in terms of wear and abrasion resistance and also offer resistance to chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
Nylon 6/6 Plastic with Additive supports can be used at higher temperatures than those without an additive.
All meet UL 94 flammability standards. Supports that meet UL 94 V-0 stop burning within 10 seconds if they catch fire, and supports that meet UL 94 V-2 stop burning within 30 seconds if they catch fire.
Product Pictures
