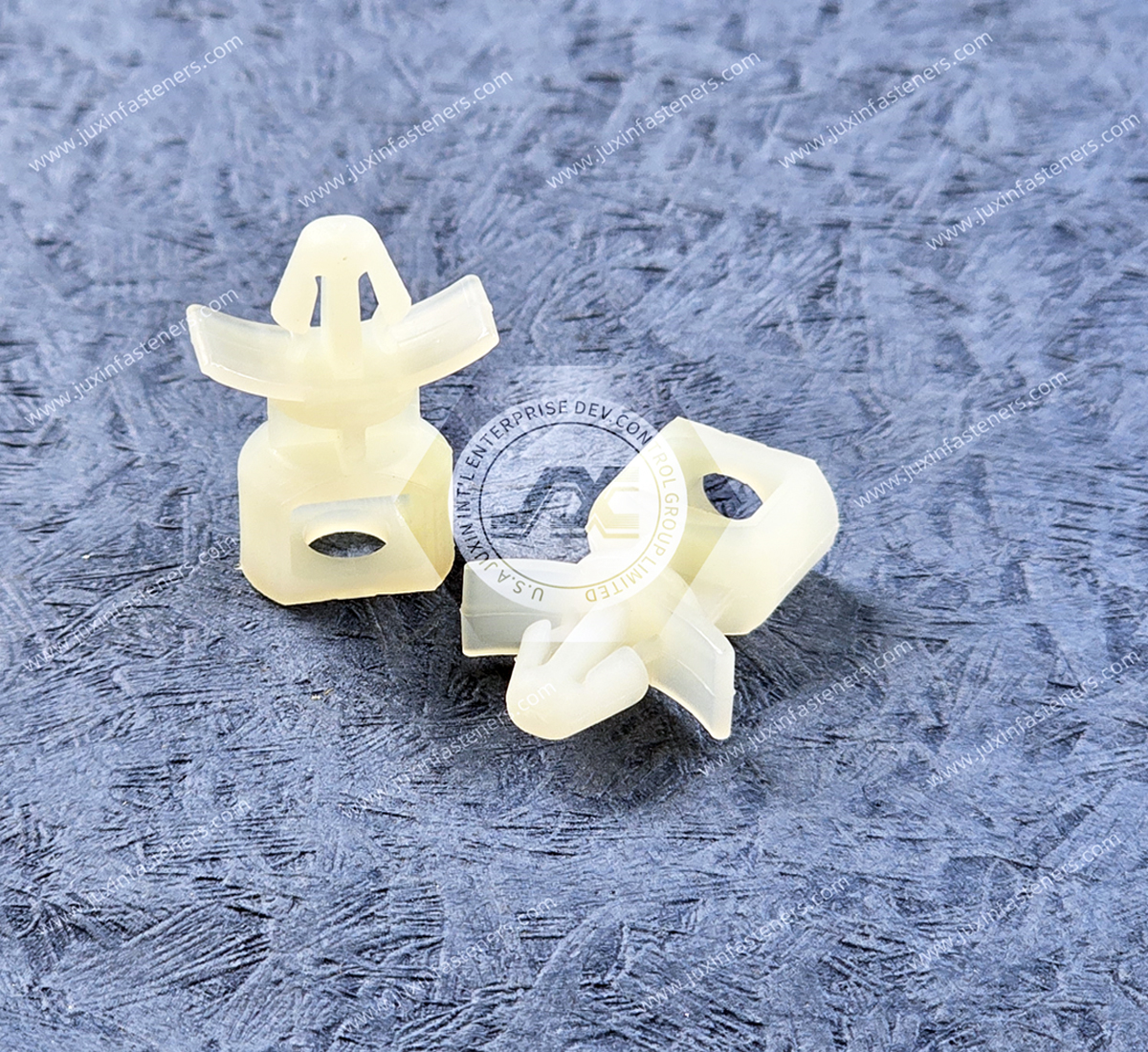

Snap Rivet Locking Circuit Board Support&Snap Rivet Locking Arrowhead Support&Snap Rivet Locking Circuit Board Support - Spacer, Mounted to the chassis with snap rivets, Bayonet Nose, Snap Lock, Arrowhead
Material: UL94 V2 Nylon 6/6, RMS-01 / Flame Ret. Nylon, RMS-19
Colour: Natural
RoHS Compliant
Download the PDF for more information and detailed drawings.
This locking circuit board support is designed to be fixed to a panel with a snap rivet from our JX-SR range. This item is manufactured from material rated UL94 V-2.
Product Specification
Circuit board supports are designed to mount on a chassis and be secured with a plastic rivet. The rivet and support can be push-fitted together quickly and easily. The rivet fits flush and has minimal protrusion under the chassis.
Material: Nylon 66.
Colour: Natural. PCB Thickness 1.6mm
Secure the self-tapping female connection with a screw; the other end snaps snugly into a board yet can be released for repairs and upgrades. Supports are nylon, which has excellent wear and abrasion resistance and offers resistance to chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
