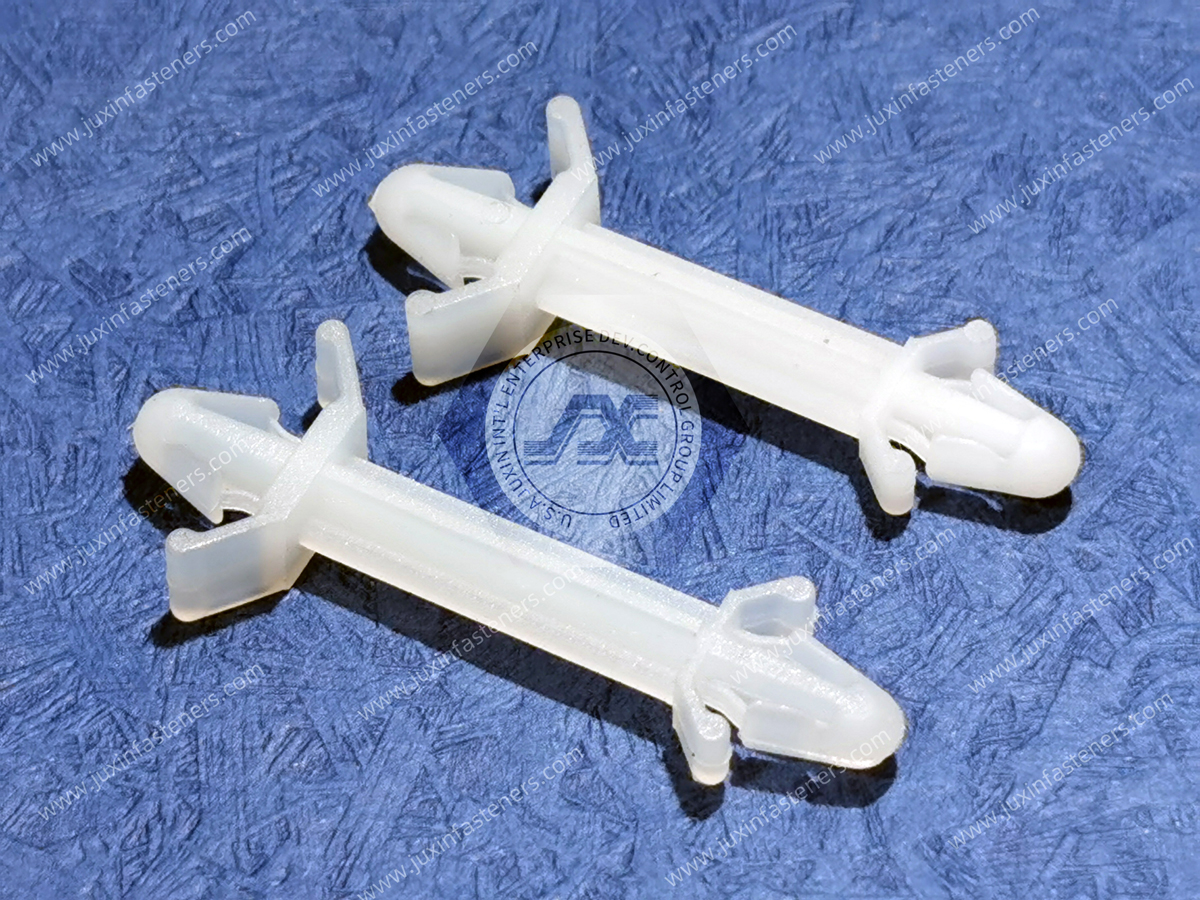

Name: Nylon Dual Locking Circuit Board Support
Material: P.C.B. board isolation column JX-CS type. Qualified NYLON66 (natural color), fire rating 94V-2, not easy to age, high degree of insulation.
Usage: It is tool-free and easy to load and unload by hand. Drill 4.8mm holes in the substrate, fix the isolation column, and put the P.C.B. board into it. The characteristics are double-lock type, strong fixing force, insertion, and not easy to come off the set.
Usage: FoP.C.B xing thP.C.B board.Spacers for snap or self-adhesive mounting. These spacers have different locking and removal designs on the head of the spacer.
Furthermore, we offer different hole diameters, lengths, and plate thicknesses.
Product Specification
Snap-In Supports&PCB Support - Spacer - with Locking Arrowhead
We offer a wide range of PCB accessories, such as Locking Spacers, Nylon Threaded Spacers, and Push Spacers, to make the assembly process simpler and faster.
Our wide range of PCB accessories offers an extensive selection of PCB Spacers, pillars, supports, and standoffs to support, lock, space, or guide the PCB board.
Discover accessories for appliances (white goods), electrical cabinets, machinery, or other equipment with PCB support.
Spacers for snap or self-adhesive mounting. These spacers have different locking and removal designs on the head of the spacer.
Furthermore, we offer different hole diameters, lengths, and plate thicknesses.
Wings add tension to strengthen the hold in a hole. The other end is releasable for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
