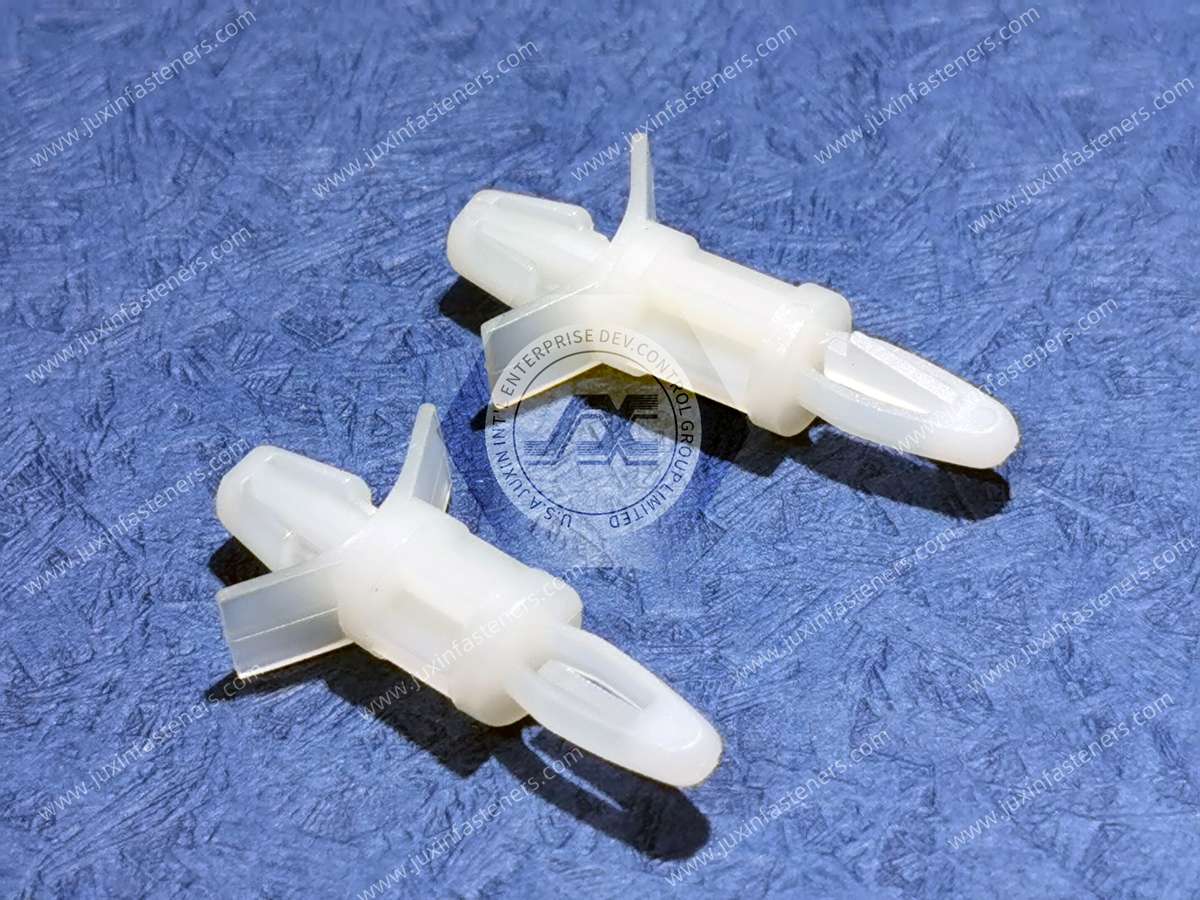

Name: Snap-In Supports JX-1101-MCS
Material: P.C. board isolation column JX-1101-MCS type. Qualified NYLON66 (natural color), fire rating 94V-2, not easy to age, high degree of insulation.
Usage: tool-free, easy to load and unload by hand. Drill holes 4.0mm and 4.8mm in the substrate, fix the isolation column, and then put the P.C. board into it.
Characteristics: Double-lock type, strong fixing force, insertion, not easy to come off the set.
Usage: For fixing the P.C. board.
Wings add tension to strengthen the hold in a hole. The other end is releasable for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
Product Specification
Material: UL-qualified NYLON66 (natural color) has a fire rating of 94V-2, has sound insulation, and is not easy to age.
Mounting: Depending on the design requirements and manufacturing process, the isolation post can be mounted on the circuit board by plug-in or surface mount method.
Electrical Characteristics: The design of the isolation post should consider the electrical characteristics to ensure effective circuit isolation and prevent electrical signals from interfering or crossing.
APPLICATIONS: PC board isolation posts are widely used in power supply modules, communication equipment, computer hardware, and other electronic devices to isolate and separate circuits.
Product Pictures
