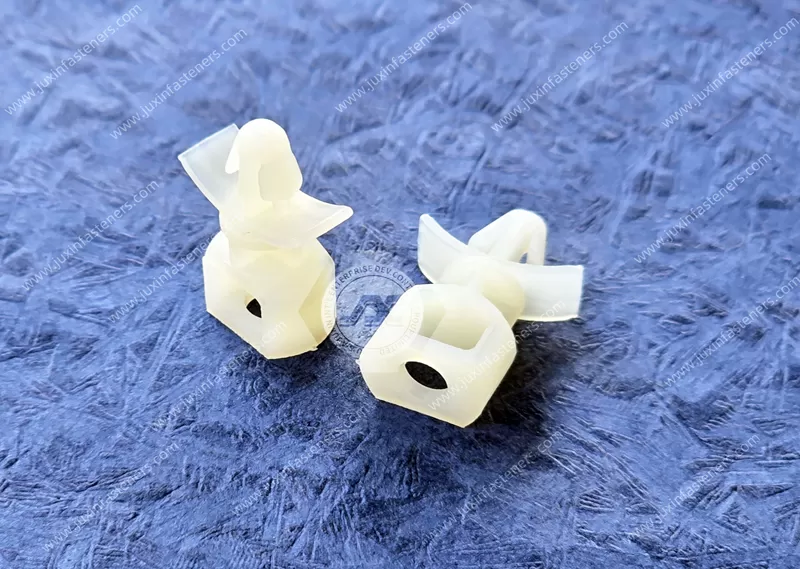

Name: Snap Rivet Locking Circuit Board Support
Material: UL-approved NYLON66 (natural color), fire rating 94V-2,
sound insulation, not easy to age.
1. Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 4.1-4.2mm
Panel Thickness: See Rivet Table
2. Top Hole: 4.75±0.08mm
Panel Thickness: 0.79-1.98mm
Bottom Hole: 4.1-4.2mm
Panel Thickness: See Rivet Table
Snap Rivet Locking Circuit Board Support - Spacer, Mounted to the chassis with snap rivets, Bayonet Nose, Snap Lock, and Arrowhead.
Spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.
Furthermore, we offer different hole diameters, lengths, and plate thicknesses.
Product Specification
These metric push-in spacers are designed to support heavily loaded circuit boards. No through hole is required in the board, allowing easy access to the underside. They have a flanged base to keep them steady.
Our range of Push Spacers is available in different lengths from 3.20mm to 22.20mm; they are suitable for use with a hole diameter of 3.18mm or 4.75mm and a panel thickness of 0.79-1.98mm. They are easy to install with a push fitting and securely grip the PCB
Product Pictures
