JUXIN FASTENERS supplies yellow zinc plated steel rivet nuts for plastic and composite panels for OEM manufacturers, structural engineers, product design teams, purchasing managers, and supplier development professionals.

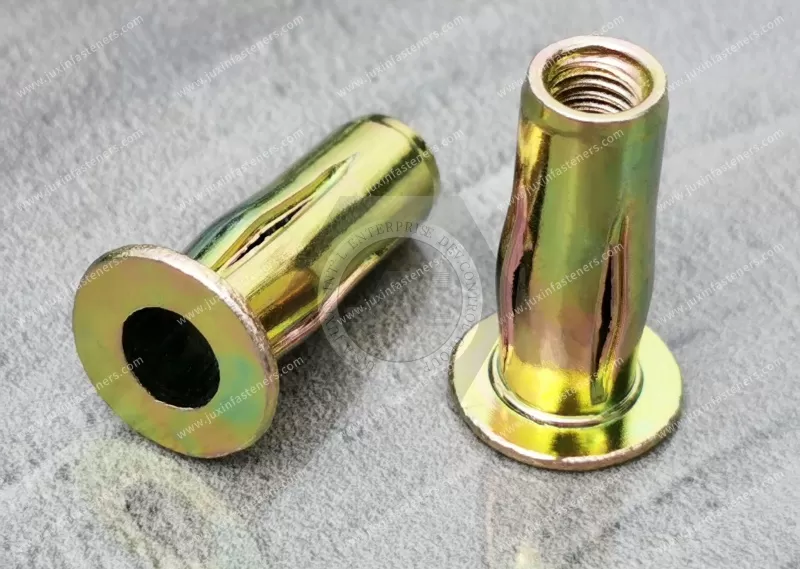

These blind threaded inserts combine a slotted bulbing body, flat-head flange, open-end internal thread, and zinc-plated steel construction.

The slotted shank is designed to expand behind the parent panel during installation, forming a broad backside bearing structure.

This geometry can help distribute axial loads over a larger area than certain conventional rivet nut configurations.

The yellow zinc finish introduces additional sourcing considerations involving plating thickness, passivation chemistry, corrosion resistance, restricted-substance compliance, and coating integrity after installation.

PRODUCT SPECIFICATIONS

Product name: Yellow Zinc Plated Steel Rivet Nuts for Plastic and Composites

Product category: Steel Special Rivet Nuts

Material: Steel

Surface finish: Yellow Zinc / Color Zinc

Head type: Flat head / Flanged head

Body type: Slotted bulbing body

End type: Open end

Metric thread sizes:

• M5

• M6

• M8

• M10

Unified inch thread sizes:

• #10-32 UNF

• 1/4-20 UNC

• 5/16-18 UNC

• 3/8-16 UNC

Product-family grip range: 0.5–7.1 mm

Approximate inch reference: 0.020–0.280 in

Installation method: One-sided blind installation

Mounting-hole type: Compatible round hole

Steel grade: Subject to confirmation

Thread tolerance class: According to approved drawing

Flange dimensions: According to approved drawing

Body diameter and length: According to approved drawing

Slot dimensions: According to approved drawing

Installed backside expansion: Subject to installation validation

Coating thickness: Subject to approved specification

Passivation chemistry: Subject to confirmation

Corrosion resistance: Subject to specified test method and acceptance criteria

Mechanical retention: Subject to product-specific testing

The stated grip range represents the product family. The approved grip range for each thread size and body configuration must be confirmed against the selected drawing.

ENGINEERING DESIGN AND MATERIAL SELECTION

1. What Are Yellow Zinc Rivet Nuts for Plastic and Composites?

These are steel blind threaded inserts designed for installation into suitable plastic and composite panels.

They provide reusable internal threads without requiring access to the rear side during installation.

The yellow zinc finish is applied to the steel insert as part of the specified surface-treatment system.

The slotted bulbing body provides the principal mechanical feature distinguishing this product from many conventional rivet nuts.

2. How the Slotted Bulbing Body Works

The body incorporates longitudinal slots.

During setting, the slotted sections expand outward behind the parent panel.

This creates a backside bearing structure that helps retain the insert.

The final expansion depends on:

• Slot geometry

• Body diameter

• Body wall thickness

• Steel grade

• Grip thickness

• Installation stroke or force

• Parent-material properties

The installation process must produce the intended expansion without damaging the internal thread or parent panel.

3. Why Backside Load Distribution Matters

Plastic and composite panels may be vulnerable to localized compressive stress.

A narrow bearing area can create concentrated loading around the mounting hole.

The expanded slotted body may provide a broader backside contact area.

This can potentially reduce local bearing pressure.

However, a larger bearing footprint does not automatically establish higher pull-out strength or eliminate material damage.

The complete assembly must be tested.

4. Plastic Crushing and Local Deformation

Plastic crushing can occur when local compressive stress exceeds the material's capacity.

Installation damage may also result from excessive setting force or unsuitable hole geometry.

Engineers should consider:

• Plastic material grade

• Panel thickness

• Local compressive strength

• Temperature

• Installation force

• Backside bearing area

• Hole quality

The slotted bulbing design can help distribute load but cannot guarantee that crushing will not occur.

5. Plastic Creep Under Sustained Loading

Many polymers exhibit time-dependent deformation under sustained stress.

This behavior can affect the installed joint by changing local contact pressure or allowing gradual deformation around the insert.

Relevant factors include:

• Polymer type

• Operating temperature

• Sustained load

• Installation deformation

• Service duration

• Environmental exposure

For long-term applications, short-term pull-out testing alone may be insufficient.

6. Fiberglass-Reinforced Plastic Applications

Fiberglass-reinforced plastic, or FRP, is used in various industrial housings, covers, and structural panels.

A slotted bulbing rivet nut may be considered where a reusable threaded connection is required.

However, FRP properties depend on reinforcement, resin, laminate construction, and manufacturing process.

Installation should be evaluated for:

• Local crushing

• Cracking

• Delamination

• Hole damage

• Axial retention

• Long-term loading

No universal FRP compatibility is assumed.

7. Carbon-Fiber Composite Applications

Carbon-fiber-reinforced polymer panels require particular attention to local bearing loads, laminate damage, and galvanic compatibility.

A zinc-plated steel insert may introduce corrosion concerns when electrically connected to carbon fibers in the presence of an electrolyte.

Suitable isolation or protective measures may be necessary.

The insert should not be approved solely because the bulbing body creates a larger bearing area.

8. Sandwich Panel Considerations

Some composite panels use a lightweight core between stronger face sheets.

These structures behave differently from solid laminates.

Installation may cause:

• Core crushing

• Face-sheet indentation

• Delamination

• Local buckling

• Loss of retention

A slotted bulbing rivet nut may not be appropriate for every sandwich panel.

The complete panel construction and fastening method must be evaluated.

9. Slotted Bulbing Body vs. Conventional Rivet Nuts

Conventional rivet nuts generally form a localized retaining bulge behind the parent panel.

Slotted bulbing designs are intended to create an expanded backside structure.

Potential differences include:

• Bearing footprint

• Installation stroke

• Deformation pattern

• Grip range

• Axial retention

• Rotational retention

• Tool compatibility

The correct configuration depends on the actual parent material and loading requirements.

10. Slotted Bulbing Body vs. Heat-Set Inserts

Heat-set inserts are typically installed into suitable thermoplastic materials using controlled heating.

The surrounding plastic softens and flows around designated retention features.

Slotted bulbing rivet nuts use a mechanical blind installation process.

The two products differ in installation method, parent-material requirements, retention mechanism, tooling, and qualification testing.

A slotted bulbing rivet nut should not be described as a standard heat-set insert.

11. Slotted Bulbing Body vs. Mold-In Inserts

Mold-in inserts are positioned within a mold before or during the molding process.

The molded material surrounds the insert to establish retention.

A blind rivet nut is generally installed after the parent component has been manufactured.

The appropriate fastening method depends on manufacturing sequence, material, mechanical requirements, and production cost.

12. Mounting-Hole Preparation

These rivet nuts are installed into compatible round holes.

Depending on the parent material, holes may be drilled, punched, machined, or produced by another approved method.

The hole must meet the dimensional and quality requirements of the selected insert.

For plastics and composites, hole preparation should avoid excessive damage.

The approved drawing should define:

• Hole diameter

• Hole tolerance

• Hole edge condition

• Burr limits

• Panel thickness

• Hole position

13. Drilled vs. Punched Holes

Drilled holes may be appropriate for many plastic and composite panels.

Punching may be appropriate for certain sheet materials where the process does not cause unacceptable damage.

However, punching is not suitable for every composite laminate.

The hole-making process should be selected according to the material and manufacturing requirements.

14. Hole Edge Damage and Delamination

Poor hole preparation can reduce the strength of the parent material around the insert.

For composite panels, drilling may produce fiber damage or delamination if the process is not controlled.

For plastics, unsuitable cutting conditions may produce cracking, melting, or dimensional defects.

The hole quality should be inspected before installation.

15. Grip Range: 0.5–7.1 mm

This product family is specified with a grip range of 0.5–7.1 mm.

The approved grip range for each thread size must be confirmed.

Grip range refers to the parent-material thickness accommodated by the selected insert.

Installation outside the approved range may affect the intended backside expansion and retention.

16. Backside Clearance

The expanded body requires sufficient space behind the panel.

Engineers should verify:

• Axial clearance

• Radial clearance

• Nearby ribs

• Adjacent components

• Internal structures

• Mating screw projection

A rivet nut may fit into the hole before installation but interfere with surrounding components after setting.

17. Edge Distance and Hole Spacing

The expanded backside geometry requires adequate surrounding material.

If the mounting hole is too close to a panel edge or another opening, the parent material may crack or deform.

The required edge distance depends on insert geometry, installed bearing footprint, parent material, panel thickness, applied loading, and nearby cutouts.

No universal minimum edge distance is assumed.

18. Flat Head Flange

The flat-head flange provides a bearing surface against the accessible side of the panel.

It helps support the insert around the mounting hole.

The flange dimensions influence bearing contact, head projection, local panel loading, axial retention, and assembly stack height.

19. Open-End Construction

The open-end barrel allows the mating screw to extend through the insert where sufficient backside clearance is available.

This provides flexibility in screw-length selection.

However, the screw tip must not interfere with internal components.

Open-end construction does not inherently provide environmental sealing.

20. Metric Thread Options

Available metric thread sizes include:

• M5

• M6

• M8

• M10

Metric thread compatibility should be verified using the applicable ISO requirements.

The exact pitch and tolerance class should be confirmed against the approved drawing.

21. Unified Inch Thread Options

Available Unified inch-thread sizes include:

• #10-32 UNF

• 1/4-20 UNC

• 5/16-18 UNC

• 3/8-16 UNC

These sizes are relevant to OEM programs using Unified inch-thread systems.

The internal thread must match the intended mating screw.

Metric and UNC/UNF threads are not directly interchangeable.

22. Thread Strength and Tightening Torque

The allowable tightening torque depends on the complete joint.

Relevant factors include steel grade, thread size and pitch, mating screw material, thread engagement, friction conditions, insert retention, and parent-material strength.

A torque specification developed for a conventional steel nut should not automatically be applied to a blind rivet nut.

23. Pull-Out Resistance

Pull-out resistance concerns the axial force required to remove the installed insert under a defined test arrangement.

For plastic and composite panels, failure may involve:

• Parent-material cracking

• Local crushing

• Delamination

• Insert displacement

• Slotted-section deformation

• Flange pull-through

The governing failure mode depends on the application.

No numerical pull-out rating is claimed without supporting test data.

24. Push-Out Resistance

Push-out resistance concerns displacement of the installed insert in the opposite axial direction under a defined test arrangement.

The result depends on insert geometry, parent material, panel thickness, hole dimensions, installation parameters, and test method.

Pull-out and push-out performance should be evaluated separately where relevant.

25. Spin-Out Resistance

Spin-out resistance describes the installed insert's resistance to rotation within the mounting hole.

For slotted bulbing rivet nuts, rotational retention depends on the body geometry, hole fit, parent material, and installation conditions.

Where defined spin-out resistance is required, the selected insert should be tested.

26. Insert Spin-Out vs. Screw Loosening

Insert spin-out and screw loosening are separate engineering concerns.

Spin-out occurs when the rivet nut rotates within the parent panel.

Screw loosening occurs when the mating screw loses its intended clamping condition or rotates relative to the internal thread.

The slotted bulbing body does not automatically prevent screw loosening under vibration.

27. Installation Tooling

These rivet nuts are installed using compatible blind rivet nut setting tools.

Manual, pneumatic, or battery-powered tools may be appropriate depending on the product and production requirements.

Tool selection should consider:

• Thread size

• Insert geometry

• Steel grade

• Setting force

• Setting stroke

• Production volume

• Operator access

The tool must be compatible with the selected insert.

28. Installation Stroke and Force Control

The setting process must produce the intended backside expansion without damaging the parent material.

Excessive force or stroke may cause crushing, cracking, or other damage.

Insufficient setting may reduce retention.

Production parameters should be validated using representative panels.

29. Under-Setting and Over-Setting

Under-setting may produce insufficient backside expansion and reduced retention.

Over-setting may damage the slotted sections, internal thread, or parent material.

The correct setting parameters depend on insert geometry, steel grade, panel thickness, parent-material strength, and installation tooling.

30. Yellow Zinc Plating

Yellow zinc plating is a zinc-based protective finish applied to steel components.

The yellow appearance is generally associated with a conversion-coating or passivation system.

However, color alone does not establish the exact chemistry or corrosion performance.

The approved coating specification should identify:

• Zinc coating type

• Coating thickness

• Passivation chemistry

• Sealant or topcoat, if required

• Appearance requirements

• Corrosion-test method

• Acceptance criteria

• Restricted-substance requirements

31. Yellow Zinc vs. Blue Zinc

Yellow zinc and blue zinc finishes may differ in appearance and conversion-coating chemistry.

However, appearance alone does not establish which coating provides better corrosion resistance.

The actual performance depends on coating thickness, passivation, sealant, surface preparation, exposure conditions, and coating damage during installation.

For OEM sourcing, the coating system should be specified by measurable requirements rather than color alone.

32. Zinc-Yellow-Chromate-Plated Steel

Zinc-yellow-chromate-plated steel is a commonly recognized description in industrial fastening catalogs.

However, the exact conversion-coating chemistry and restricted-substance status must be verified.

Traditional yellow chromate systems may contain hexavalent chromium.

Where RoHS compliance is required, the approved coating specification and supporting documentation must establish compliance.

A yellow appearance alone does not determine whether the coating is compliant.

33. RoHS Compliance and Coating Documentation

RoHS compliance is not established by the color of the zinc finish.

The applicable restricted-substance requirements must be identified.

Procurement teams should request appropriate supplier declarations or test documentation where required.

The coating specification should distinguish between appearance requirements and chemical compliance requirements.

34. Coating Integrity After Bulbing

The installation process involves plastic deformation of the slotted sections.

This deformation may affect the coating in areas of high local strain.

For corrosion-sensitive applications, engineers should consider:

• Coating ductility

• Deformation geometry

• Installation process

• Exposed steel after setting

• Environmental exposure

Where necessary, corrosion testing should use installed components rather than only uninstalled fasteners.

35. Corrosion Protection in Humid Environments

Zinc coatings are commonly used to protect steel components against corrosion.

However, performance depends on the complete coating system and exposure conditions.

Relevant factors include:

• Coating thickness

• Passivation

• Sealant

• Humidity

• Salt exposure

• Chemical exposure

• Mechanical abrasion

• Installation damage

No universal salt-spray duration or service-life claim is made without supporting test data.

36. Hydrogen Embrittlement Risk

Electroplating processes can introduce hydrogen into susceptible steel fasteners.

The risk depends on steel strength, hardness, tensile stress, and processing conditions.

For higher-strength or hardened steel components, the coating process should be reviewed against applicable requirements.

ISO 4042 addresses electroplated fastener coating systems and hydrogen embrittlement considerations.

37. Galvanic Corrosion and Dissimilar Materials

Zinc-plated steel inserts may be installed in assemblies containing aluminum, carbon-fiber composites, or other materials.

Where dissimilar conductive materials are electrically connected in the presence of an electrolyte, galvanic corrosion may occur.

The complete assembly should be reviewed for corrosion compatibility.

38. Long-Term Service Performance

Long-term performance depends on more than the initial installation.

Relevant factors include:

• Sustained load

• Temperature

• Humidity

• Parent-material creep

• Vibration

• Repeated maintenance

• Corrosion

• Mechanical fatigue

Where the application is critical, qualification should include the relevant service conditions.

INDUSTRIAL APPLICATIONS AND OEM FASTENING SOLUTIONS

Plastic Equipment Housings

Potential applications include industrial equipment housings, protective covers, and removable panels.

The slotted bulbing body may help distribute backside loads in suitable plastic materials.

Composite Equipment Panels

Potential applications include selected fiberglass-reinforced and other composite panels requiring reusable threaded fastening points.

Installation must be validated for laminate damage and retention.

Commercial Vehicle Components

Potential applications include selected non-critical composite panels, interior equipment housings, and serviceable covers.

Vibration, corrosion, and mechanical retention requirements must be evaluated.

Agricultural Machinery

Potential applications include equipment covers, fabricated panels, and protective housings.

The coating system should be selected according to the expected exposure environment.

Industrial Machinery and Automation

Potential applications include machine covers, protective guards, access panels, and equipment housings.

The selected insert should be qualified for the actual parent material and service loading.

HVAC and Appliance Equipment

Potential applications include equipment cabinets, plastic housings, and serviceable mounting structures.

Installation consistency and long-term retention should be verified.

Transportation Equipment

Potential applications include selected non-safety-critical interior panels and equipment enclosures.

Vibration, fatigue, and environmental requirements must be reviewed.

ENGINEERING DECISION: WHEN IS A YELLOW ZINC SLOTTED BULBING RIVET NUT THE WRONG CHOICE?

A yellow zinc slotted bulbing rivet nut may not be the best solution when:

• The parent material cannot support the installation loads

• The panel is susceptible to unacceptable crushing or delamination

• Backside clearance is insufficient

• The installation tool is incompatible

• The required rotational retention has not been validated

• The application requires a flush or recessed head

• The panel construction is unsuitable for the expansion geometry

• Long-term creep creates unacceptable risk

• The coating system does not meet the environmental requirements

• The required restricted-substance compliance cannot be demonstrated

In these cases, alternative fastening methods or material and coating systems should be evaluated.

OEM ENGINEERING SELECTION CHECKLIST

Before approving a yellow zinc plated steel rivet nut for plastic or composite panels, confirm:

• Required metric or Unified inch thread size

• Steel grade and hardness

• Parent material and panel construction

• Panel thickness

• Approved grip range

• Mounting-hole diameter and tolerance

• Hole edge condition

• Flange dimensions

• Body and slot dimensions

• Installed backside expansion

• Available backside clearance

• Mating screw material and length

• Required thread engagement

• Installation tool compatibility

• Setting stroke or force

• Required pull-out and push-out resistance

• Required spin-out resistance

• Tightening torque requirements

• Yellow zinc coating specification

• Coating thickness

• Passivation chemistry

• Corrosion requirements

• Restricted-substance compliance requirements

• Environmental exposure

• Inspection and traceability requirements

ENGINEERING STANDARDS AND TECHNICAL VERIFICATION

Product selection should be based on the approved dimensional drawing and the requirements of the intended assembly.

Applicable ISO metric thread standards may include ISO 261 and ISO 965 where relevant.

Unified inch threads should be specified according to applicable ASME B1.1 requirements.

ISO 4042 addresses electroplated coating systems for fasteners, including zinc-based coatings and hydrogen embrittlement considerations.

Where applicable, the OEM should define coating requirements using the appropriate ISO, EN, ASTM, or other recognized technical specification.

Corrosion testing may be specified using an appropriate method such as ISO 9227 or ASTM B117, together with agreed exposure conditions and acceptance criteria.

A test method alone does not establish a required corrosion-performance rating.

Metric and UNC/UNF thread systems are not directly interchangeable.

No specific certification, mechanical performance value, coating performance, or standard conformity should be assumed without supporting documentation.

OEM PROCUREMENT AND SUPPLIER QUALIFICATION

For purchasing managers and supplier development teams, yellow zinc plated steel rivet nuts for plastic and composites require careful dimensional, material, coating, and installation comparison before supplier substitution.

Two products described as M6 yellow zinc slotted bulbing rivet nuts may differ in:

• Steel grade

• Slot geometry

• Body dimensions

• Flange dimensions

• Mounting-hole requirements

• Grip range

• Installation parameters

• Backside expansion

• Thread strength

• Coating thickness

• Passivation chemistry

• Corrosion performance

• Mechanical retention performance

These differences may affect assembly compatibility and joint reliability.

Before approving an alternative supplier, procurement teams should compare complete dimensional drawings, material specifications, coating requirements, and representative installation test results.

For recurring OEM programs, inspection criteria, traceability, packaging requirements, annual demand, and delivery expectations should be established during sourcing.

TOTAL INSTALLED COST CONSIDERATIONS

For OEM procurement, the rivet nut purchase price is only one component of the installed cost.

The total installed cost may include:

• Rivet nut purchase price

• Mounting-hole preparation

• Installation tooling

• Installation cycle time

• Inspection

• Rework

• Scrap risk

• Coating requirements

• Supplier qualification

• Inventory management

Where improved backside load distribution is required, a slotted bulbing configuration may justify additional qualification or tooling requirements.

CUSTOM OEM YELLOW ZINC RIVET NUT RFQ REQUIREMENTS

Please provide:

• 2D drawing or 3D CAD model

• Required metric or Unified inch thread size

• Steel grade and hardness requirements

• Parent material and panel thickness

• Mounting-hole diameter and tolerance

• Flange diameter and thickness

• Body and slot dimensions

• Approved grip range

• Available backside clearance

• Mating screw material and length

• Installation method and tooling requirements

• Required axial and rotational retention

• Tightening torque requirements

• Yellow zinc coating specification

• Coating thickness and corrosion requirements

• Passivation chemistry requirements

• Restricted-substance documentation requirements

• Inspection and traceability requirements

• Prototype or production quantity

• Estimated annual demand

• Delivery destination

JUXIN FASTENERS supports drawing-based technical reviews and OEM sourcing discussions for yellow zinc plated steel rivet nuts for plastic and composites and related custom threaded fastening components.

Final dimensions, steel grade availability, coating specifications, installation compatibility, mechanical performance, and inspection requirements should be confirmed before production approval.

RELATED FASTENING SOLUTIONS

Steel Rivet Nuts for Plastic and Composites – Blue Zinc Slotted Bulbing Body

An alternative surface-finish configuration for suitable plastic and composite assemblies.

Stainless Steel Rivet Nuts for Plastic and Composites – Slotted Body

An alternative material configuration where stainless steel is required.

Steel Flat Head Open-End Slotted Shank Blind Rivet Nuts

A related steel slotted-body configuration for general OEM panel fastening applications.

Steel Flat Head Open-End Square Body Blind Rivet Nuts

An alternative where geometric anti-rotation engagement with a square mounting hole is required.

Aluminum Flat Head Open-End Knurled Round Body Blind Rivet Nuts

An alternative where lightweight construction and compatible round-hole installation are preferred.

REQUEST AN OEM QUOTATION

Looking for yellow zinc plated steel rivet nuts for plastic and composites in M5, M6, M8, M10, #10-32, 1/4-20, 5/16-18, or 3/8-16?

Send JUXIN FASTENERS your engineering drawings, parent-material specifications, panel thickness, mounting-hole dimensions, installation requirements, yellow zinc coating specifications, and estimated purchasing quantities.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com

JUXIN FASTENERS – Industrial Blind Rivet Nuts and Custom OEM Fastening Solutions.

Packaging and Delivery – Yellow Zinc Plated Steel Rivet Nuts for Plastic and Composites

JUXIN FASTENERS reviews packaging arrangements according to product dimensions, order quantities, handling conditions, and OEM purchasing requirements.

Packaging Requirements

• Material: Steel

• Surface finish: Yellow Zinc / Color Zinc, subject to approved specification

• Metric thread sizes: M5, M6, M8, M10

• Unified inch thread sizes: #10-32 UNF, 1/4-20 UNC, 5/16-18 UNC, 3/8-16 UNC

• Product-family grip range: 0.5–7.1 mm

• Packaging quantity: Subject to order confirmation

• Inner packaging: According to approved packing instructions

• Outer packaging: According to shipment requirements

• Product identification: Part number, thread designation, steel grade, and coating specification as required

• Batch identification: According to agreed traceability requirements

• Custom packaging: Subject to technical and commercial confirmation

Packaging Protection

Yellow zinc plated steel slotted bulbing rivet nuts should be protected from unnecessary mechanical damage, flange deformation, thread contamination, and coating damage during handling, storage, and transportation.

Particular attention should be given to preserving the slotted-body geometry, flange dimensions, and internal thread condition.

Where appearance or coating integrity is specified, appropriate protection should be agreed upon before shipment.

Metric and Unified inch-thread products should be clearly identified and segregated to reduce the risk of assembly mix-ups.

OEM Supply and Documentation

For recurring OEM programs, packaging quantities, labeling, inspection documentation, coating records, material records, and delivery arrangements should be agreed upon before shipment.

Final packaging specifications are confirmed according to the approved purchase order.

For OEM packaging requirements and quotations, contact info@juxinfasteners.com.

Website: www.juxinfasteners.com
