Internal Tooth Lock Washers: Features, Installation, and Industrial Applications

Internal tooth lock washers are critical fastener components designed to prevent loosening of bolts and nuts in high-vibration environments. Widely used across automotive, machinery, construction, petroleum, and shipping industries, these washers ensure mechanical stability, safety, and reliability in demanding applications.

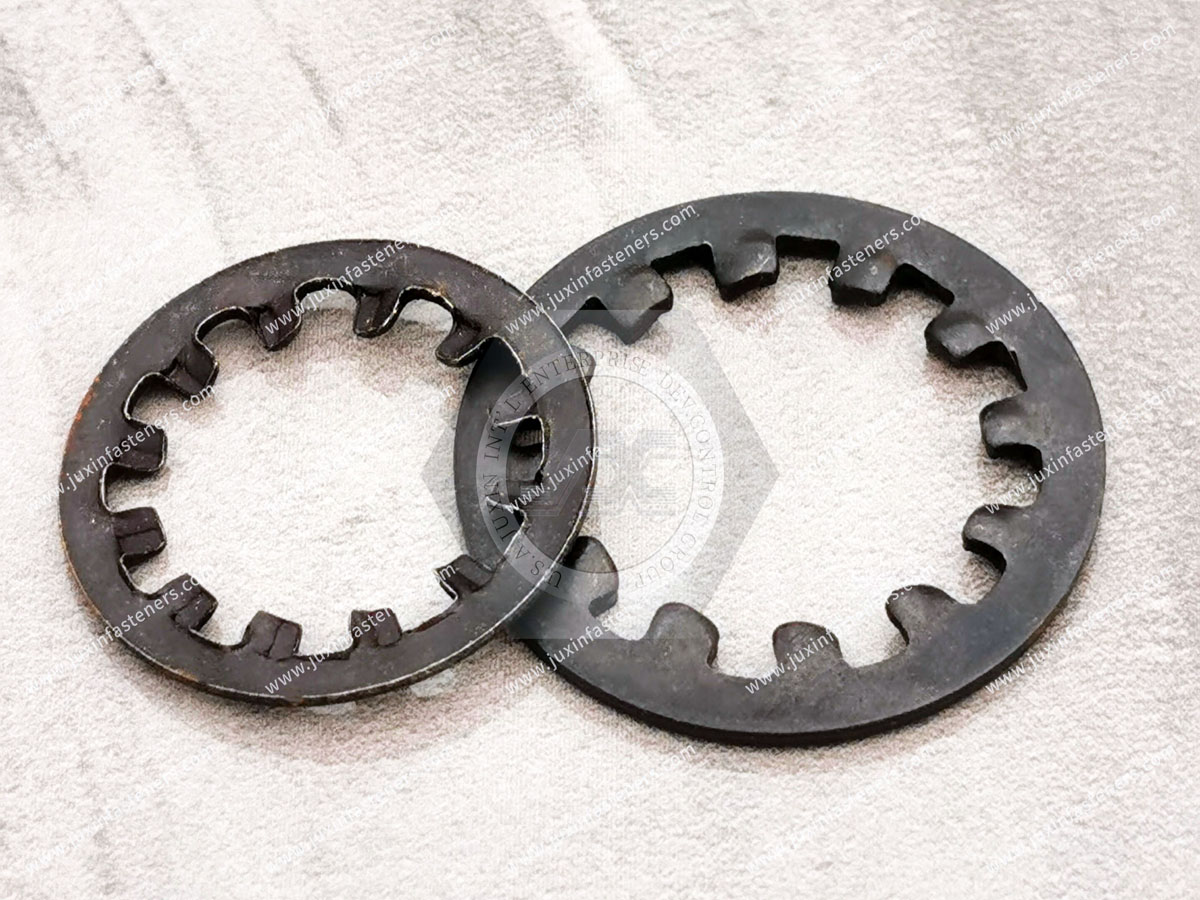

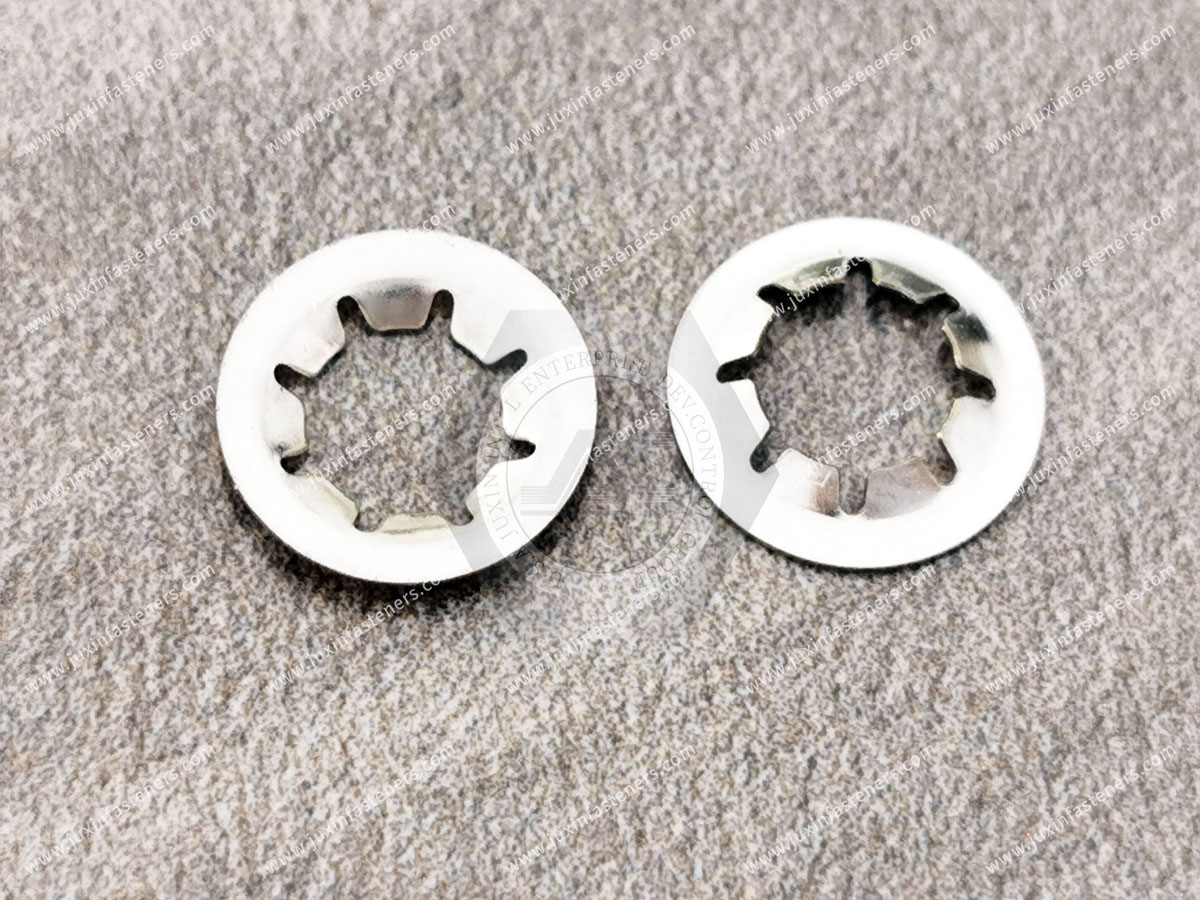

Structure of Internal Tooth Lock Washers

Internal tooth lock washers consist of three main components:

1. Washer Body – Typically made from carbon steel or stainless steel, with a composite surface coating for excellent corrosion and wear resistance.

2. Inner Teeth – Round metal teeth designed to engage bolts and nuts, providing a secure grip to prevent rotation and slippage.

3. Clamping Pin – A high-strength metal pin that firmly secures the washer body and inner teeth,  forming a robust locking structure for industrial fasteners.

This design ensures long-term performance and anti-loosening functionality in industrial assemblies.

 Working Principle of Internal Tooth Lock Washers

The inner teeth engage with the fastener head, while the clamping pin secures the washer body, creating a locked assembly. This prevents:

• Rotational loosening due to vibrations

• Axial displacement under shock loads

• Wear or sliding of the washer in dynamic conditions

By maintaining constant contact and friction, these washers provide reliable anti-loosening protection for critical connections.

 Key Advantages

• Quick and Easy Installation – Clamping structure reduces installation time and labor costs.

• Safety and Reliability – Prevents sliding or loosening under high vibration or rotational stress.

• Corrosion Resistance – Carbon or stainless steel with surface treatment ensures durability in harsh environments.

• Abrasion Resistance – Composite  surface prevents wear, extending the service life of both washers and fasteners.

Applications Across Industries

Internal tooth lock washers are essential in environments requiring high reliability and vibration resistance:

• Automotive Industry – Engines, gearboxes, wheels, and exhaust systems.

• Industrial Machinery – Conveyor systems, gear assemblies, and heavy equipment.

• Petroleum and Shipping – Mechanical connections exposed to vibration, shock, and harsh conditions.

• Construction – Structural steel connections, mechanical assemblies, and equipment fasteners.

 Installation Guidelines

Proper installation ensures maximum performance:

1. Inspection Before Installation – Check for surface damage or loose teeth.

2. Clamping Assembly – Secure the clamping pin and inner teeth tightly to the washer body.

3. Check Tightness – Confirm that the washer teeth engage fully and the washer body is intact.

 Maintenance Recommendations

Regular maintenance prolongs service life:

• Inspection – Regularly check clamping pin, teeth, and washer body.

• Cleaning – Use neutral cleaners; avoid strong acids or alkalis.

• Lubrication – Apply grease according to national standards to protect surfaces.

• Proper Handling – Avoid mechanical impact or excessive stretching during maintenance.

Why Choose Juxin Fasteners

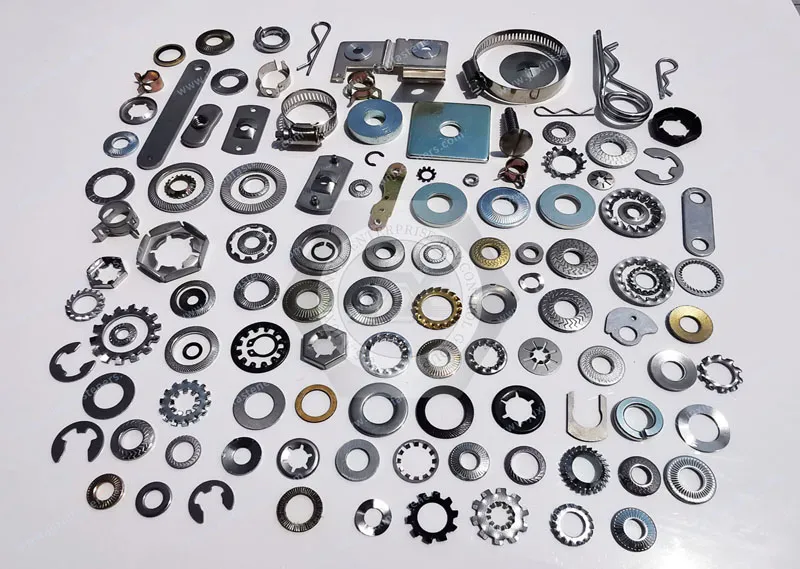

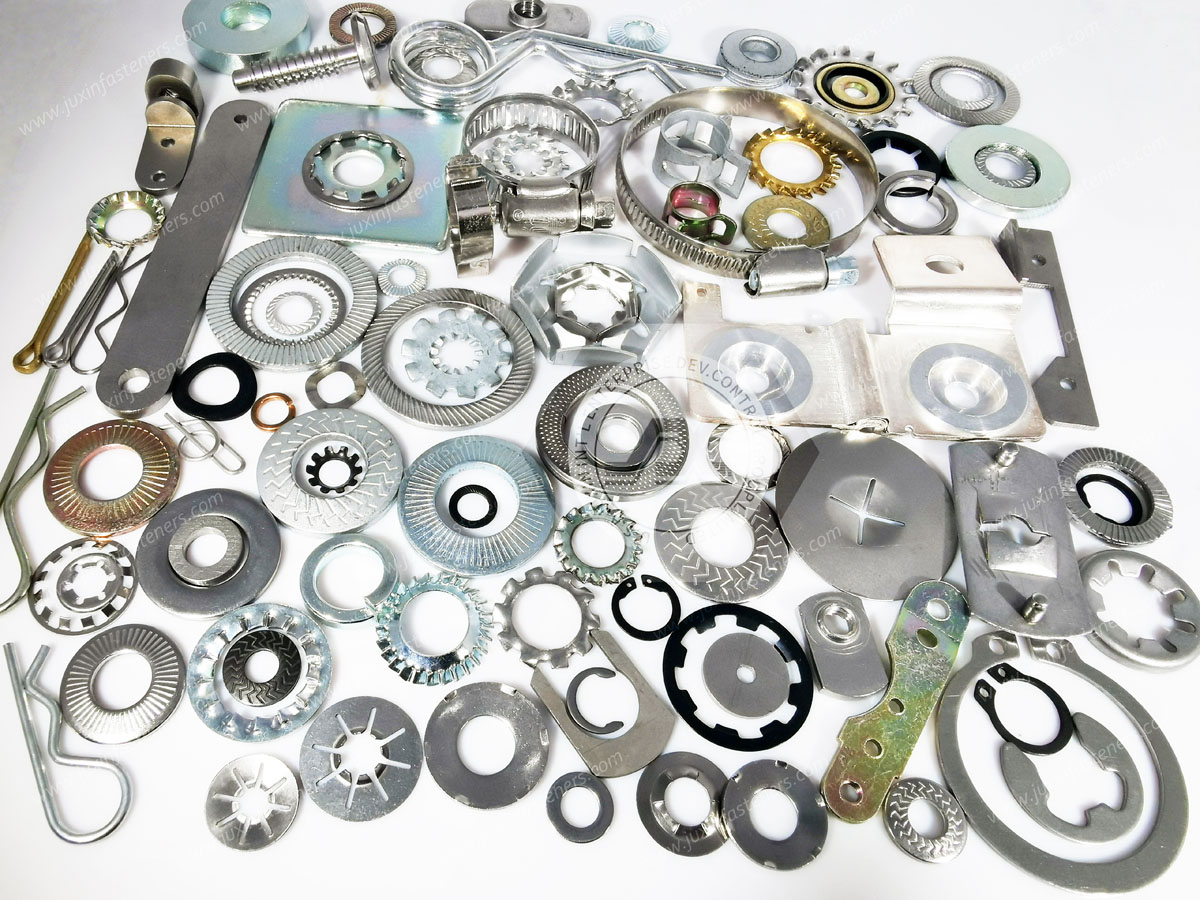

Juxin Fasteners provides high-quality industrial fasteners, including:
