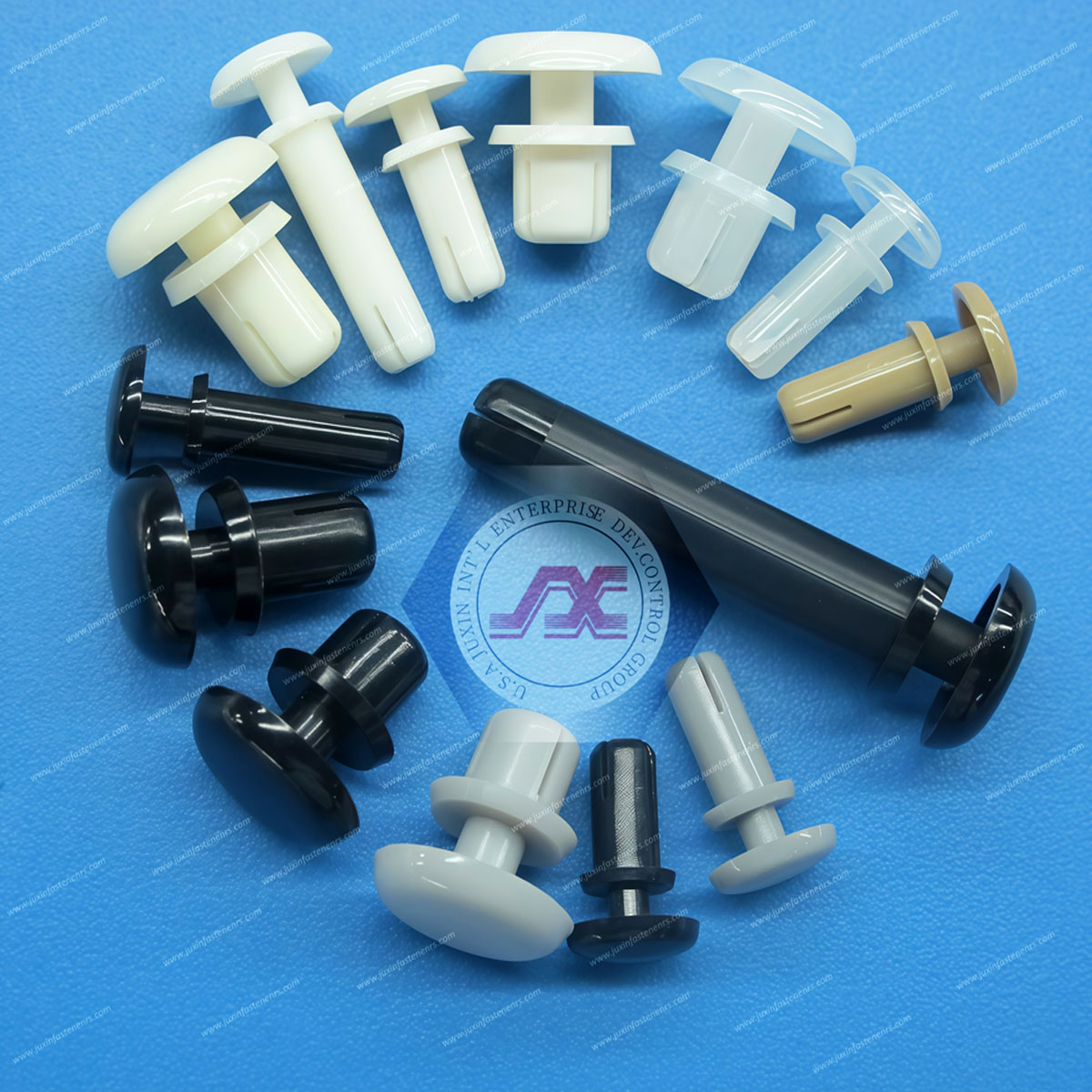

Name:Black Nylon Snap Rivets, R-type rivets
Material: Nylon66,PA66-polyamide, insulation, environmental
1. Material: Fire-proof level PA66（Nylon66) UL94-V2，PA66(Nylon66) UL94-V0
2. Color Available: White、Black、Natural
3. ROHS Compliant Certification, Temperature: 80-120°c
The most important physical performance indicators:
1. The degree of fit between the main rivet diameter and the opening diameter.
2. Nominal pull-out force.
The most important chemical performance indicators:
1. Acid resistance.
2. Alkali resistance.
3. Fire rating.
4. Insulation performance
Relative to ordinary metal rivets, nylon rivets have chemical properties, physical properties, and special characteristics. In insulation, corrosion resistance, acid and alkali, and so on, better than conventional rivets. And its own quality is relatively light. Relative to the screws, nylon rivets in the assembly speed is more convenient, without any tools to complete the assembly. Of course, its shortcomings are also obvious, pulling force is generally inferior to ordinary rivets and screws.

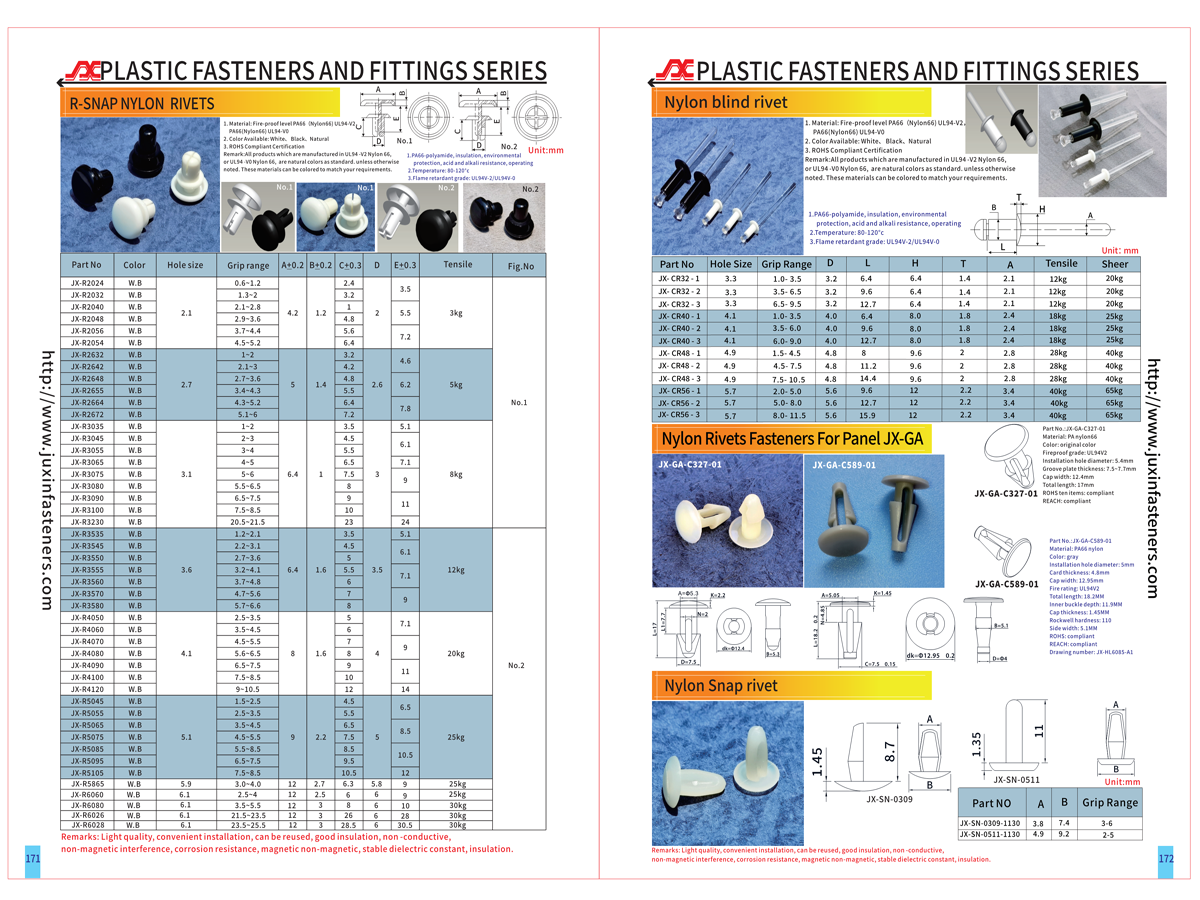

Product Specification
Nylon66 Snap Rivets, Product Description:
1. Material: UL-qualified NYLON66 (natural color/black), fire rating 94V-2;
2. Use: used for PC board, iron plate parts fixed, instead of screws, time-saving without tools;
3. Others: ROHS compliant, always in stock, series size.

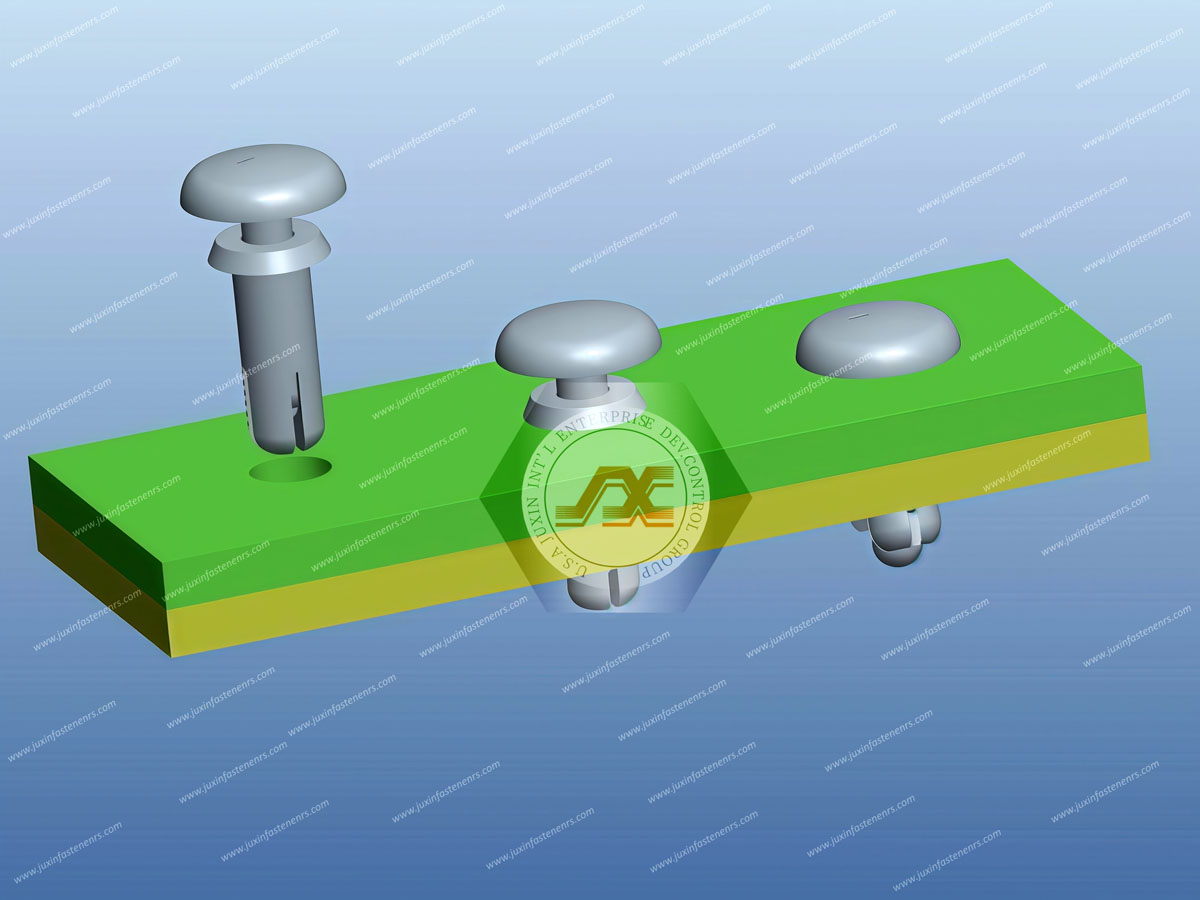

Nylon66 Snap Rivets, also known as expansion rivets, mostly R-type plastic rivets, are composed of two parts: the plastic sub-nail and the female buckle, this rivet in the installation of the time without tools, the installation of the base into a smooth hole, press the head, the unique design of the foot will be expanded after the force will be propped up, can be on the fastening of the surface being connected. R-type rivets are mainly used to connect plastic shells. R-rivets connect plastic shells, insulating materials, circuit boards, lightweight plates, and other thin, lightweight materials.
Product Pictures
