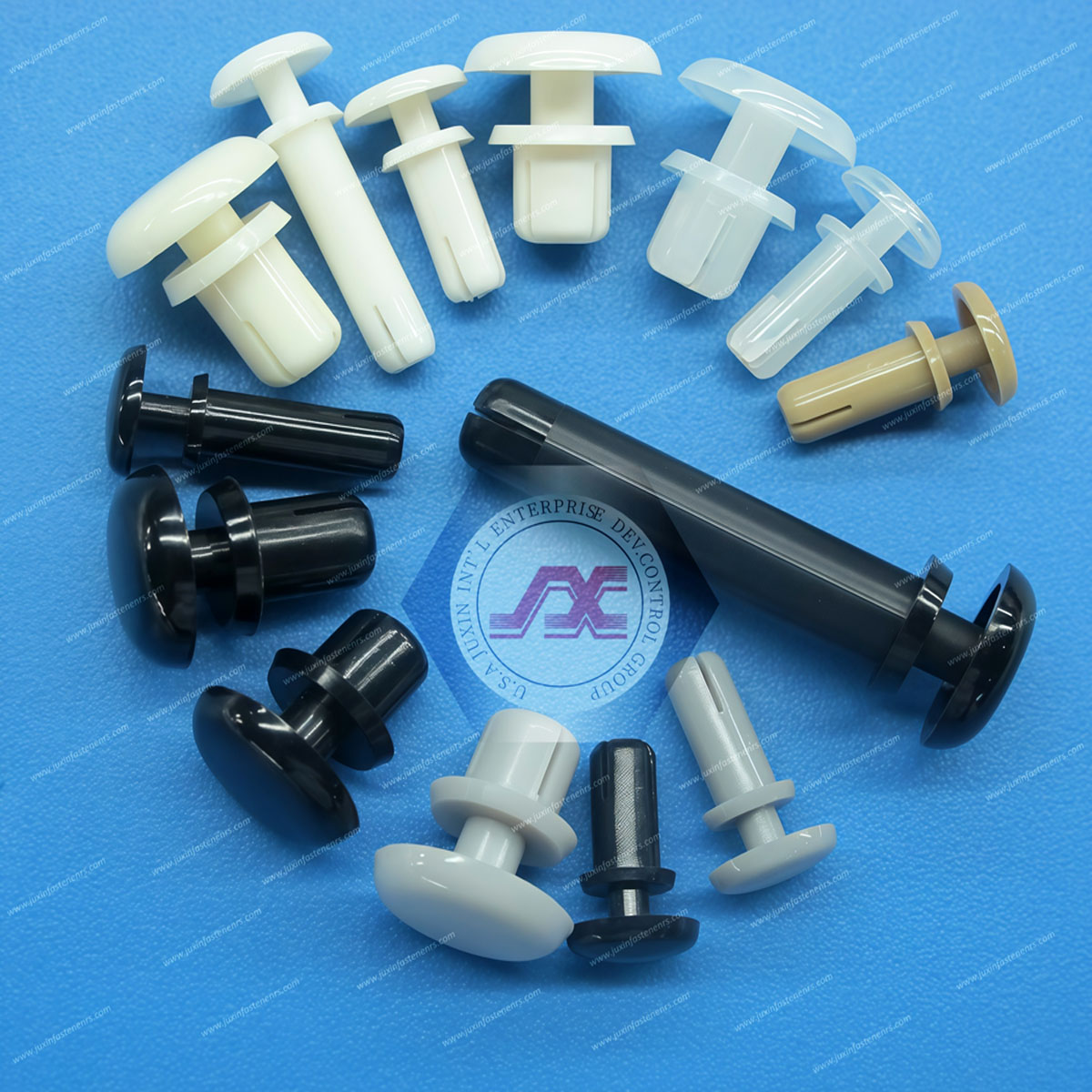

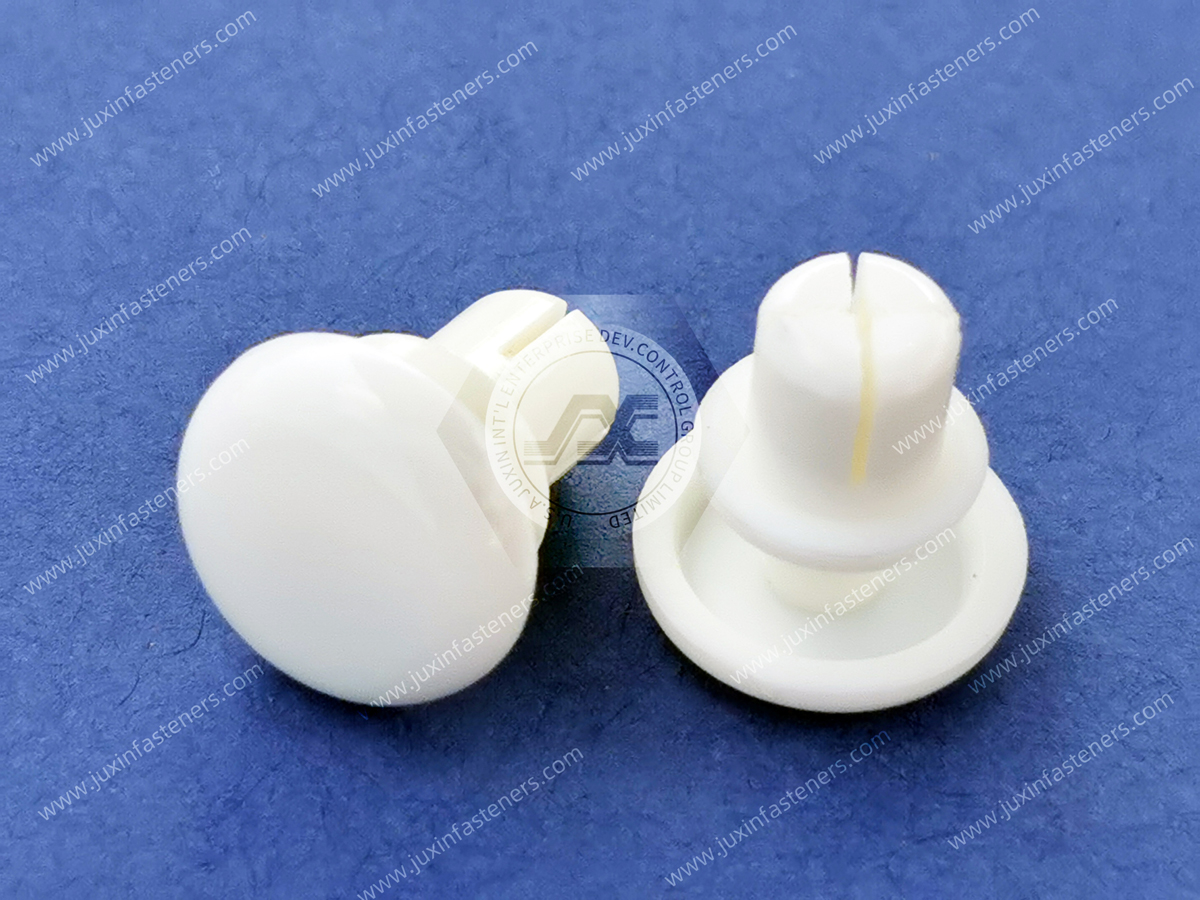

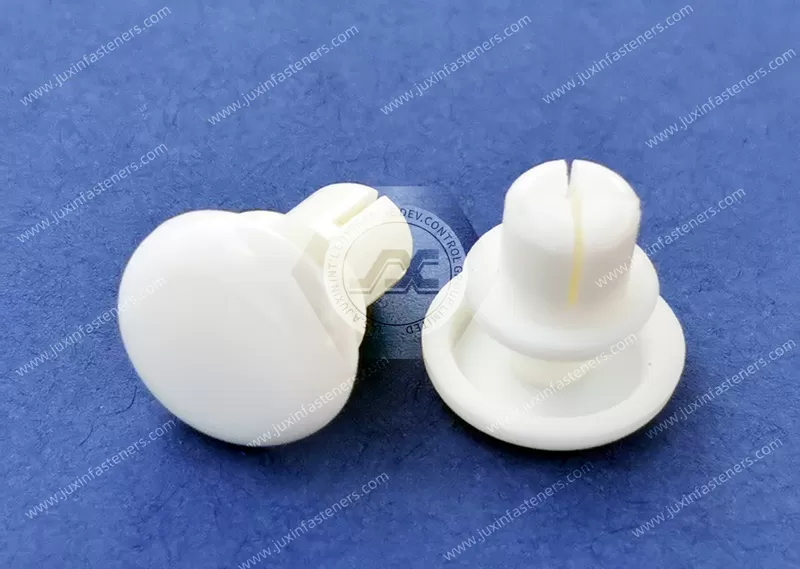

Plastic White Nylon66 Snap Rivets, R-type rivets

Snap Rivets, also known as Push Snaps, are a quick, easy fastener solution that can be installed without tools!

Browse our Nylon Snap Rivets available in Nylon 6, Nylon 6/6, Nylon 6/66, and Nylon 4/6. The Push-in Rivets are manufactured to UL94 V0 or UL94 V2. These snaps and rivets are fast and economical. The two-piece molded fastener comes assembled and ready to use. They feature specially designed legs that expand and firmly lock the components permanently in place. Heat-resistant options can withstand temperatures of up to 266F (130 °C).

Also available are p-type snap rivets intended for high-temperature applications. Made from black Polysulfide (PSU) and rated UL94 HB, these push-in rivets can withstand temperatures up to 311F (155 °C).

Good thermal and electrical insulation properties

Colors: Black, White, and Tan

No tools needed.

A nylon rivet is a nonmetallic rivet made of nylon material. It is lightweight, corrosion-resistant, nonconductive, and can join plastics and other soft materials.

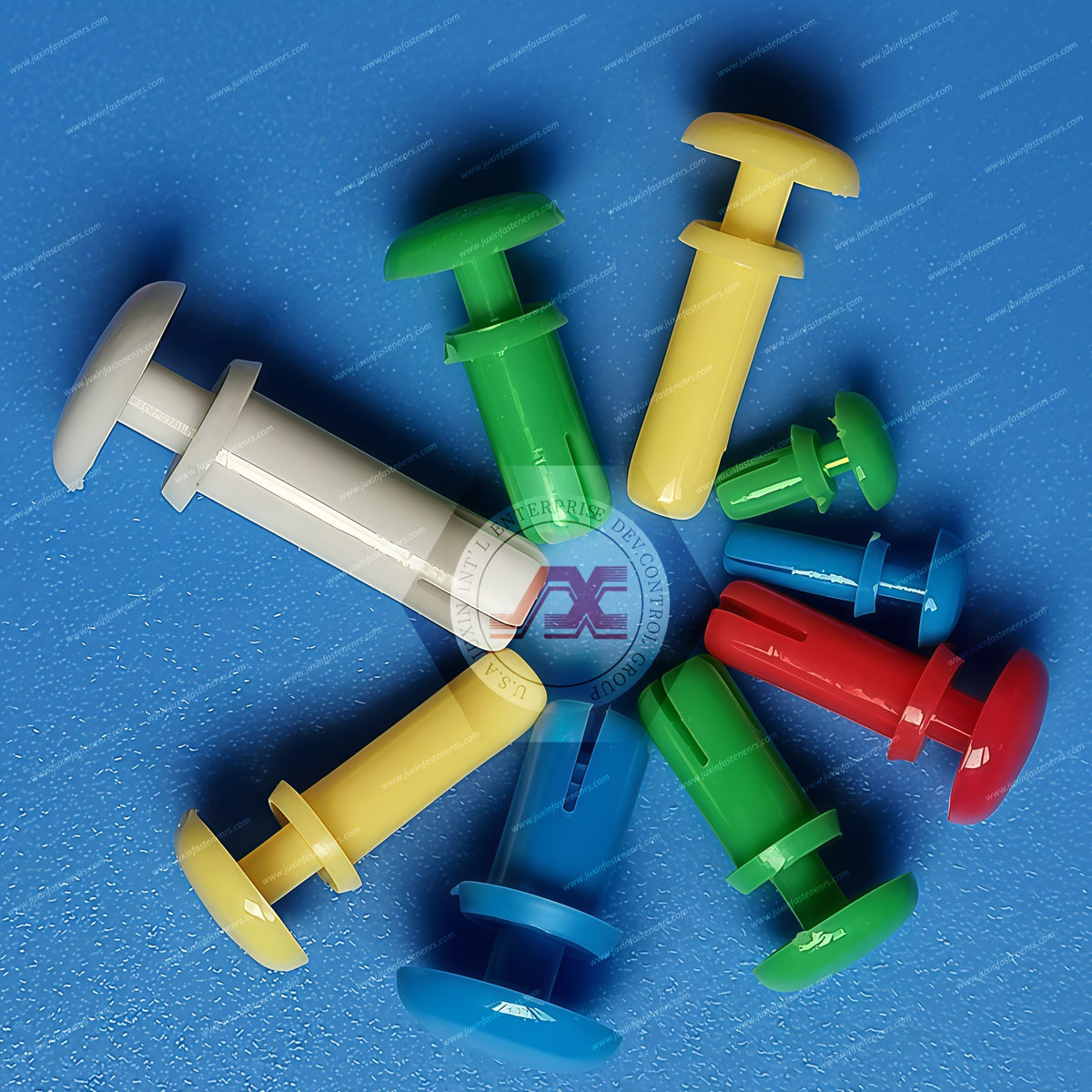

Nylon rivets are available in white, black, gray, brown, red, yellow, blue, green, and transparent colors.

Scope of application: nylon rivets are suitable for electronics, machinery, automotive, light industry, electrical appliances, instruments, meters, aerospace, and other fields.

Advantages of nylon rivets:

1. Lightweight: Nylon rivets are lightweight and small, suitable for use when the weight of the occasion needs to be reduced.

2. Corrosion resistance: Nylon rivets resist water, oil, acid, alkali, and other chemicals and can be applied to high-humidity, highly corrosive environments.

3. Non-conductive: nylon rivets are insulating and non-conductive materials and can effectively avoid the dangers caused by static buildup.

4. Colorful: Nylon rivets are rich in color, and different colors can be chosen depending on the needs of other occasions.

Precautions for use:

1. Installation should choose the appropriate installation tools and by-product instructions for proper installation.

2. Nylon rivets can not be mixed with metal rivets to avoid adverse effects.

3. In the process of use, pay attention to protecting the nylon rivets from external collision or extrusion to prevent their damage.

Nylon Snap Rivets for Medical Electronic Equipment

Tool-Free Push-In Fasteners for Safe, Lightweight & Flame-Retardant Medical Assemblies

Medical electronic equipment requires fastening systems that combine electrical insulation, flame resistance, lightweight design, vibration control, and efficient assembly.

Juxin Fasteners supplies high-performance Nylon Push-In Rivets (Snap Rivets) specifically engineered for medical electronic devices, control systems, and healthcare monitoring equipment.

Our snap rivets deliver secure panel fastening with a simple push—no tools required—ensuring fast and economical assembly for medical OEM manufacturers.

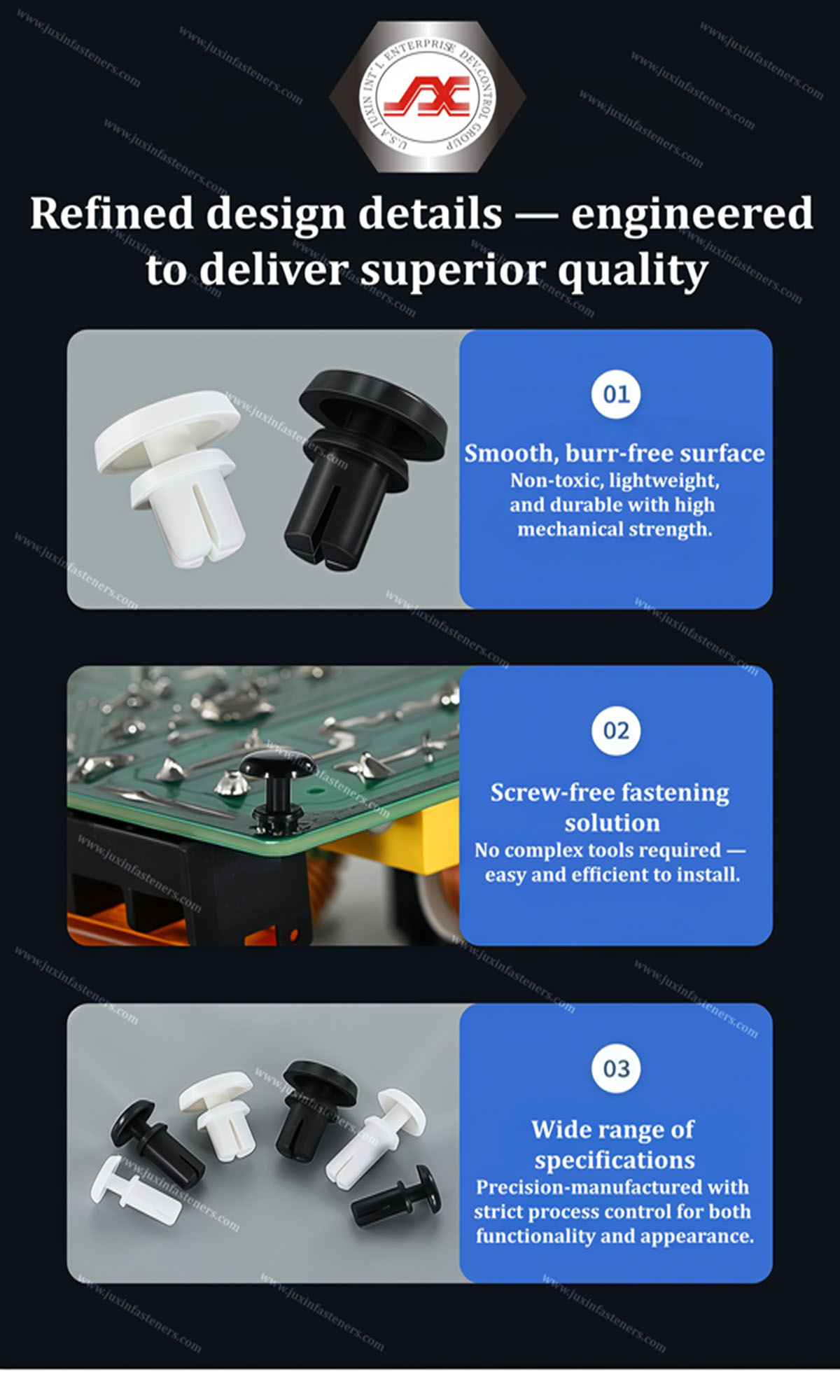

Push-In Snap Rivets – Fast & Permanent Locking Design

Snap Rivets are designed with specially engineered expanding legs. When inserted into a pre-drilled hole, the legs expand and lock components firmly in place, creating a clean, smooth surface finish.

Key Features:

Tool-free installation

 Permanent locking mechanism

 Smooth, tidy appearance

 Lightweight non-metal construction

Reduced assembly time and labor cost

These features make nylon snap rivets ideal for high-volume production of medical electronic equipment.

Engineered for Medical Electronics Applications

Modern healthcare devices integrate sensitive electronic systems, including:

PCB circuit boards

Power supply modules

Sensor housings

Control panels

Server-style rack enclosures

Monitoring device panels

Unlike metal fasteners, nylon snap rivets:

Provide electrical insulation

Prevent short-circuit risks

Eliminate galvanic corrosion

Reduce electromagnetic interference (non-magnetic)

This makes them particularly suitable for internal fastening in medical electronics and healthcare monitoring systems.

Flame-Retardant & High-Temperature Options

Medical electronic assemblies must comply with fire safety and electrical standards. Juxin provides multiple material options to meet different regulatory requirements.

Nylon 6 – UL94 V2

Cost-effective general medical applications

Reliable insulation performance

Suitable for panel and PCB fastening

Nylon 6/66 – UL94 V0 (Flame Retardant)

Enhanced fire safety rating

Ideal for power modules and electronic housings

Suitable for stricter compliance environments

Nylon 4/6 Heat-Resistant Rivet Snaps

UL94 V2 rated

Improved thermal stability

Suitable for elevated temperature zones inside medical equipment

Polysulfone (PSU) Push Rivets

Material: Black PSU

UL94 HB rated

Continuous temperature resistance up to 155°C

Suitable for high-heat medical electronic compartments

Spread Rivets for Multi-Panel Medical Assemblies

For medical equipment that requires fixing multiple panels or layered housings, Spread Rivets provide strong expansion locking across stacked components.

Available materials include:

Clear K-Resin

Polypropylene (PP) – Black & White

These are ideal for:

Equipment covers

Multi-layer control housings

Lightweight enclosure assemblies

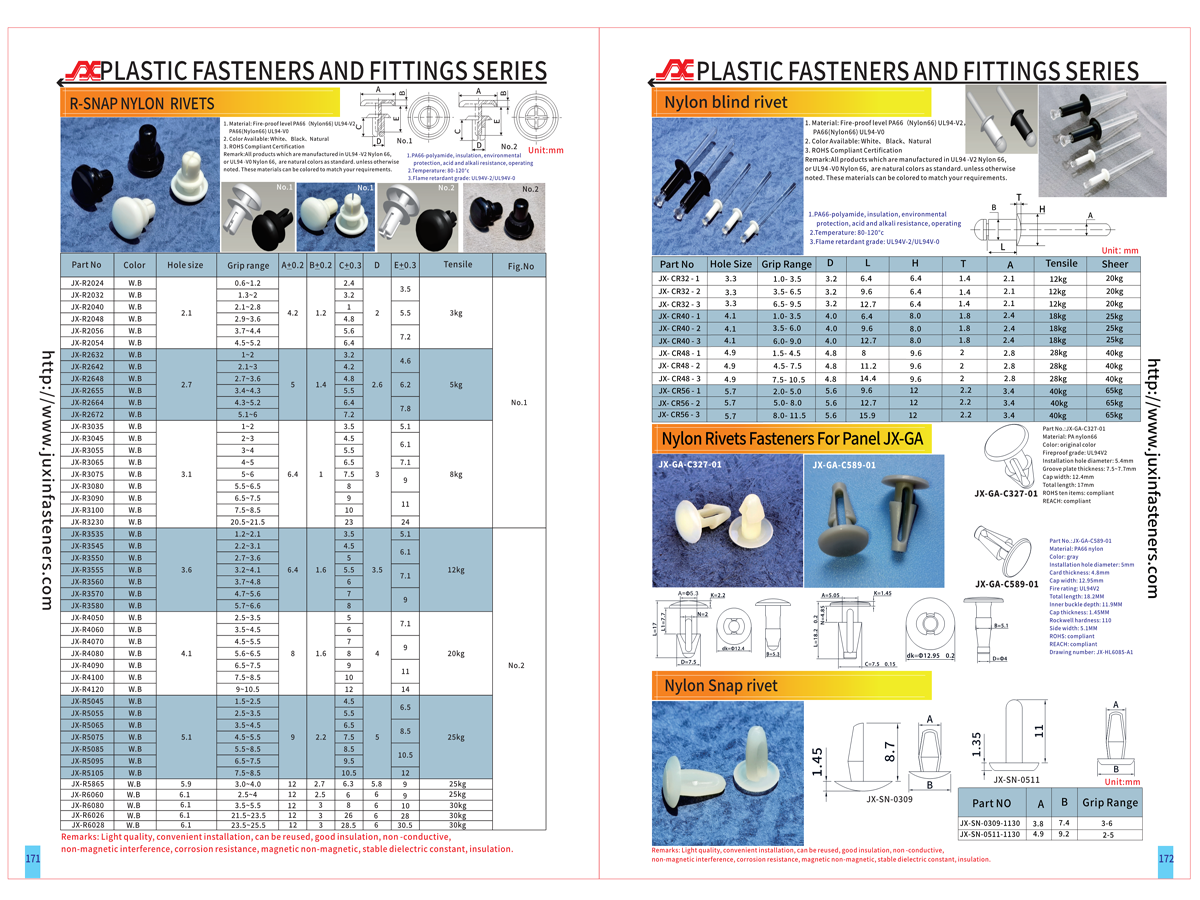

Technical Specifications (Typical Values)

Installation Type

Push-In / Snap Fit – No tools required

Available Materials

Nylon 6

Nylon 6/66

Nylon 4/6 (Heat Resistant)

Polysulfone (PSU)

Polypropylene (PP)

K-Resin

Flammability Ratings

UL94 V0

UL94 V2

UL94 HB

Temperature Resistance

Nylon grades: -40°C to +85°C (continuous)

Nylon 4/6: Improved high-temperature stability

PSU: Up to 155°C

Available Colors

Black

White

Clear

Tan

Natural

Typical Applications

Panel fastening

Server rack-style medical enclosures

PCB board mounting

Internal insulation fixing

Control unit housing assembly

Important Application Scope

These nylon snap rivets are designed for external medical electronic equipment and non-implantable healthcare devices.

They are:

Not bioabsorbable

Not intended for implantation

Designed strictly for structural and electronic fastening

Why Choose Juxin Fasteners for Medical Electronics?

 Broad material and flame-rating options

Precision-molded dimensional stability

Clean surface finish for visible panels

 Engineering support for custom hole diameters & grip ranges Reliable supply for medical OEM production

Our nylon snap rivets support safer, lighter, and more efficient medical electronic assemblies—meeting the evolving demands of modern healthcare equipment manufacturing.
