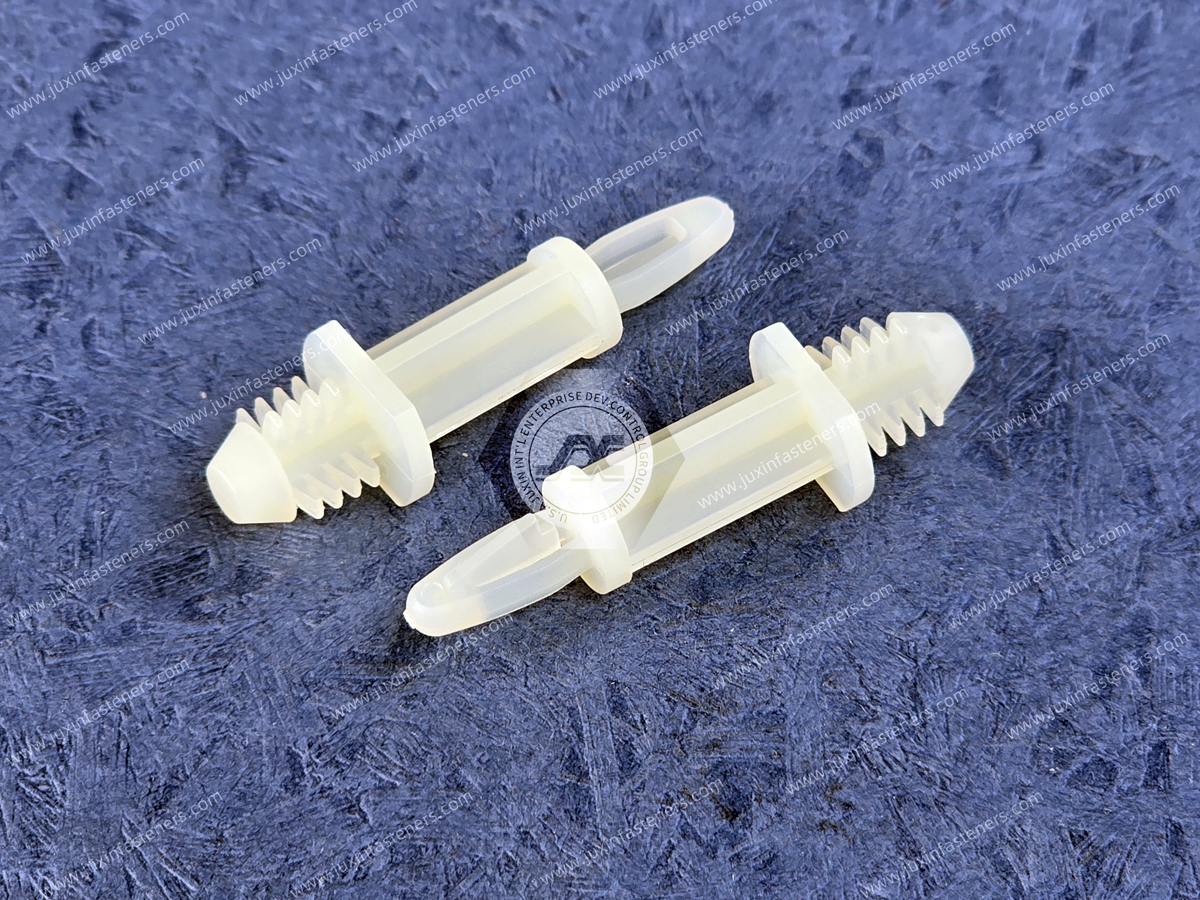

Name:JX-GBS2,JX-GSB4,JX-GBS5 Blind Hole Circuit Board Support
Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)
(1)JX-GBS2
Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 7.92±0.08mm
Panel Thickness: 6.4mm.
(2)JX-GBS4
Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 6.35±0.08mm
Panel Thickness: 6.4mm
(3）JX-GBS5
Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 6.35±0.08mm
Panel Thickness: 6.4mm
Spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.
Furthermore, we offer different hole diameters, lengths, and plate thicknesses.
Circuit board support is suitable for connecting PCBs.
Available for various hole sizes and panel thicknesses.
Please see the table below for the types and sizes available.
This locking circuit board support is designed to be pushed into a blind hole, providing secure fastening. This item is manufactured with material rated UL94 V-2.
Product Specification
Blind Hole Circuit Board Support
PCB Support - Spacer - Locking/Non-Locking Bajonet, Locking Arrowhead with Fir Tree Mount
Blind hole circuit board support is a component that can be used to fasten circuit boards into blind holes. They are a popular choice in the electronics industry and can be used for panel mounting. Blind hole circuit board supports are available from several suppliers, including:
Offers a range of blind hole circuit board support products, including locking circuit board supports and dual locking spacers
Sells BS8 PC Blind Hole Mount Circuit Board Supports in a variety of head hole diameters and head panel thicknesses
Offers a range of PCB support options, including locking and non-locking bayonet and locking arrowhead with fir tree mount
Sells blind hole circuit board support posts in nylon materials and metric measurements
Blind holes connect the outermost layer of a circuit board to one or more inner layers but do not extend through the entire board. They are commonly used in multilayer PCBs to connect external and internal layers.
