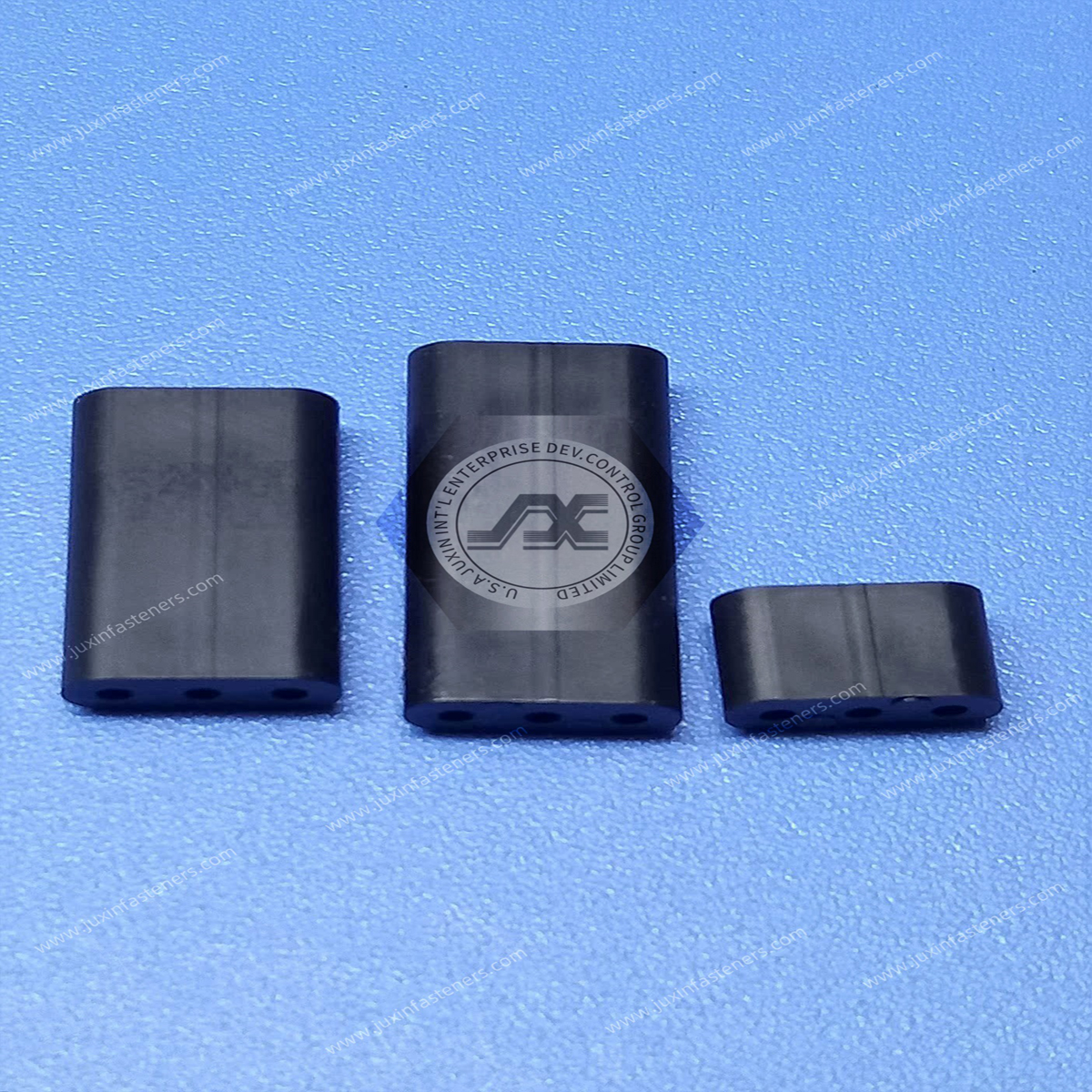

LED Spacer Type 1 JX-GLEDS3

LED Spacers - Square In stock manufacturing

These LED Spacers come in two styles to fit both T-1 and T-1 3/4 LED fixtures. They space the LED from the surface of the board. They also minimize shifting and height variation, ensuring product uniformity and ease of production. The square design is suitable for angled applications. They are black and made of PVC.

The "Self-Aligning" mounts for Bi-Lead T-1 and T-1 3/4  LED's are uniquely designed and feature an internal tapered barrier that guides the LED's leads through the device to assure positive self-alignment on 0.100" (2.54mm) centers. The design also eliminates the possibility of crimping or shorting of the LED leads. No special tooling is required to preassemble printed circuit boards efficiently. Molded from Nylon material and UL rated 94V-2, these mounts provide height control from 0.120" to 0.925" (3.04mm to 23.49mm) with 0.020" (0.5mm) bosses that lift the mount to serve the dual purpose of heat dissipation and post-solder clean-up.

These solid devices are molded from Black PVC material and are UL rated 94V-0. Available in lengths ranging from 0.120" to 0.925" (3.04mm to 23.49mm), these components include special features that separate and retain component leads, facilitate PCB mounting, and are suitable for use with lamps, resistors, transistors, diodes, capacitors, and other electronic components.
