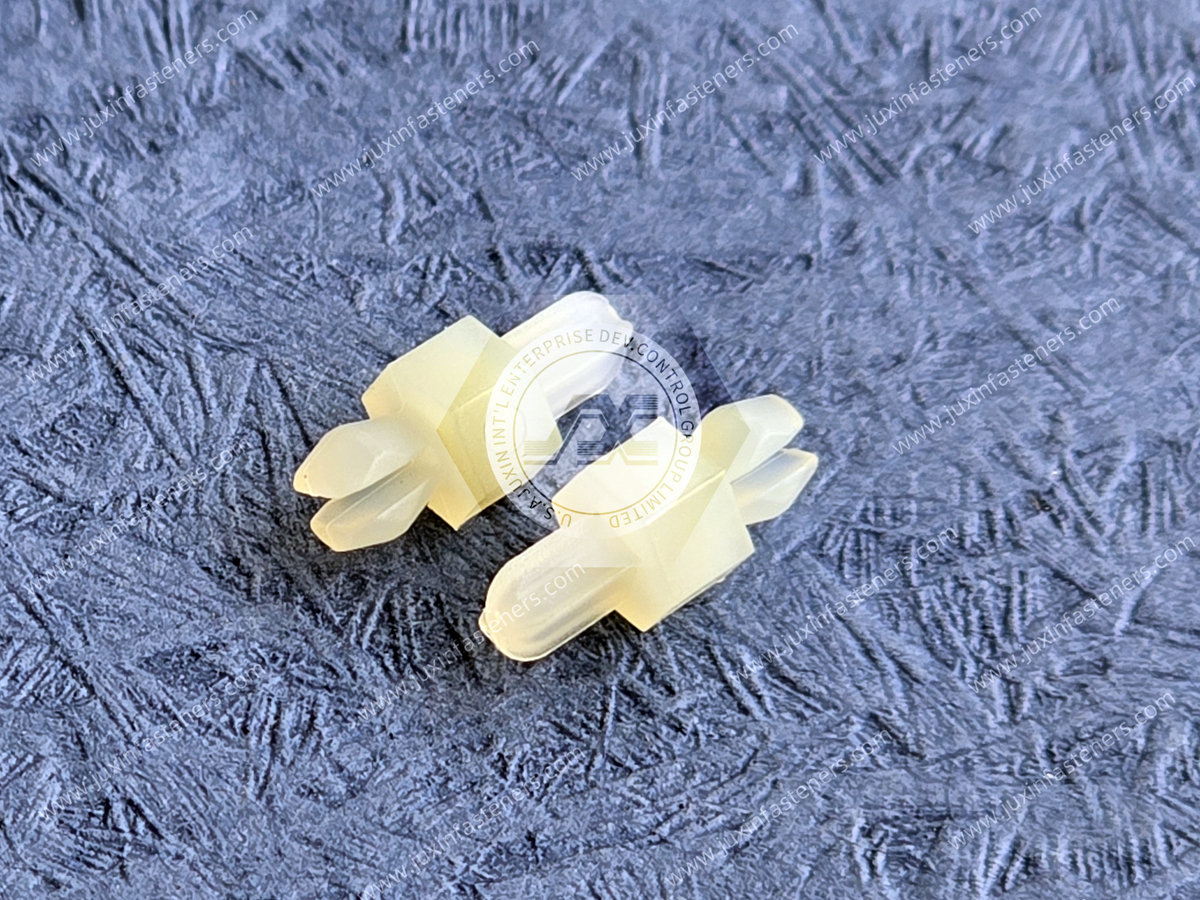

Mini Self-Threading Circuit Board Support
Material: PA66 UL94V2 (GMS-01)
Top Hole: 3.18±0.05mm
Panel Thickness: 1.57mm
Bottom Hole: Self-thread a #4 or
M3 Threaded Hole or Nut
Panel Thickness: 1.6mm
PCB Support - Spacer - Male Thread, Self-Tapping, Non-Locking Two Prong
Special Spacer
These special spacers are used to support a wide range of applications, especially when conventional fastening solutions reach their limits.
Product Specification
PCB Support Post - Dual-Locking/Metric/Mini
In stock
These spacers have a locking teardrop design. These snap into tiny holes, leaving a minimal protrusion over the panel. Available in many sizes and styles
Mini Dual Locking Support Posts
Small dual locking support post, suitable for joining PCBs.
Available for various hole sizes and panel thicknesses.
Our range of mini dual locking support posts 1M teardrop is designed to be used with a top and bottom hole size.
Top Hole: 3.18±0.05mm
Panel Thickness: 1.57mm
Bottom Hole: Self-thread a #4 or
M3 Threaded Hole or Nut
Panel Thickness: 1.6mm
Mini dual support posts 1M - Teardrop
Natural Nylon 66
UL94-V2
RoHS compliant
Product Pictures
