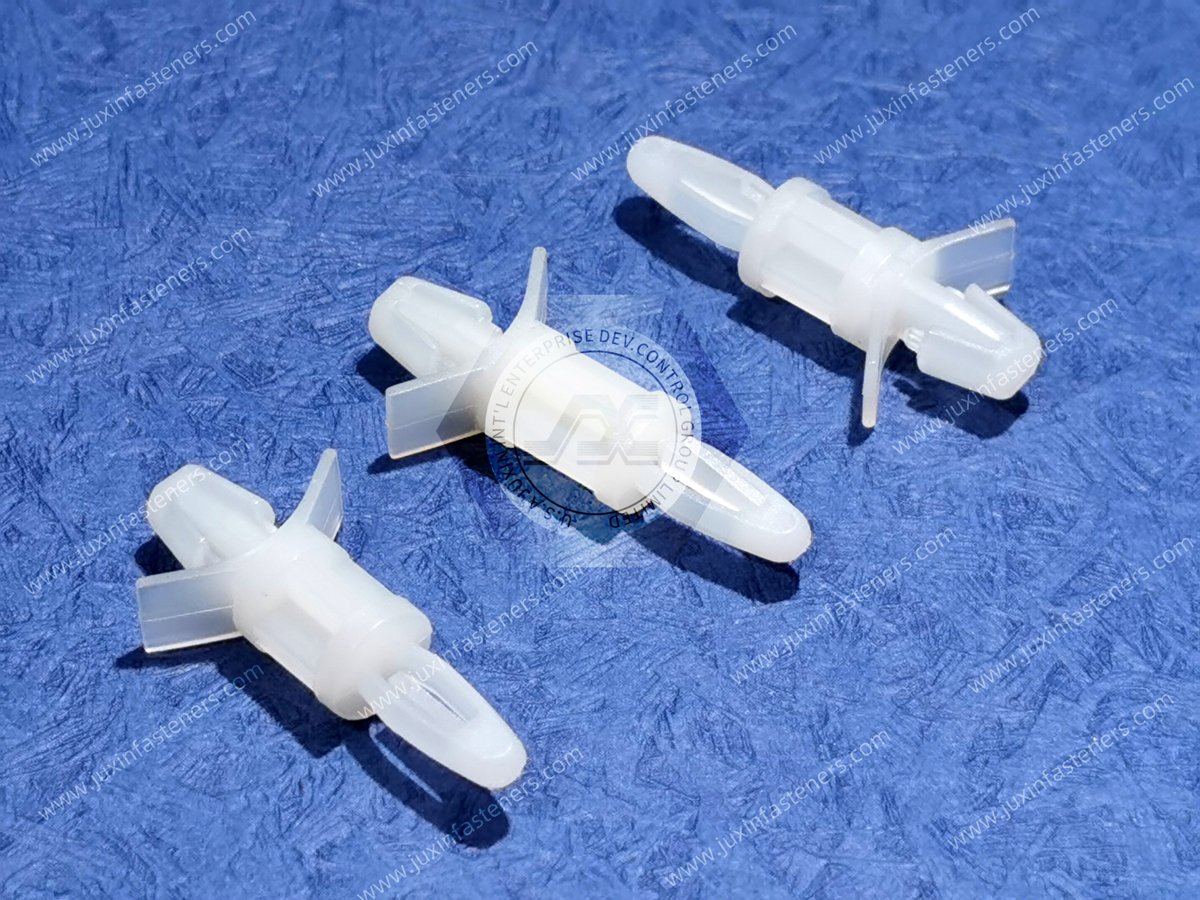

Name: Locking Circuit Board Support JX-GLSP6
Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)
Top Hole: 4.75±0.08mm
Panel Thickness: 1.98-3.56mm
Bottom Hole: 4.0±0.08mm
Panel Thickness: 2.36mm
Dual locking circuit board support is supplied in UL94 V2 nylon 6/6 RMS-01 or UL94 V0 RMS-19. It features a snap-in-fit feature that makes it easier to fit into the PCB. It provides good strength to the board and chassis and prevents rotation.
Applications and Benefits of Dual Locking Circuit Board Support
Supplied in UL94 V2 nylon 6/6 RMS-01 or UL94 V0 RMS-19.
It features a snap-in fit for easy fitting.
Provides good strength to the PCB.
Prevents rotation.
Product Specification
PCB Supports - Locking Arrowhead/Locking Two-Prong Cupped
PCB Support - Spacer, Locking Two Prong, Bayonet, Spacer, Non-Locking Extended Bayonet Arrowhead, Snap Lock.
These spacers are easily mounted by hand. One end is an arrowhead fastener with tension wings for a tight grip on the board. The other end is a low-profile two-prong fastener with a cupped base to stabilize the hole—spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.
Furthermore, we offer different hole diameters, lengths, and plate thicknesses.
Product Pictures
