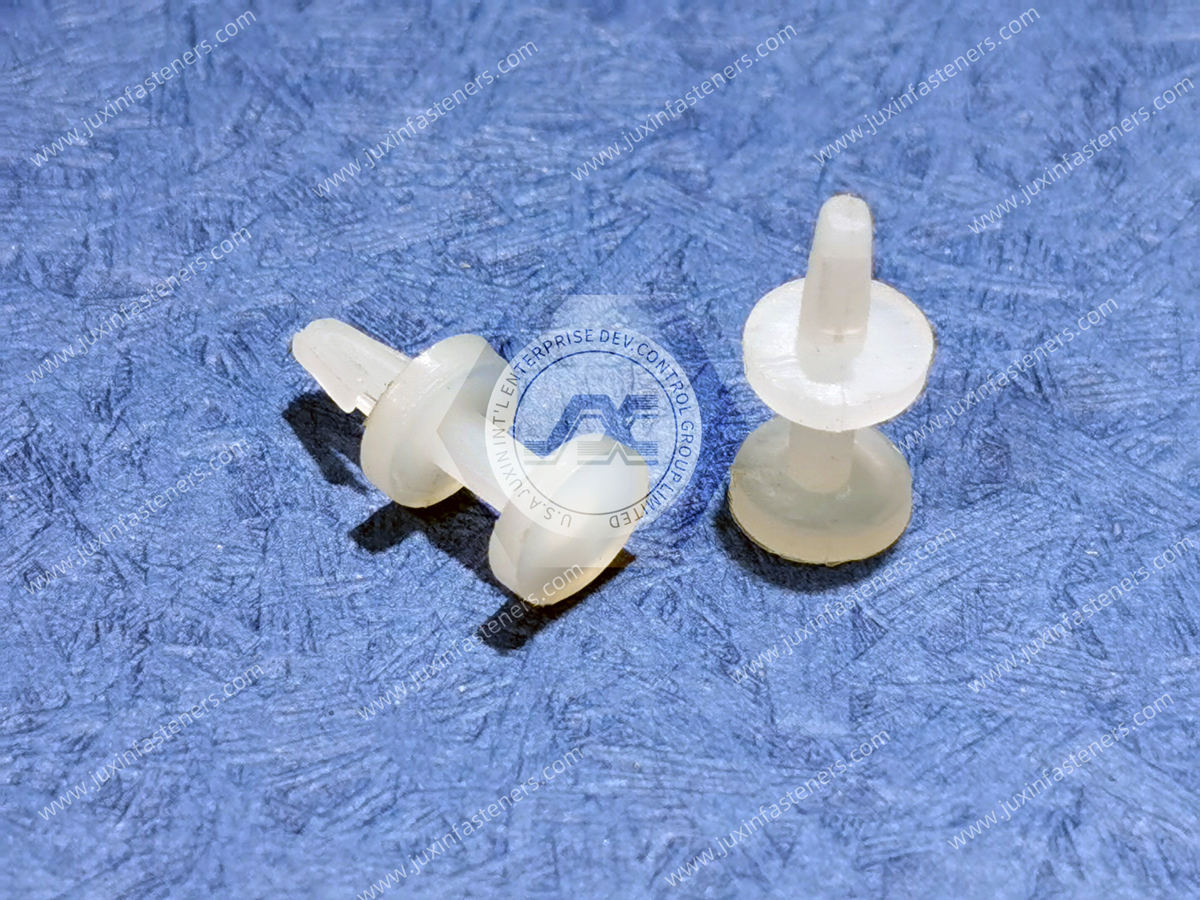

PCB MINI PUSH SPACER
PCB mini push spacer Maintains accurate spacing between chassis & printed circuit board
Material: UL-qualified NYLON66 (natural color), fire rating 94V-2, good insulation, not easy to age.
Hole: 3.0mm
Panel Thickness: 1.2-1.7mm
Nylon 66 Natural
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Flame retardant (V0) is available to order – please phone
Removable
Push in to install
Secure grip to PCB
Cost-effective
Please be advised there is no hole in the base of this spacer.
Product Specification
Ideally suited for PCB packaging and stacking applications, these new spacers/supports come in many popular styles. Used for board-to-board and chassis-to-board requirements, they come in both push-in mount and screw mount versions. Spacers/supports are available in a wide range of spacing heights and will meet almost any PCB packaging need.
Requiring no tools for assembly, spacers/supports snap-in to produce a dependable solid grip. Easily installed and reusable for repairs, spacers/supports lock-fit to the chassis and either lock-fit or tension-fit to the PCB. Screw mount versions screw down to the chassis and tension-fit to the PCB. They are available for #4, #6 & #8 screw sizes.
Durable and lightweight, spacers/supports are manufactured from flame-resistant Nylon, UL-rated 94V-0. They feature one-piece molded construction, which ensures consistent, close-tolerance dimensions and high strength.
