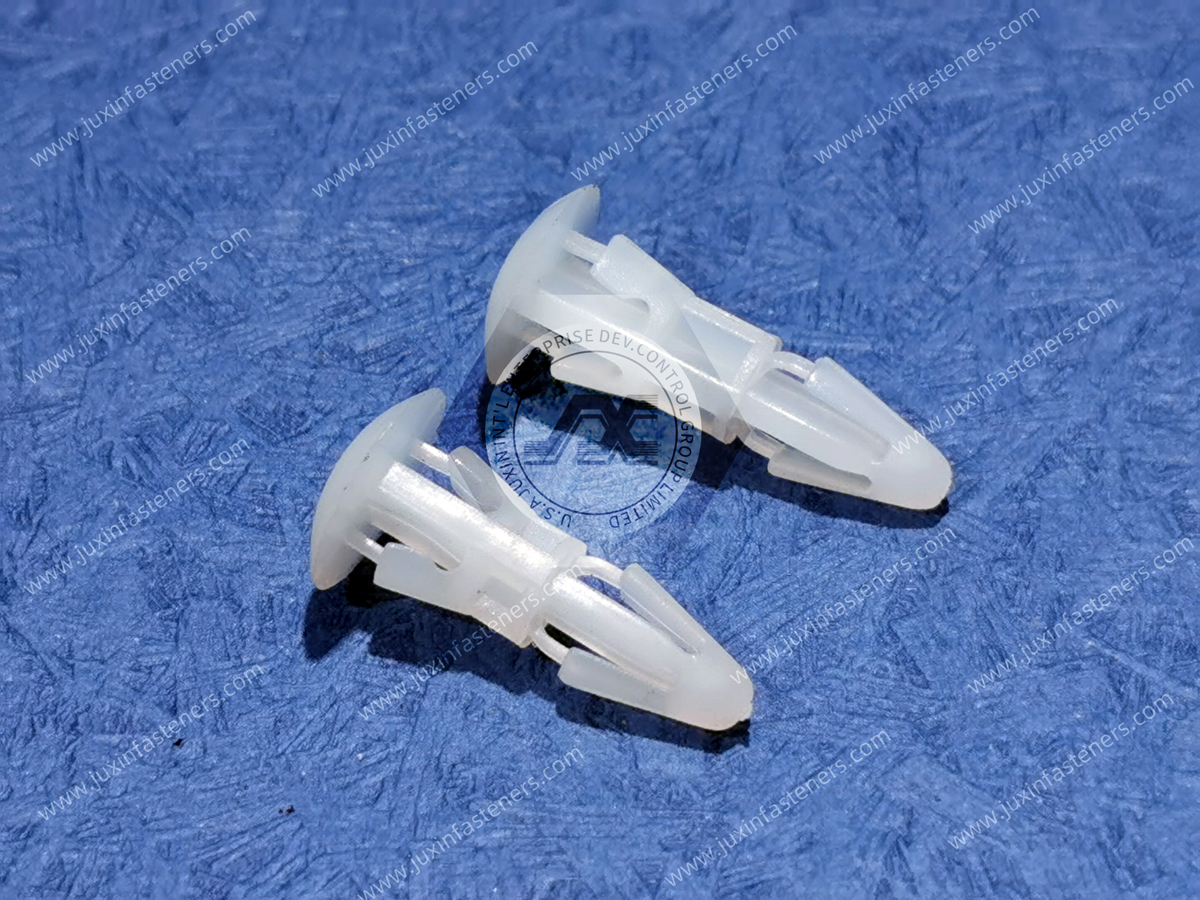

Name: Cupped Reverse Locking Circuit Board Support
Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)
Top Hole: 4.0±0.08mm
Panel Thickness: 1.6mm
Bottom Hole: 5.4±0.08mm
Panel Thickness: 1.2-2.0mm
Product Specification
Name: Nylon Circuit Board Hardware
PCB Support - Spacer - Locking/Non Locking Bayonet, Locking Arrowhead, Locking Two Prong, Reverse Locking Support, Push Spacer
This is a push-reverse locking spacer with a flat top mounted on the underside of the board. It is designed to fit through the bottom of a PCB and connect to the panel above.
Our wide range of PCB accessories includes an extensive selection of PCB Spacers, pillars, supports, and standoffs to support, lock, space, or guide the PCB board.
Discover accessories for appliances (white goods), electrical cabinets, machinery, or other PCB support equipment.
Product Pictures
