Name: Nylon Locking Bayonet with Locking Arrowhead
Material:PA66(natural color).
Fire rating:94V-2, sound insulation, not easy to age.
Wings add tension to strengthen the hold in a hole. The other end is releasable for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
Our Quarter-Turn Locking PCB Support Posts range features a locking mechanism that securely holds it in place by turning 90 degrees. They have a 4.00mm top hole and are compatible with a top panel thickness of 1.57mm and a bottom panel thickness of 0.8-1.57mm.
Product Specification
LOCKING CIRCUIT BOARD SUPPORT QUARTER TURN
Reference NLCBS-9
Top Hole: 4.00mm
Top Panel Thickness: 1.57mm
Bottom Hole: see PDF for details
Bottom Panel Thickness: 0.80-1.57mm
Locking Support Quarter Turn
Nylon 66 natural
UL94-V2
RoHS Compliant
One end locks into the chassis, and the other end locks into the PC board versions that have smaller footprints, freeing up board space
Sturdy Support versions have greater contact area for additional support
Material: Nylon, UL 94V-O
Operating Temperature: 0ºF to 140ºF (-20ºC - 60ºC)
Flame retardant (V0) is available to order – please get in touch with us.

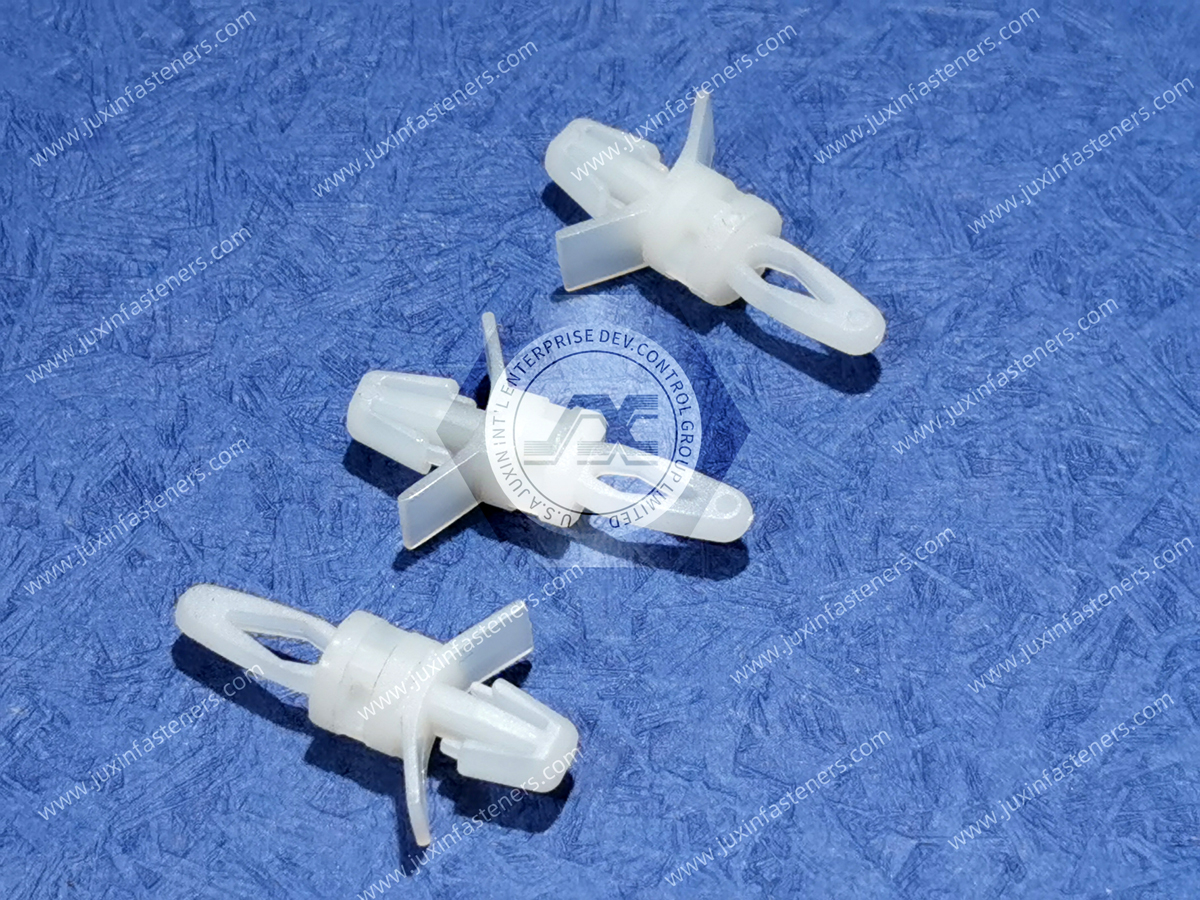

Product Pictures
