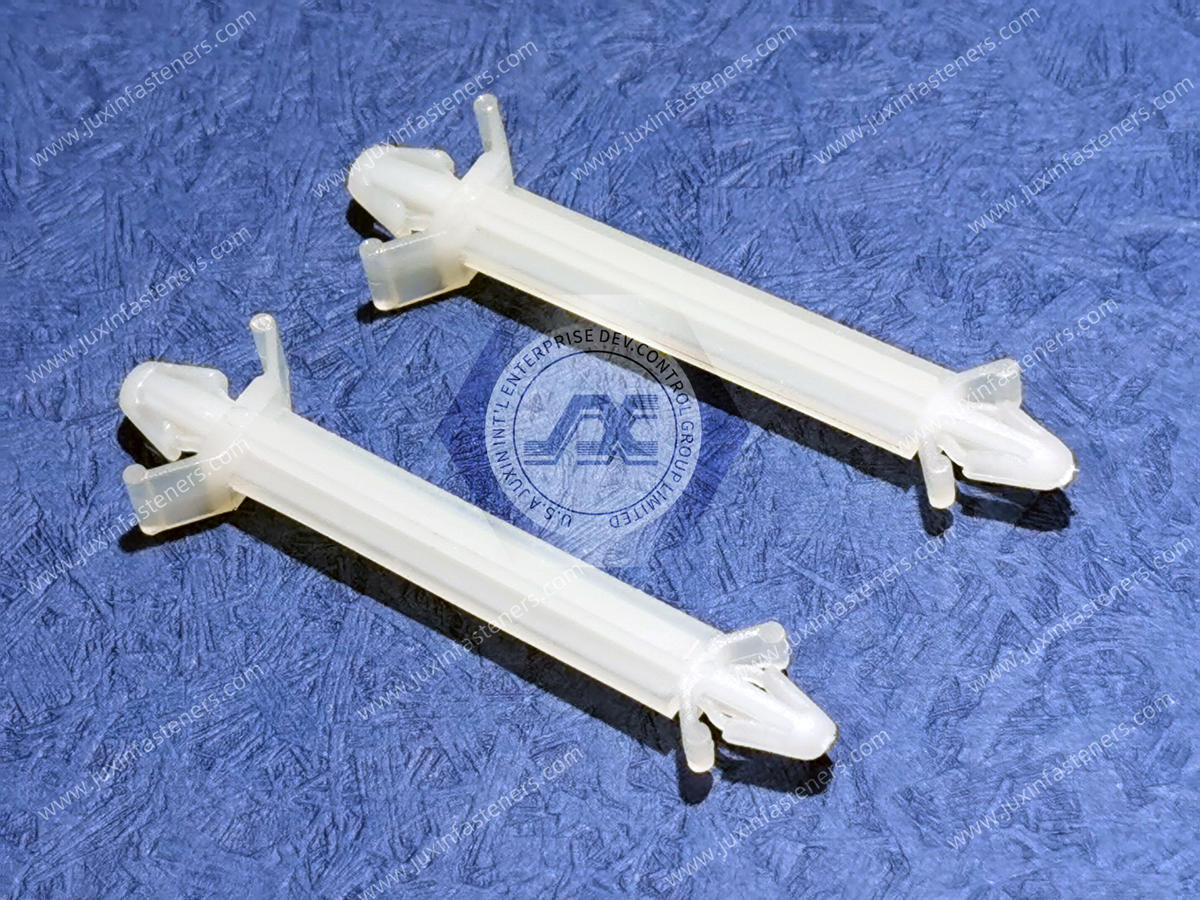

PCB Dual Locking Circuit Board Support JX-E01

Nylon PCB Supports/Spacers

Ideally suited for PCB packaging and stacking applications, these new spacers/supports come in seven popular styles. Used for board-to-board and chassis-to-board requirements, they come in both push-in mount and screw mount versions. Spacers/supports are available in a wide range of spacing heights and will meet almost any PCB packaging need.PC Lock-In Supports: One end locks into the chassis, and the other end locks into the PC board

Sturdy Support versions have greater contact area for additional support

Requiring no tools for assembly, spacers/supports snap-in to produce a dependable solid grip. Easily installed and reusable for repairs, spacers/supports lock-fit to the chassis and either lock-fit or tension-fit to the PCB. Screw mount versions screw down to the chassis and tension-fit to the PCB.

Durable and lightweight, spacers/supports are manufactured from flame-resistant Nylon, UL-rated 94V-0. They feature one-piece molded construction, which ensures consistent, close-tolerance dimensions and high strength.

Application engineering services are available to meet special customer requirements.

Refer to Juxin Fastener's Product Design Guide for our complete product offering and specifications.
