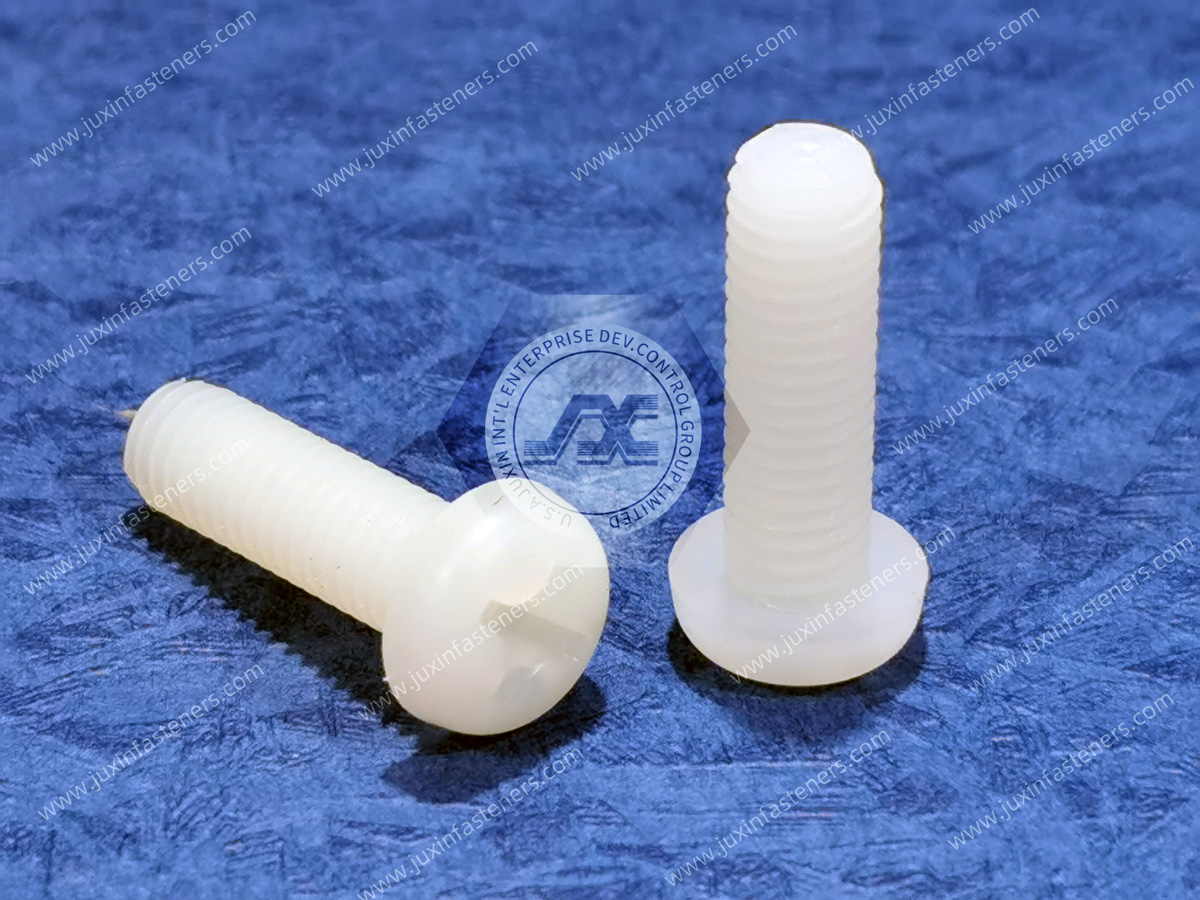

Nylon Pan Head Phillips Screws

Name: Nylon Pan Head Phillips Screws

Size: M2,M2.5,M3,M4,M5,M6,M8

Material: PA66, PA+50%GF, PA+50%GF, PEEK, PVDF, PPS, PTFE, PP, PVC, PC.

Standard:ISO7045,DIN7985,ANSI/ASMEB18.6.3,JISB1111-96

Nylon pan head screws are chemical and oil resistant, nonconductive, and lightweight. Exposure to moisture may cause them to expand. Length is measured from under the head.

1. PA66-polyamide, insulation, environmental protection, acid and alkali resistance,

operating temperature: 80-120°c flame retardant grade: UL94V-2/UL94V-0

2. PVDF-polyvinylidene fluoride, use temperature: 140°c flame retardant grade: UL94V-0

3. PPS-polyphenylene sulfide, use temperature: 200°C flame retardant grade: UL94V-0

4. PP-polypropylene, use temperature: 260°C flame retardant grade: UL94HB

5. PVC-polyvinyl chloride, use temperature: 55°C flame retardant grade: non-flammable

6. PC-polycarbonate, use temperature: 115°c flame retardant grade: UL94V-2

7. PA+GF-glass fiber reinforced nylon, use temperature: 105°c flame retardant grade: UL94HB

8. PEEK (engineering plastic)-polyetheretherketone, use temperature: 180°c flame retardant grade: UL94V-0

1. Material: Fire-proof level PA66（Nylon66) UL94-V2，PA66(Nylon66) UL94-V0

2. Color Available: White、Black、Natural

3. ROHS Compliant Certification

Remark: All products manufactured in UL94 -V2 Nylon 66

or UL94 -V0 Nylon 66 are natural colors as standard. Unless otherwise

noted. These materials can be colored to match your requirements.
