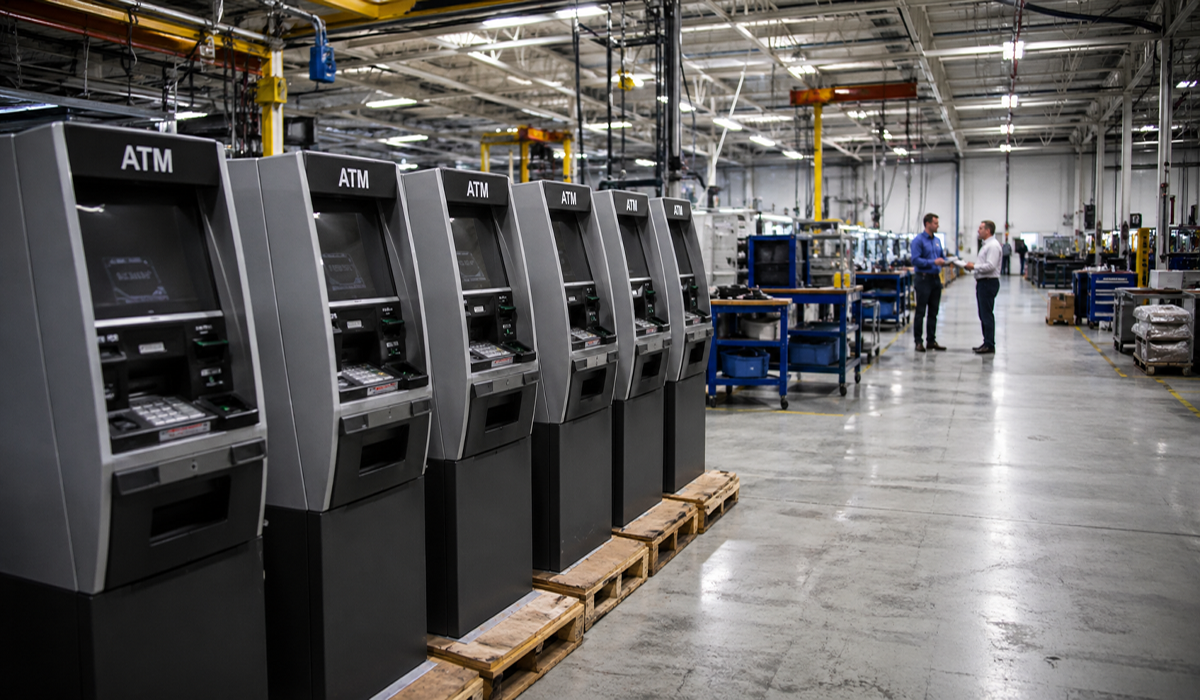

In modern ATM cabinet manufacturing, captive panel screws (stainless steel panel screws) have become a critical fastening solution for chassis and enclosure assembly. These specialized fasteners are designed to meet the demanding requirements of frequent maintenance access, high security, corrosion resistance, and long-term mechanical reliability in financial self-service equipment.

Unlike conventional screws, stainless steel captive panel screws remain attached to the panel even after loosening, preventing loss of parts during servicing and significantly improving field maintenance efficiency.

I. Core Engineering Solution for ATM Applications

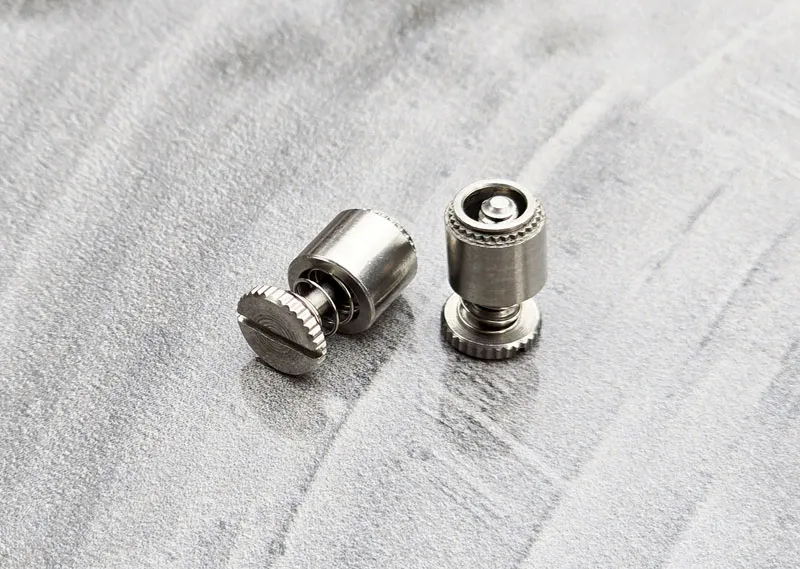

1. Non-Detachable Captive Screw Design

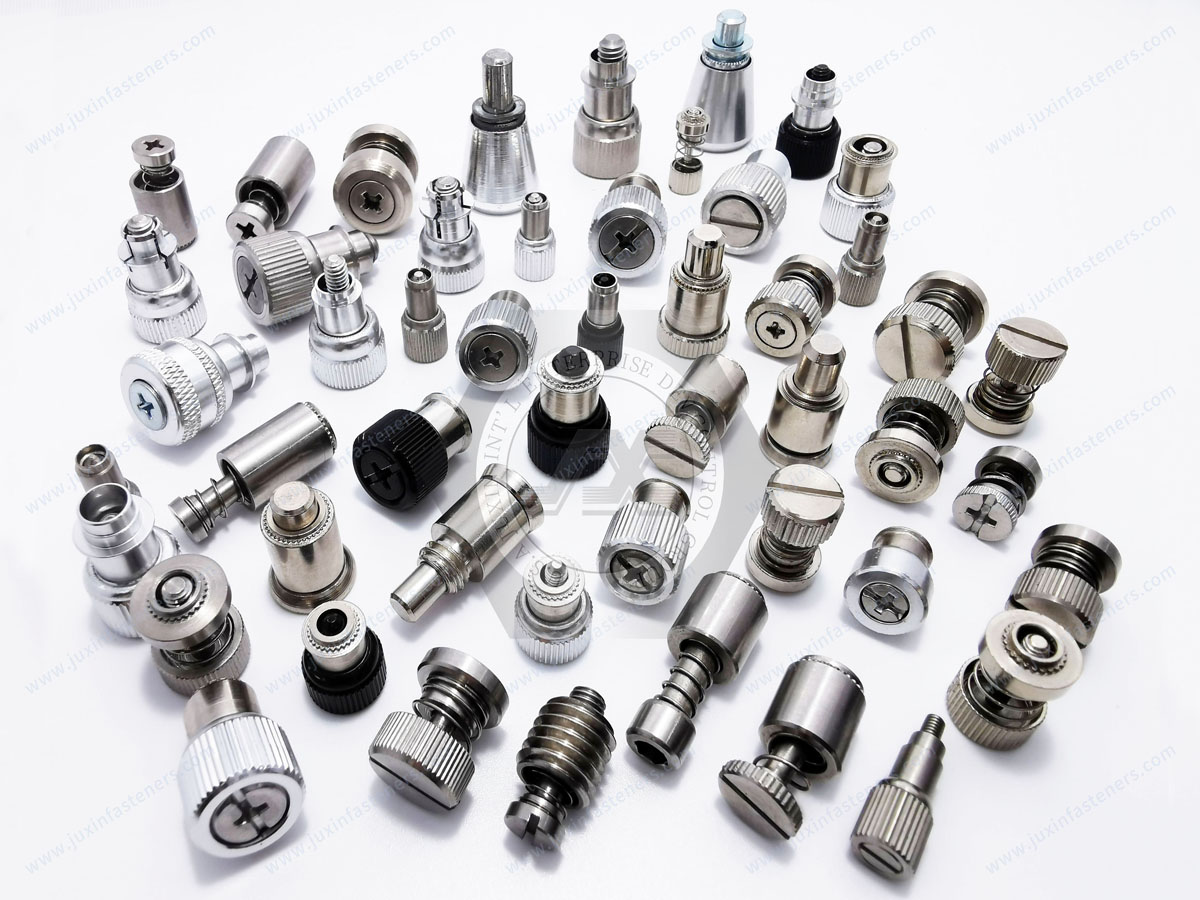

The core solution used in ATM cabinet systems is the non-detachable captive panel screw, which is permanently retained on the panel through mechanical fixing structures, such as:

• Press-fit spring retention screws (e.g., JX-PF11, JX-PF12      series)

• Expansion-fit captive screws (e.g., JX-PF09, JX-PF10 series)

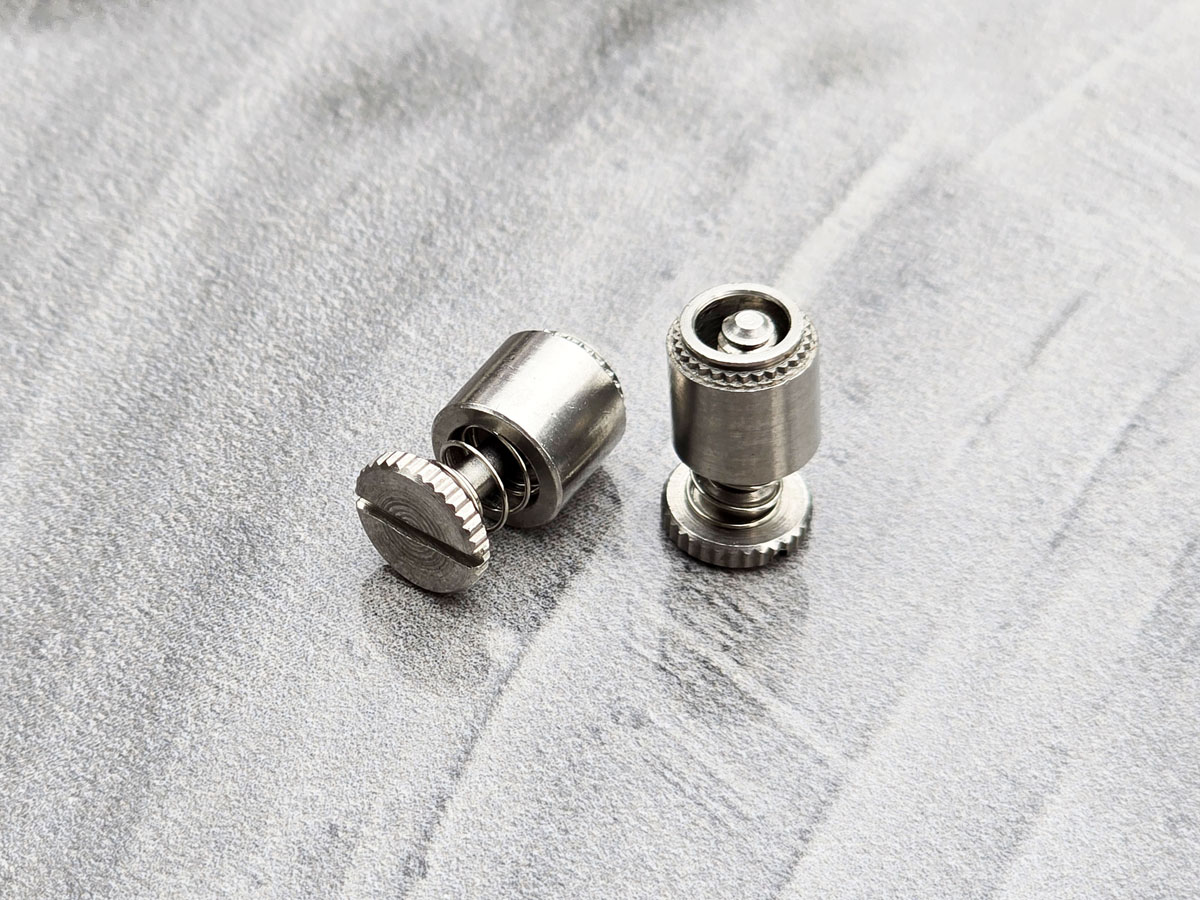

• Floating spring captive screws (e.g., JX-PF51, JX-PF52 series)

These designs ensure that even after repeated loosening, the screw:

• Remains attached to the panel

• Does not fall into the cabinet interior

• Prevents loss during maintenance operations

This is essential for ATM systems requiring frequent service, module replacement, and security inspections.

 2. Stainless Steel Material Selection for ATM Environments

For ATM cabinet manufacturing, material selection is critical due to exposure to:

• Outdoor humidity

• Urban pollution

• Temperature fluctuations

• Long-term unattended operation

Recommended materials for captive panel screws, stainless steel solutions include:

• Austenitic stainless steel (304 / 316):

• Excellent corrosion resistance

• Stable performance in standard outdoor ATM installations

• Work-hardened strength improvement through cold forming

• Precipitation-hardened stainless steel:

• High mechanical strength + corrosion resistance

• Suitable for high-security ATM systems

• Duplex stainless steel:

• Superior resistance to pitting and stress corrosion

• Ideal for coastal or high-humidity financial terminals

 3. High Strength and Anti-Loosening Performance

ATM equipment experiences continuous vibration from:

• Cash dispensing mechanisms

• Cooling fans

• Security locking systems

Stainless steel captive panel screws provide:

• Stable preload retention

• High vibration resistance

• Secure fastening under repeated servicing cycles

This ensures long-term structural integrity of ATM cabinets and reduces field failure rates.

 4. Maintenance-Friendly “Captive” Function

A key advantage of captive panel screw fasteners is their ability to remain attached to the panel during disassembly.

This delivers:

• Faster ATM maintenance cycles

• Reduced risk of lost fasteners

• Safer on-site servicing

• Improved technician efficiency

This feature is especially valuable in financial equipment where downtime directly impacts operational cost.

 II. Surface Treatment and Process Optimization

To ensure long-term performance in ATM cabinet environments, surface engineering plays a key role in stainless steel panel screw solutions:

1. Surface Cleaning and Preparation

• Degreasing and cleaning at 60–90°C alkaline/acid processes

• Improves coating adhesion and corrosion resistance

2. Anti-Friction Coating Treatments

• Oxalate or inorganic salt coatings reduce galling

• Prevent thread seizure during repeated maintenance operations

3. Stress Relief Heat Treatment

For cold-formed captive screws:

• 280–400°C stress-relief annealing (2–3 hours)

• Reduces internal stress

• Improves resistance to stress corrosion cracking

These processes ensure long-term stability in high-reliability ATM applications.

 III. ATM Panel Screw Specifications and Compatibility

To ensure compatibility with global ATM cabinet designs, captive panel screw fasteners support a wide range of standard threads:

1. Metric Thread Series

• M3, M3.5, M4, M5, M6

2. Imperial Thread Series

• #4-40

• #6-32

• #8-32

• #10-32

 3. Head Drive Options

To support different assembly environments, available drive types include:

• Phillips head

• Torx (recommended for high-security ATM applications)

• Slotted head

These options support both manual servicing and automated assembly lines.

 IV. Application Value in ATM Cabinet Manufacturing

The use of stainless steel captive panel screws in ATM equipment provides significant engineering and operational advantages:

1. Improved Service Efficiency

• No loose screws during maintenance

• Faster panel removal and reassembly

• Reduced technician error rate

2. Enhanced Equipment Reliability

• Stable fastening under vibration

• Long-term corrosion resistance

• Reduced mechanical failure risk

3. Lower Lifecycle Cost

• Reduced replacement frequency

• Minimized maintenance downtime

• Improved operational uptime for ATM networks

 V. Engineering Considerations for Selection

When selecting captive panel screw stainless steel fasteners for ATM cabinets, engineers and procurement teams should evaluate:

• Environmental exposure (indoor/outdoor ATM deployment)

• Required corrosion resistance level (304 vs 316 vs duplex steel)

• Panel thickness and retention force requirements

• Maintenance frequency and disassembly cycles

• Drive type compatibility with service tools

Proper selection ensures optimal performance across the full ATM lifecycle.

Conclusion

Stainless steel captive panel screws (captive panel screw fasteners) provide a highly efficient and secure fastening solution for ATM cabinet manufacturing. By combining corrosion-resistant stainless steel materials with non-detachable retention structures, they significantly improve maintenance efficiency, operational reliability, and long-term structural safety.

For modern ATM systems that require frequent servicing and high security standards, captive panel screws are a key engineering component that supports stable, efficient, and cost-effective cabinet design.
