Stainless Steel Self-Clinching Nuts (Press-Fit Nuts) for ATM Cabinet Manufacturing – High-Reliability Sheet Metal Fastening Solutions

Stainless Steel Self-Clinching Nuts (Press-Fit Nuts) for ATM Cabinet Manufacturing – High-Reliability Sheet Metal Fastening Solutions

In ATM cabinet manufacturing (Automatic Teller Machine enclosures), fastening reliability directly impacts equipment security, long-term stability, and maintenance efficiency. As ATM systems operate in demanding environments such as bank branches, outdoor installations, and high-humidity regions, stainless steel self-clinching nuts (also known as stainless steel press-fit nuts) have become a critical fastening solution for precision sheet metal assembly.

By combining high mechanical strength, corrosion resistance, and flush-mounted installation, stainless steel press-fit nuts ensure stable threaded connections for thin-sheet structures throughout the full lifecycle of ATM equipment.

I. Core Engineering Advantages of Stainless Steel Press-Fit Nuts

1. Superior Corrosion Resistance for Long-Term Outdoor Stability

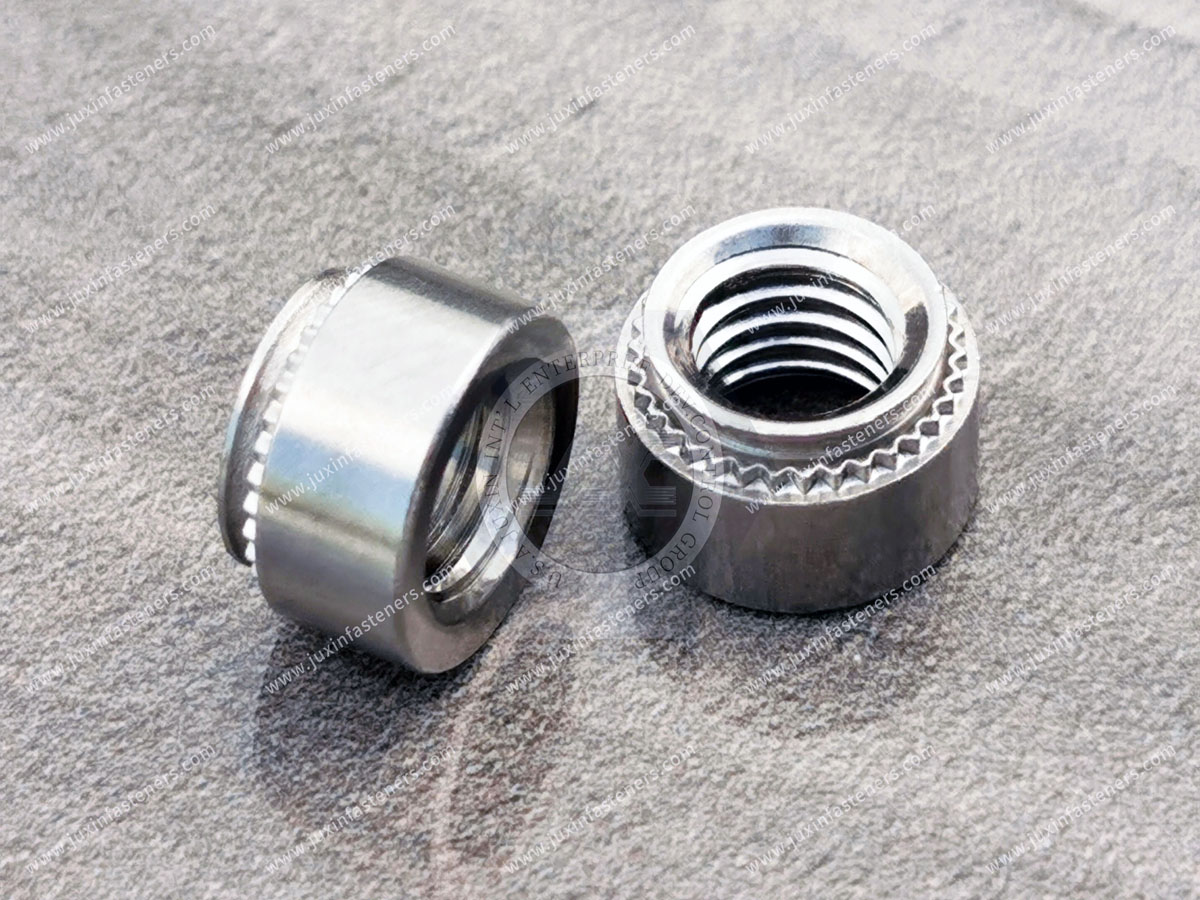

Stainless steel self-clinching nuts (JX-CLS series) are typically manufactured from 304 stainless steel, providing excellent resistance to:

• Humidity and condensation

• Urban pollution and corrosive gases

• Temperature fluctuation environments

After cold working, the material achieves a yield strength of over 205 MPa, ensuring long-term stability under vibration and repeated maintenance cycles without loosening or degradation.

This makes them ideal for ATM cabinet sheet metal structures exposed to variable environments.

 2. High Torque Resistance and Anti-Rotation Performance

The core of stainless steel press-fit nut technology lies in mechanical interlocking:

• The nut is pressed into a pre-punched hole

• Embossed knurling teeth embed into sheet metal

• Plastic deformation locks the nut into position

This structure provides:

• Excellent torque resistance

• Strong anti-rotation capability

• High tensile load performance

It ensures that critical ATM components such as cash dispensers, card readers, and control modules remain precisely aligned even under continuous vibration or external impact.

 3. Flush-Mount Design for Clean Internal Structure

After installation, stainless steel self-clinching nuts fasteners remain completely flush with the sheet metal surface.

Key benefits:

• No protrusion on the backside

• Maximized internal space utilization

• Clean and professional cabinet aesthetics

• Improved airflow and cable routing efficiency

This is particularly important for high-density ATM internal assemblies.

 4. High Structural Strength for Load-Bearing Applications

Different ATM cabinet areas require different load capacities:

• Main structural frame (M6 / M8 JX-CLS series):
       Supports heavy module stacking loads exceeding 85 kg

• Secondary panels (M3 / M4):
       Used for side panels, covers, and internal brackets

Proper selection ensures an optimal balance between strength, cost, and installation efficiency.

 II. Application Solutions in ATM Cabinet Manufacturing

1. Structural Frame Assembly

Stainless steel press-fit nuts are widely used in:

• Vertical columns

• Load-bearing beams

• Cabinet skeleton structures

Square or hex press-fit designs provide enhanced anti-rotation performance, improving torsional strength by up to 40% compared to standard round nuts.

This ensures:

• High structural accuracy

• Stable alignment of the ATM chassis

• Secure mounting foundation for internal systems

 2. Internal Equipment Module Installation

Used for:

• 19-inch rack rails

• Control board brackets

• Cash cassette supports

Advantages:

• No welding distortion

• No through-bolt protrusion

• Clean modular internal layout

• Easy maintenance and replacement

This supports modern ATM requirements for modular design and rapid servicing.

 3. Door Panels and External Component Fixing

Applied to:

• ATM door hinges

• Locking systems

• Operation panels

• LED signage frames

Benefits:

• One-sided installation capability

• Smooth inner and outer surfaces

• High resistance to repeated opening/closing cycles

• Strong anti-loosening performance under external impact

 III. Key Process Control & Installation Requirements

1. Sheet Metal Preparation Standards

To ensure optimal performance of stainless steel self-clinching wide fasteners:

• Mild steel hardness: < 70 RB

• Stainless steel sheet hardness: < 80 RB

• SUS304 requires hardened SP-series knurled press-fit nuts

 2. Precision Hole Tolerance Control

• Hole tolerance: typically ±0.075 mm

• Hole diameter slightly smaller than nut knurl diameter

• Precision punching recommended over manual drilling

This ensures proper plastic deformation and mechanical locking.

 3. Professional Press-Fitting Equipment

Installation must use:

• Pneumatic-hydraulic press machines

• CNC-controlled riveting systems

Strictly avoid hammering or impact installation, as it may cause:

• Thread deformation

• Sheet metal cracking

• Misalignment of the nut body

Modern intelligent systems can:

• Automatically adjust pressing force

• Compensate for material variation

• Ensure consistent installation quality in mass production

 4. Installation Quality Inspection

After installation:

• Verify thread smoothness

• Confirm full seating of nut flange

• Check for sheet metal cracking or deformation

• Ensure vertical alignment of press direction

 IV. Engineering Value in ATM Manufacturing

Compared to welding nuts or tapping methods, stainless steel press-fit nuts (stainless steel self-clinching nuts) provide:

• No heat-affected zone deformation

• Higher assembly efficiency

• Stronger anti-rotation performance

• Improved long-term maintenance reliability

• Cleaner and more modular design

These advantages are essential for ATM systems requiring high security, uptime stability, and service efficiency.

Conclusion

Stainless steel self-clinching nuts (press-fit nuts for ATM cabinets) provide a highly reliable, cost-effective fastening solution for modern ATM manufacturing. Through precise material selection (304 stainless steel), optimized sizing (M3–M8), and controlled press-fit installation processes, they ensure long-term structural integrity and stable operation of sensitive ATM modules.

As ATM systems evolve toward greater security, modularity, and lifecycle efficiency, stainless-steel press-fit nut technology remains a foundational fastening solution for durable, precise, and maintenance-friendly cabinet structures.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
