Self-Clinching Studs for Sheet Metal Fabrication

Sheet metal fabrication involves processes such as laser cutting, punching, bending, forming, welding, and CNC machining.

For many fabricated components, engineers need permanent threaded mounting points without adding welding operations or creating tapped holes in thin material.

Self-clinching studs for sheet metal fabrication provide an efficient solution.

They can be installed into suitable pre-punched or pre-drilled holes and become a permanent part of the sheet metal component.

Applications in Sheet Metal Fabrication

Self-clinching studs are widely applicable to:

• Electrical enclosures

• Control cabinets

• Machine housings

• Automotive brackets

• HVAC panels

• Electronics enclosures

• Telecom equipment

• Industrial equipment

• Battery enclosures

• Robotics equipment

• Custom OEM sheet metal parts

Why Use Press-In Studs?

For sheet metal fabricators, press-in studs can simplify the manufacturing process.

Advantages include:

• No welding operation

• No welding heat

• Reduced sheet distortion risk

• Fast installation

• Permanent threaded connection

• Suitable for production automation

• Reduced need for separate nuts

• Suitable for thin sheet metal

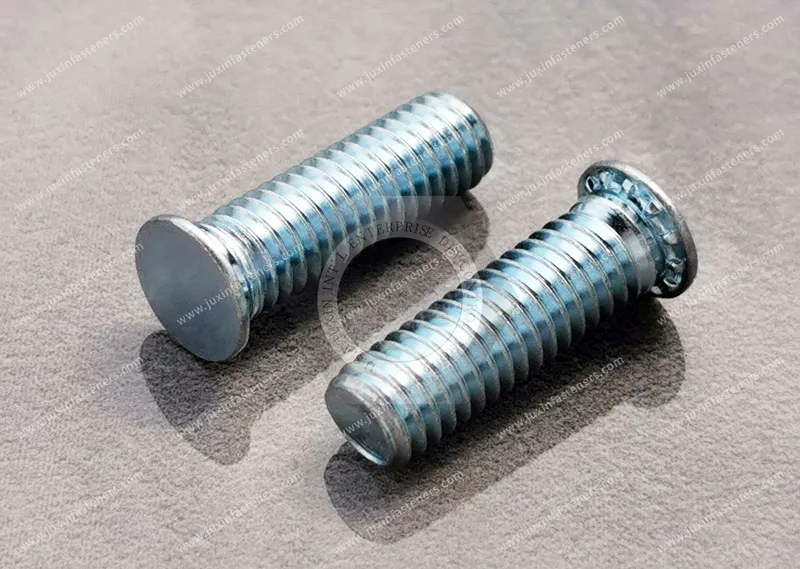

Round-Head Press-In Studs

Round-head self-clinching studs are widely used because they can be produced efficiently using cold-heading technology.

The knurled section beneath the head engages with the sheet during pressing.

This provides a practical combination of:

Fast installation + reliable retention + efficient production + competitive cost

Hex-Head Press-In Studs

Hex-head designs use their geometry to resist rotation.

They may be considered for applications requiring a different anti-rotation configuration.

Because these products generally involve machining operations, their production cost may be higher than standard round-head designs.

Sheet Metal Materials

Self-clinching studs can be used with suitable:

• Mild steel

• Carbon steel sheet

• Stainless steel sheet

• Aluminum sheet

• Other compatible sheet materials

However, select the fastener based on the actual material and thickness.

Installation Hole Design

Correct hole size is critical.

Design the installation hole according to the specified fastener and retention-feature dimensions.

An oversized hole may reduce retention performance, while an undersized hole can make installation difficult or damage the component.

For OEM production, include the installation-hole specification in the engineering drawing.

Metric and Imperial Options

For international OEM applications, Juxin can supply:

• Metric threads

• UNC threads

• UNF threads

• Other customer-specified thread systems

This allows sheet metal fabricators serving European, North American, and international markets to specify fasteners according to their customers' engineering requirements.

Materials and Surface Treatments

Typical options include:

Carbon Steel

Suitable for general industrial and OEM applications.

Carbon steel versions can undergo heat treatment according to the required mechanical performance.

SUS304 Stainless Steel

Suitable where improved corrosion resistance is required.

Zinc-Plated Carbon Steel

Provides corrosion protection and is widely used for industrial sheet metal assemblies.

RoHS-Compliant Options

We can supply RoHS-compliant materials and finishes to meet customer requirements.

Engineering Checklist

Before ordering self-clinching studs, sheet metal engineers should confirm:

• Sheet material

• Sheet thickness

• Hole diameter

• Thread size

• Thread standard

• Stud length

• Head dimensions

• Knurl diameter

• Installation force

• Pull-out requirements

• Rotation resistance

• Surface treatment

• Corrosion requirements

• Annual quantity

Providing a drawing allows the fastener manufacturer to review the complete application.

OEM Sheet Metal Fastener Manufacturer

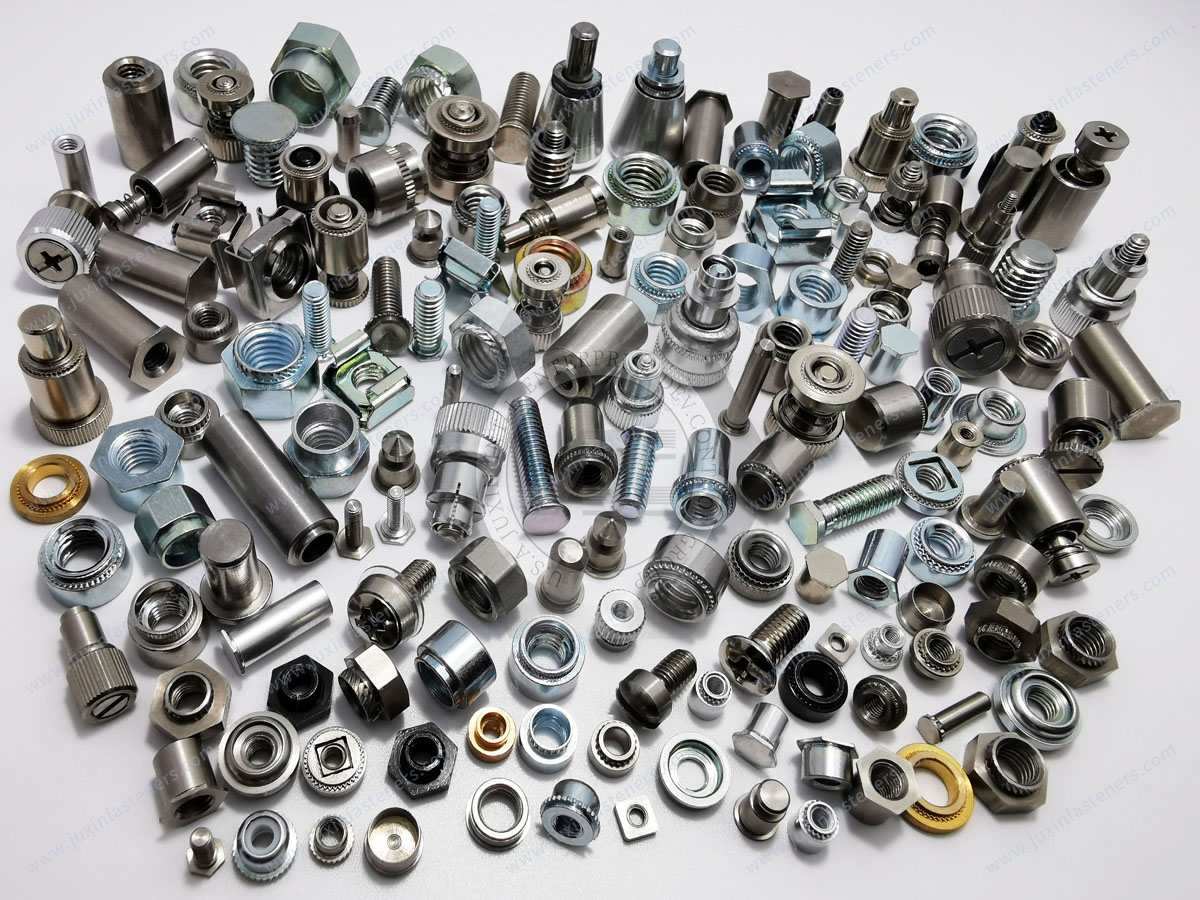

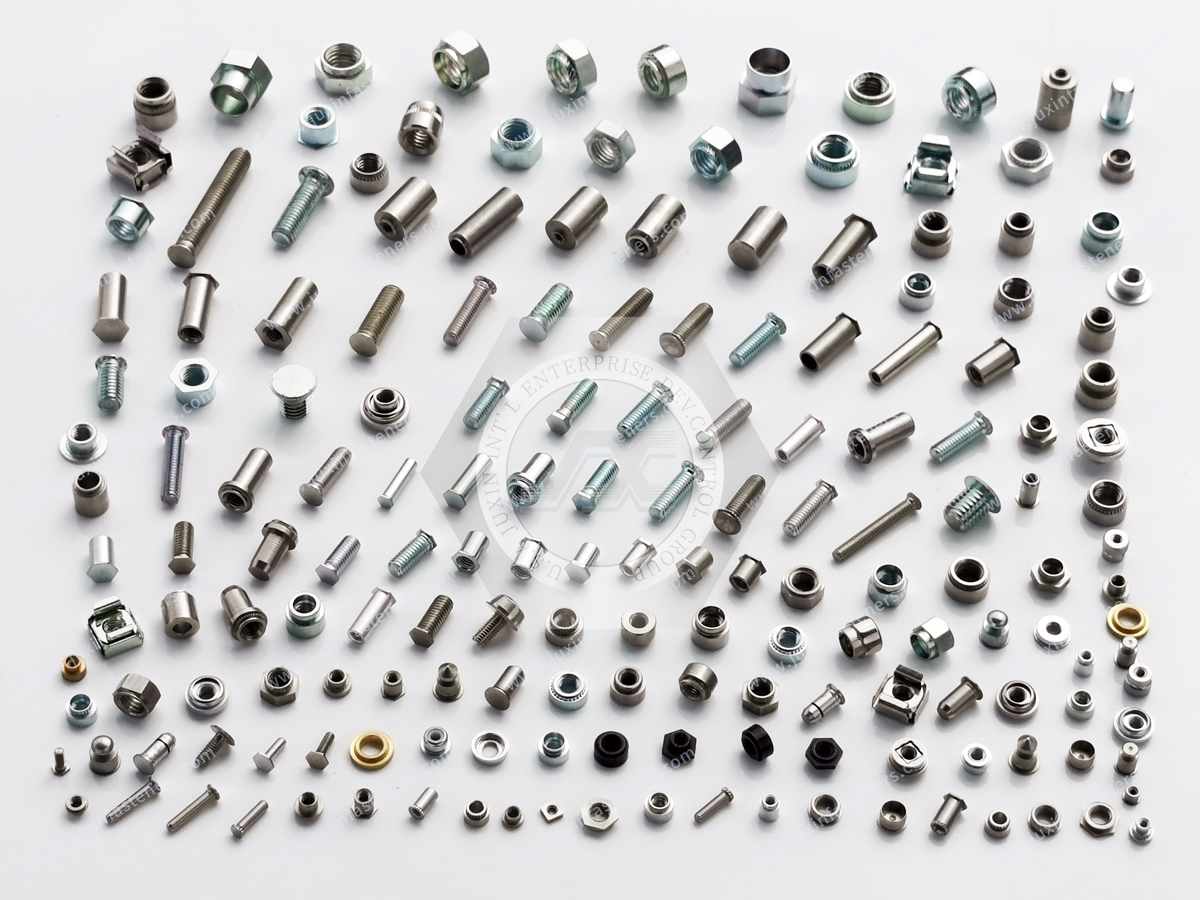

Juxin Fasteners supplies self-clinching studs, self-clinching nuts, rivet nuts, weld nuts, and other industrial fastening solutions for OEM sheet metal applications.

We support projects based on customer drawings, samples, specifications, material requirements, surface treatments, inspection requirements, and production quantities.
