Stainless Steel Self-Clinching Nuts Fasteners – High-Reliability Fastening Solution for Communication Cabinet Manufacturing

Stainless Steel Self-Clinching Nuts Fasteners – High-Reliability Fastening Solution for Communication Cabinet Manufacturing

In modern communication cabinet and chassis manufacturing, structural reliability, installation efficiency, and long-term corrosion resistance are critical engineering requirements. Under conditions of vibration, thermal cycling, and outdoor exposure, traditional welding or tapping methods often fail to deliver stable performance.

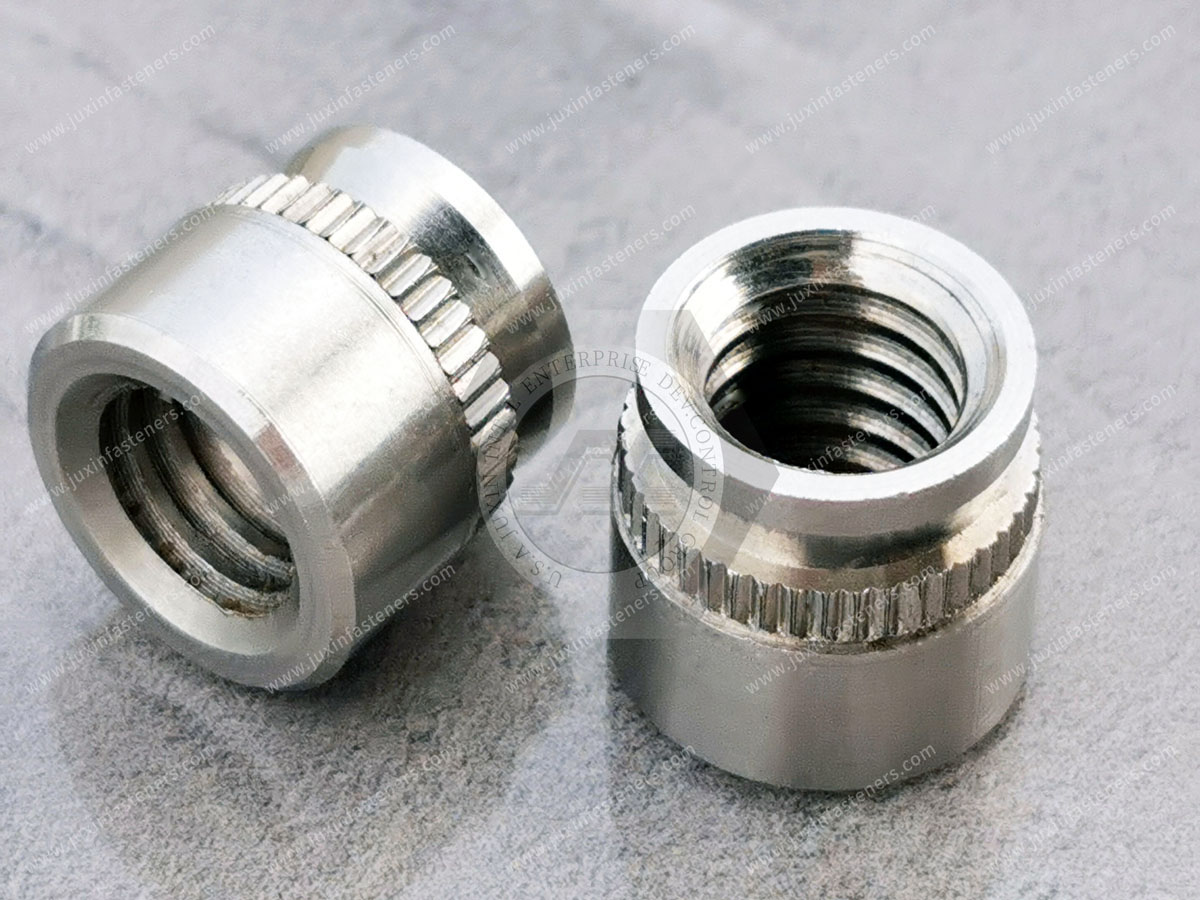

Stainless steel self-clinching nuts fasteners (also known as stainless steel rivet nuts / press-fit nuts) provide a highly efficient and durable threaded fastening solution, specifically designed for thin-sheet metal structures used in telecom and networking equipment.

I. Core Selection Strategy for Stainless Steel Self-Clinching Nuts Fasteners

Optimized Solution for Thin-Wall Cabinet Structures

For communication cabinets made from thin stainless steel sheets, stainless steel self-clinching nuts fasteners (JX-CLS / JX-CLSS / JX-SP series) are the preferred solution.

These fasteners are installed through a controlled pressing process, embedding the nut into the sheet metal and forming a permanent internal thread without:

• Welding

• Tapping

• Additional hardware reinforcement

The result is a flush, burr-free back surface, which is essential for compact electronic cabinet assembly.

 Material Matching for Stainless Steel Cabinet Systems

When the cabinet body uses stainless steel materials such as SUS304, proper material matching is critical.

Recommended solutions include:

• JX-SP stainless steel self-clinching nuts (for stainless steel      sheets)

• JX-CLS / JX-CLSS press-fit nut series

These designs ensure:

• Strong mechanical interlock

• Stable deformation bonding

• High resistance to pull-out and torque failure

Correct material pairing significantly improves long-term connection reliability.

 Specification and Sheet Thickness Compatibility

Proper selection of stainless steel self-clinching wild fasteners must consider:

• Thread size: M2 to M12 (common communication cabinet range)

• Sheet thickness compatibility:

• M2 requires ≥ 0.4 mm sheet thickness

• M12 requires ≥ 1.75 mm sheet thickness

Accurate matching ensures full clinch formation and prevents joint failure under load.

 Functional Options for Anti-Loosening Requirements

For vibration-sensitive cabinet systems, enhanced designs are available:

• JX-HNL self-locking clinch nuts

• Anti-rotation press-fit structures

• Integrated locking thread designs

These options provide additional security in environments with:

• Continuous vibration

• Transport shock loads

• Fan-induced dynamic movement

II. Engineering Advantages in Communication Cabinet Manufacturing

1. High Structural Reliability Through Cold-Forming Bonding

Stainless steel self-clinching nuts fasteners use controlled plastic deformation to permanently lock into sheet metal.

Key benefits include:

• High torque resistance

• Strong pull-out strength

• No heat-affected material weakening

• Stable performance under long-term mechanical stress

This makes them ideal for telecom enclosures requiring continuous operational reliability.

 2. Improved Manufacturing Efficiency and Assembly Speed

Compared with welding or threaded machining, press-fit installation offers:

• Fast one-step installation

• No post-processing required

• Reduced production time

• Lower labor cost

This significantly improves mass production efficiency for communication cabinets and chassis systems.

 3. Flat Rear Surface for Compact Electronic Integration

A key advantage of stainless steel self-clinching nuts fasteners is the flush back surface after installation.

This enables:

• Dense internal PCB layout

• Easy cable routing

• Simplified maintenance access

• No obstruction inside the cabinet

 4. Long-Term Corrosion Resistance for Outdoor Applications

Manufactured from 304 stainless steel, these fasteners provide:

• Excellent oxidation resistance

• Protection against humidity and dust

• Stable performance in outdoor telecom enclosures

• Extended service life in harsh environments

This is essential for 5G base station cabinets, outdoor network enclosures, and industrial communication systems.

 III. Professional Application Scenarios in Communication Systems

1. Cabinet Frame and Structural Assembly

Used for:

• Side panels

• Internal support frames

• Mounting rails

• Structural reinforcement points

Ensures rigid, vibration-resistant cabinet architecture.

 2. Electronic Equipment and Module Installation

Ideal for:

• PCB mounting

• Power module fixing

• Cooling fan assembly

• Signal processing unit support

Provides stable threaded anchoring for sensitive electronics.

 3. Outdoor Communication Infrastructure

Applied in:

• Base station cabinets

• Outdoor telecom enclosures

• Network distribution boxes

• 5G communication equipment housings

Ensures long-term structural integrity in weather-exposed environments.

 4. Maintenance and Service-Friendly Design

Because of their permanent but accessible threaded structure, stainless steel self-clinching nuts fasteners allow:

• Quick component replacement

• Modular system upgrades

• Reduced downtime during maintenance

 IV. Installation Process and Engineering Standards

Precision Press-Fit Installation Requirements

Proper installation is essential for achieving full performance:

• Use hydraulic or mechanical press tools

• Ensure correct hole size tolerance

• Apply controlled axial force

• Verify full material displacement into sheet metal

Incorrect installation may reduce torque strength and pull-out resistance.

 Compliance with Industry Standards

For communication cabinet manufacturing, preferred standards include:

• GB/T fastening standards

• ISO press-fit nut specifications

• DIN mechanical connection standards

Standard compliance ensures:

• Interchangeability

• Engineering reliability

• Quality consistency across batches

 Engineering Support and Design Optimization

Professional suppliers often provide:

• Installation tooling systems

• CAD/CAE simulation support

• Load analysis and selection guidance

• Application engineering consultation

This helps prevent design errors and improves structural optimization.

 V. Industry Value and Future Development Trends

As communication equipment evolves toward:

• Miniaturization

• Higher power density

• Outdoor deployment expansion

• Modular system architecture

Stainless steel self-clinching nuts and fasteners are becoming a standard fastening solution.

Their key advantages include:

• Eliminating welding deformation

• Supporting automated production

• Improving structural consistency

• Reducing lifecycle maintenance costs

They play a vital role in modern telecom infrastructure and intelligent communication systems.

 Conclusion

Stainless steel self-clinching nuts fasteners (press-fit rivet nuts) provide a highly reliable, efficient, and corrosion-resistant fastening solution for communication cabinet and chassis manufacturing.

With advantages in:

• Structural strength

• Installation efficiency

• Environmental durability

• Standardized production compatibility

They have become an essential component in modern telecom engineering.

For engineers and procurement teams, selecting the correct stainless-steel self-clinching wide fasteners solution ensures long-term system stability, reduces maintenance costs, and improves overall equipment reliability.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
