Steel Special Rivet Nuts

Custom Steel Double-Flange Hex Body Blind Rivet Nuts

JUXIN FASTENERS supplies custom Steel Double-Flange Hex Body Rivet Nuts for automotive OEM sheet-metal assemblies.

The specialized flange geometry and hexagonal body are designed for drawing-specific mounting and retention requirements.

Thread Sizes: M4, M5, M6, M8, M10, M12
Material: Steel
Surface Treatment: ZnNi 8/Fe
Design: Custom Double-Flange Configuration
Body Type: Hexagonal
Grip Range: According to the approved drawing
Installation and Mechanical Requirements: Application-specific


Share:

Product Specification

Product Specifications

Product Name: Custom Steel Double-Flange Hex Body Blind Rivet Nuts

Alternative Product Names: Double-Flanged Rivet Nuts; Special Double-Flange Threaded Inserts; Custom Automotive Hex Body Rivet Nuts

Product Type: Drawing-Specific Automotive Fastening Component

Thread Sizes: M4, M5, M6, M8, M10, M12

Material: Steel

Material Grade: According to the approved material specification

Surface Treatment: ZnNi 8/Fe (customer-specified designation)

Coating System: Zinc-Nickel Alloy

Flange Configuration: Custom Double-Flange Design

Body Geometry: Hexagonal, subject to the approved drawing

Thread Pitch and Tolerance: According to the approved drawing

Grip Range: According to the approved drawing for each size

Installation Method: According to the approved installation procedure

Mounting-Hole Geometry: According to the approved drawing

Mechanical Retention: Subject to application-specific testing

Primary Market: Automotive OEM, Electric Vehicles and Commercial Vehicle Equipment

Product Overview

JUXIN FASTENERS supplies custom steel double-flange rivet nuts for automotive manufacturers, Tier 1 component suppliers and industrial OEMs requiring non-standard threaded fastening components.

Unlike a conventional single-flange rivet nut, this product incorporates a specialized double-flange geometry developed for drawing-specific assembly requirements.

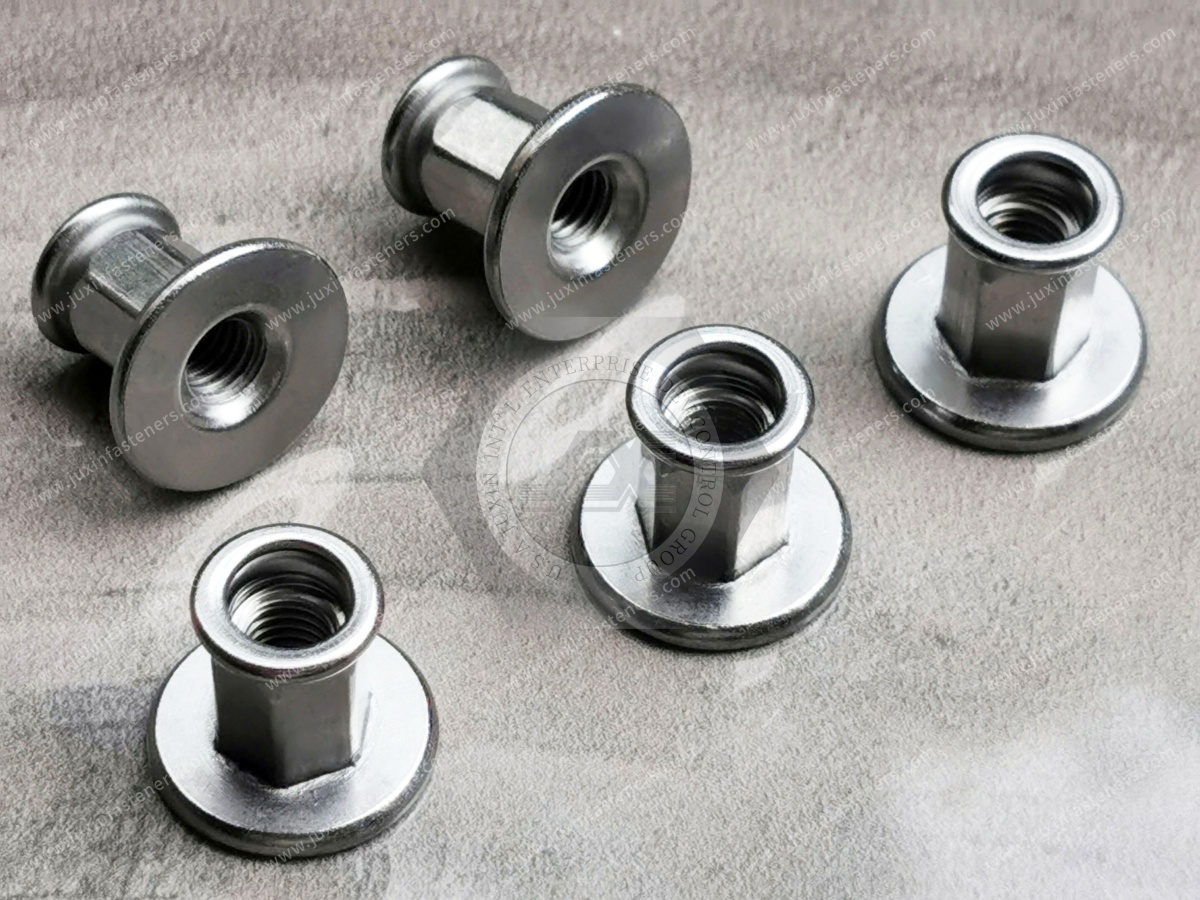

The supplied product image also shows a hexagonal body section, making body geometry and rotational engagement important considerations during engineering review.

Available nominal thread sizes are M4, M5, M6, M8, M10 and M12.

The specified surface treatment is ZnNi 8/Fe.

This product should be sourced against an approved engineering drawing rather than substituted with a standard rivet nut of the same thread size.

Double-Flange Rivet Nut Design: What Makes It Different?

The principal engineering feature is the double-flange configuration.

A conventional blind rivet nut typically has a front-side flange and a deformable barrel that forms a retaining feature behind the parent panel during installation.

A custom double-flange design may incorporate additional formed geometry intended to control positioning, contact or retention within a particular assembly.

However, the function of each flange depends on its actual geometry.

The term "double flange" alone does not establish whether both flanges are preformed, whether one feature is created during installation, or whether the component uses a special assembly process.

For OEM engineering, the approved drawing should define:

  • Primary flange diameter and thickness

  • Secondary flange geometry

  • Axial distance between features

  • Hexagonal body dimensions

  • Deformation or installation zone

  • Parent-panel thickness

  • Mounting-hole geometry

  • Required installation method

This distinction is particularly important when replacing an existing customer-specific part.

Why Double-Flange Geometry Matters in Automotive Assemblies

Automotive equipment frequently combines sheet-metal panels, brackets and other components within tightly controlled assembly spaces.

A custom flange configuration may be developed to address a particular positioning or retention requirement that cannot be met using an ordinary rivet nut.

Potential engineering objectives include:

  • Controlling the axial position of a threaded insert

  • Accommodating a particular panel or bracket geometry

  • Providing defined contact surfaces

  • Supporting a customer-specific assembly sequence

  • Meeting restricted packaging dimensions

  • Maintaining repeatable installation geometry

These are possible design objectives, not verified performance claims for every double-flange configuration.

The actual function must be established from the customer's assembly drawing.

Automotive and Electric Vehicle Applications

Custom double-flange threaded inserts may be evaluated for automotive assemblies requiring special mounting geometry or repeatable threaded connections.

Potential applications include:

  • Automotive sheet-metal brackets

  • Electric vehicle equipment mounting structures

  • EV power electronics support assemblies

  • Automotive electrical equipment housings

  • Battery system accessory brackets

  • Thermal management equipment supports

  • Vehicle interior mounting structures

  • Commercial vehicle equipment frames

  • Automotive serviceable equipment panels

  • Industrial vehicle component housings

For EV battery assemblies and other safety-critical systems, the fastening component must be qualified for its specific mechanical, electrical, thermal and environmental requirements.

The product should not be described as crash-rated, electrically insulating or approved for structural safety applications without supporting validation.

Hexagonal Body and Rotational Engagement

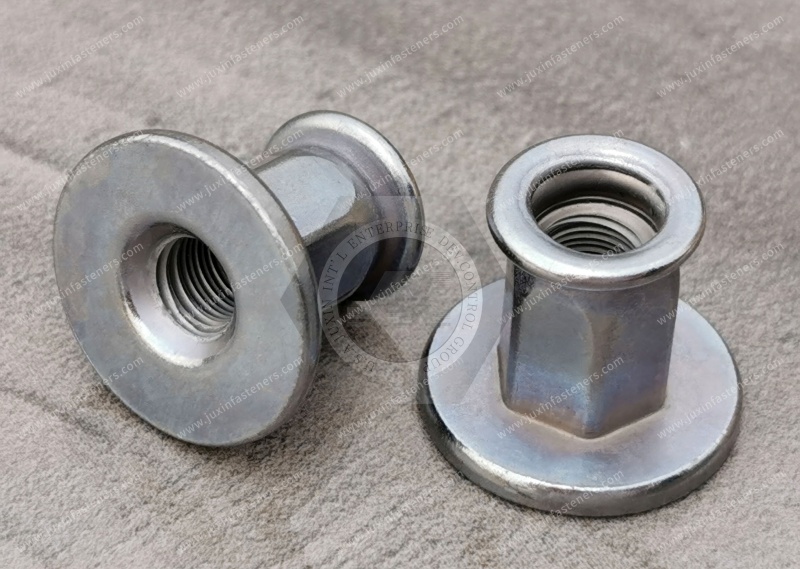

The supplied product image shows a hexagonal body section.

In a compatible mounting geometry, flat-sided engagement may help resist rotation when a mating screw is tightened or removed.

This differs from round-body rivet nuts that depend primarily on knurling or other surface features for rotational engagement.

However, the exact mounting-hole shape and fit must be confirmed from the approved drawing.

Engineers should evaluate:

  • Hexagonal body dimensions

  • Hole geometry and tolerances

  • Parent-material strength

  • Panel thickness

  • Installation deformation

  • Screw tightening torque

  • Required spin-out resistance

A hexagonal body does not automatically guarantee a particular anti-rotation performance.

Where a hexagonal mounting hole is specified, its across-flats dimensions, corner geometry and manufacturing tolerances should be controlled.

A round hole should not be substituted without engineering approval.

Double-Flange Geometry and Load Transfer

A common engineering mistake is to assume that an additional flange automatically increases load capacity.

Actual joint performance depends on how the flange surfaces engage the parent material and how loads are transferred through the installed component.

The complete assembly should be reviewed for:

  • Flange bearing area

  • Local contact pressure

  • Parent-panel deformation

  • Axial loading

  • Applied bending moments

  • Thread engagement

  • Installation geometry

  • Joint stiffness

If the secondary flange provides a defined bearing or positioning function, that function should be documented and tested.

If it serves another purpose, such as a manufacturing or assembly feature, the product description should reflect that actual function.

No numerical increase in strength or retention is claimed without comparative testing.

M4–M12 Thread Size Selection

The confirmed nominal metric thread sizes are M4, M5, M6, M8, M10 and M12.

Common ISO metric coarse-thread designations are:

M4 × 0.7

M5 × 0.8

M6 × 1.0

M8 × 1.25

M10 × 1.5

M12 × 1.75

These are reference thread pitches, not confirmation that every supplied variant uses the coarse-thread series.

Actual thread pitch, tolerance and usable engagement length must follow the approved drawing.

Relevant standards include ISO 261 and ISO 965 for metric thread selection and tolerances.

For automotive purchasing, thread size should be specified together with the drawing revision and mating screw requirements.

Metric-to-Inch Dimensional Reference

For North American engineering and sourcing teams:

M4: 4.0 mm / approximately 0.1575 in

M5: 5.0 mm / approximately 0.1969 in

M6: 6.0 mm / approximately 0.2362 in

M8: 8.0 mm / approximately 0.3150 in

M10: 10.0 mm / approximately 0.3937 in

M12: 12.0 mm / approximately 0.4724 in

These values represent nominal diameter conversions only.

They do not establish equivalence with UNC, UNF or other inch-thread systems.

ASME B1.1 may be used when reviewing Unified inch-thread requirements.

Metric and inch-thread components are not directly interchangeable.

Any inch-thread version requires separate engineering and supply confirmation.

ZnNi 8/Fe Zinc-Nickel Surface Treatment

The specified surface treatment is ZnNi 8/Fe.

This designation should be retained exactly in the product and purchasing documentation until its complete meaning is verified against the approved customer coating specification.

Zinc-nickel alloy coatings are used on steel fasteners where a defined corrosion-protection system is required.

For automotive OEM applications, the coating specification should identify:

  • Coating designation

  • Zinc-nickel alloy composition

  • Minimum and maximum coating thickness

  • Passivation requirements

  • Sealant or topcoat, if applicable

  • Corrosion-test requirements

  • Thread fit after coating

  • Restricted-substance requirements

  • Coating inspection criteria

ISO 4042 is a relevant reference for electroplated fastener coating systems.

ISO 19598 and ISO 15726 may also be relevant to the zinc-alloy coating specification.

The supplied ZnNi 8/Fe designation should not be used to infer an exact coating thickness, passivation type, nickel content or corrosion-test duration without the original specification.

Corrosion Protection in Automotive Environments

Automotive fasteners may be exposed to moisture, road spray, temperature changes and other environmental conditions.

For a zinc-nickel plated steel rivet nut, corrosion protection should be assessed according to the complete coating system.

Relevant engineering considerations include:

  • Coating thickness and consistency

  • Passivation and topcoat

  • Parent-material compatibility

  • Environmental exposure

  • Contact with dissimilar metals

  • Coating damage during installation

  • Long-term joint accessibility

Where required, corrosion testing may reference ISO 9227 or ASTM B117.

A salt-spray result should not be presented as a direct prediction of real-world service life.

No specific corrosion-performance rating is claimed without verified test documentation.

Hydrogen Embrittlement Risk Management

Electroplating certain high-strength steel fasteners can introduce hydrogen embrittlement concerns.

The relevance of this risk depends on the actual steel grade, hardness, manufacturing process and coating requirements.

ISO 4042 includes requirements and recommendations addressing electroplated fastener systems and hydrogen embrittlement risk.

For this custom product, the material grade and hardness must be confirmed before determining the necessary process controls.

No specific heat treatment, baking procedure or hydrogen embrittlement qualification is claimed without supporting process documentation.

Automotive Installation and Assembly Engineering

Because this is a custom double-flange configuration, the installation procedure should be established from the approved drawing.

It should not automatically be assumed that the product uses the same installation stroke, mandrel or hole dimensions as a standard blind rivet nut.

Important engineering checks include:

  • Parent-panel material

  • Panel thickness

  • Mounting-hole geometry

  • Flange orientation

  • Installation-tool compatibility

  • Required setting force or stroke

  • Final flange position

  • Internal thread condition

  • Parent-panel deformation

  • Mechanical retention

If the design includes a preformed secondary flange, the assembly sequence must account for the actual insertion and positioning requirements.

For high-volume automotive production, installation repeatability should be evaluated using representative production parts.

Mechanical Retention and Joint Reliability

Automotive qualification should distinguish among different mechanical failure modes.

Depending on the installation design, relevant evaluations may include:

  • Pull-out resistance

  • Push-out resistance

  • Spin-out torque

  • Thread stripping resistance

  • Flange deformation

  • Parent-panel damage

  • Repeated screw installation

  • Vibration performance

A component that performs well under axial loading may still require separate evaluation for rotational loading.

Similarly, a double-flange design does not independently prevent the mating screw from loosening.

The complete threaded joint should be assessed for its intended loading conditions.

No numerical mechanical ratings are claimed without product-specific testing.

Designing for Automotive Vibration and Serviceability

Automotive assemblies may experience repeated vibration, thermal cycling and maintenance operations.

The fastening system should be evaluated for:

  • Mating screw strength

  • Thread engagement

  • Tightening torque

  • Clamp-load retention

  • Joint stiffness

  • Insert rotational retention

  • Parent-material fatigue

  • Repeated assembly and disassembly

Where required, an appropriate screw-locking strategy should be specified separately.

The double-flange geometry should not be treated as a substitute for validated joint design.

Automotive OEM and Tier 1 Qualification

For automotive OEM and Tier 1 sourcing, a drawing-specific rivet nut should be controlled through a complete technical specification.

Recommended qualification requirements include:

  • Approved 2D drawing and revision

  • Thread size and pitch

  • Steel material specification

  • Double-flange geometry

  • Hexagonal body dimensions

  • Mounting-hole requirements

  • Grip range or panel thickness

  • ZnNi 8/Fe coating specification

  • Installation parameters

  • Mechanical retention criteria

  • Inspection and traceability requirements

Customer-specific programs may require first article inspection, dimensional inspection records, material certificates, coating reports, PPAP submissions or other quality documentation.

APQP, PPAP, IMDS and IATF 16949-related requirements should be addressed according to the actual customer program.

No particular certification, OEM approval or PPAP status is implied without supporting evidence.

Procurement Considerations for High-Volume Automotive Programs

For purchasing managers, sourcing engineers and supplier development teams, custom double-flange rivet nuts should be evaluated according to the complete purchasing specification.

Important commercial considerations include:

  • Approved drawing and revision control

  • Tooling requirements

  • Material availability

  • Thread-size requirements

  • Coating process control

  • Dimensional inspection

  • Installation compatibility

  • Packaging and traceability

  • Prototype quantities

  • Production volumes

  • Annual purchasing forecasts

  • Delivery scheduling

A custom double-flange design may require different manufacturing and inspection operations from a conventional rivet nut.

These requirements should be identified during quotation rather than after production tooling has been approved.

Total Installed Cost

Unit price alone does not describe the complete cost of a fastening solution.

For automotive production, the total installed cost may also include:

  • Mounting-hole preparation

  • Installation-tool requirements

  • Assembly cycle time

  • Quality inspection

  • Installation defects

  • Rework and replacement

  • Inventory management

  • Packaging

  • Logistics

A custom design may be commercially appropriate when it meets a defined assembly requirement that standard components cannot satisfy.

However, any cost or assembly-time advantage must be validated against the actual production process.

Other Industrial Applications

Beyond automotive manufacturing, custom double-flange rivet nuts may be evaluated for suitable applications in:

  • Commercial vehicle manufacturing

  • Industrial machinery

  • Material handling equipment

  • Industrial automation

  • Electrical equipment housings

  • Fabricated sheet-metal structures

  • Equipment mounting assemblies

Application suitability depends on the approved product geometry and mechanical requirements.

Related Fastening Solutions and Internal Linking

Flat Head Open-End Full Hexagonal Body Blind Rivet Nuts

A related hexagonal body design for applications requiring geometric anti-rotation engagement.

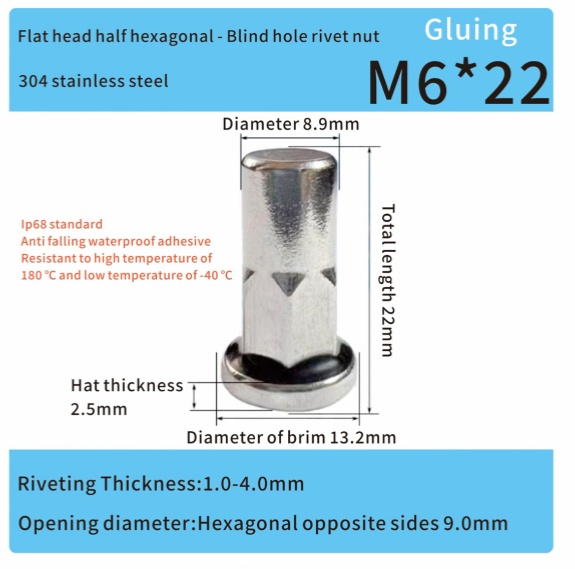

High Flat Head Open-End Partial Hex Body Blind Rivet Nuts

An alternative body configuration for compatible mounting-hole requirements.

Square Flange Knurled Body Blind Rivet Nuts

A custom flange and body configuration for drawing-specific automotive assemblies.

Thin Head Open-End Knurled Body Blind Rivet Nuts

An alternative for applications requiring reduced front-side flange projection.

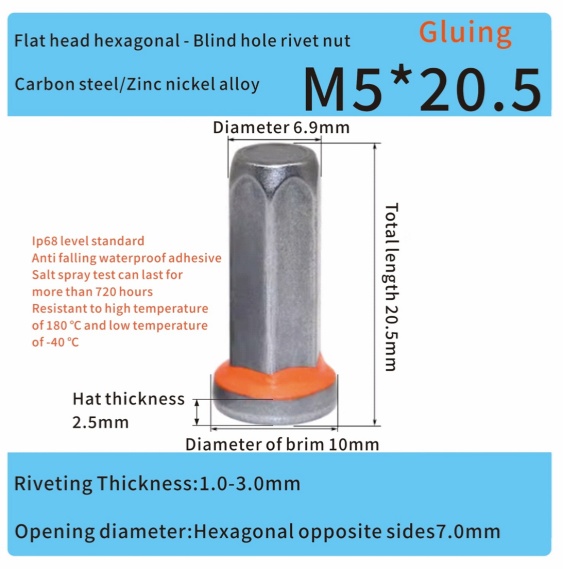

Full Hex Closed-End Sealing Blind Rivet Nuts

A related design for applications requiring a closed-end barrel and an under-flange sealing feature.

Internal links should point to the corresponding verified JUXIN FASTENERS product pages using descriptive anchor text.

These configurations should not be treated as directly interchangeable without engineering approval.

OEM RFQ Requirements

For technical review and quotation, please provide:

  • Approved 2D drawing or 3D CAD model

  • Drawing revision

  • Required thread size: M4, M5, M6, M8, M10 or M12

  • Thread pitch and tolerance

  • Steel material grade

  • Parent-panel material

  • Panel thickness

  • Mounting-hole geometry

  • Primary flange dimensions

  • Secondary flange dimensions

  • Hexagonal body dimensions

  • Required installation method

  • ZnNi 8/Fe coating specification

  • Corrosion requirements

  • Required mechanical performance

  • Inspection and traceability requirements

  • Prototype or production quantities

  • Estimated annual purchasing volume

  • Delivery destination

Why Source Custom Double-Flange Rivet Nuts from JUXIN FASTENERS?

JUXIN FASTENERS supplies industrial fastening products for drawing-based OEM purchasing and engineering requirements.

For automotive customers, technical discussions can focus on special flange geometry, mounting-hole compatibility, material selection, zinc-nickel coating requirements, installation conditions and mechanical retention.

The specified product family includes M4, M5, M6, M8, M10 and M12 steel double-flange rivet nuts with a ZnNi 8/Fe surface-treatment designation.

Final dimensions, installation requirements, coating details and mechanical acceptance criteria must be confirmed before production approval.

Request an Automotive OEM Quotation

Looking for custom double-flange rivet nuts, hex body threaded inserts, or zinc-nickel plated automotive fastening components?

Send your drawings, technical specifications and estimated purchasing quantities to JUXIN FASTENERS.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com


Product Packaging

Product Packaging

JUXIN FASTENERS arranges packaging for custom steel double-flange rivet nuts according to confirmed purchasing quantities, product dimensions, ZnNi 8/Fe coating requirements and automotive OEM customer instructions.

Packaging Configuration

Inner Packaging: Suitable protective bags, trays or containers, as agreed.

Outer Packaging: Cartons according to confirmed shipping requirements.

Pallet Packaging: Subject to order and logistics arrangements.

Custom OEM Packaging: According to approved customer specifications.

Quantity per Package: Confirmed during order processing.

Product Identification

Where required, packaging labels may include:

  • Product Name: Custom Steel Double-Flange Rivet Nut

  • Thread Size: M4, M5, M6, M8, M10 or M12

  • Material: Steel

  • Surface Treatment: ZnNi 8/Fe

  • Customer or Supplier Part Number

  • Drawing Revision

  • Lot or Batch Number

  • Package Quantity

  • Customer Purchase Order Number

Product Protection

Packaging should protect the primary and secondary flange features, hexagonal body, internal threads and zinc-nickel coating against unnecessary damage during handling, storage and transportation.

Special attention should be given to protecting the drawing-specific flange geometry and coated surfaces.

Automotive OEM Packaging and Traceability

For automotive OEM and Tier 1 purchasing programs, packaging and labeling requirements may be agreed according to customer-specific logistics procedures.

Where required, arrangements may include lot traceability, barcode labeling, batch segregation, coating identification and supporting inspection documentation.

Final packaging quantities, carton configurations, labeling formats and shipment arrangements are confirmed before delivery.

For OEM packaging requirements and quotations:

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com


Product Pictures

With double flange rivet nutsWith double flange rivet nuts


With double flange rivet nuts

With double flange rivet nuts


Contact Us

Tel.:

+86 020 8621 0320

+86 020 3121 6067

Mobile: +86 136 6007 9809

Technical Support:

SEND INQUIREY

Copyright © Guangzhou Juxin Development Co., Ltd. All Rights Reserved | Sitemap
