In modern ATM manufacturing, the demand for lightweight structures, modular assembly, and long-term serviceability has made plastic enclosures and hybrid structural designs increasingly common. To ensure these plastic components maintain high mechanical strength and reliable fastening performance, brass thread insert nuts (brass insert nuts for plastic parts) have become a critical embedded fastening solution.

By combining the mechanical strength of metal threads with the flexibility of injection-molded plastics, brass insert nuts for ATM equipment deliver durable, reusable, and high-precision threaded connections for mission-critical components.

I. Core Application Value of Brass Thread Insert Nuts in ATM Equipment

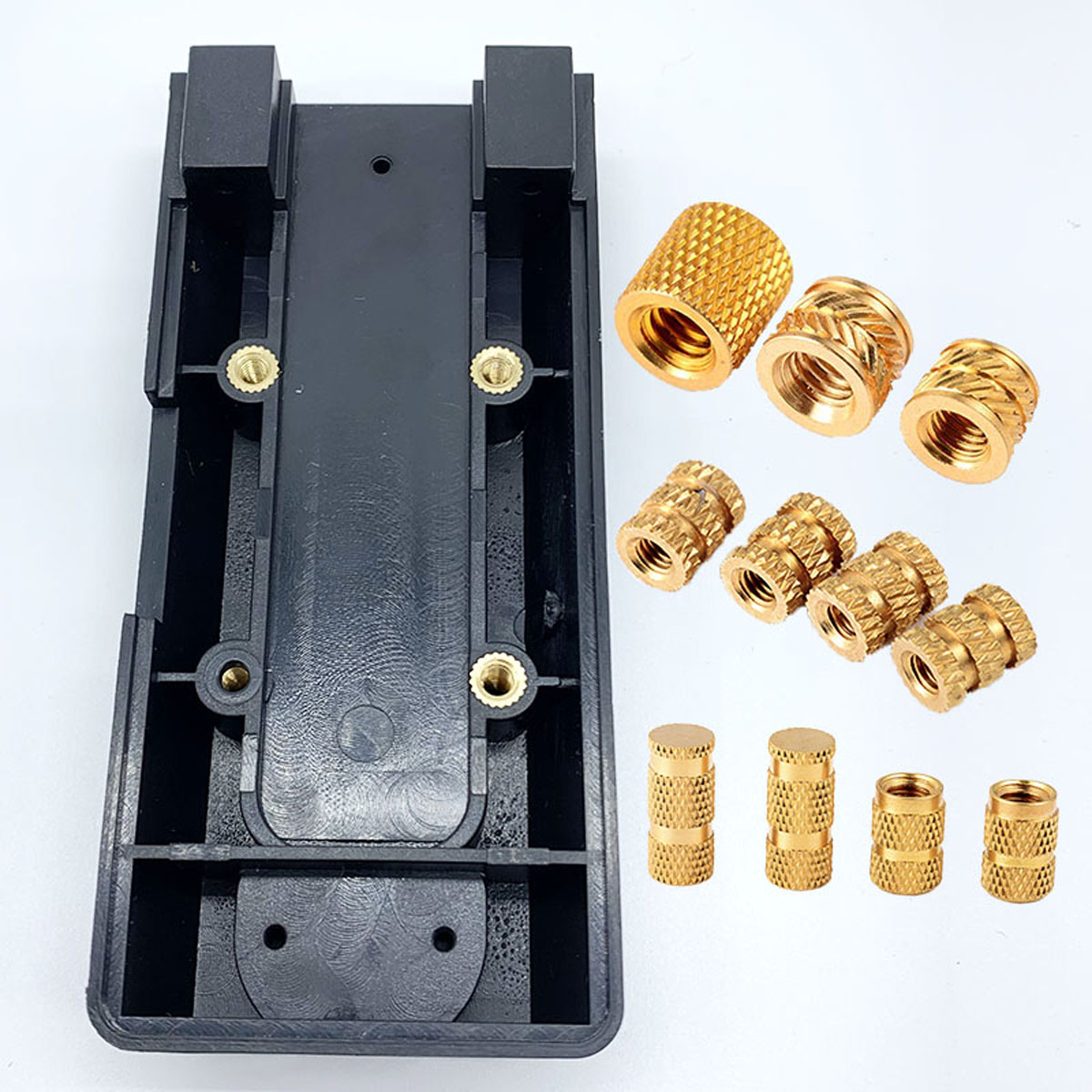

Reliable Internal Threading for Plastic Components

In ATM systems, many structural parts are made of engineering plastics such as PC, ABS, or nylon. These include:

• Control panels

• Display frames

• Cash drawer housings

• Cable mounting brackets

Brass thread insert nuts for injection-molded parts are embedded in these plastic structures to provide strong, wear-resistant metal threads. This eliminates the risk of thread stripping caused by repeated assembly and disassembly.

 High Thermal and Electrical Performance

Brass offers excellent thermal conductivity, improving heat distribution during injection molding. This leads to:

• Faster and more stable molding cycles

• Reduced internal stress in plastic components

In addition, brass provides partial electrical conductivity, making brass insert nuts for ATM electronics housings suitable for grounding or conductive mounting points.

 Lightweight Structural Reinforcement

Compared with fully metal housings, using brass threaded insert nuts in ATM plastic assemblies enables:

• Significant weight reduction

• Improved design flexibility

• Increased mechanical reinforcement at stress points

This is essential for modern ATM systems focused on compact design and transport efficiency.

 II. Key Manufacturing Processes for Brass Insert Nuts

1. Insert Molding (Injection Molding Embedding)

The most widely used process in ATM mass production:

• Brass inserts are placed inside the mold

• Molten plastic encapsulates the insert

• A permanent mechanical bond is formed

 Ideal for:

• High-volume ATM production

• Consistent precision components

• Automated manufacturing lines

 2. Heat-Press / Hot-Melt Insertion

Used for flexible or repair applications:

• The insert is heated

• Pressed into pre-formed plastic holes

• Cools to form a secure bond

 Ideal for:

• Low-volume production

• Maintenance or retrofit applications

 3. Automated Insertion Systems

Modern ATM manufacturing increasingly uses automation:

• Robotic arm placement

• Vibratory feeding systems

• High-speed positioning control

This improves accuracy and reduces human error in brass insert nut assembly for ATM components.

 III. Anti-Misalignment Engineering (Critical for ATM Precision)

ATM systems require extremely high dimensional accuracy. Even slight misalignment of threaded inserts can cause:

• Assembly interference

• Module misfit

• Functional failure

Engineering Solutions:

To ensure precision, manufacturers apply:

• Double locating pin structures

• Bottom slot positioning design

• Injection speed control (80 mm/s → 30 mm/s)

• Mold temperature stabilization at 25±3°C

Result:

• Misalignment controlled within ±0.03 mm

• Yield rate increased up to 99.2%

This makes precision brass insert nuts for ATM plastic molding highly reliable in mass production.

IV. Structural Design of Brass Insert Nuts

To improve bonding strength with plastic materials, different knurling structures are used:

• Straight knurling

• Cross knurling

• Diagonal knurling

• Barbed outer surfaces

These designs increase mechanical interlock strength and prevent pull-out under vibration.

Standard Types (Based on GB/T 809):

• Type A (Through Hole): Prevents      resin leakage during molding

• Type B (Blind Hole): Blocks plastic      intrusion into threads

 V. Material Selection and Technical Standards

 Standard Brass Materials

• H59-3 brass (industrial standard)

• C3604 lead-free brass (RoHS compliant)

Specification Range

• M2 to M16 brass insert nuts for ATM applications

Surface Treatment Options

• Natural brass finish

• Nickel-plated brass insert nuts

• Zinc-plated corrosion-resistant variants

These options allow adaptation to different environmental and electrical requirements in ATM systems.

 VI. Typical Applications in ATM Manufacturing

1. Plastic Housing Assemblies

• Control panel enclosures

• User interface frames

• Display module housings

 Ensures durable screw mounting points for repeated maintenance.

 2. Cash Handling System Components

• Cash drawer housings

• Locking mechanisms

• Guide rails and brackets

Provides high-strength reusable threading in moving components.

 3. Internal Electronics Mounting

• PCB boards

• Sensor brackets

• Power module supports

 Prevents thread wear during servicing and upgrades.

 4. Cable Management Systems

• Cable clamps

• Wiring brackets

• Strain relief mounts

 Ensures stable and vibration-resistant electrical routing.

 VII. Supply Chain and Customization Capability

Modern ATM manufacturers often require highly customized solutions for different cabinet designs.

 Customization Options:

• Non-standard thread sizes

• Special knurling geometries

• Lead-free, eco-friendly brass inserts

• Anti-rotation design structures

 Supplier Capability Matters:

Professional suppliers of brass thread insert nuts for industrial equipment can provide:

• Mold design support

• Injection simulation analysis

• Installation tooling solutions

• Full lifecycle technical support

This ensures stable performance in high-volume ATM production environments.

Conclusion

Brass-thread insert nuts for ATM manufacturing provide a highly efficient, precision-engineered solution for creating durable metal threads in plastic components. Through advanced insert molding technology, anti-misalignment control, and optimized knurling design, they significantly improve the structural reliability, assembly efficiency, and long-term serviceability of ATM systems.

As ATM equipment continues to evolve toward lightweight design, modular architecture, and higher precision requirements, brass insert nuts for plastic assemblies remain a foundational fastening technology supporting next-generation ATM manufacturing.
