High-Precision Fastening Solutions for Lightweight Plastic and Structural Assemblies

As the automotive industry continues to evolve toward lightweight structures, intelligent systems, and electric-vehicle platforms, the demand for high-reliability fastening solutions has increased significantly. Modern automotive components require fastening systems capable of maintaining structural integrity under continuous vibration, alternating torque loads, thermal cycling, and long-term mechanical stress.

Thread Insert Nuts are widely used in automotive plastic assemblies, lightweight structural components, electrical housings, and intelligent cockpit systems because they provide strong, reusable metal threads in engineering plastics and other lightweight materials. Compared with direct tapping in plastic components, Thread Insert Nuts deliver higher pull-out resistance, improved anti-loosening performance, and superior long-term durability.

Today, automotive OEMs and Tier 1 suppliers increasingly rely on precision Thread Insert Nuts to improve assembly reliability, production efficiency, and component lifespan in both conventional and new energy vehicles.

Why Thread Insert Nuts Are Important in Automotive Manufacturing

Automotive components operate in some of the most demanding industrial environments. Fasteners must withstand:

• High-frequency vibration

• Continuous torque loading

• Engine compartment temperature fluctuations

• Oil and chemical exposure

• Repeated assembly and maintenance

• Long-term fatigue stress

In automotive plastic assemblies, direct threading often causes:

• Thread stripping

• Plastic cracking

• Torque instability

• Reduced service life

• Poor vibration resistance

Thread Insert Nuts solve these problems by creating durable internal metal threads inside plastic and lightweight structures while maintaining stable mechanical locking performance.

Typical automotive applications include:

• Injection molded plastic parts

• Automotive interior modules

• Intelligent cockpit systems

• Automotive electronic housings

• Battery pack structures

• EV electrical systems

• Sensor mounting components

• Lightweight structural assemblies

 Material Selection for Automotive Thread Insert Nuts

Material performance directly affects the reliability, corrosion resistance, and manufacturing stability of automotive fasteners.

Brass Thread Insert Nuts

Brass Thread Insert Nuts are widely used in automotive applications requiring stable mechanical strength and corrosion resistance.

Recommended materials include:

• C3604 Brass

• H59 Brass

• H62 Brass

Advantages:

• Excellent machinability

• Stable thread precision

• Good corrosion resistance

• High production consistency

• Reliable pull-out performance

These materials fully support modern automotive environmental requirements and are commonly used in precision automotive insert applications.

 Thread Insert Nuts for Engineering Plastic Components

Modern vehicles increasingly use engineering plastics to reduce overall vehicle weight. Thread Insert Nuts are essential for creating strong fastening points in these lightweight materials.

Compatible materials include:

• PA66 Nylon

• Polycarbonate (PC)

• Glass-filled engineering plastics

• High-temperature automotive resins

Applications include:

• Dashboard assemblies

• Automotive control modules

• Electronic enclosures

• Interior trim systems

• Smart cockpit components

These insert solutions improve assembly reliability while maintaining lightweight vehicle design requirements.

 High-Precision Manufacturing Technology for Automotive Thread Insert Nuts

Automotive fasteners require extremely high dimensional accuracy and batch consistency. Even small deviations in concentricity or knurl geometry can lead to assembly failures and reduced locking performance.

One-Step Compound Machining Technology

Advanced manufacturing processes use multi-axis Swiss-type lathes and CNC turning centers to achieve simultaneous machining operations.

The integrated one-step process includes:

• Guide chamfering

• Internal thread tapping

• External knurl forming

• Groove machining

This manufacturing method ensures:

• High coaxiality between threads and knurled sections

• Stable 6H thread tolerance

• Reduced cumulative machining errors

• Improved structural consistency

By eliminating multi-step positioning errors, Thread Insert Nuts achieve superior locking stability and production reliability.

 Knurl Design Optimization for Automotive Plastic Assemblies

The knurled structure of a Thread Insert Nut directly determines its pull-out resistance and anti-rotation capability inside plastic components.

Diamond Knurl Thread Insert Nuts

Diamond knurl patterns are commonly used in high-load automotive applications because they provide excellent mechanical interlocking strength.

Suitable for:

• Structural plastic assemblies

• High-vibration environments

• Automotive electronic housings

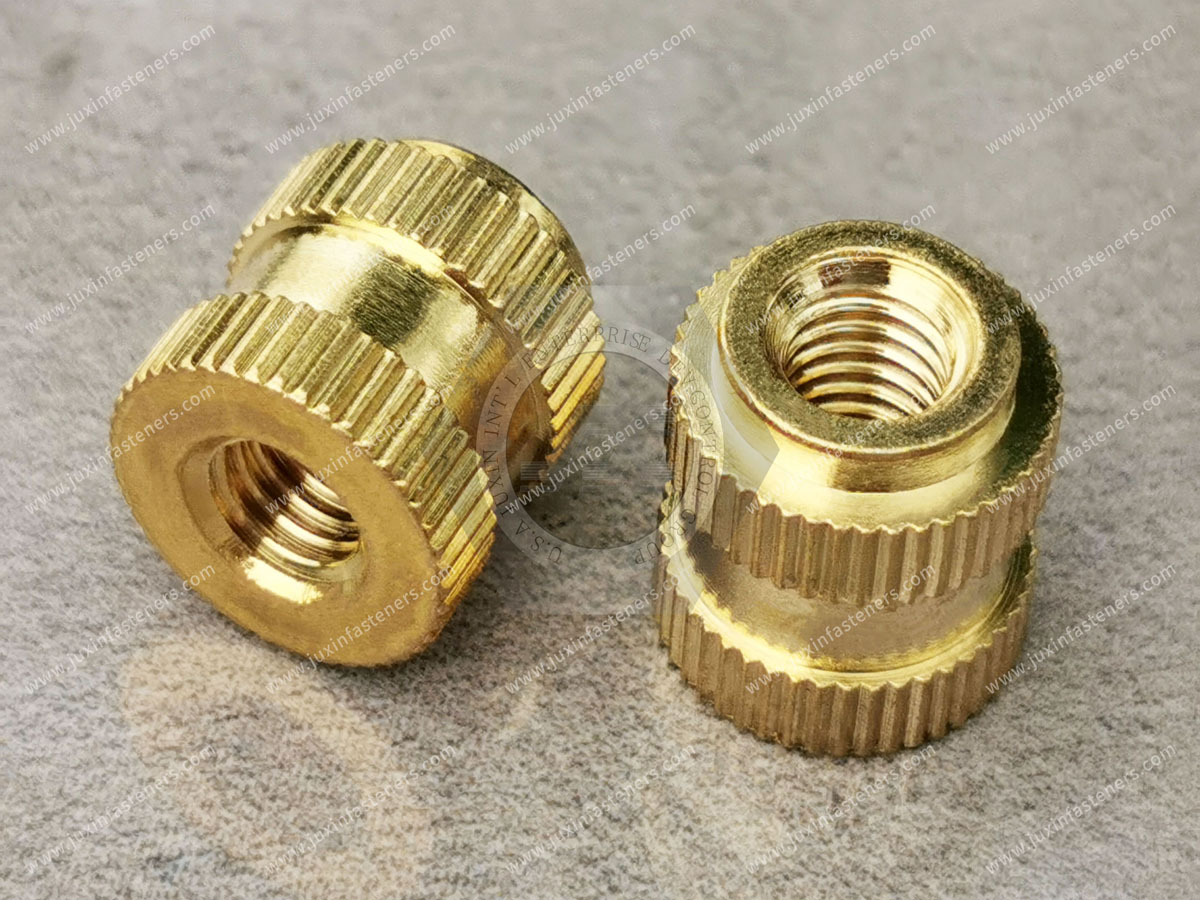

Straight Knurl Thread Insert Nuts

Straight knurl designs are ideal for precision plastic components requiring stable insertion force and controlled assembly conditions.

Applications include:

• Interior automotive parts

• Sensor modules

• Lightweight plastic structures

 Multi-Directional Knurl Structures

For high-torque automotive applications, customized multi-directional knurl patterns improve torque transmission and pull-out resistance.

Advantages include:

• Enhanced anti-rotation performance

• Increased mechanical locking strength

• Improved fatigue resistance

• Better stability under vibration loading

Advanced dual-tool machining technology enables grooves, chamfers, and complex knurl profiles to be formed simultaneously for improved manufacturing efficiency.

 Assembly Solutions for Automotive Thread Insert Nuts

Automotive production lines require fastening systems compatible with high-speed automated assembly processes.

Injection Molded Insert Installation

Injection molding insertion is commonly used for high-volume automotive plastic parts.

Advantages:

• Strong mechanical bonding

• Excellent pull-out strength

• Reduced secondary operations

• Improved assembly efficiency

Typical applications:

• Automotive interior components

• Battery housing systems

• Plastic structural modules

 Heat Staking Installation

Heat staking is widely used in automotive electronic and lightweight assemblies.

Benefits include:

• Fast installation speed

• Stable positioning

• Excellent process repeatability

• Strong connection reliability

 Ultrasonic Installation

Ultrasonic insertion is suitable for thin-wall plastic components and precision automotive electronic systems.

Applications include:

• Sensor housings

• Automotive control modules

• Smart cockpit electronics

Advantages:

• Minimal material deformation

• Precise installation control

• High production efficiency

 Automotive Quality Control and Reliability Testing

Automotive-grade Thread Insert Nuts require strict quality control throughout the manufacturing process.

Key inspection standards include:

• Internal thread concentricity

• Knurl profile integrity

• Dimensional stability

• Surface quality consistency

Testing procedures include:

• Torque resistance testing

• Pull-out force testing

• Fatigue resistance verification

• Corrosion resistance testing

• Dimensional inspection

• Batch consistency control

Precision CNC machining combined with automated optical inspection systems helps ensure stable large-scale production quality.

Automation and Flexible Manufacturing Capability

Modern automotive supply chains require both rapid prototyping and stable mass production capacity.

Advanced manufacturing systems support:

• Automated material feeding

• CNC precision turning

• Automated tapping processes

• High-speed inspection systems

• Flexible non-standard customization

This allows manufacturers to support:

• Automotive OEM projects

• Tier 1 supplier programs

• Small-batch prototype development

• Large-volume production orders

 Future Trends in Automotive Thread Insert Nut Applications

As electric vehicles and intelligent automotive systems continue to develop, Thread Insert Nuts are becoming increasingly important in next-generation vehicle platforms.

Future applications will continue expanding in:

• EV battery systems

• Electric motor assemblies

• Electronic control units

• Intelligent chassis systems

• Lightweight structural modules

• Smart cockpit technologies

Higher precision, improved automation, and compatibility with advanced lightweight materials will continue to drive the development of automotive Thread Insert Nut manufacturing technologies.

With optimized structural design, precision machining, and stable assembly performance, Thread Insert Nuts provide reliable fastening solutions for modern automotive manufacturing and high-performance vehicle applications.
