In modern automotive engineering and high-performance mechanical assembly, fastening systems must deliver exceptional strength, vibration resistance, and production efficiency. Among the most advanced solutions available today, the high-strength hexagonal flange weld nut (Grade 8 / Grade 10 / Grade 12) has become a critical component in automotive chassis, body structures, seating systems, and electric vehicle platforms.

As a professional industrial fastener manufacturer and supplier of automotive weld nuts, we provide precision-engineered hex flange weld nuts for projection welding applications, designed to meet the strict requirements of OEM automotive production and IATF 16949 quality systems.

What Is a High-Strength Hex Flange Weld Nut?

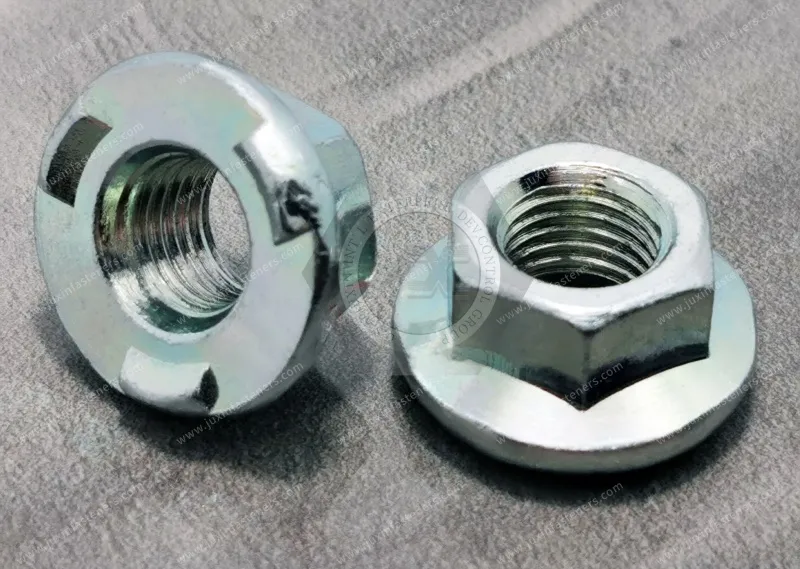

A hexagonal flange weld nut is a high-strength threaded fastening component with an integrated flange and a projection-welded base. It is specifically engineered for permanent attachment to thin sheet metal via resistance welding.

Unlike standard nuts, the hex flange weld nut (projection weld nut) combines:

• A hexagonal body for torque resistance

• An integrated flange for load distribution

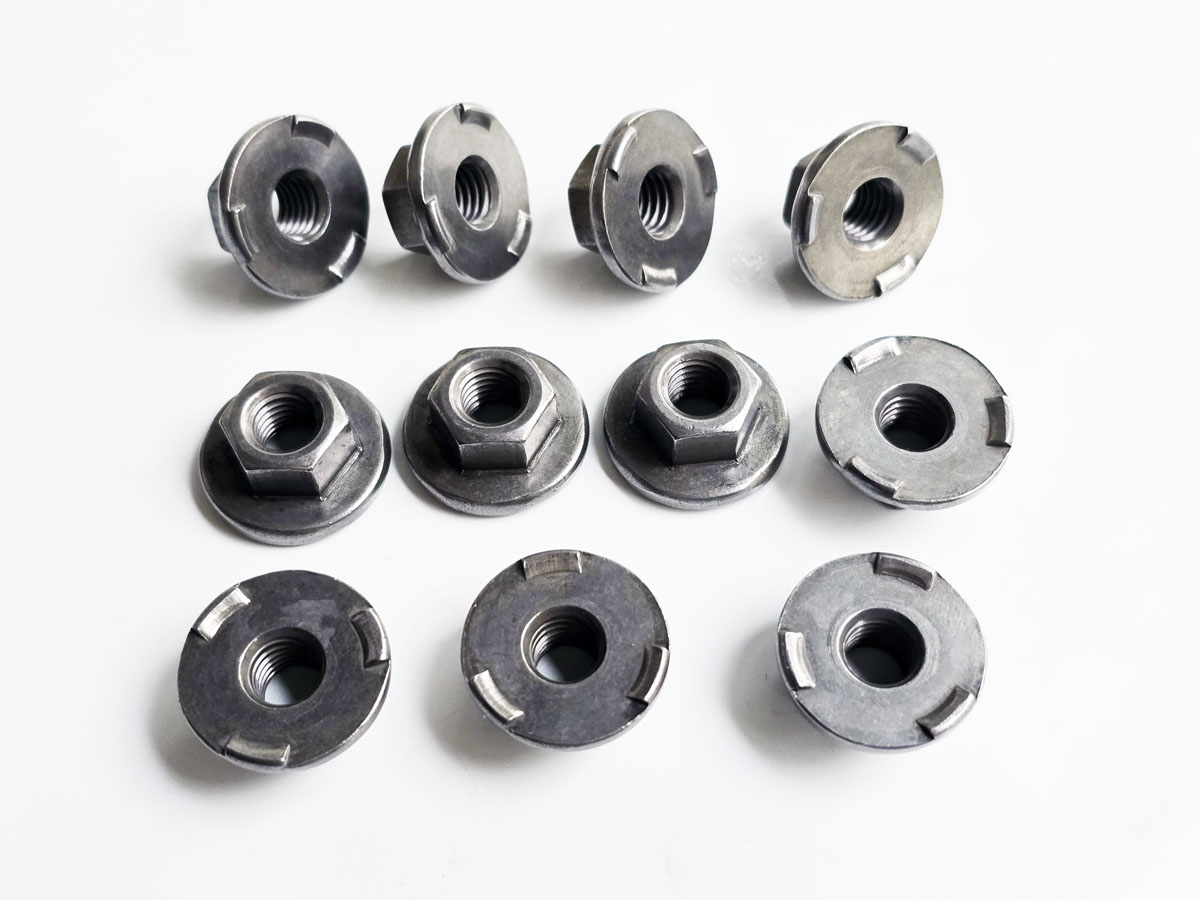

• A 3-point welding projection system for stable fusion

• High-strength alloy steel construction for structural durability

This design ensures a non-removable, high-vibration-resistant threaded connection, making it ideal for automotive safety-critical assemblies.

 Automotive Applications of Hex Flange Weld Nuts

The high-strength flange-weld nut for automotive use is widely used in modern vehicle manufacturing, particularly in areas requiring compact, durable, and automated fastening solutions.

Key application areas include:

• Automotive chassis structural components

• Body-in-white (BIW) sheet metal assemblies

• Seat frame and seat rail systems

• Transmission and powertrain mounting points

• Electric vehicle battery tray and enclosure brackets

• Electric drive motor housings and thermal system supports

These automotive weld nuts (hex flange type) replace traditional bolt-washer-nut assemblies, improving both structural performance and production efficiency.

 Structural Advantages – Why Hex Flange Weld Nuts Perform Better

The engineering strength of the hexagonal flange weld nut lies in its optimized structural design, which enhances both load distribution and welding stability.

Key structural benefits:

• Integrated flange increases bearing surface area

• Improves anti-loosening performance under vibration

• Distributes axial and shear loads more evenly

• 3-point welding projection ensures consistent weld formation

• Eliminates the need for backside access during installation

This makes the projection weld flange nut especially suitable for thin-gauge sheet metal and enclosed automotive structures where traditional fastening is not feasible.

 Material Grade and Mechanical Strength (Grade 8 / 10 / 12)

Our high-strength hex flange weld nuts are manufactured from medium-carbon alloy steels such as SCM435, then subjected to precise heat treatment to achieve different performance grades.

Strength performance levels:

• Grade 8 weld nuts

• Grade 10 weld nuts (tensile strength ≥ 1040 MPa)

• Grade 12 high-strength weld nuts

These grades ensure reliable performance in:

• High-load structural connections

• Continuous vibration environments

• Safety-critical automotive systems

By selecting the correct flange weld nut strength grade, engineers can optimize both durability and weight efficiency.

Surface Treatment and Corrosion Resistance

To meet demanding automotive durability requirements, hex flange weld nuts for automotive applications are available with advanced surface coatings.

Common surface treatments:

• Electro-galvanized coating

• Zinc-nickel plating (high corrosion resistance)

• Dacromet coating (excellent salt spray performance up to 720 hours)

These coatings ensure resistance to:

• Road salt corrosion

• High humidity environments

• Temperature cycling from -40°C to 150°C

This makes them ideal for both internal and external vehicle structures.

 Welding Process – Projection Welding Integration

The performance of a projection weld nut (hex flange type) depends on precise integration with automated welding systems.

Standard welding method:

• Medium-frequency DC projection welding

• 3-point welding projection design for controlled energy concentration

• Rapid weld cycle with stable nugget formation

• Typical welding time:milliseconds range

Key process advantages:

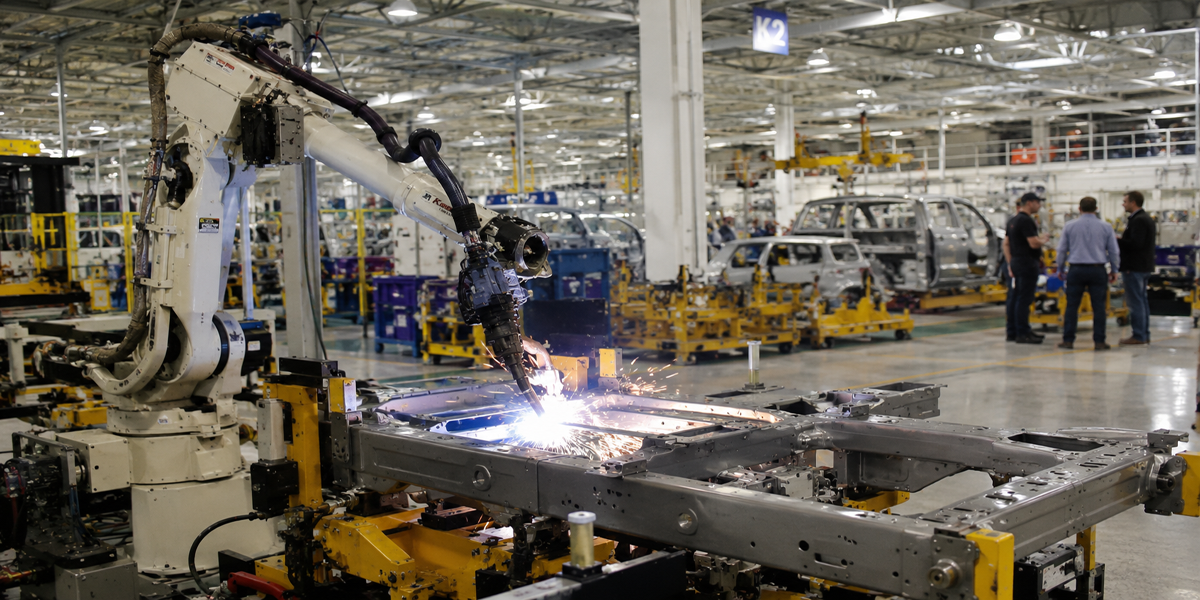

• High-speed compatibility with robotic welding lines

• Consistent weld penetration quality

• Strong metallurgical bonding without secondary tightening

• Suitable for mass production environments

Post-weld protection methods, such as thread caps or re-tapping, may be used to preserve thread integrity when required.

 Automotive Manufacturing Advantages

The adoption of hex flange weld nuts in automotive production delivers significant engineering and manufacturing benefits:

• Eliminates bolt + washer + nut assembly systems

• Reduces total vehicle weight (lightweight design support)

• Improves structural rigidity in thin sheet metal assemblies

• Enables full automation in welding production lines

• Reduces assembly time and labor cost

• Enhances vibration resistance in critical joints

These advantages make automotive flange weld nuts a core fastening solution for next-generation vehicle platforms, especially electric vehicles (EVs).

Quality Control – IATF 16949 Automotive Standards

All high-strength hex flange weld nuts are manufactured under strict IATF 16949 quality management systems, ensuring full traceability and consistency.

Quality inspection includes:

• Material certification and chemical composition reports

• Heat treatment process curve verification

• Weld pull-off strength testing (e.g., M8 ≥ 3.5 kN minimum requirement)

• Thread inspection using Go/No-Go gauges

• Surface coating thickness and corrosion testing

• Batch traceability documentation

These controls ensure that every projection welding flange nut meets automotive OEM reliability standards.

 Engineering Selection Guidelines

To ensure optimal performance, engineers must clearly define technical requirements when selecting hex flange weld nuts, including:

• Thread specification (e.g., M8 × 1.25 flange weld nut)

• Flange diameter and thickness requirements

• Material grade (Grade 8 / 10 / 12)

• Welding method (projection welding/resistance welding)

• Corrosion resistance level (zinc plated / zinc-nickel / Dacromet)

• Sheet metal thickness compatibility

Incorrect selection may result in weld failure, burn-through, or reduced torque performance.

 Conclusion – High-Performance Welding Fastener Solution for Modern Automotive Engineering

The high-strength hexagonal flange weld nut represents a highly efficient and reliable fastening solution for today’s automotive and industrial manufacturing systems. By combining structural reinforcement, high-strength materials, and advanced projection welding technology, it delivers superior performance in high-vibration, high-load, and space-constrained applications.

As a professional supplier of hex flange weld nuts, automotive weld nuts, and projection welding fasteners, we provide engineering-driven solutions that support lightweight vehicle design, automated production, and global OEM standards.

If you are sourcing high-strength flange-weld nuts for automotive chassis, EV battery systems, or structural assemblies, we can provide technical support, customized specifications, and a stable supply for mass production.
