IP58 Sealed & Waterproof Rivet Nuts and Fastener Solutions for New Energy Vehicle (NEV) Manufacturing

IP58 Sealed & Waterproof Rivet Nuts and Fastener Solutions for New Energy Vehicle (NEV) Manufacturing

High-Protection, Anti-Leakage, Vibration-Resistant Fastening Systems for EV Battery Packs, Electronics & High-Voltage Components

The rapid evolution of new energy vehicle (NEV) architecture toward high-voltage, high-integration, and lightweight design has placed unprecedented demands on sealing integrity and waterproofing performance across vehicle systems. Components such as battery packs, motor controllers, charging interfaces, and electronic housings require fastening systems that guarantee not only mechanical strength, but also IP-rated sealing, corrosion resistance, and long-term environmental stability.

To meet these requirements, IP58 sealed waterproof rivet nuts and fastener systems for NEV manufacturing have become a critical enabling technology for modern electric vehicle platforms.

1. Industry Challenges in NEV Sealing and Fastening Systems

In electric vehicle environments, fasteners must operate reliably under:

• High-voltage electrical conditions

• Continuous thermal cycling (-40°C to +150°C)

• High humidity and salt spray exposure

• Water immersion, rain, and high-pressure washing

• Long-term vibration and mechanical shock

Traditional fastening methods, such as welding or standard threaded inserts, often fail due to:

• Micro-leakage paths under vibration

• Thermal expansion mismatch

• Sealant degradation over time

• Structural deformation in thin-wall aluminum housings

This creates strong demand for IP58 waterproof rivet-nut fastening solutions for EV batteries and electronic systems.

 2. IP58 Waterproof Protection System for Rivet Nut Fasteners

2.1 IP58 Protection Performance

The IP58 sealed rivet nut fastener system provides:

• Complete dust protection (IP5X level sealing)

• Resistance to continuous water exposure and immersion      conditions

• High-performance sealing in rain, washing, and wading      environments

• Enhanced protection beyond conventional IP67 standards in key      applications

Ideal Applications:

• EV battery pack enclosures

• Motor drive compartments

• High-voltage connectors

• Underside vehicle structural joints

 3. Structural Sealing Design of Waterproof Rivet Nuts

3.1 Active Structural Sealing Technology

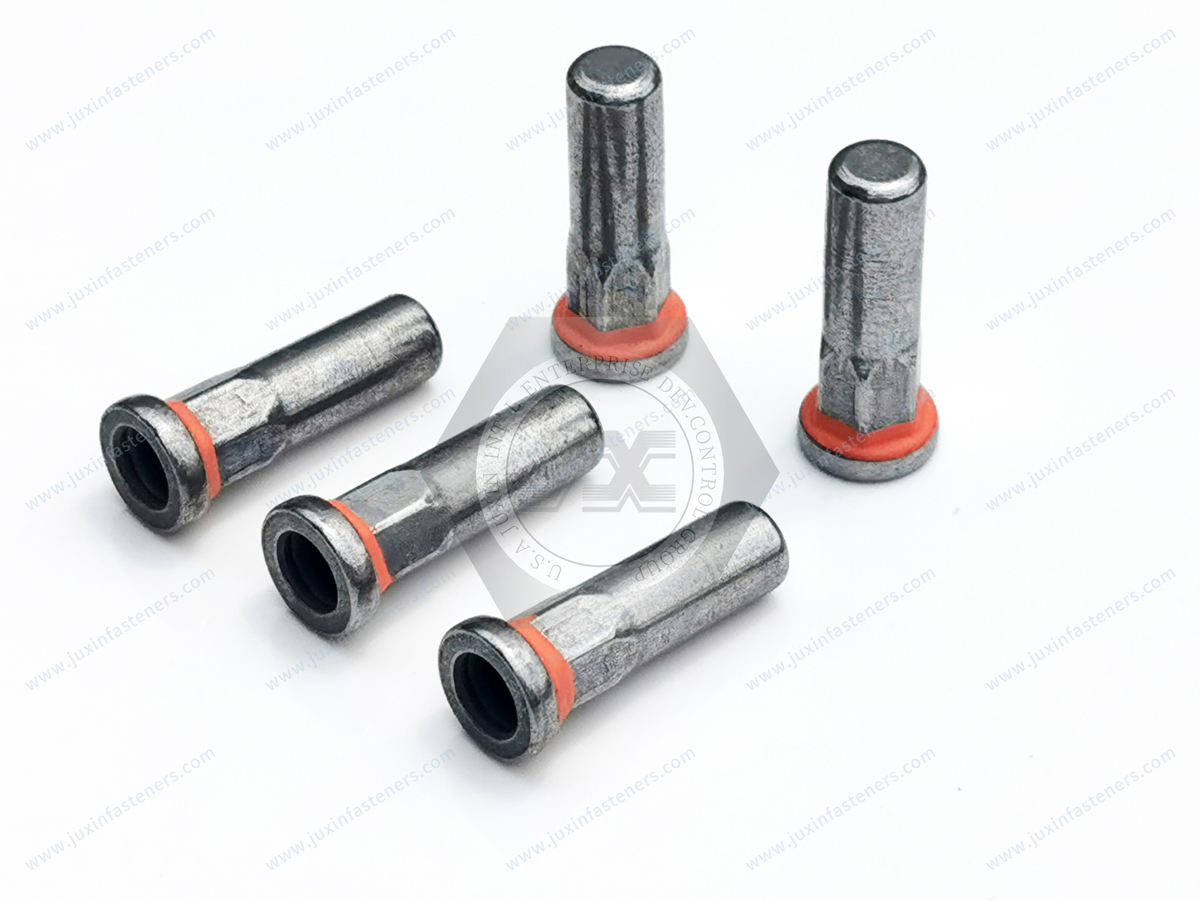

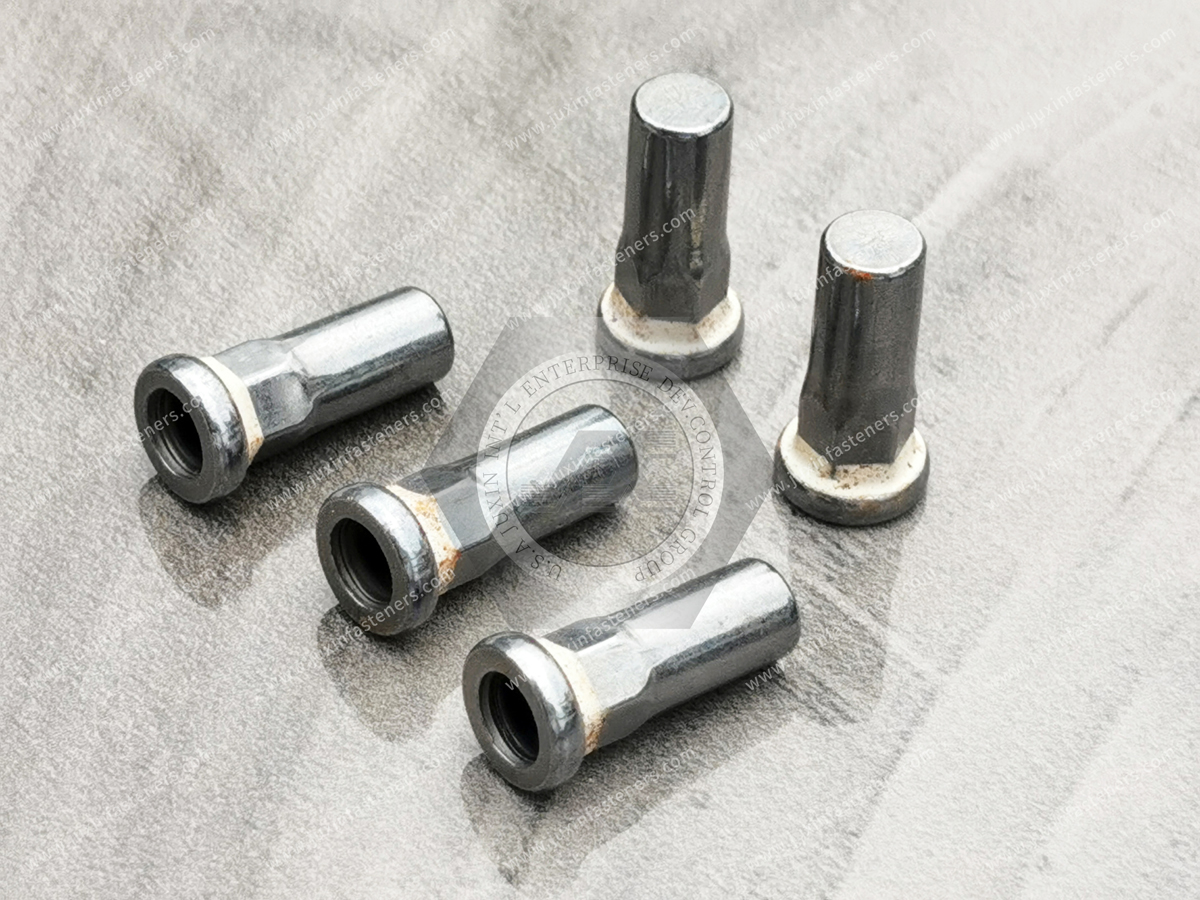

Unlike traditional fasteners that rely on external gaskets, waterproof rivet nuts for NEV applications use an integrated sealing structure:

• Blind-hole rivet nut body

• Elastic sealing membrane or sealing ring system

• Head-flange compression sealing design

Working Mechanism:

When the bolt is tightened:

• The sealing membrane is compressed inward

• Elastic deformation blocks the water ingress channel

• A multi-point sealing barrier is formed between the bolt, nut,      and panel

Engineering Advantages:

• Eliminates micro-leakage caused by vibration

• Maintains sealing integrity under thermal expansion

• Provides long-term airtight and watertight performance

 4. High-Performance Materials and Corrosion Protection Systems

To ensure long-term reliability in harsh EV environments, IP-rated rivet nut fasteners for NEV manufacturing are produced using advanced materials:

4.1 Material Options

• 304 stainless steel rivet nuts

• 316 stainless steel rivet nuts (marine-grade corrosion      resistance)

• High-strength aluminum alloy rivet nuts

 4.2 Surface Treatment Technologies

• Dacromet coating systems

• Zinc-nickel electroplating

• PTFE composite coatings

Performance Results:

• Over 500+ hours of salt spray resistance

• Excellent corrosion resistance in coastal environments

• Stable performance in high-humidity battery compartments

5. Lightweight Manufacturing and Automated Production Integration

5.1 Lightweight EV Fastener Design

Waterproof rivet nut systems for electric vehicles support:

• Thin aluminum sheet installation (1.0–2.0 mm)

• Weld-free structural assembly

• Reduced thermal deformation risk

• Lightweight BIW and battery enclosure design

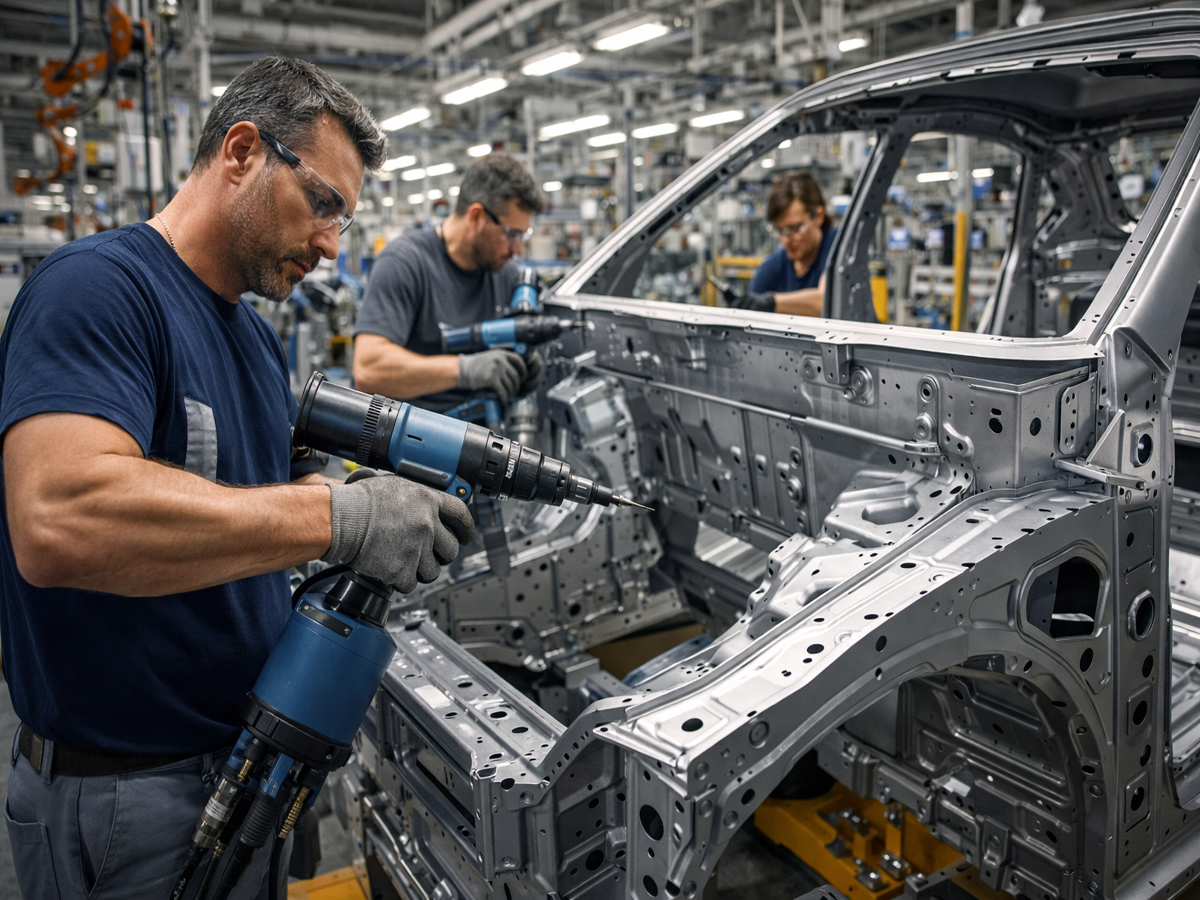

 5.2 Automation-Compatible Installation

These fasteners are fully compatible with:

• Robotic riveting systems

• Servo-controlled installation tools

• Smart torque monitoring systems

Manufacturing Benefits:

• Over 50% increase in assembly efficiency

• Defect rate below 0.1%

• Full production line automation capability

 6. Precision Manufacturing and Advanced Forming Technology

6.1 Cold Heading Precision Manufacturing

IP58 waterproof rivet nuts for NEV applications are produced using:

• Multi-station cold forming

• High-precision thread rolling

• Integrated forming control systems

Engineering Advantages:

• 10%–20% higher structural strength

• 30% material savings compared to machining

• Improved thread consistency and torque stability

 6.2 LSR Overmolding and Integrated Sealing Technology

Advanced LSR (Liquid Silicone Rubber) molding enables:

• Integrated sealing structure formation

• Elimination of secondary assembly errors

• Chemical bonding between the sealing layer and the substrate

Manufacturing Precision:

• ±0.02 mm repeatability

• 60–80 second automated cycle time

• Fully integrated sealing production system

 7. Key Performance Engineering Indicators

7.1 Protection Performance

• IP58 sealing capability (upgradeable to IP67–IP69K systems)

• Resistance to high-pressure washing and coolant exposure

• Long-term vibration resistance in EV environments

 7.2 Dimensional Precision Control

• Tolerance range: ±0.01 to ±0.05 mm

• Perfect sealing surface alignment

• Zero leakage under assembly deviation control

 7.3 Thermal and Environmental Stability

• Compatible with -40°C to +150°C environments

• Optimized thermal expansion matching

• Zero delamination under thermal shock cycles

 7.4 Cost and Manufacturing Efficiency

• Automated mass production reduces unit cost

• Supports high-volume OEM EV platforms

• Stable supply chain with consistent delivery capability

 8. Typical Application Scenarios in NEV Manufacturing

8.1 EV Battery Pack Systems

IP58 sealed rivet nut fasteners for battery enclosures ensure:

• Airtight sealing of battery housing

• Protection against water ingress and dust contamination

• Prevention of short circuit and thermal runaway risks

 8.2 Electric Drive and Control Systems

• Motor controller housings

• Inverter and power electronics enclosures

• High-voltage distribution systems

Ensures stable electrical and mechanical connection integrity under load.

 8.3 Charging Interfaces and High-Voltage Connectors

• Charging port housings

• EV charging system enclosures

• Electrical isolation and creepage distance control

Provides both mechanical fastening and environmental sealing protection.

 8.4 Body and Chassis Waterproof Assemblies

• Aluminum EV body structures

• Outdoor electronic enclosures

• Undercarriage components

Ensures long-term resistance to vibration and environmental exposure.

 9. Supply Chain and Quality Assurance System

9.1 Fully Automated Manufacturing System

• Precision automation reduces human error

• Scalable production up to billions of units annually

• Stable output for OEM-grade requirements

 9.2 IATF 16949 Quality Management

All waterproof rivet nut fasteners for NEV systems comply with:

• Full process traceability

• Raw material inspection

• In-process quality monitoring

• Final performance validation

 9.3 Custom Engineering & OEM Support

We provide:

• Custom IP-rated rivet nut design

• Non-standard EV fastening solutions

• Rapid prototyping and validation support

• Small batch + mass production flexibility

Conclusion

IP58 sealed waterproof rivet nuts and fastener systems for new energy vehicles represent a critical advancement in EV structural sealing technology. By integrating active sealing structures, high-performance corrosion-resistant materials, precision manufacturing, and automated production systems, these fasteners ensure long-term reliability in the most demanding EV environments.

As electric vehicles continue to evolve toward greater integration and stricter environmental protection standards, waterproof rivet nut fastening solutions for NEV manufacturing will play a fundamental role in ensuring battery safety, electrical reliability, and durability across the full vehicle lifecycle.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
