Outdoor telecommunications equipment must remain mechanically secure, accessible for maintenance and protected against environmental exposure throughout its intended service life.

 Communication cabinets, radio equipment housings, antenna support assemblies,

network infrastructure enclosures and outdoor electrical equipment all rely on fastening systems that connect sheet metal panels, structural brackets and internal components.

These applications present different challenges from ordinary indoor machinery. Fasteners may be exposed to moisture, condensation, temperature fluctuations, vibration and repeated servicing.

At the same time, equipment manufacturers must control installation time, assembly consistency and total production cost.

For design engineers, the key questions concern material compatibility, thread engagement, panel thickness, mechanical loading and long-term serviceability.

Manufacturing teams must consider installation access, tooling, assembly sequence and repeatability. Procurement teams must evaluate product conformity,

custom manufacturing feasibility, alternative sourcing, delivery requirements and cost.

JUXIN FASTENERS supplies industrial fastening components, including stainless steel screws, machine bolts, self-clinching nuts and studs, threaded standoffs,

 blind rivet nuts, prevailing-torque lock nuts and drawing-based custom fasteners for suitable telecommunications equipment applications.

This guide examines practical fastening solutions for outdoor telecommunications equipment, with particular attention to enclosure assembly,

 corrosion protection, vibration resistance, installation efficiency and OEM sourcing.

Fastening Applications in Outdoor Telecommunications Equipment

Outdoor communication equipment contains a variety of mechanical connections. Each requires a fastening method appropriate to its function.

A single telecommunications enclosure may require several different fastening technologies.

For example, a control cabinet may use self-clinching studs for internal component mounting, captive screws for access panels and stainless steel bolts for external brackets.

Selecting the correct combination can reduce assembly complexity while improving serviceability.

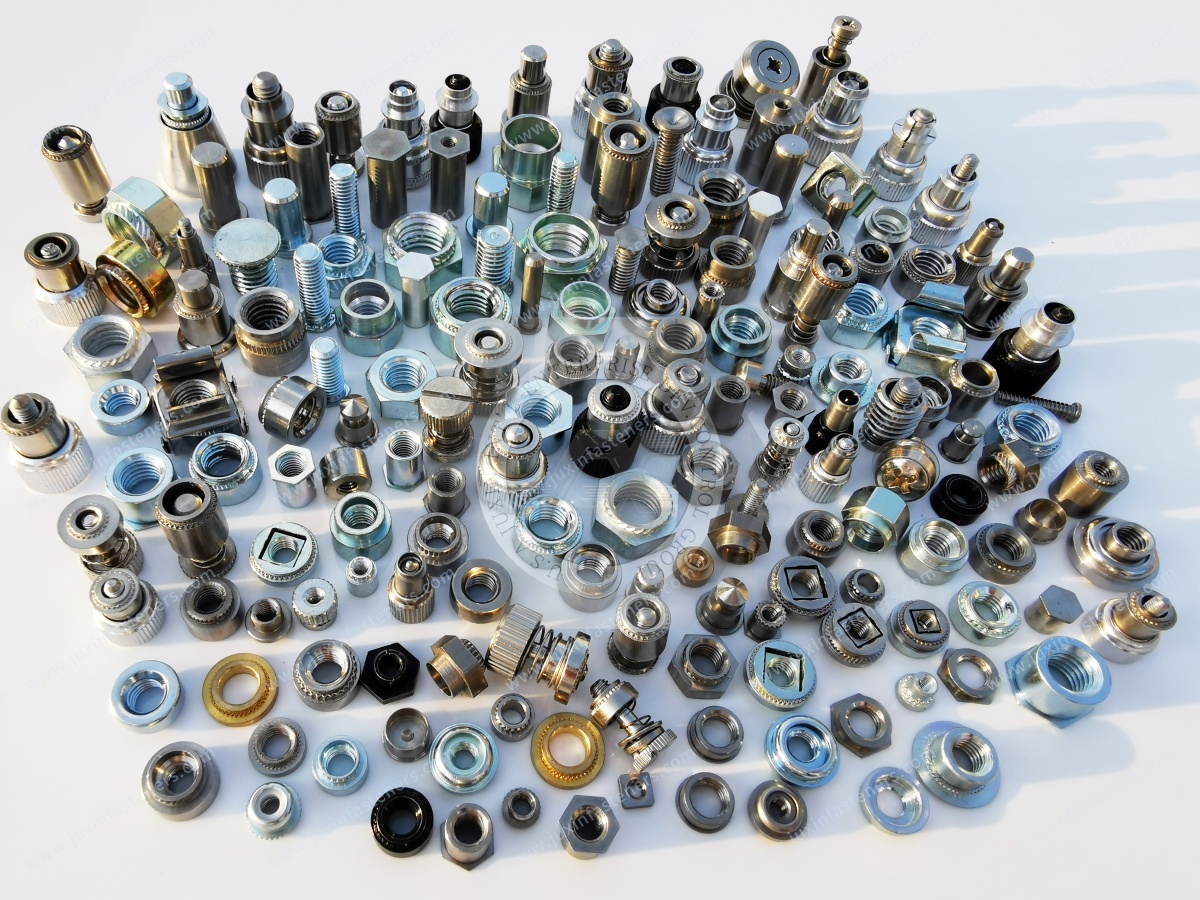

Self-Clinching Nuts for Telecommunications Sheet Metal Cabinets

Self-clinching nuts provide reusable internal threads in suitable ductile sheet metal.

During installation, the fastener is pressed into a prepared hole, causing the surrounding sheet material to flow into the fastener's retention features.

This produces a mechanically retained threaded attachment point without requiring a separate loose nut during final assembly.

Potential applications include:

• Communication equipment cabinets

• Internal mounting plates

• Electrical control panels

• Equipment support brackets

• Sheet metal housings

Panel Thickness and Hardness

Self-clinching fasteners must be matched to the actual sheet material.

Important selection factors include panel thickness, hardness, hole diameter, edge distance and installation force.

A self-clinching nut suitable for one steel panel may not be appropriate for another panel of identical thickness but greater hardness.

Stainless steel and aluminum sheet metal may also require different fastener configurations.

Engineering insight: Thread size alone is insufficient to specify a self-clinching fastener.

The OEM drawing should identify the parent material and thickness so that installation compatibility can be evaluated.

Push-Out and Torque-Out Performance

Self-clinching nuts may be evaluated for push-out and torque-out resistance.

These properties depend on the specific fastener and installed sheet configuration.

Catalog performance values should not be applied to a different sheet material without appropriate confirmation.

For production applications, representative installation trials can help verify the selected fastening method.

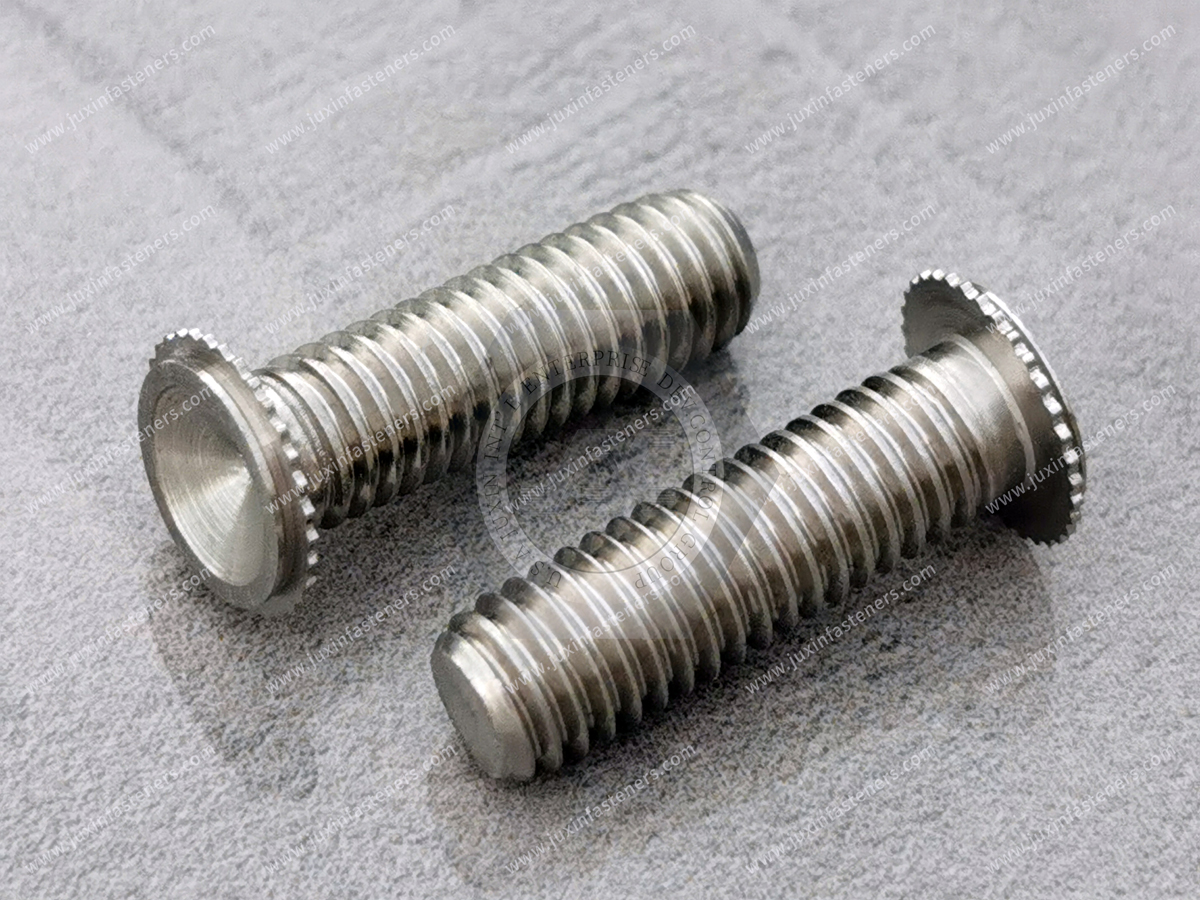

Self-Clinching Studs for Equipment Mounting

Self-clinching studs provide fixed threaded mounting points in suitable sheet metal.

They may simplify the installation of electrical assemblies and equipment brackets.

Instead of positioning a loose bolt during final assembly, the operator can place the component over a preinstalled stud and secure it with a nut.

This approach may be useful where installation access is restricted.

Selection should consider:

• Stud diameter and thread

• Stud length

• Panel thickness

• Installation direction

• Required retention performance

• Mating nut compatibility

• Assembly clearance

Engineering insight: A fixed stud can reduce component handling during assembly, but its position and perpendicularity must be compatible with the mounted component.

Where multiple studs support a rigid component, hole location tolerances and panel distortion should be evaluated.

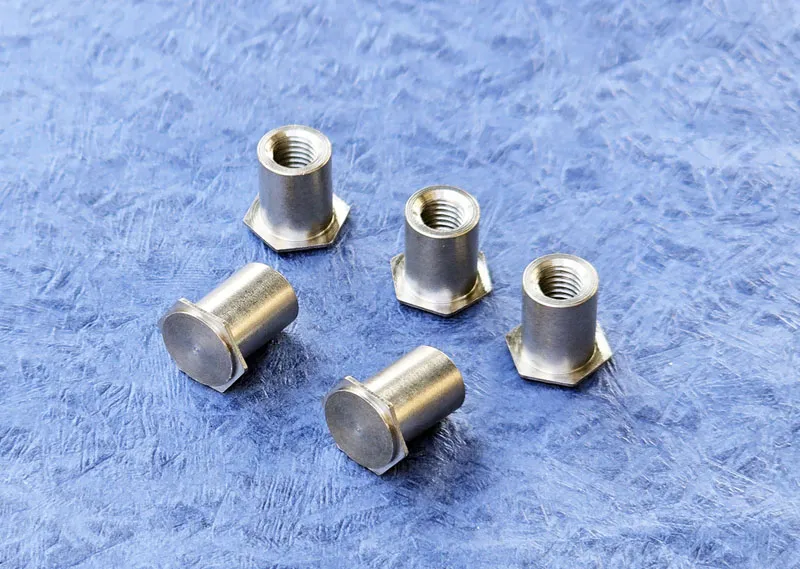

Threaded Standoffs for Communication Equipment

Threaded standoffs provide controlled spacing between a mounting panel and another component.

They are commonly considered for electronic equipment and enclosure assemblies.

Potential applications include:

• Circuit board mounting

• Controller support panels

• Sensor brackets

• Electronic module mounting

• Internal equipment structures

Important dimensions include thread size, standoff length, mounting geometry and perpendicularity.

Standoff Height and Assembly Alignment

When several standoffs support one circuit board or rigid mounting plate, variations in standoff height may influence assembly flatness.

The designer should consider the tolerance stack-up between the enclosure panel, installed standoffs and mounted component.

For precision assemblies, critical dimensions should be identified in the drawing rather than relying only on nominal catalog dimensions.

Captive Panel Screws for Serviceable Telecom Enclosures

Outdoor communication equipment often requires access for inspection, maintenance or component replacement.

Conventional loose screws can be misplaced during field servicing.

Captive panel screws are designed to remain retained in the panel when disengaged from the mating thread.

Potential applications include:

• Equipment access covers

• Electrical control cabinet doors

• Removable maintenance panels

• Serviceable equipment housings

Why Captive Fasteners Matter

Retained screws can reduce the risk of losing hardware during maintenance.

They may also simplify servicing in elevated, confined or otherwise difficult-to-access locations.

However, captive fastener selection must consider the complete panel arrangement.

Important variables include:

• Panel thickness

• Retention method

• Screw travel

• Mating thread

• Required tool

• Panel opening sequence

• Corrosion exposure

Engineering insight: A captive screw solves a hardware-retention problem, but it does not automatically provide environmental sealing.

If the panel requires protection against water or dust ingress, gasket design and enclosure-level validation remain necessary.

Blind Rivet Nuts for One-Sided Enclosure Assembly

Blind rivet nuts provide reusable internal threads in suitable panels and hollow sections.

They can be installed from one side of the workpiece.

This makes them useful for certain assembled enclosures or closed-section structures where backside access is unavailable.

Potential applications include:

• Hollow equipment frames

• Closed-section mounting brackets

• Outdoor equipment housings

• Serviceable threaded attachment points

Self-Clinching Nuts vs. Blind Rivet Nuts

Engineering insight: The most suitable threaded insert often depends on the assembly sequence rather than simply the required thread diameter.

For a flat sheet metal panel processed before enclosure assembly, a self-clinching nut may be efficient.

For a completed hollow frame, a blind rivet nut may be more practical.

Both require compatibility checks and installation validation.

Stainless Steel Fasteners for Outdoor Communication Cabinets

Outdoor enclosures may be exposed to rain, humidity, condensation and atmospheric contaminants.

Material selection influences corrosion resistance, serviceability and long-term appearance.

Stainless steel fasteners are frequently considered for these applications.

A2 Stainless Steel Fasteners

A2 stainless steel fasteners are commonly associated with 304-type stainless steel compositions.

They may be suitable for many general atmospheric environments.

However, corrosion risk increases under certain chloride-rich or otherwise aggressive exposure conditions.

A4 Stainless Steel Fasteners

A4 stainless steel fasteners are commonly associated with molybdenum-bearing 316-type compositions.

They may offer improved resistance to certain localized corrosion mechanisms compared with common A2 materials.

However, A4 stainless steel is not immune to corrosion.

The appropriate grade depends on the actual service environment.

Corrosion Resistance Is Not the Same as Mechanical Strength

A2 and A4 identify stainless steel material groups under applicable ISO 3506 specifications.

Property class designations such as A2-70 and A4-80 identify additional mechanical property requirements.

A fastener's material group and strength class must both be considered.

Engineering insight: Replacing a coated carbon steel screw with a stainless steel screw of the same size may change the mechanical characteristics of the joint.

Material substitution should be reviewed against the original design requirements.

Galvanic Corrosion in Mixed-Metal Enclosures

Telecommunications cabinets may combine aluminum, galvanized steel, stainless steel and coated carbon steel.

When dissimilar metals are electrically connected in the presence of moisture, galvanic corrosion may occur.

Risk depends on the material combination, exposed surface areas, coating condition and environmental exposure.

Potential mitigation measures include suitable coatings, compatible materials, moisture management and electrical isolation where functionally appropriate.

Where a connection must provide electrical bonding, isolation measures must not interfere with that requirement.

Surface Treatments for Outdoor Equipment Fasteners

Carbon steel fasteners may require protective coatings.

Depending on the product and application, options may include zinc plating, zinc-nickel coatings or zinc-flake systems.

Coating selection should consider:

• Environmental exposure

• Required corrosion performance

• Thread dimensions

• Fastener strength

• Installation friction

• Compatibility with mating components

• Customer specifications

Coating Thickness and Thread Fit

Protective coatings affect fastener dimensions.

Excessive coating buildup can interfere with thread engagement.

The coating system must be compatible with the specified thread tolerance.

Salt Spray Testing

ASTM B117 defines a laboratory salt spray test method.

It can be used to evaluate a specified coating system under controlled conditions.

However, salt spray hours do not directly predict outdoor service life.

Specific test requirements and acceptance criteria should be agreed before production.

Vibration-Resistant Fasteners for Communication Equipment

Outdoor telecommunications equipment may experience vibration from wind, mounted machinery or nearby mechanical systems.

Under unfavorable joint conditions, vibration can contribute to threaded fastener loosening.

Potential fastening options include:

• All-metal prevailing-torque lock nuts

• Nylon-insert lock nuts where suitable

• Properly designed preloaded joints

• Application-specific locking arrangements

All-Metal Prevailing-Torque Lock Nuts

All-metal prevailing-torque lock nuts use a mechanical locking feature to resist rotation.

Depending on the design, ISO 7042 and related specifications may apply.

They may be considered for selected equipment mounting brackets and vibration-sensitive joints.

Preload and Locking Resistance

Prevailing torque and joint preload are different mechanical characteristics.

Prevailing torque resists rotation during thread engagement.

Joint preload creates the clamping force holding the assembly together.

A locking nut cannot compensate for every cause of preload loss.

Engineering insight: Vibration-resistant hardware should be selected together with the bolt, washer, clamped materials and installation procedure.

For critical mounting assemblies, the complete joint should be evaluated under representative loading conditions.

Outdoor Equipment Mounting Brackets and Structural Connections

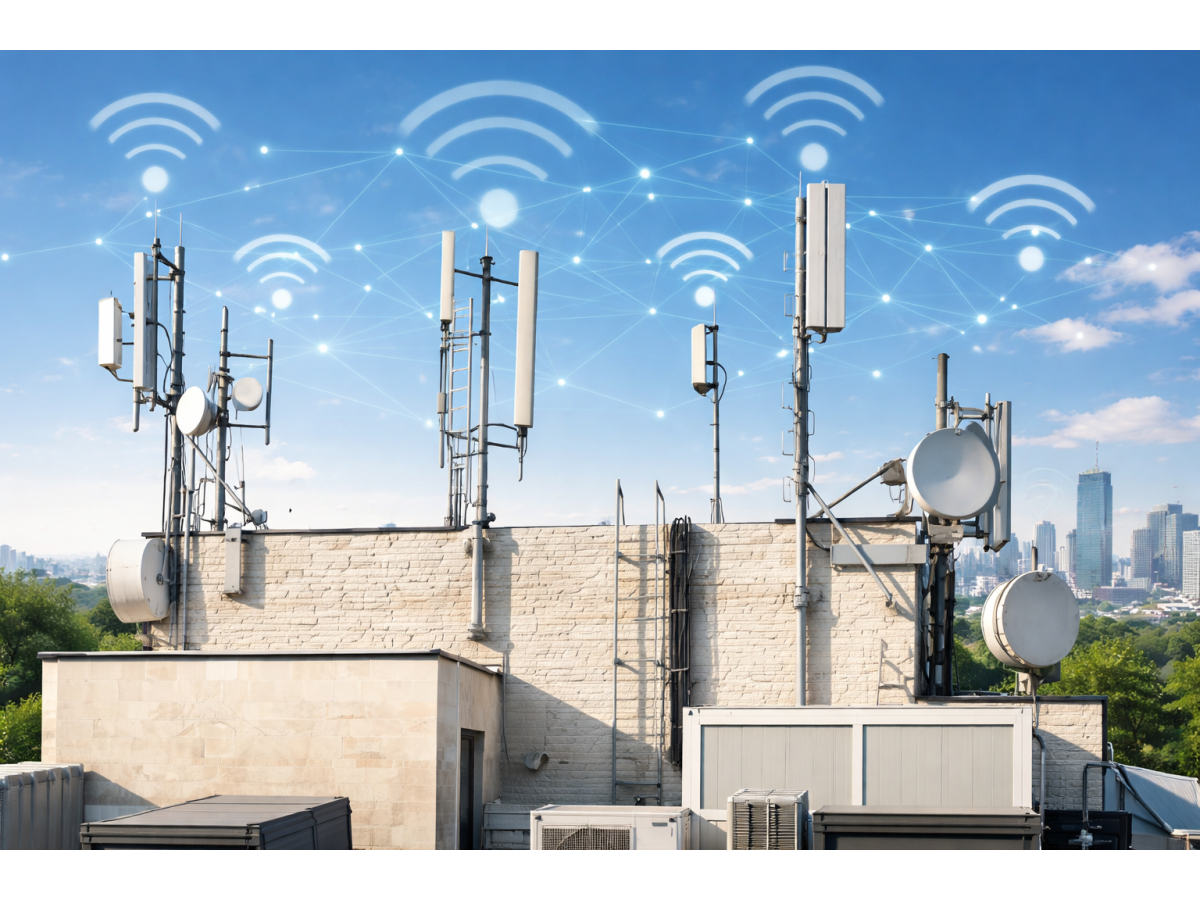

Telecommunications equipment may be attached to poles, frames, rooftop supports or other mounting structures.

These connections can experience wind loads, temperature changes and vibration.

Important considerations include:

• Bolt diameter and property class

• Joint geometry

• Required preload

• Thread engagement

• Grip length

• Washer compatibility

• Corrosion protection

• Installation accessibility

Fully Threaded vs. Partially Threaded Bolts

A fully threaded bolt and a partially threaded bolt with the same nominal diameter may not perform identically in every joint.

The position of the threaded section relative to the shear plane can affect the connection design.

The OEM drawing should specify the required configuration.

Structural Application Boundary

Tower primary structural connections and other safety-critical installations require project-specific engineering assessment.

General enclosure fasteners should not be assumed suitable for these applications without the required validation and approval.

Environmental Sealing and Enclosure Fastener Design

Outdoor telecommunications cabinets may require protection against rain, dust and condensation.

Fasteners influence the mechanical attachment of panels and covers, but the complete enclosure determines environmental sealing performance.

Important variables include:

• Gasket material

• Gasket compression

• Panel stiffness

• Fastener spacing

• Joint geometry

• Surface flatness

• Installation torque

Gasket Compression

Insufficient gasket compression may allow leakage.

Excessive tightening can distort thin sheet metal or damage the gasket.

The correct installation conditions depend on the gasket and enclosure design.

Engineering insight: Increasing screw torque does not necessarily improve sealing performance.

If a panel lacks stiffness or fasteners are spaced too far apart, additional torque may create localized deformation without achieving uniform gasket contact.

Environmental protection must be validated at the enclosure level.

Custom Fasteners for Telecommunications Equipment OEMs

Standard fasteners may not satisfy every equipment design.

Drawing-based custom components may be required for:

• Special screw lengths

• Modified head geometry

• Custom threaded studs

• Nonstandard spacers

• Special nuts

• Drawing-specific washers

• Custom mounting components

• Controlled dimensions for automated assembly

JUXIN FASTENERS supports drawing-based inquiry review for industrial fastening components.

Manufacturing feasibility depends on the component geometry, material, tolerance requirements and expected production quantity.

Cold Forming

Cold forming may be appropriate for selected fastener geometries and production volumes.

It can support efficient material utilization and consistent production for suitable designs.

CNC Machining

CNC machining may be appropriate for more complex geometries, controlled shoulders or drawing-specific dimensional features.

The manufacturing method should be selected according to the component requirements.

Production Efficiency in Telecommunications Enclosure Assembly

Production managers and manufacturing engineers must consider how fasteners affect assembly time, installation consistency and cost.

Installation Sequence

Self-clinching fasteners may be installed before final cabinet assembly.

This can reduce the need to handle loose nuts during later production stages.

Automated Feeding and Assembly

Fastener geometry and dimensional consistency can affect compatibility with automated feeding equipment.

The OEM should verify the suitability of the selected component for the intended assembly process.

Tool Accessibility

Compact cabinets may restrict tool movement.

Screw head design and installation direction should be considered during product development.

Maintenance Requirements

Serviceable panels may benefit from retained screws or other fastening arrangements designed for repeated access.

Assembly Quality

Hole dimensions, installation force, tightening conditions and fastener compatibility can influence assembly consistency.

The OEM should define appropriate inspection requirements.

Total Assembly Cost

The lowest fastener unit price does not necessarily produce the lowest overall manufacturing cost.

Installation labor, tooling, rework, maintenance and supply continuity should be considered.

International Standards and Technical Requirements

The applicable standard depends on the specific fastener type.

Self-clinching fasteners, blind rivet nuts and captive panel screws must also be evaluated according to their specific product requirements.

Metric, UNC, UNF and other thread systems are not directly interchangeable.

The thread specification must be confirmed before approving a replacement component.

OEM Supplier Qualification and Alternative Sourcing

Telecommunications equipment manufacturers may seek alternative suppliers for screws, nuts, self-clinching hardware, standoffs and custom fastening components.

Supplier qualification should consider both technical conformity and commercial requirements.

Alternative Sourcing: Dimensional Similarity Is Not Enough

Two fasteners with the same nominal thread size may differ in material, coating, installation characteristics or functional performance.

For example, two self-clinching nuts may share the same thread size but require different installation forces or compatible sheet hardness ranges.

Likewise, two stainless steel screws may have different mechanical property classes.

For OEM programs, sample evaluation and assembly trials may be necessary before approving a replacement.

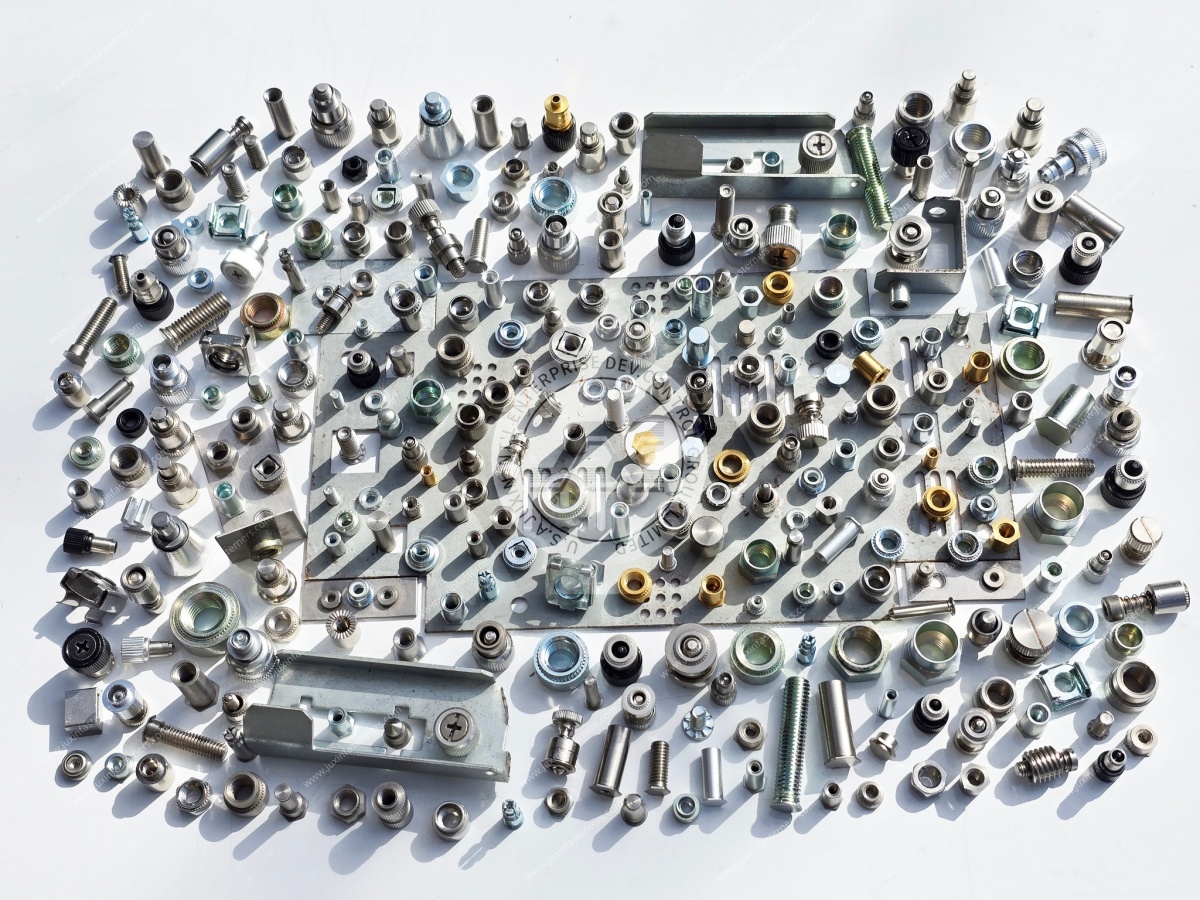

Request Outdoor Telecommunications Equipment Fasteners

JUXIN FASTENERS supports OEM sourcing and drawing-based technical review for industrial fasteners used in suitable outdoor telecommunications equipment applications.

For communication cabinets, radio equipment housings, equipment mounting brackets and sheet metal assemblies, please provide:

• 2D drawings and available 3D models

• Required fastener type and thread specification

• Material and mechanical property requirements

• Panel material and thickness

• Joint loading or retention requirements

• Required surface treatment

• Installation and assembly conditions

• Inspection and documentation requirements

• Prototype quantity and annual forecast

• Packaging and delivery requirements

Our team can review the supplied information to discuss suitable standard or custom fastening options and quotation feasibility.

Website: www.juxinfasteners.com

OEM Technical Review & RFQ: info@juxinfasteners.com

Send your drawings, technical specifications and purchasing requirements to discuss fastening solutions for your next telecommunications equipment project.

Related JUXIN FASTENERS Engineering Solutions

• Self-Clinching Standoffs for Telecom Enclosures & PCB Mounting — threaded support hardware for electrical and communication equipment.

• Self-Clinching Nuts for Power Electronics & Sheet Metal Enclosures — reusable internal threads for suitable sheet metal assemblies.

• Captive Panel Screws & Retained Fasteners for Serviceable Equipment Panels — maintenance-friendly panel attachment.

• Blind Rivet Nuts for Sheet Metal Enclosures & One-Sided Assembly — threaded connections where backside access is restricted.

• All-Metal Prevailing-Torque Lock Nuts for High-Vibration Industrial Assemblies — vibration-resistant threaded fastening.

• Custom Cold-Headed Fasteners & Special Formed Parts for Industrial OEMs — drawing-based custom component sourcing.

These related solutions provide further guidance on enclosure fastening, maintenance access, custom hardware and OEM manufacturing requirements.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
