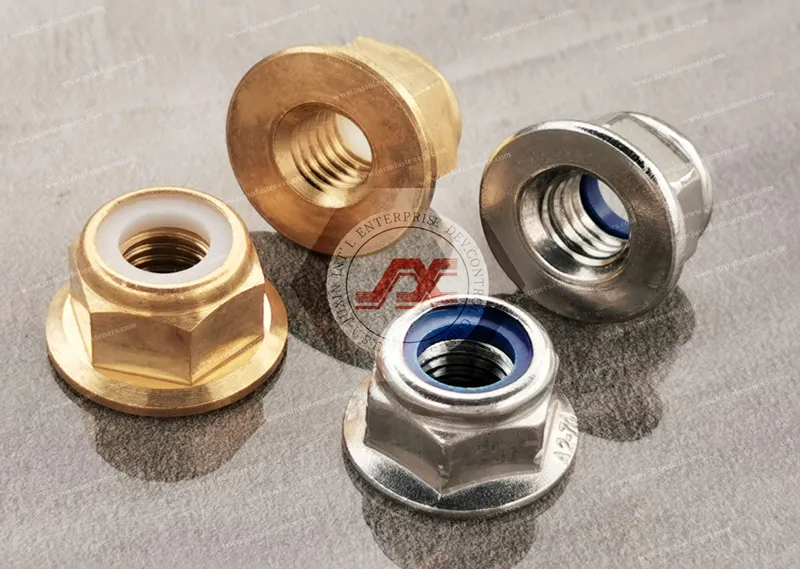

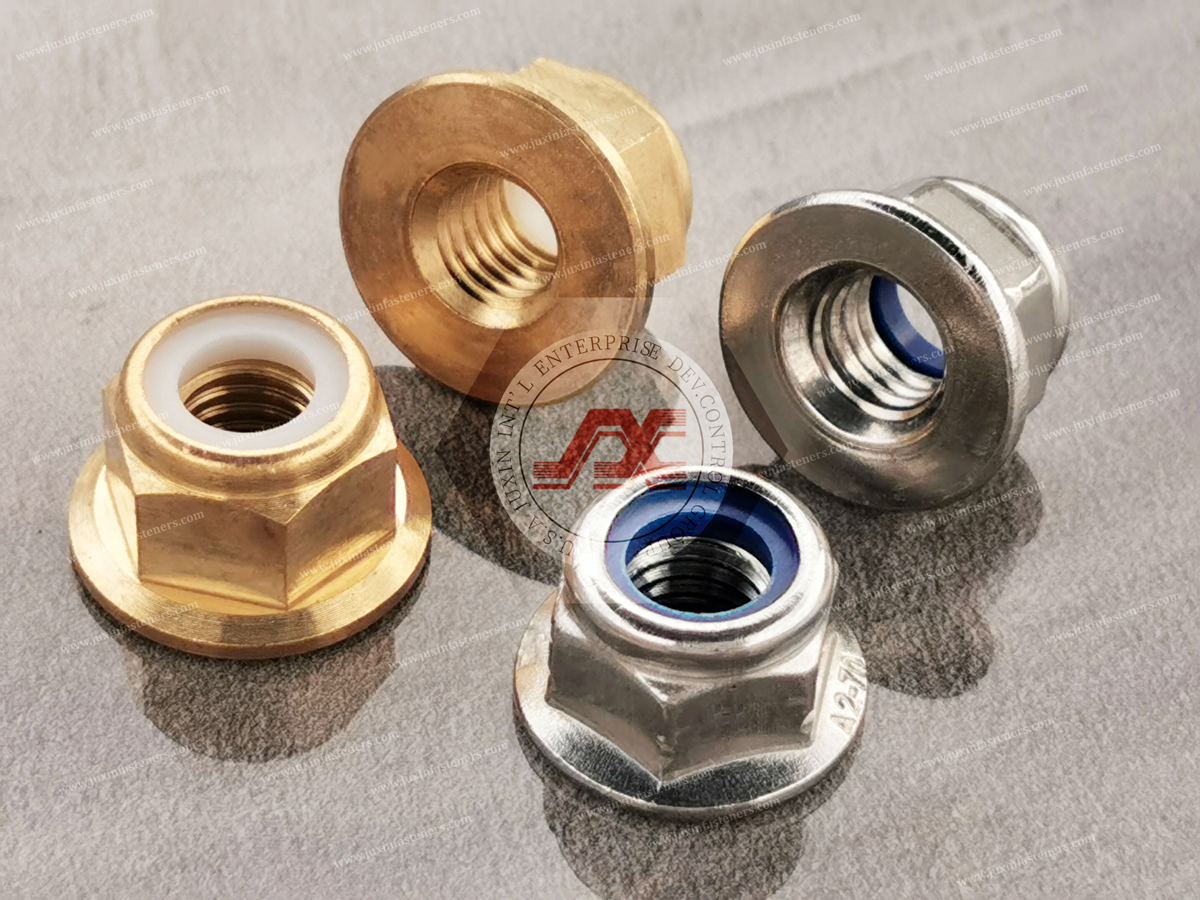

DIN985 Stainless Steel Nylon Self-Locking Nuts for Medical Device Manufacturing | High-Reliability Anti-Loosening Fastener Solution Introduction: Safety-Critical Fastening for Medical Engineering Systems

DIN985 Stainless Steel Nylon Self-Locking Nuts for Medical Device Manufacturing | High-Reliability Anti-Loosening Fastener Solution

Introduction: Safety-Critical Fastening for Medical Engineering Systems

In medical device manufacturing, fastening reliability directly impacts patient safety, equipment accuracy, and long-term operational stability. Devices such as imaging systems, surgical robots, ventilators, and diagnostic instruments operate under continuous vibration, repeated motion cycles, and exposure to disinfectants and chemical environments.

DIN985 Stainless Steel Nylon Self-Locking Nuts provide a proven engineering solution for these challenges. As high-performance stainless steel nylon self-locking nuts, they combine corrosion-resistant stainless steel with a nylon 6/6 insert to deliver stable prevailing torque, vibration resistance, and long-term anti-loosening performance.

They are widely used in medical imaging systems, life support equipment, surgical robotics, and precision diagnostic devices, where failure of a single fastener can compromise system safety.

1. Engineering Principle of DIN985 Stainless Steel Nylon Self-Locking Nuts

The DIN985 stainless-steel nylon self-locking nut is an effective torque-type anti-loosening fastener for precision and safety-critical applications.

Structural Composition:

• Stainless steel body (typically 304 or 316 grade)

• Nylon 6/6 insert embedded in the upper thread section

Working Mechanism:

When the bolt is tightened:

• The nylon insert is compressed by the bolt threads

• Controlled elastic deformation occurs in the nylon material

• Continuous radial pressure is generated on thread flanks

• Frictional resistance prevents loosening under vibration and      motion

This ensures stable preload retention even during long-term operation of medical equipment.

 2. Core Advantages in Medical Device Applications

2.1 Superior Anti-Loosening and Vibration Resistance

DIN985 stainless steel nylon self-locking nuts deliver excellent vibration control:

• Vibration lifespan is several to tens of times longer than      conventional fasteners

• Maintains stable torque under continuous equipment operation

• Prevents loosening in dynamic load and motion-driven systems

This is critical for imaging equipment and surgical robotic systems.

 2.2 Excellent Corrosion Resistance for Medical Environments

Medical environments expose fasteners to:

• Alcohol-based disinfectants

• Chlorine-based cleaning agents

• Biological fluids and chemical exposure

Stainless steel grades such as:

• 304 (A2) stainless steel

• 316 (A4) stainless steel for enhanced corrosion resistance

provide long-term durability and hygiene compliance.

 2.3 Broad Temperature and Chemical Stability

• Nylon operating range: -50°C to +100°C

• Suitable for most sterilization and operating conditions

• Resistant to common medical cleaning chemicals

 2.4 Reusability and Maintenance Efficiency

• Designed for controlled reuse cycles

• Recommended reuse: up to 5–50 cycles depending on      application class

• Supports routine maintenance, calibration, and component      replacement

This is essential for medical equipment lifecycle management.

 3. Application Scenarios in Medical Device Engineering

3.1 Imaging Diagnostic Systems

Used in:

• CT scanner structural assemblies

• MRI internal support systems

• X-ray machine moving frames

These systems require ultra-stable fastening under continuous vibration and motion.

 3.2 Surgical Robots and Rehabilitation Equipment

Applications include:

• Robotic joint connections

• Transmission mechanisms

• Precision end-effector assemblies

• Rehabilitation training systems

These components demand high repeatability and zero risk of loosening.

 3.3 Life Support and Treatment Equipment

• Ventilators

• Dialysis machines

• Infusion pumps

• Anesthesia systems

Fasteners must maintain reliability under continuous operation and exposure to disinfectants.

 3.4 Medical Equipment Housing and Sealing Structures

• Enclosure assemblies

• Protective covers

• Modular equipment housings

Cap nut variants may also provide partial sealing benefits.

 4. Engineering Advantages Over Alternative Locking Methods

4.1 Compared with Spring Washers

• Spring washers lose elasticity over time

• Less effective under continuous vibration

• Lower long-term reliability

 Nylon self-locking nuts provide more stable torque retention.

 4.2 Compared with Double-Nut Locking Systems

• Requires additional installation space

• More complex assembly process

• Higher risk of installation inconsistency

 DIN985 stainless steel nylon self-locking nuts are more compact and efficient.

4.3 Compared with Threadlocking Adhesives

• Require curing time

• Can leave chemical residues

• Difficult to disassemble and maintain

 Nylon locking is a clean, reusable mechanical solution ideal for medical environments.

 5. Engineering Selection and Implementation Considerations

5.1 Operating Environment Matching

Engineers must evaluate:

• Temperature range

• Humidity and sterilization conditions

• Chemical exposure (disinfectants, cleaning agents)

• Vibration frequency and amplitude

Proper selection ensures stable long-term performance.

 5.2 Torque Control and Installation Precision

• Over-tightening may damage nylon inserts

• Under-tightening reduces prevailing torque performance

• Torque wrench installation is mandatory for precision medical      assemblies

 5.3 Regulatory and Quality Compliance

Medical applications often require compliance with:

• ISO 13485 quality management systems

• ISO 10993 biocompatibility requirements (when applicable)

• Traceable material certification and batch control

 5.4 Drainage and Hygiene Optimization Designs

Advanced designs may include:

• Drainage grooves to prevent liquid retention

• Anti-contamination structural optimization

• Improved sterilization compatibility

These features help reduce the risk of bacterial growth in medical environments.

 5.5 Lifecycle Cost Consideration

Although DIN985 stainless steel nylon self-locking nuts may have a higher initial cost:

• They significantly reduce maintenance frequency

• Lower failure risk improves system uptime

• Reduce medical equipment downtime and safety risks

➡ Total lifecycle cost is often lower than traditional fastening solutions.

 6. Comparison with Other Medical Fastening Technologies

 7. Industry Reliability and Technological Development

The stainless steel nylon self-locking nut industry continues to evolve with:

• Improved nylon insert precision molding

• Enhanced anti-loosening structural designs

• Better corrosion-resistant stainless steel alloys

• Patented drainage and anti-contamination structures

• Improved consistency in torque performance control

These advancements improve safety and reliability in next-generation medical devices.

Conclusion: A Trusted Fastening Solution for Medical Safety and Reliability

DIN985 Stainless Steel Nylon Self-Locking Nuts provide a highly reliable fastening solution for medical device manufacturing by combining:

• Stainless steel corrosion resistance

• Nylon 6/6 prevailing torque locking technology

• Long-term vibration resistance

• Clean and reusable mechanical fastening performance

For medical OEMs, engineers, and procurement specialists, these stainless steel nylon self-locking nuts deliver an optimal balance of:

✔ Patient safety
✔ Equipment reliability
✔ Corrosion resistance
✔ Maintenance efficiency
✔ Regulatory compliance readiness

In precision medical environments where reliability cannot be compromised, DIN985 stainless steel nylon self-locking nuts remain a trusted and essential engineering solution.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
