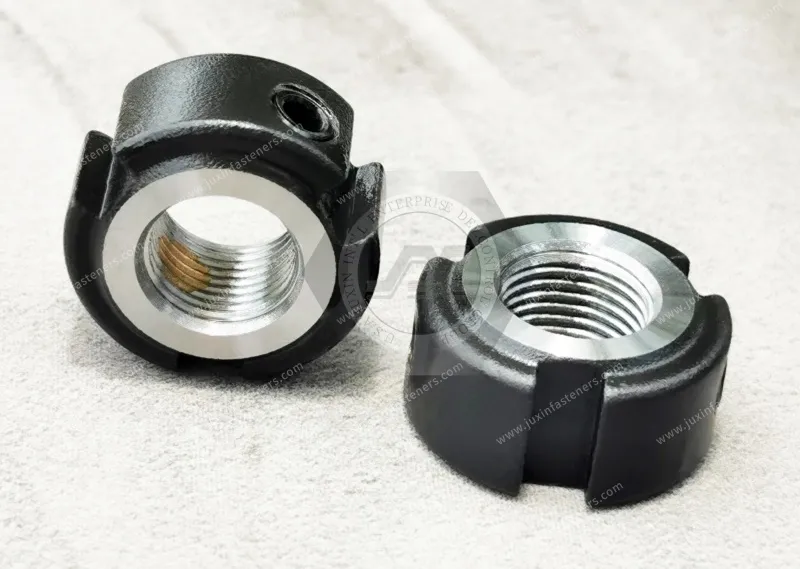

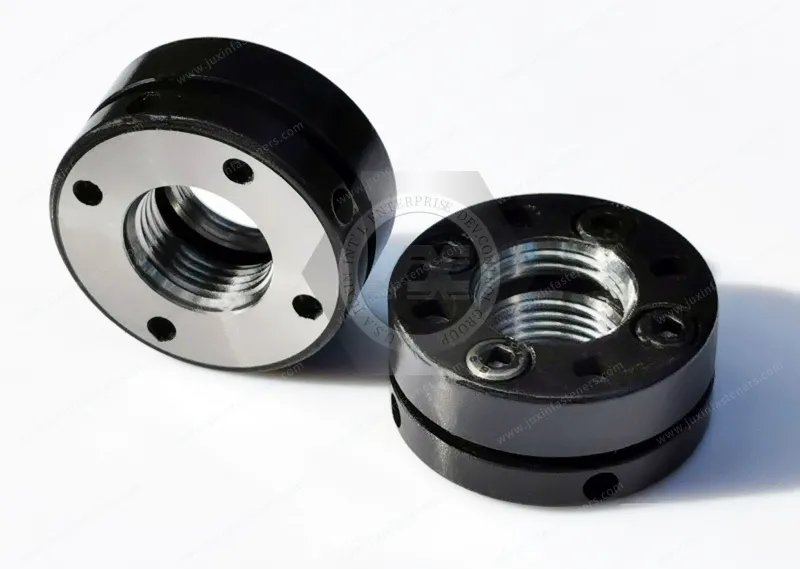

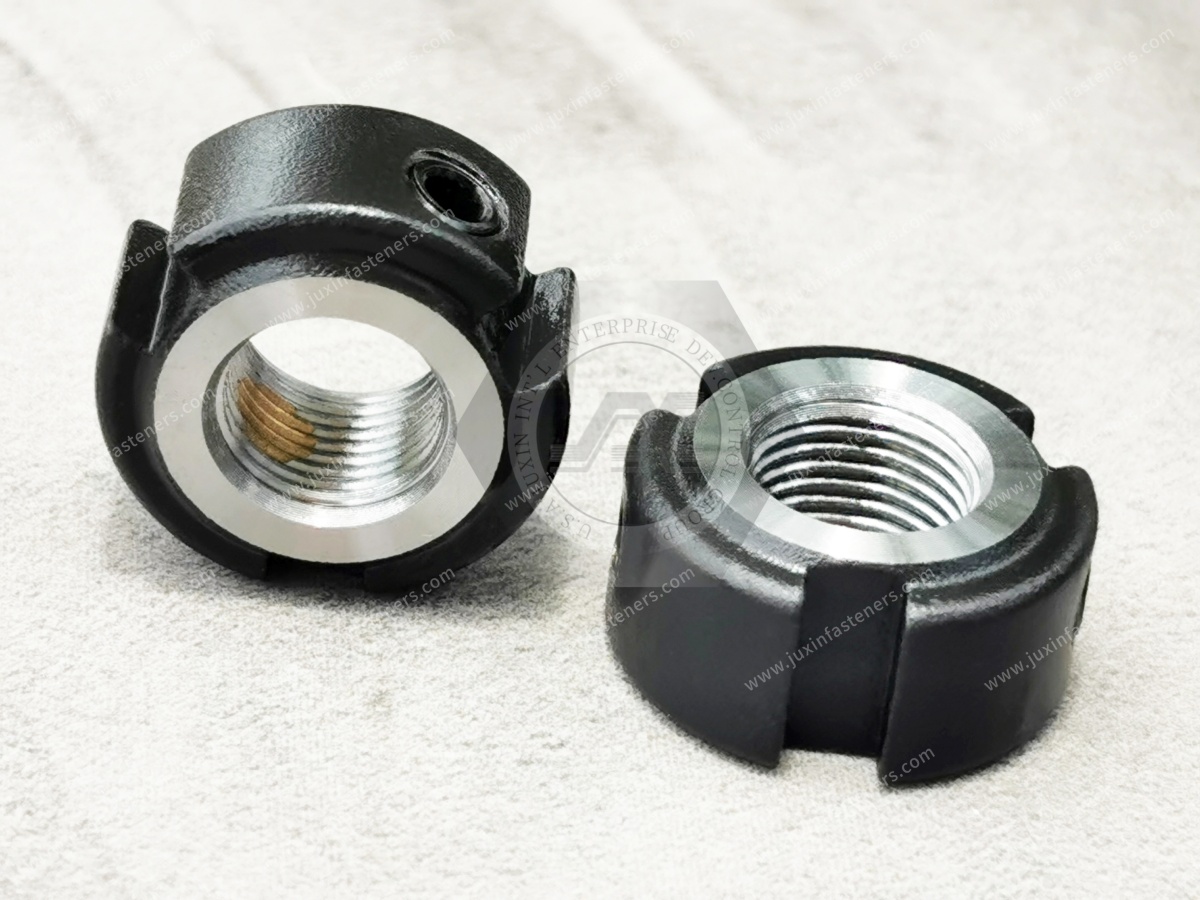

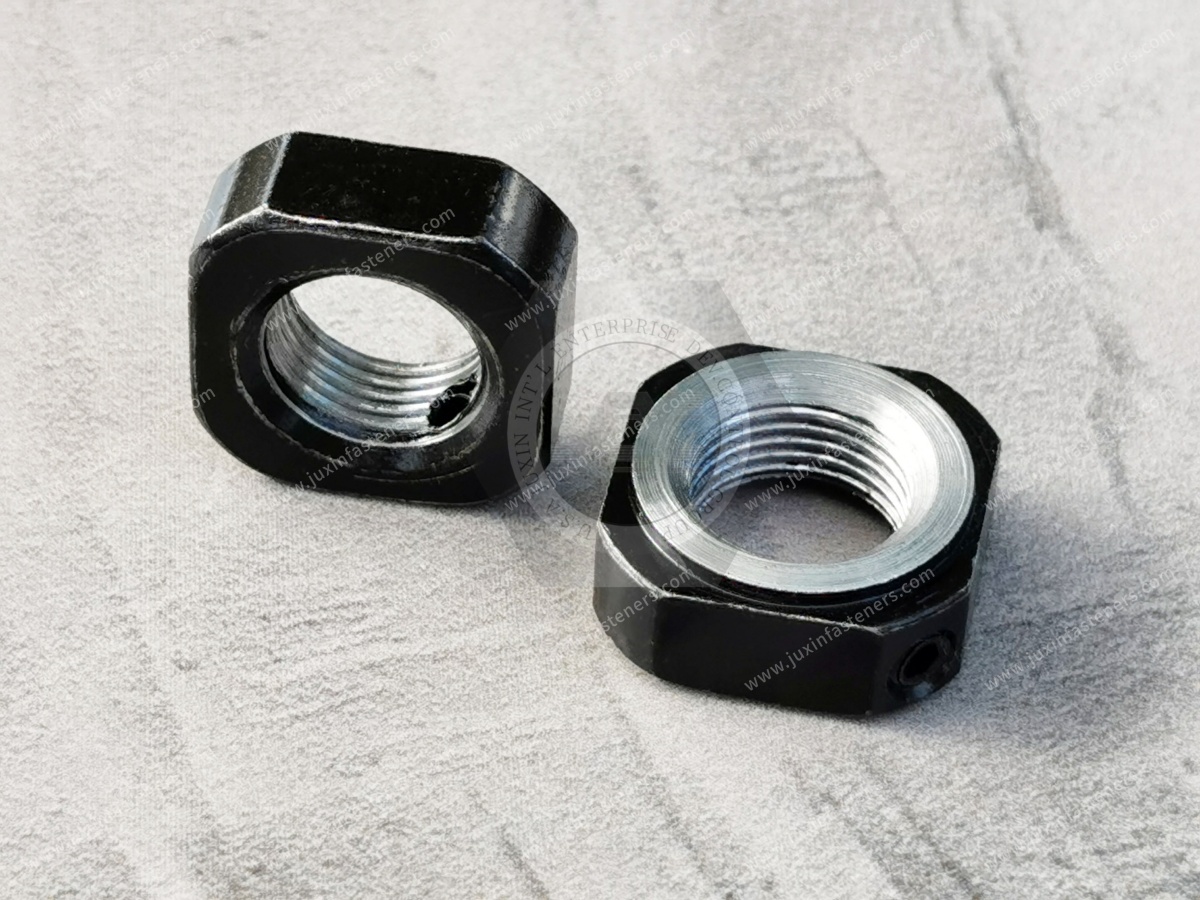

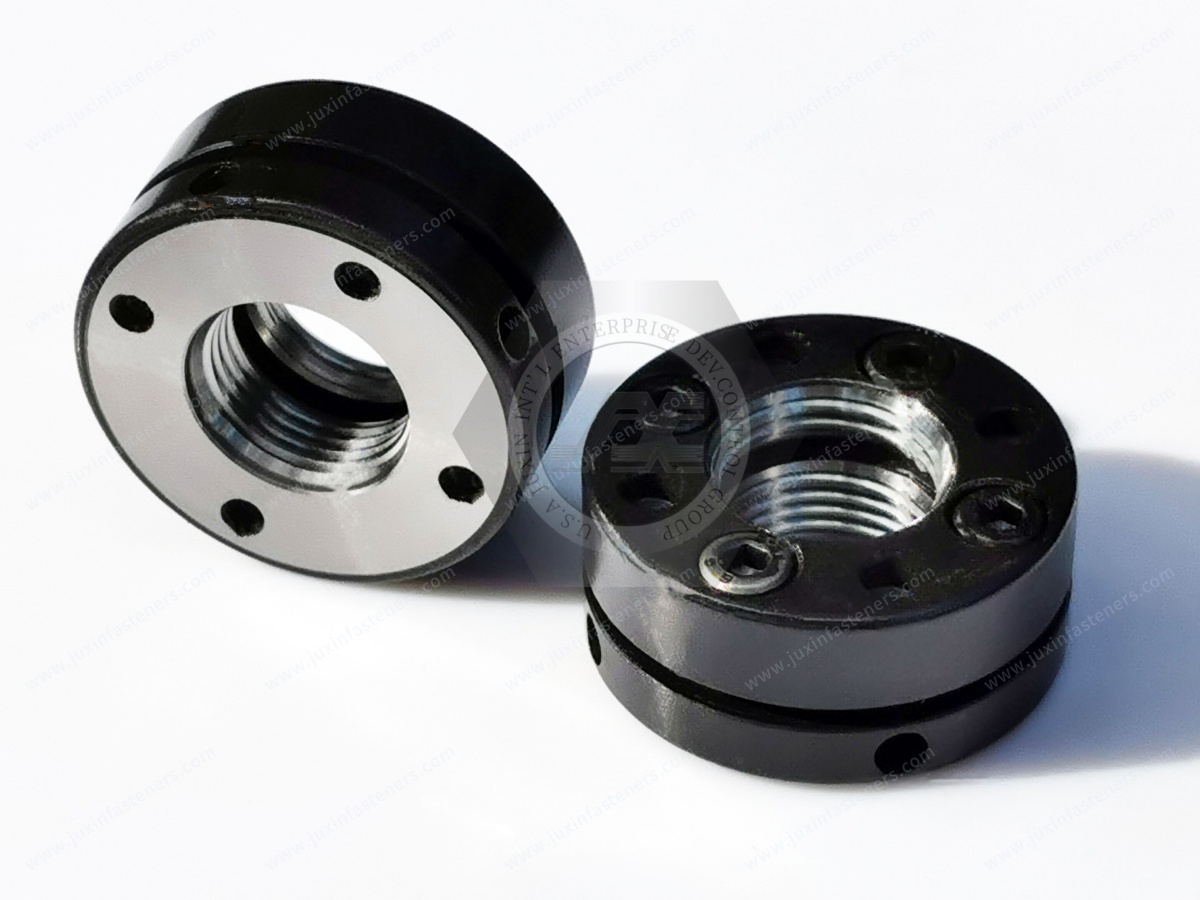

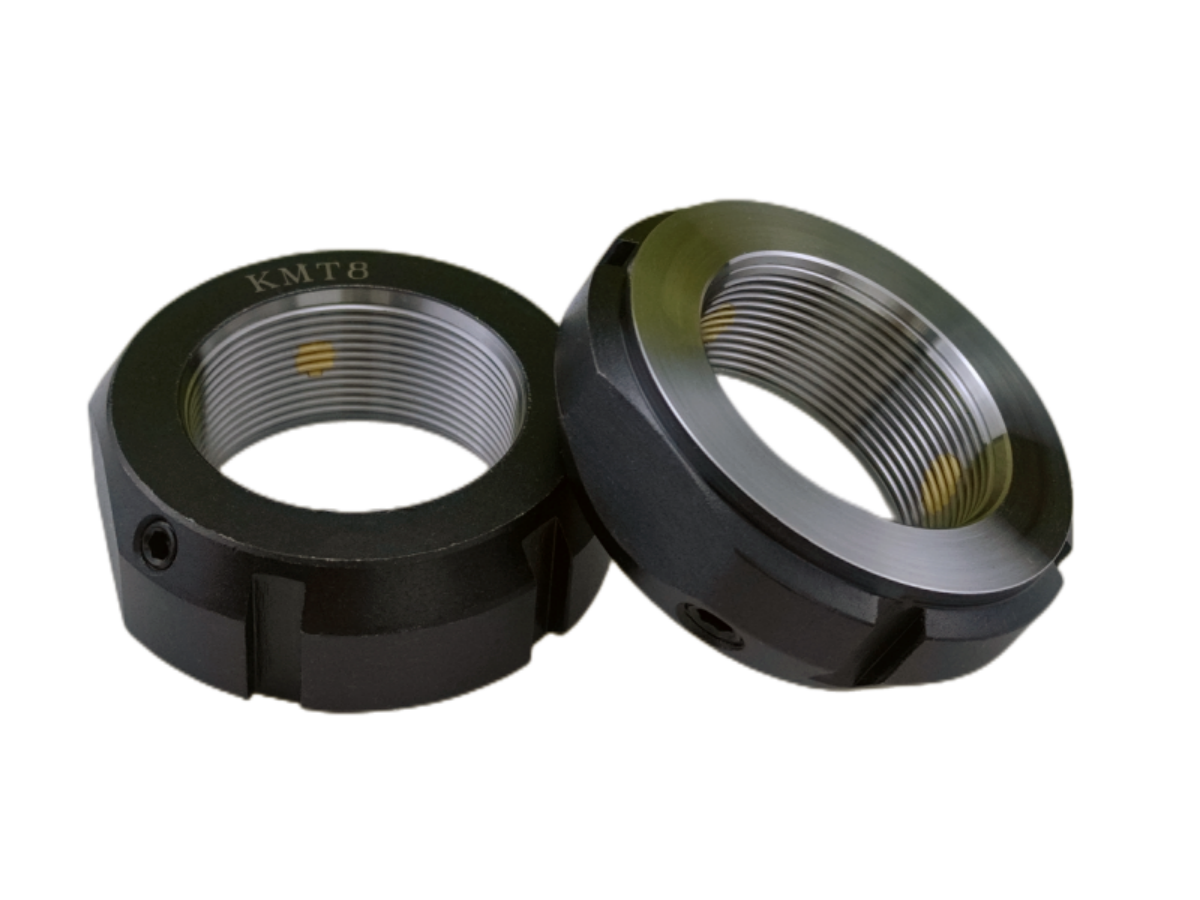

Precision Locknuts & Custom Machined Nuts for CNC Spindles and Rotary Systems

Precision machine tools depend on much more than high-quality bearings, motors and control systems.

In CNC spindles, rotary tables, ball screw supports and other precision motion assemblies,

the threaded component used to retain or position a bearing can directly influence assembly repeatability, axial positioning and maintenance.

This makes a precision locknut fundamentally different from an ordinary general-purpose nut.

For design engineers, the question is not simply:

“What thread size do I need?”

The more useful engineering question is:

“What does this nut need to control in the complete shaft-bearing assembly?”

Depending on the application, a precision locknut or custom machined nut may need to provide bearing retention, axial positioning, preload adjustment,

 resistance to unintended rotation, controlled contact against a bearing ring or spacer, and repeatable installation during equipment maintenance.

JUXIN FASTENERS supports drawing-based precision machined nuts and custom fastening components for industrial equipment manufacturers,

machine builders and precision mechanical assemblies.

Applications can include:

• CNC machine tools

• Spindle assemblies

• Rotary tables

• Rotary axes

• Ball screw support assemblies

• Servo-driven mechanisms

• Industrial automation equipment

• Robotics

• Precision transmission systems

• Bearing and shaft assemblies

For custom precision components, JUXIN recommends evaluation from the OEM drawing and actual assembly requirements rather than selecting a part from thread size alone.

Why an Ordinary Locknut Is Not Always Suitable for a Precision Bearing Assembly

A standard locknut can secure a threaded connection.

A precision bearing assembly may require much more.

The nut may contact:

• A bearing inner ring

• A precision spacer

• A shaft shoulder assembly

• A bearing sleeve

• Another accurately positioned rotating component

In these situations, dimensional relationships between the thread axis, contact face, shaft and bearing assembly become important.

Potential problems caused by an unsuitable nut can include:

• Uneven contact against the bearing ring

• Inconsistent axial positioning

• Difficulty setting bearing preload

• Unwanted movement after adjustment

• Shaft thread damage

• Difficult disassembly

• Poor repeatability during maintenance

This is why precision locknut selection should begin with the complete mechanical interface.

Where Precision Locknuts Are Used

CNC Machine Tool Spindles

Machine tool spindles may use threaded retaining components to locate or retain bearing arrangements on a spindle shaft.

Depending on the spindle design, the nut may interact with:

• Angular contact bearings

• Bearing spacers

• Shaft shoulders

• Sleeves

• Other locating components

The required geometry should therefore be evaluated from the complete spindle drawing.

Grinding Spindles

Grinding equipment can place particularly demanding requirements on rotating assemblies because machining accuracy depends on controlled spindle behavior.

Precision retaining nuts may be used in bearing and shaft assemblies where dimensional control and repeatable assembly are important.

CNC Rotary Tables and Rotary Axes

Rotary tables and multi-axis machine tools use precision bearings and drive systems to control rotational positioning.

Custom threaded retaining components may be required around:

• Rotary bearing assemblies

• Drive shafts

• Gear systems

• Torque motor assemblies

• Axial positioning components

Ball Screw Support Assemblies

Ball screws are widely used in CNC machinery, industrial automation and precision linear motion systems.

Threaded nuts may be used to retain bearing arrangements at fixed or support ends.

Important requirements can include:

• Thread compatibility

• Axial positioning

• Contact-face geometry

• Locking method

• Installation access

• Serviceability

Industrial Automation and Robotics

Precision shaft nuts and custom machined locknuts can also be used in:

• Servo mechanisms

• Precision actuators

• Robotic joints

• Gear assemblies

• Indexing systems

• Automated production equipment

These applications may require non-standard geometry that is better manufactured from an OEM drawing than selected from a general catalog.

Engineering Challenge 1: Bearing Retention Is Not the Same as General Thread Locking

A common sourcing mistake is treating a spindle bearing locknut as simply another anti-loosening nut.

These are different engineering problems.

A general locknut may primarily be designed to resist unintended rotation.

A precision bearing locknut may also need to:

• Position a bearing or spacer axially

• Apply or maintain a specified assembly condition

• Contact a precision component through its end face

• Allow controlled adjustment

• Permit future disassembly

• Protect the shaft and thread from unnecessary damage

This distinction matters when engineers evaluate alternatives.

A nut that provides strong locking action is not automatically suitable for a precision bearing assembly.

The geometry of the complete shaft-bearing-nut interface must also be considered.

Engineering Challenge 2: Face Geometry Matters in Bearing Assemblies

In a general bolted joint, small variations in nut-face geometry may not significantly affect the application.

A precision shaft assembly can be different.

If the nut face bears directly against a bearing ring, spacer or other precision component,

the relationship between the thread axis and contact face can influence how the axial load is introduced into the assembly.

For drawing-based precision nuts, engineers may therefore specify characteristics such as:

• Contact-face flatness

• Face-to-thread relationship

• Overall width

• Thread tolerance

• Concentricity requirements where relevant

• Surface finish on functional faces

The actual tolerances should come from the equipment design and required assembly performance.

JUXIN does not recommend applying unnecessarily tight tolerances to every dimension.

Instead, critical characteristics should be identified according to their actual function.

This can reduce unnecessary machining cost while maintaining control where it matters.

Engineering Challenge 3: Bearing Preload Depends on More Than the Nut

Bearing preload is frequently discussed together with spindle locknuts, but it is important not to attribute the entire preload condition to one component.

The final bearing condition can depend on:

• Bearing type

• Bearing arrangement

• Spacer geometry

• Shaft geometry

• Housing geometry

• Assembly procedure

• Lubrication

• Temperature

• Tightening method

• Locknut design

Therefore, a precision locknut should be treated as one controlled component within the bearing system, not as an isolated solution to every preload problem.

For OEM engineers, this distinction is important.

If a spindle develops excessive heat, play or vibration, replacing the locknut alone may not correct the root cause.

The complete bearing stack and assembly method should be evaluated.

Engineering Challenge 4: The Locking Method Must Match the Shaft Design

There are multiple ways to prevent a shaft nut from rotating unintentionally.

Depending on the machine design, these can include:

• Mechanical locking features

• Locking screws

• Locking elements

• Tab or washer arrangements

• Keyed systems

• Special thread-locking geometry

• OEM-specific locking designs

Each method has trade-offs.

For example, a locking method that directly contacts a shaft thread may require consideration of possible thread marking or damage.

A more complex locking mechanism may improve adjustability but increase manufacturing cost and part count.

A permanently secured method may be unsuitable where bearings require future replacement.

The correct solution therefore depends on:

locking reliability + shaft protection + adjustability + serviceability + manufacturing cost.

Engineering Challenge 5: High-Speed Rotation Does Not Mean the Nut Alone Controls Runout

Precision spindle applications frequently involve runout requirements.

However, runout is a system-level characteristic.

It can be influenced by:

• Shaft machining

• Bearing quality

• Bearing seats

• Spacers

• Housing geometry

• Assembly cleanliness

• Bearing installation

• Thermal condition

• Retaining components

A precision locknut can contribute to consistent axial contact and assembly positioning, but it should not be described as independently guaranteeing spindle runout.

This distinction is important for technical specifications and supplier evaluation.

A credible precision fastener supplier should understand where the fastener influences the system—and where it does not.

Precision Locknut vs Standard Locknut: What Is the Difference?

The distinction is therefore based more on functional requirements and dimensional control than on the word “precision” itself.

Standard Precision Locknut or Custom Machined Nut?

Engineers often need to decide whether an existing standard component is sufficient or whether a drawing-based custom nut is justified.

A standard locknut may be appropriate when:

• The shaft thread matches an established product

• Envelope dimensions are compatible

• The locking method suits the assembly

• Standard tolerances satisfy the design

• No special contact geometry is required

A custom machined nut may be more appropriate when:

• The shaft uses a non-standard thread

• Overall diameter is restricted

• Nut width must match a specific bearing stack

• A special locking feature is required

• Functional faces require drawing-controlled dimensions

• Installation tooling requires special geometry

• The OEM wants to consolidate multiple functions into one component

The best sourcing decision is not automatically the most customized design.

Where a standard component meets the engineering requirement, unnecessary customization can add cost and supply-chain complexity.

Thread Specification: “M30” Is Not Enough

A precision nut RFQ should not identify the thread only by nominal diameter.

For example:

M30 precision locknut

still leaves important information undefined.

Engineers and procurement teams should identify:

• Nominal thread diameter

• Thread pitch

• Thread direction

• Internal thread tolerance requirement

• Thread standard

• Engagement length

• Shaft mating-thread condition

• Any special thread geometry

For inch-series applications, the applicable ASME/ANSI thread designation and class should be clearly defined on the drawing.

For metric applications, the appropriate ISO metric thread specification should be identified.

The objective is to ensure that the nut and shaft are treated as a mating system.

Why Thread Fit Matters in Precision Shaft Assemblies

Thread fit influences more than whether the nut can physically be installed.

An excessively loose fit may reduce positional consistency.

An excessively tight fit may create assembly difficulty, increase sensitivity to coating or surface condition, or make servicing more difficult.

The appropriate fit therefore depends on:

• Required adjustment

• Shaft manufacturing tolerance

• Surface treatment

• Assembly method

• Operating temperature

• Service requirements

This is another reason precision nuts should be evaluated together with the mating shaft drawing.

Material Selection for Precision Machined Locknuts

Material should be selected according to the mechanical requirements and manufacturing process rather than using a single material for every precision nut.

Potential material categories can include:

Carbon and Alloy Steels

Suitable for many industrial shaft and bearing-retention applications where strength, machinability and heat-treatment options are important.

The exact steel grade and required hardness should be defined according to the OEM drawing or agreed technical specification.

Stainless Steel

Stainless steel may be selected where corrosion resistance, cleanliness or environmental conditions justify its use.

JUXIN works with stainless steel materials including 304 and 316L for suitable fastening and machined component applications.

Other Materials

Where an application requires a different material, the material specification should be reviewed together with:

• Thread geometry

• Mechanical load

• Required hardness

• Machining requirements

• Surface treatment

• Quantity

• Inspection requirements

For custom precision components, material substitutions should not be made without engineering approval.

Surface Finish Should Be Treated as a Functional Requirement

Surface treatment can affect:

• Corrosion resistance

• Thread fit

• Assembly friction

• Appearance

• Dimensional condition

For this reason, coating or finishing requirements should be identified before final dimensional approval.

The appropriate finish depends on the specified base material and operating environment.

JUXIN can evaluate surface treatment requirements according to the customer drawing and application rather than applying one generic finish to all precision nuts.

Precision Machined Nut Inspection: Which Dimensions Actually Matter?

One useful way to control cost and quality is to separate dimensions into functional groups.

Thread Characteristics

These determine compatibility with the shaft.

Examples include:

• Thread diameter

• Pitch

• Thread tolerance

• Thread direction

Axial Stack Dimensions

These influence how the nut fits into the bearing or shaft assembly.

Examples include:

• Nut width

• Contact-face location

• Shoulder dimensions

• Spacer interface dimensions

Functional Face Requirements

These can influence contact with bearings, spacers or other precision components.

Examples may include:

• Flatness

• Surface finish

• Face relationship to the thread axis

Tooling Features

These affect assembly and maintenance rather than bearing performance directly.

Examples include:

• Wrench slots

• Spanner holes

• External flats

• Installation grooves

Locking Features

These control the method used to resist unwanted nut rotation.

Examples depend on the OEM design and should be clearly defined on the drawing.

This functional classification helps procurement teams understand why two visually similar locknuts can have significantly different manufacturing requirements and costs.

Design Engineers: What Should Be Defined Before Sending an RFQ?

For a custom spindle nut, bearing locknut or precision machined nut, the engineering package should ideally include:

• 2D drawing

• 3D model where available

• Complete thread specification

• Material

• Heat-treatment requirement if applicable

• Hardness requirement if applicable

• Surface finish

• Critical dimensional tolerances

• Functional-face requirements

• Locking method

• Mating shaft information where relevant

• Bearing or spacer interface information where relevant

• Prototype quantity

• Production quantity

Clearly identifying critical dimensions is especially useful.

Not every dimension on a precision nut needs the same tolerance.

Procurement Managers: Why Similar-Looking Locknuts Can Have Very Different Prices

Two precision nuts can appear almost identical in a photograph but require very different manufacturing processes.

Cost can be influenced by:

• Material grade

• Blank manufacturing method

• Thread specification

• Heat treatment

• Machining tolerance

• Grinding requirements

• Surface finish

• Locking mechanism

• Inspection requirements

• Batch quantity

• Packaging requirements

This is why sourcing a precision nut purely by photograph or outside diameter can produce misleading quotations.

For procurement teams comparing suppliers, the comparison should be based on the same controlled drawing and inspection requirements.

Supplier Development: Questions Worth Asking a Precision Nut Manufacturer

When qualifying a supplier for drawing-based precision locknuts or machined nuts, useful questions include:

• Can the supplier manufacture the specified thread accurately?

• Which dimensions are controlled during machining?

• Which characteristics require additional inspection?

• Can material and heat-treatment requirements be controlled?

• How are drawing revisions managed?

• Can samples be produced before production approval?

• Can inspection requirements be agreed before mass production?

• How are special processes handled?

• Can the supplier maintain repeatability between prototype and production batches?

These questions provide more useful information than asking only whether a supplier is “ISO compliant.”

Avoid Over-Specifying a Precision Locknut

More tolerance does not automatically mean better engineering.

Unnecessarily tight tolerances can increase:

• Machining time

• Grinding requirements

• Inspection cost

• Rejection risk

• Production lead time

without improving machine performance.

A better approach is to identify which characteristics actually control:

• Bearing position

• Shaft compatibility

• Locking function

• Tool access

• Assembly repeatability

and apply appropriate tolerances to those features.

This is an important Design for Manufacturing principle for custom precision fasteners.

Engineering Search Path: Start With the Function

For engineers evaluating a spindle or shaft nut, begin with the actual function.

Is the nut retaining a bearing?

Define the bearing interface and axial stack.

Is the nut adjusting a bearing position or assembly condition?

Define the adjustment method and critical axial dimensions.

Does the nut need to resist unintended rotation?

Define the required locking method.

Will the assembly require future bearing replacement?

Consider disassembly and shaft-thread protection.

Is the nut rotating with the spindle or shaft?

Evaluate the geometry as part of the complete rotating assembly.

Is the existing standard nut too large or incompatible with the assembly envelope?

A custom machined design may be appropriate.

This function-first approach provides better results than searching only for “high precision locknut.”

Procurement Search Path: Send the Drawing, Not Just the Product Name

For procurement teams, product names such as:

• CNC spindle locknut

• Precision bearing nut

• Ball screw locknut

• Rotary table nut

• Shaft retaining nut

are useful for identifying the product category, but they are not complete production specifications.

For an accurate engineering review and quotation, send:

• Drawing

• Thread specification

• Material

• Critical tolerances

• Surface treatment

• Locking requirements

• Quantity

• Application information

This reduces unnecessary quotation revisions and helps suppliers identify manufacturing risks before production.

From Drawing Review to Production

For drawing-based precision machined components, a typical project path can follow:

Application Requirement → Drawing Review → Material and Process Review → Prototype or Sample

→ Dimensional and Functional Evaluation → Golden Sample Approval → Production

The exact process depends on component complexity and customer requirements.

JUXIN FASTENERS supports standard and custom fastening components for OEM manufacturers,

machine builders, automation equipment manufacturers and industrial supply chains.

Related JUXIN FASTENERS Engineering Solutions

Engineers working on machine tools and precision equipment may also require fastening solutions beyond the spindle locknut itself.

Related JUXIN product and engineering areas include:

• All-metal prevailing-torque lock nuts

• Nylon insert lock nuts

• Self-clinching nuts

• Self-clinching studs

• Self-clinching standoffs

• Blind rivet nuts

• Weld nuts

• Custom CNC-machined parts

• Stainless steel fasteners

• Custom drawing-based fasteners

For equipment that also incorporates sheet-metal control cabinets, electrical enclosures or electronics,

 these fastening technologies can be evaluated separately according to the joint requirements.

Request a Precision Locknut or Custom Machined Nut Review

If you are designing or sourcing components for:

• CNC machine tool spindles

• Grinding spindles

• Rotary tables

• Rotary axes

• Ball screw bearing supports

• Precision shaft assemblies

• Servo systems

• Industrial automation equipment

• Robotics

• Precision transmission equipment

send us your 2D drawing, 3D model where available, thread specification, material requirement, critical tolerances and estimated quantity.

JUXIN FASTENERS can review the drawing and evaluate the manufacturing requirements for the component.

For precision shaft and bearing applications, sending the mating shaft or assembly information can also help clarify the functional requirements of the nut.

JUXIN FASTENERS

Website: www.juxinfasteners.com

Engineering & RFQ: info@juxinfasteners.com

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
