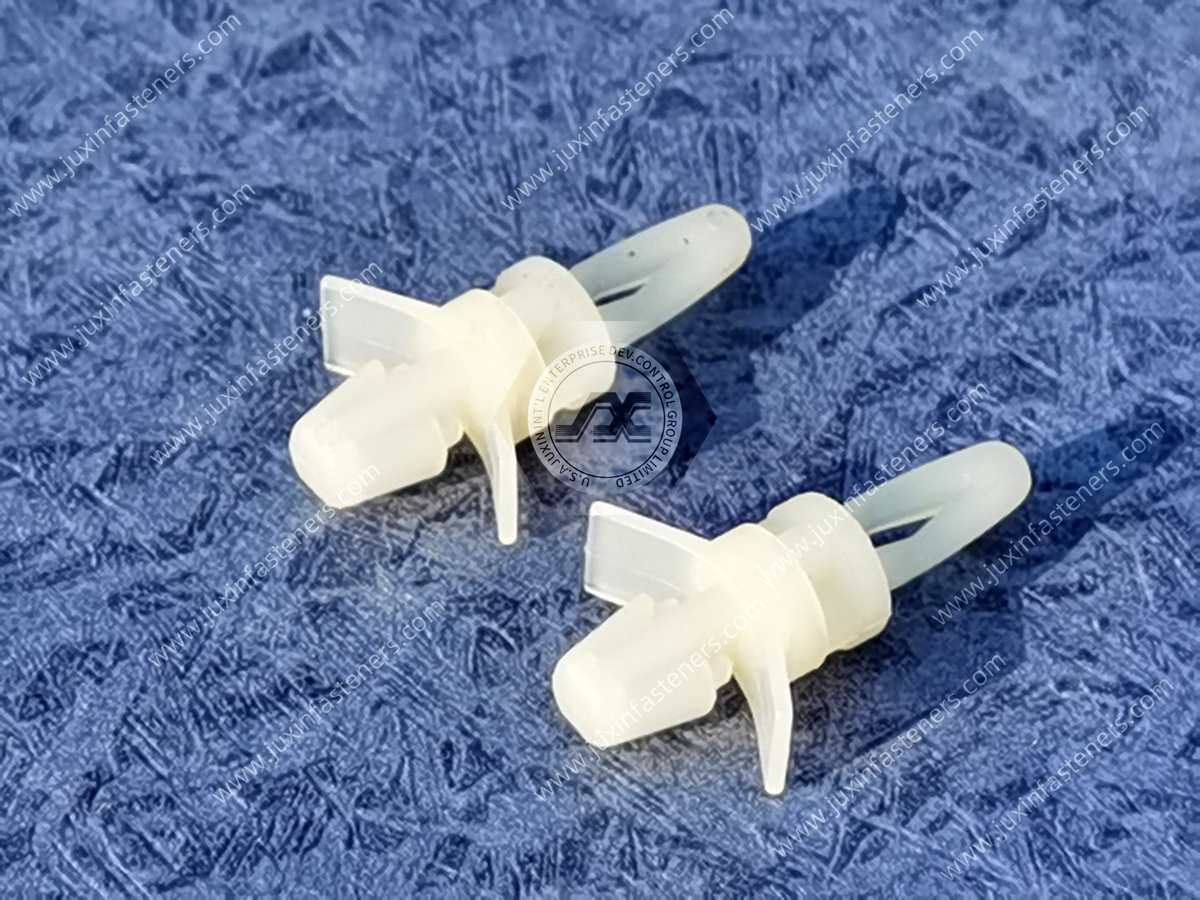

Name: Locking Circuit Board Support JX-GDE09-0195
Locking Circuit Board Support Type
PCB Support - Spacer, Locking Two Prong, Bayonet, Teardrop, Spacer, Non-Locking Extended Bayonet Arrowhead, Snap Lock, Quarter Turn, Cupped.
Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)
Top Hole: 4.0+0.08mm
Panel Thickness: 3.2mm
Bottom Hole: 4.8+0.08mm
Panel Thickness:2.0-3.2mm
Dual locking circuit board support is supplied in UL94 V2 nylon 6/6 RMS-01 or UL94 V0 RMS-19. It features a snap-in-fit feature that makes it easier to fit into the PCB. It provides good strength to the board and chassis and prevents rotation.
Applications and Benefits of Dual Locking Circuit Board Support
Supplied in UL94 V2 nylon 6/6 RMS-01 or UL94 V0 RMS-19.
It features a snap-in fit for easy fitting.
Provides good strength to the PCB.Prevents rotation.
Product Specification
Locking Bayonet with Locking Arrowhead
These spacers have an extra-long top mounting fastening. This long nose automatically locates and aligns connector pins with the socket. The top board is also easily removable.
The locking Circuit Board Support is made from Natural Nylon 6/6 and has a non-locking extended bayonet on one side and a locking arrowhead on the opposite side.
Wings add tension to strengthen the hold in a hole. The other end is releasable for repairs and upgrades. Made of nylon, these supports have excellent wear and abrasion resistance and resist chemicals and solvents (except mineral acids). Exposure to moisture may cause them to expand.
