Name: Cupped Reverse Locking Circuit Board Support
Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)
Fig1
Top Hole: 4.0±0.08mm
Panel Thickness: 1.6mm
Bottom Hole: 5.4±0.08mm
Panel Thickness: 1.2-2.0mm
Fig2
Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 5.4±0.08mm
Panel Thickness: 1.5-1.65mm
Fig3
Top Hole: 4.0±0.08mm
Panel Thickness: 1.57mm
Bottom Hole: 6.35±0.08mm
Panel Thickness: 1.5-1.65mm
Product Specification
PCB Support - Spacer - Locking/Non Locking Bayonet, Locking Arrowhead, Locking Two Prong, Reverse Locking Support, Push Spacer

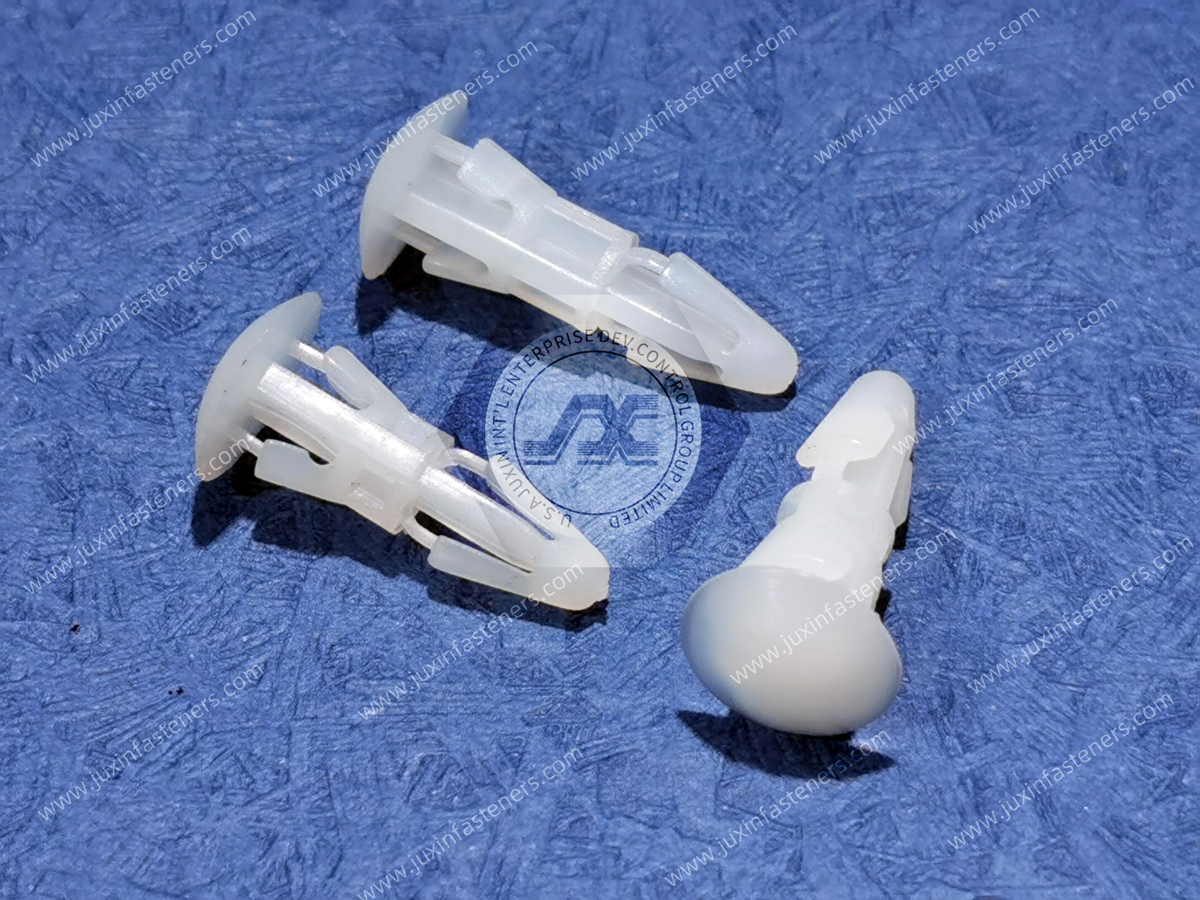

Cupped Reverse Locking Circuit Board Support.
Our wide range of PCB accessories includes an extensive selection of PCB Spacers, pillars, supports, and standoffs to support, lock, space, or guide the PCB board.
Discover accessories for appliances (white goods), electrical cabinets, machinery, or other equipment with PCB support.
This is a push reverse locking spacer with a flat top mounted on the underside of the board. It is designed to fit through the bottom of a PCB and connect to the panel above.
Product Pictures
