How to Choose the Right Nylon Rivet for Your PCB Complete Size & Design Guide

How to Choose the Right Nylon Rivet for Your PCB

Complete Size & Design Guide

Selecting the correct nylon rivet is essential to ensure secure fastening and efficient assembly in electronic applications.

This guide walks you through the key factors that engineers and buyers should consider.

1. Hole Diameter Matching

The rivet diameter must match the PCB hole size precisely.

• Too tight → difficult installation

• Too loose → weak retention

Always confirm tolerance before selection.

 2. Panel Thickness Range (Grip Range)

Each rivet is designed for a specific clamping thickness.

Typical structure includes:

• PCB thickness

• Spacer (if used)

• Mounting panel

Choosing the correct grip range ensures:

• Secure locking

• No deformation

 3. Rivet Type Selection

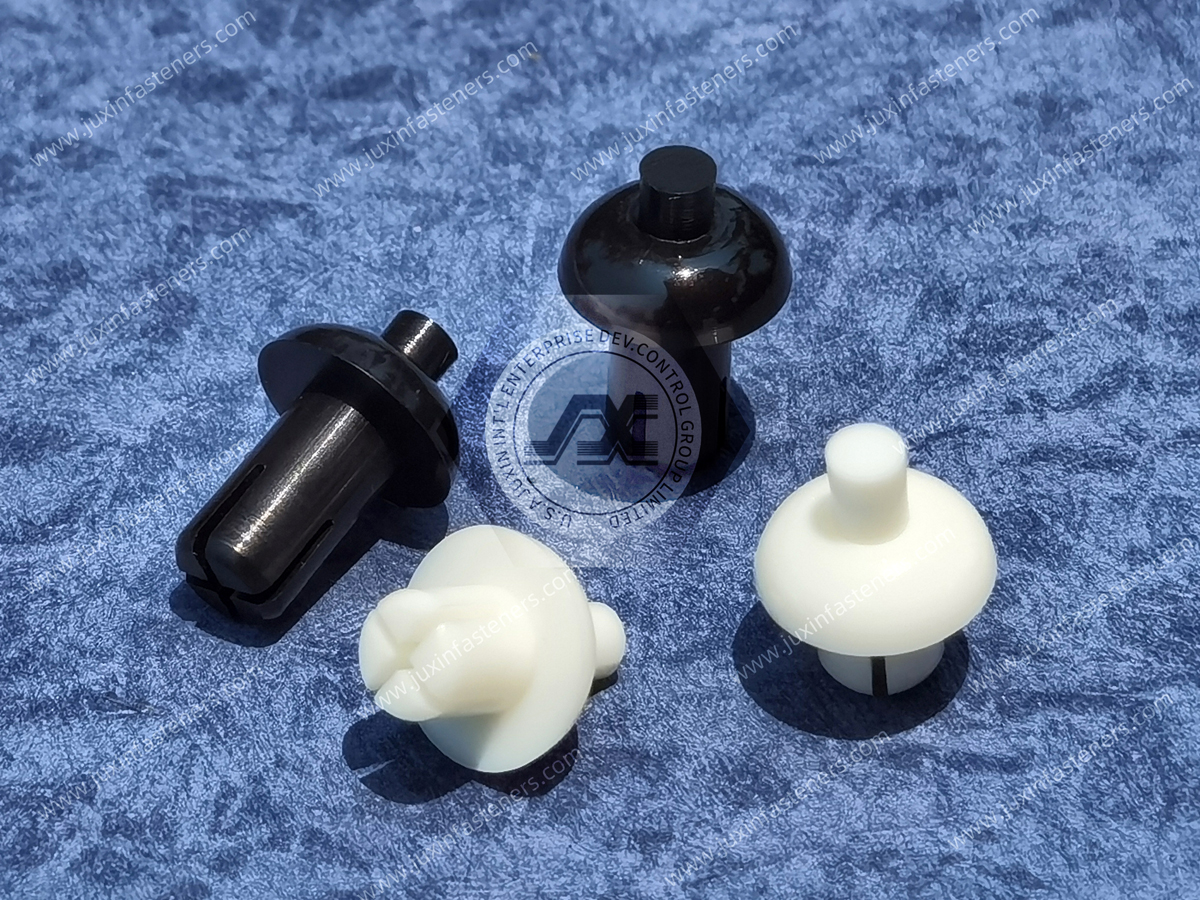

Push-Type Nylon Rivets

• Fast installation

• Ideal for high-volume production

Two-Piece Rivets

• Removable

• Suitable for maintenance applications

 4. Material Selection

Common options include:

• PA66 (Nylon 66) – high strength,      stable performance

• Glass fiber reinforced nylon –      higher load capacity

 5. Flame Rating Requirements

For electronic applications, flame resistance may be required:

• UL94 V-2 (standard)

• UL94 V-0 (higher safety requirement)

 6. Retention Strength

Ensure the rivet provides enough pull-out force for your application.

This depends on:

• Material

• Design structure

• Installation accuracy

 7. Application Environment

Consider:

• Temperature

• Humidity

• Chemical exposure

Different conditions may require different material grades.

 Common Mistakes to Avoid

❌ Ignoring tolerance between hole and rivet
❌ Choosing incorrect grip range
❌ Overlooking flame rating requirements
❌ Using standard parts for custom applications

 Need Help Selecting the Right Rivet?

We support:

• Technical selection guidance

• Sample testing

• Custom design
