How to Select the Right PCB Hardware for Reliable Electronic Assembly

In electronic product design, fastening is often underestimated. However, improper selection of PCB fasteners and hardware can lead to assembly failure, electrical risks, vibration damage, and long-term reliability issues.

This guide provides a practical engineering approach to selecting the right PCB hardware, nylon rivets, plastic fasteners, spacers, and mounting components for modern electronic systems.

 Why PCB Fastener Design Matters

PCB assemblies are becoming:

• Smaller and more integrated

• More sensitive to electrical interference

• Exposed to complex environments

As a result, fastening solutions must ensure:

• Electrical insulation

• Mechanical stability

• Thermal compatibility

• Efficient assembly

Common Types of PCB Fasteners

A complete PCB fastening system typically includes:

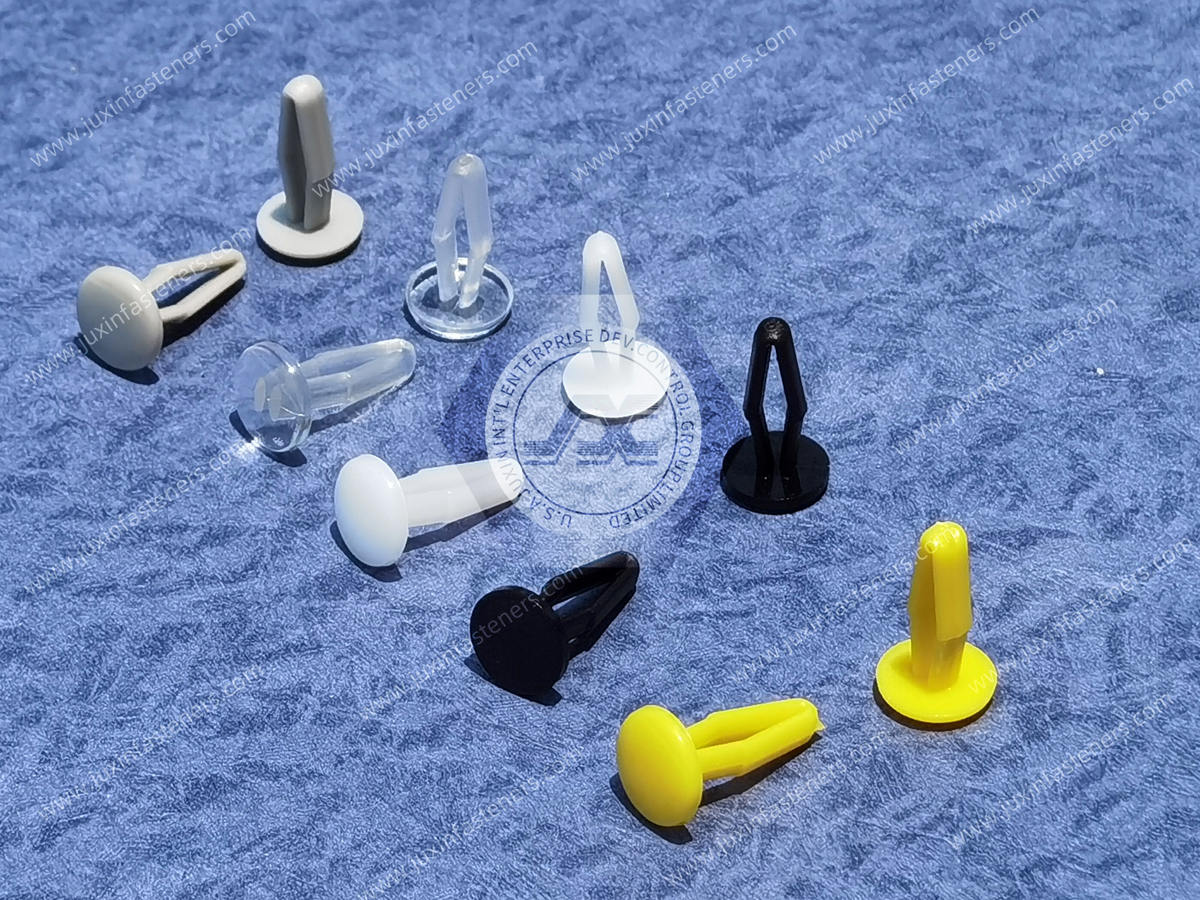

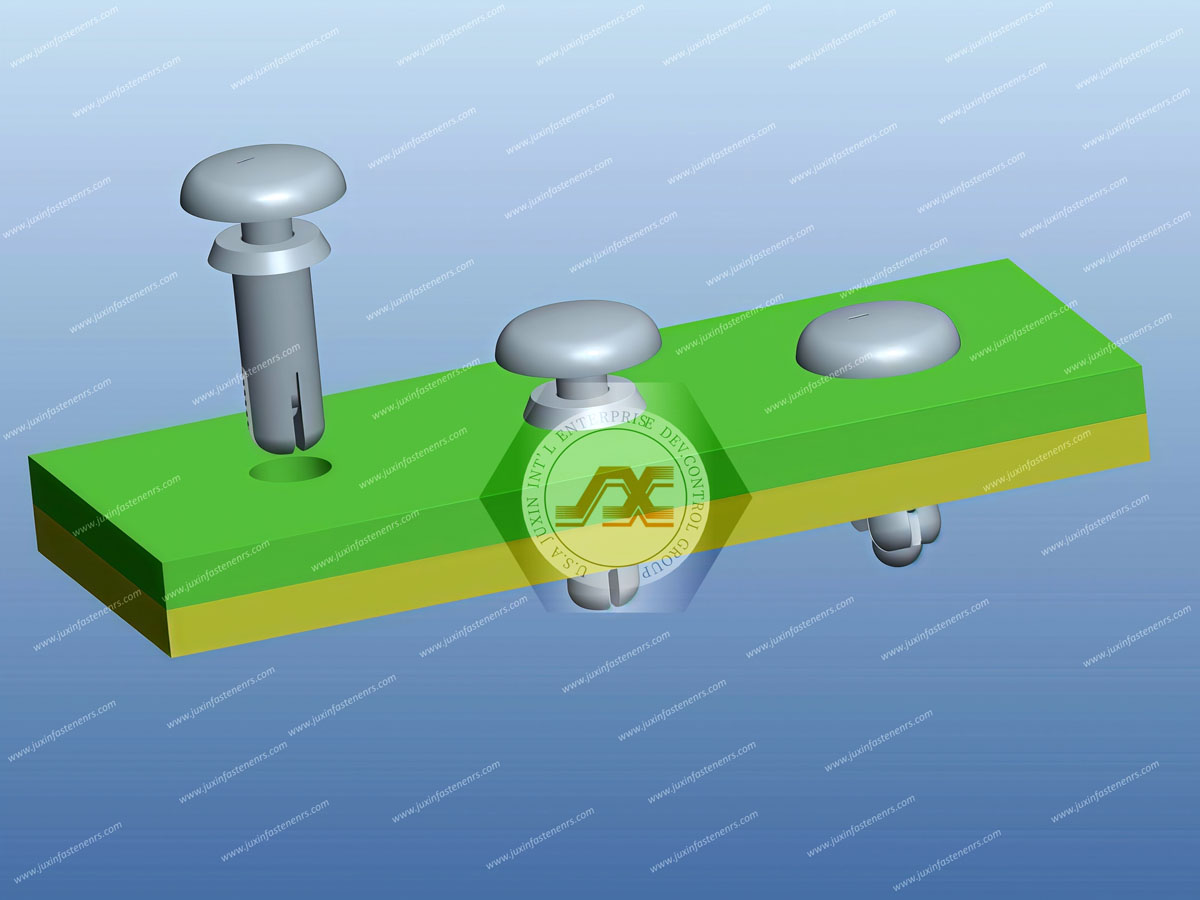

Nylon Rivets & Plastic Rivets

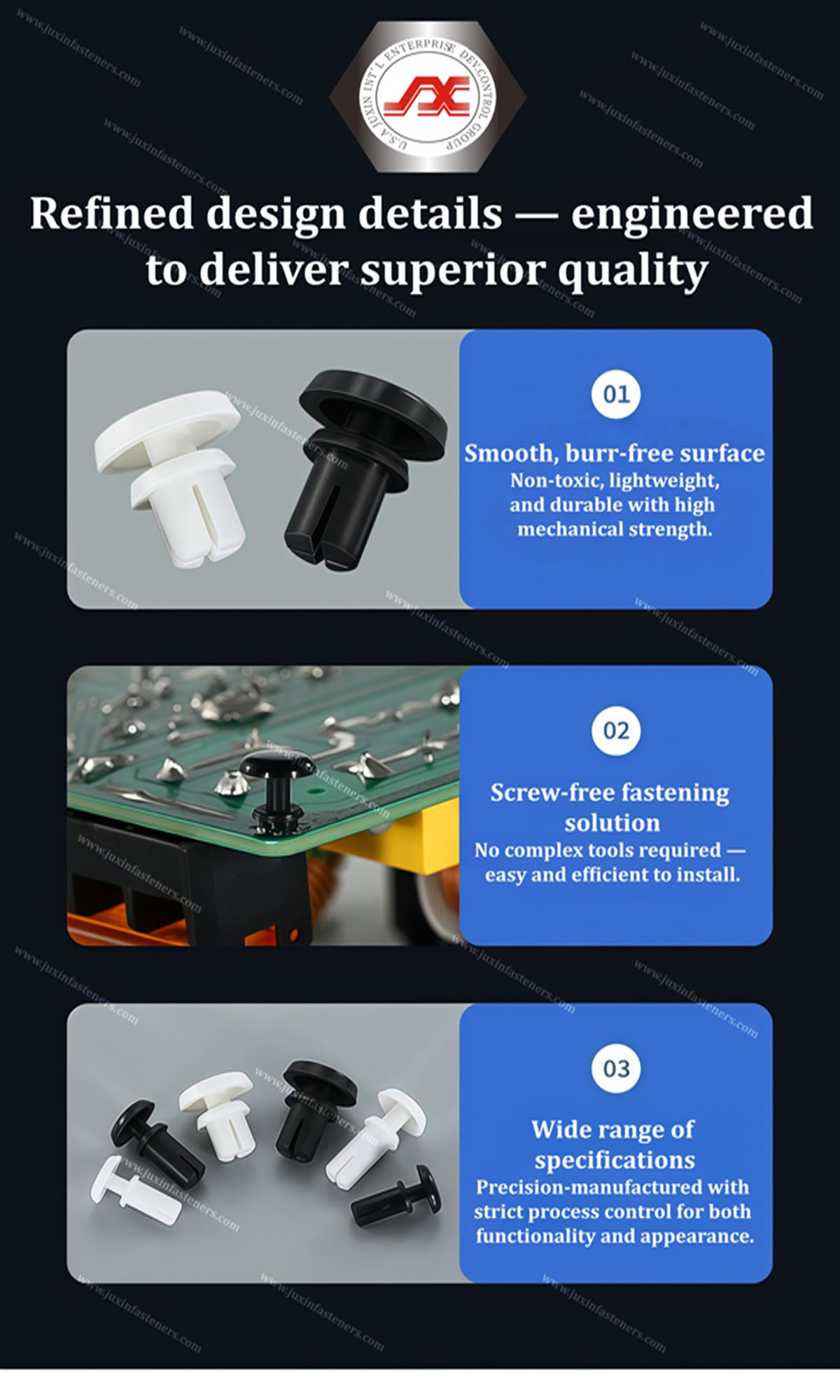

• Push-in rivets

• Snap rivets

• Barbed rivets

• Removable rivets

 Used for:

• PCB mounting

• Fan and heat sink fixing

• Module assembly

 PCB Spacers & Standoffs

• Round unthreaded spacers

• Threaded standoffs

• Mounting pillars

 Used for:

• Maintaining PCB spacing

• Preventing short circuits

• Supporting multi-layer assemblies

 Panel Fasteners & Mounting Hardware

• Cage nuts

• Retaining washers

• Screw grommets

• Panel clips

 Used for:

• Enclosure assembly

• Structural support

 Screws, Nuts & Washers

• Machine screws

• Cap screws (low head / ultra-low head)

• Finishing washers

 Used for:

• Load-bearing structures

• High-strength fastening

Key Design Considerations

1. Electrical Insulation

For PCB applications, insulation is critical.

Recommended solutions:

• Nylon rivets

• Plastic spacers

• Transistor insulators

 Prevents:

• Short circuits

• Signal interference

 2. Mechanical Strength

Evaluate:

• Load requirements

• Vibration conditions

• Pull-out force

 Use:

• Reinforced nylon for medium loads

• Metal fasteners for high loads

 3. Hole Size & Tolerance Matching

Incorrect tolerance leads to:

• Loose installation

• PCB damage

 Always match:

• Rivet diameter

• Hole size

• Panel thickness (grip range)

 4. Thermal & Environmental Conditions

Consider:

• Temperature range

• Humidity

• Chemical exposure

 For demanding environments:

• Use flame-retardant materials (UL94 V-2 / V-0)

• Consider PEEK fasteners for high temperature

 5. Assembly Method

Manual Assembly

• Push-in rivets

• Snap fasteners

Automated Assembly

• Precision-molded nylon rivets

• Components designed for feeding systems

 Common PCB Fastening Challenges

Problem 1: PCB Damage During Installation

Cause:

• Oversized rivets

• Excessive force

Solution:

• Proper tolerance control

• Flexible plastic fasteners

 Problem 2: Loosening Under Vibration

Cause:

• Poor retention design

Solution:

• Barbed rivets

• Ratchet rivets

• Anti-loosening structures

 Problem 3: Electrical Interference

Cause:

• Use of metal fasteners near circuits

Solution:

• Replace with nylon rivets or plastic hardware

 Problem 4: Inefficient Assembly

Cause:

• Screws requiring tools

Solution:

• Tool-free push-in rivets

 System-Level PCB Fastening Design

For best results, fastening should be designed as a system:

• Nylon rivets → fixing

• Spacers → positioning

• Cable clips → routing

• Grommets → protection

• Screws → reinforcement

This integrated approach improves:

• Assembly efficiency

• Product reliability

• Maintenance convenience

 Advanced Engineering Solutions

Adaptive Press-Fit Technology

• Real-time force monitoring

• Controlled installation

• Improved consistency

 Material Optimization

• Glass fiber reinforced nylon

• Flame-retardant plastics

• High-performance polymers (PEEK)

 Custom Fastener Design

• Special head shapes

• Optimized retention structures

• Automated assembly compatibility

 Best Practices for Engineers

• Always validate with samples before mass production

• Match fastener type to application, not habit

• Consider full lifecycle (assembly → operation → maintenance)

• Work with a supplier that supports custom engineering

Improve PCB Assembly Performance

A well-designed PCB fastening system can significantly improve:

• Product reliability

• Assembly speed

• Electrical safety

• Long-term durability

 Request Engineering Support or Samples

If you are designing or optimizing PCB fastening solutions, we can support you with:

• Product selection guidance

• Sample testing

• Custom fastener development
