Precision PCB Hardware for Reliable Electronic Performance

As electronic devices continue to evolve toward miniaturization, high-density layouts, and optimized thermal management, the demand for precision PCB Hardware is rapidly increasing.

From consumer electronics to telecom infrastructure, reliable board-level fastening is critical to ensure signal integrity, structural stability, and long-term durability.

Key Challenges in PCB Assembly

Engineers and OEM manufacturers often face:

• Limited space in compact PCB designs

• Risk of short circuits due to poor insulation

• Vibration affecting solder joints and connectors

• Complex multi-board stacking requirements

• Thermal expansion affecting alignment

This requires high-performance PCB mounting solutions.

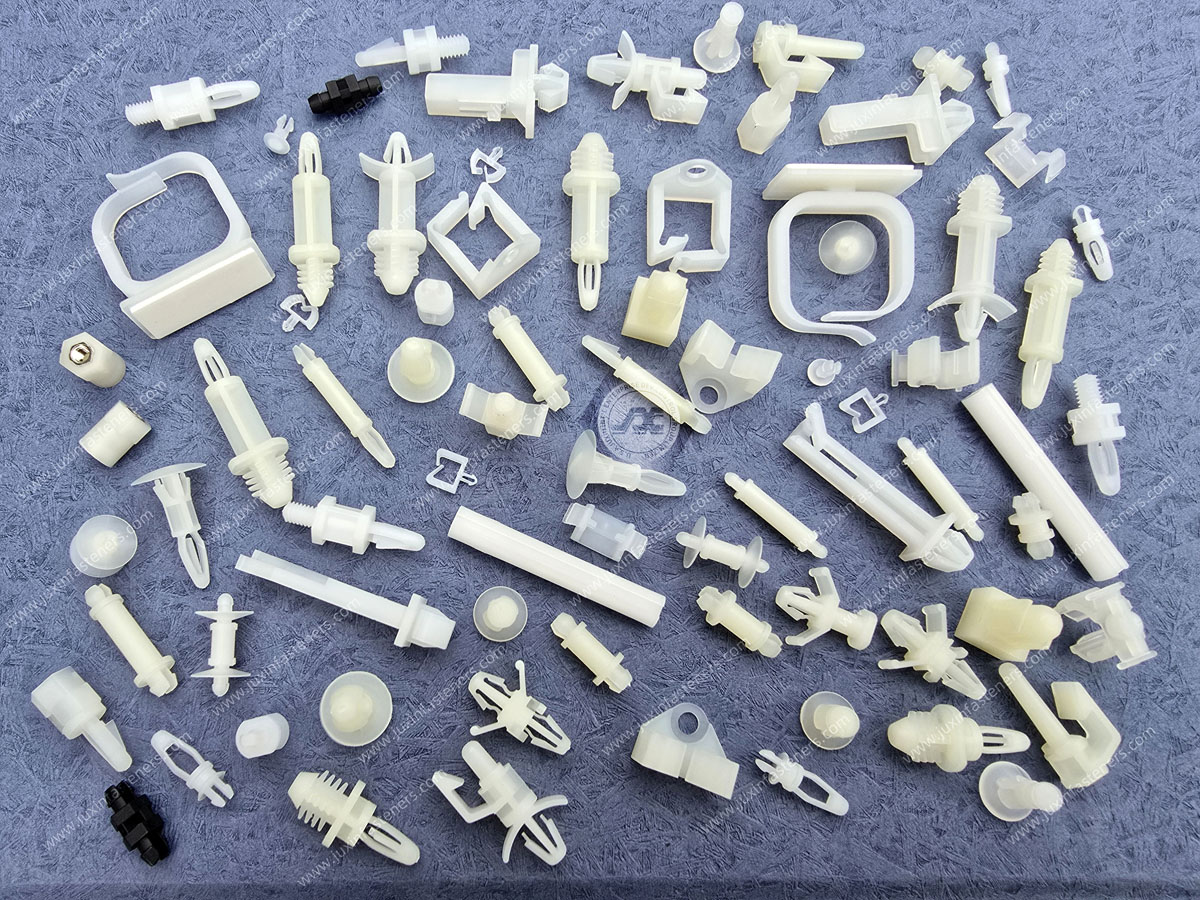

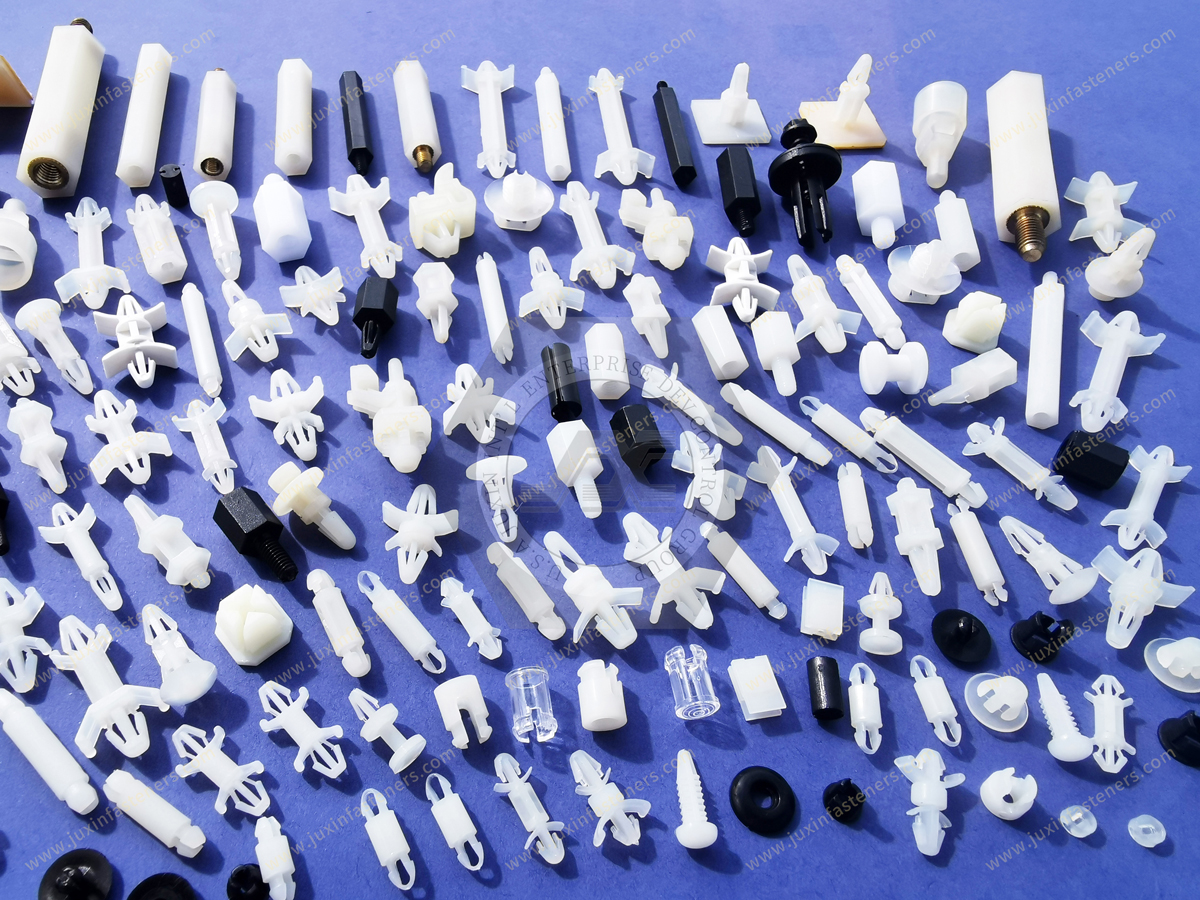

 Complete PCB Hardware Product System

Our PCB Hardware portfolio provides a full range of solutions:

Core PCB Mounting Components

• PCB Spacers / Spacers & Standoffs / Round Unthreaded PA      Spacers

• PCB Mounting Pillars / PCB Supports / PCB Mounting Feet

• Card Guides / Card Ejector Systems

Protection & Insulation Components

• Transistor Insulators

• Screw Grommets

• Retaining Washers / Finishing Washers

Precision Fastening Elements

• Machine Screws – Pan Head

• Cap Screws – Ultra Low Head – PEEK

• Captive Screws – Cap Head

 Engineering Advantages of PCB Hardware

✔ Electrical Insulation & Safety

Plastic-based PCB components prevent electrical leakage and short circuits, making them ideal for high-frequency and sensitive circuits.

✔ Vibration Resistance

Using PCB Supports and Mounting Pillars reduces stress on solder joints and improves mechanical stability.

✔ Space Optimization

Low-profile solutions such as:

• Ultra Low Head Cap Screws

• Compact PCB Spacers
       allow for high-density board layouts.

✔ Tool-Free & Fast Assembly

Components like:

• Push-in PCB Supports

• Snap-fit Card Guides

enable faster production and reduced labor costs.

 Application Scenarios

• Telecom & Networking Equipment

• Industrial Control Systems

• Server & Data Center Hardware

• LED Modules & Power Supply Units

• Consumer Electronics (IoT Devices)

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
