Plastic Hardware for Electrical Cabinets and Enclosures: Dielectric Isolation, Engineering Selection and OEM Sourcing

Industrial original equipment manufacturers (OEMs) designing electrical distribution cabinets, high-voltage switchgear, control panels,

automation enclosures, and related electrical equipment often need to consider both mechanical fastening and electrical separation within the same assembly.

Internal barriers, terminal blocks, circuit boards, cable-management components, covers, brackets, sensors, relays,

and other components may be mounted to conductive metal panels while requiring defined electrical clearances and suitable insulation characteristics.

In these applications, plastic hardware can be considered when the fastening system requires a non-metallic interface, reduced electrical conductivity,

surface protection, weight reduction, or a different combination of mechanical and environmental characteristics.

Depending on the application, the required product family may include plastic machine screws, nylon screws, plastic bolts, nylon bolts, plastic nuts,

nylon hex nuts, nylon washers, insulating washers, shoulder washers, cup washers, plastic spacers, threaded standoffs, PCB spacers, threaded inserts,

 compression limiters, and other custom polymer fastening components.

However, selecting plastic hardware for electrical equipment is not simply a matter of replacing every metal fastener with nylon.

The polymer, grade, component geometry, mating materials, installation method, electrical environment, temperature, moisture exposure, mechanical loading,

 and applicable product requirements should be evaluated together.

JUXIN FASTENERS provides industrial fastening and custom component solutions for OEM applications, supporting product selection, drawing review,

 multi-SKU sourcing, and technical RFQ evaluation.

This industry application guide explains how engineers and procurement teams can evaluate plastic hardware for electrical cabinets and enclosures while considering both the fastening interface and the overall electrical assembly.

Quick Engineering Answer: Why Do Electrical Enclosure OEMs Consider Plastic Hardware?

Electrical and mechanical design engineers may consider engineered plastic hardware in cabinets, control panels, switchgear, and enclosures when applications require one or more of the following characteristics:

• Electrical non-conductivity: Polymer fasteners and insulating components can provide a non-metallic fastening interface where electrical conductivity through the hardware is undesirable.

• Electrical separation: Nylon washers, shoulder washers, cup washers, spacers, and standoffs can help separate components from conductive mounting surfaces when the assembly design requires an insulating interface.

• Surface protection: Polymer washers and other plastic components can reduce direct metal-to-metal contact and may help protect painted, plated, or coated enclosure surfaces during assembly.

• Weight reduction: Plastic hardware can reduce component weight compared with equivalent metallic hardware where the mechanical requirements permit polymer components.

• Corrosion considerations: Polymer components do not behave like metallic fasteners in corrosion systems, which can be useful in assemblies where metal-to-metal contact or environmental exposure is a design concern.

• Material and environmental compatibility: Different polymer families provide different combinations of moisture behavior, dimensional stability, temperature capability, chemical resistance, rigidity, wear behavior, and mechanical performance.

The important engineering point is that plastic hardware supports specific design requirements; it does not automatically make an electrical assembly safe or compliant. Electrical safety, creepage, clearance, insulation, enclosure construction, and applicable product requirements still need to be evaluated for the complete assembly.

Engineering Challenges in Electrical Cabinets and Control Panels

Designing internal fastening architectures within electrical distribution equipment involves both electrical and mechanical constraints.

The fastening system needs to work within the physical and electrical architecture of the cabinet rather than being evaluated as an isolated component.

Creepage and Clearance

Creepage and clearance are system-level electrical design considerations.

Required distances depend on factors such as voltage, insulation system, pollution environment, material characteristics, equipment design, and the applicable product requirements.

Plastic machine screws, nylon bolts, insulating washers, shoulder washers, and spacers can be useful where a non-conductive component is required around a conductive panel or electrical assembly.

However, simply changing a metal fastener to plastic does not automatically establish compliant creepage or clearance distances.

Engineers should evaluate the complete geometry, including:

• Fastener head

• Fastener shank

• Washer geometry

• Mounting hole

• Adjacent conductive components

• Insulation barriers

• Panel geometry

• Potential component movement

• Assembly tolerances

The fastening component should therefore be considered as one part of the overall electrical spacing design.

Electrical Tracking and Insulation Requirements

Electrical equipment can be exposed to humidity, contamination, temperature changes, dust, cleaning agents, and other environmental conditions that may affect insulation behavior.

The relevant question is therefore not simply whether a polymer is electrically non-conductive.

Engineers may also need to consider:

• Polymer family and exact grade

• Surface condition

• Component geometry

• Environmental exposure

• Electrical stress

• Temperature

• Moisture

• Contamination

• Applicable equipment requirements

Where dielectric or tracking performance is a critical design requirement,

 the exact material and application should be reviewed rather than assuming that every nylon or plastic fastener provides identical electrical performance.

Thermal Cycling and Mechanical Stability

Electrical cabinets and control panels may experience temperature changes during operation, transportation, installation, and service.

Polymer components can respond differently from metal components to temperature and moisture changes.

Nylon, for example, can absorb moisture, which can affect dimensions and mechanical behavior.

For assemblies requiring stable positioning or clamping over time, engineers should evaluate:

• Material and grade

• Temperature exposure

• Moisture exposure

• Joint geometry

• Thread engagement

• Clamping load

• Creep

• Stress relaxation

• Thermal expansion differences

• Vibration

• Shock

Plastic hardware may be suitable for some of these applications, but the complete joint should be evaluated rather than assuming that polymer fasteners will behave identically to metallic fasteners.

Surface Protection and Enclosure Finishes

Electrical cabinets frequently use painted, powder-coated, plated, or otherwise treated metal panels.

Direct contact between metallic fasteners and finished surfaces can create installation marks or localized surface damage.

Depending on the assembly design, plastic flat washers, nylon insulating washers, shoulder washers, and cup washers can provide an insulating or protective interface between the fastener and panel.

The appropriate component depends on the actual interface.

A flat washer, for example, should not automatically be treated as a substitute for a shoulder washer when electrical separation around the fastener shank is required.

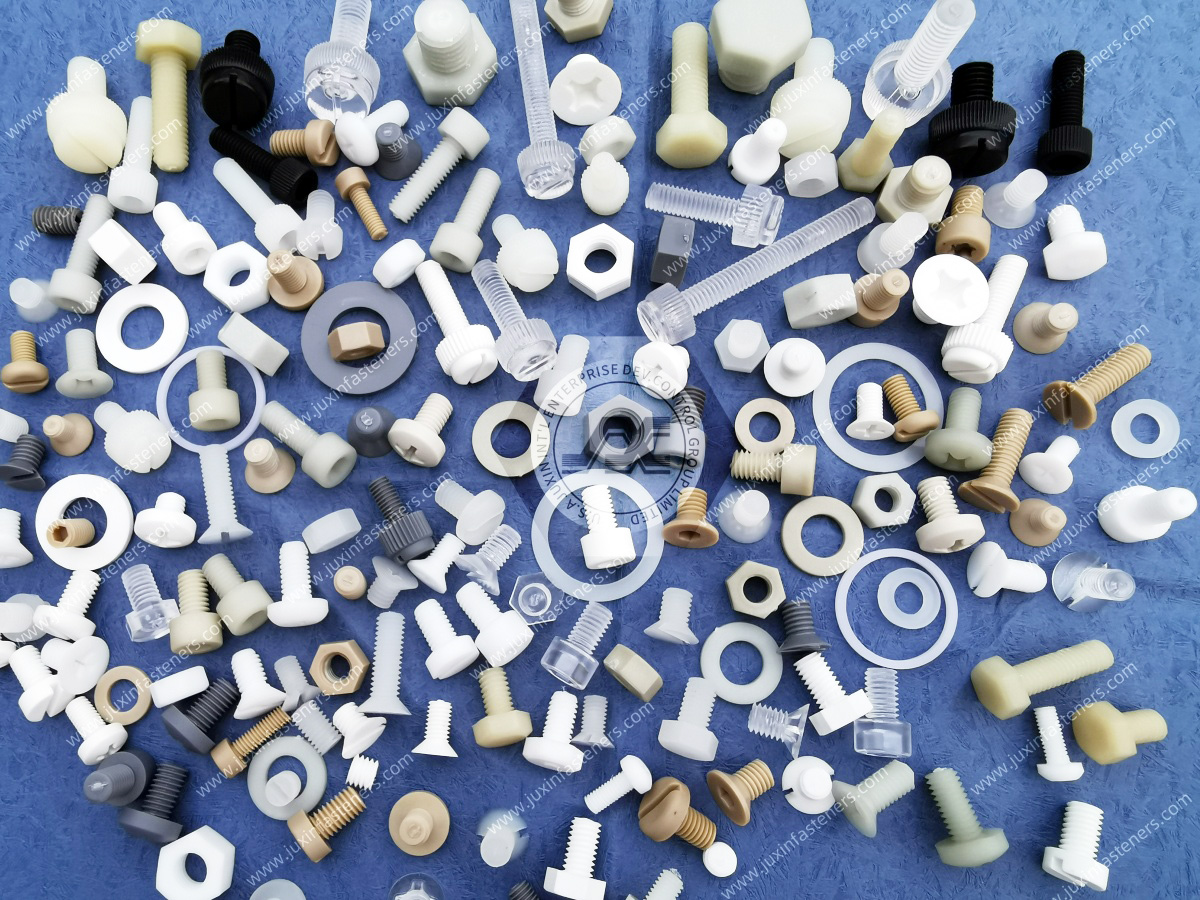

Complete Plastic Hardware Product Family Integration for Electrical Systems

In professional electrical equipment design, fasteners are often specified as an integrated system.

JUXIN FASTENERS can support multi-SKU BOM evaluation across interconnected plastic hardware product families used in electrical enclosure architecture.

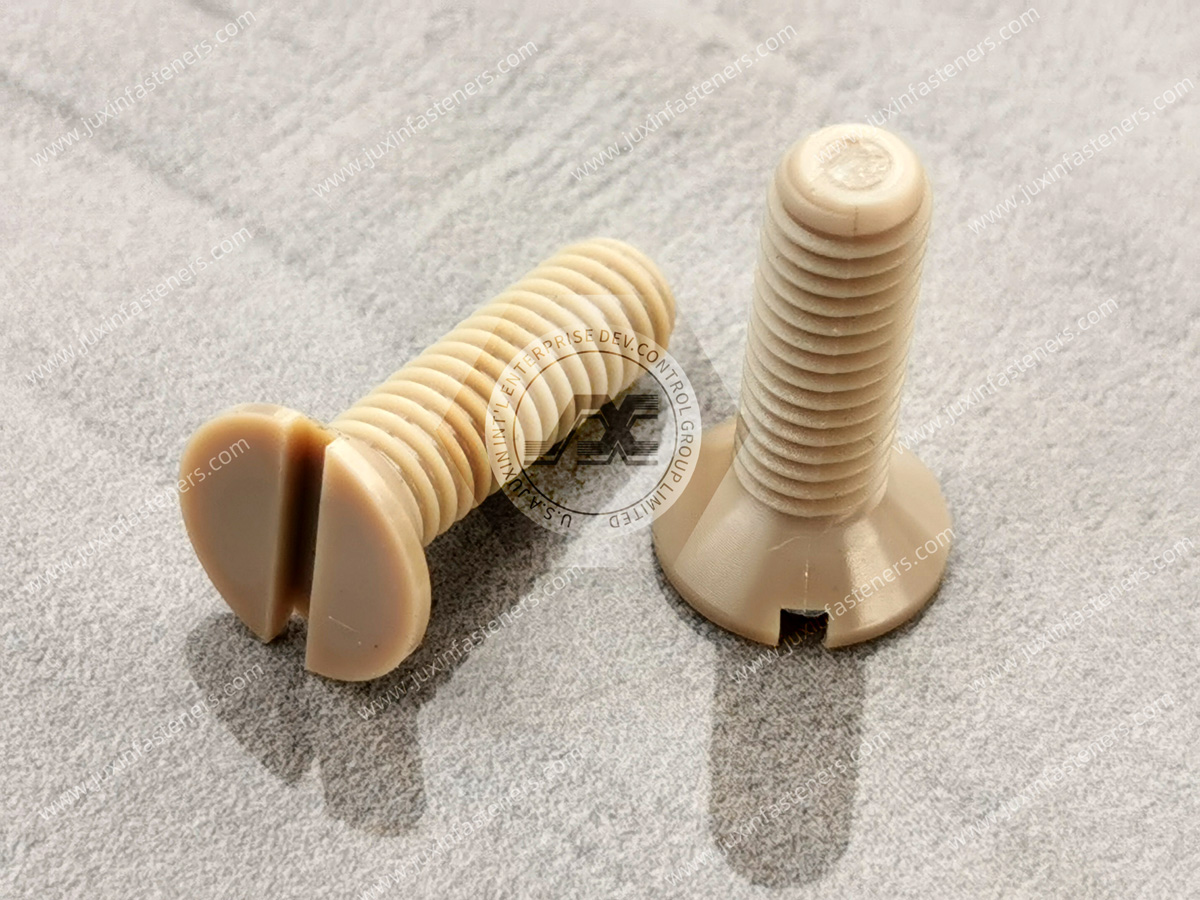

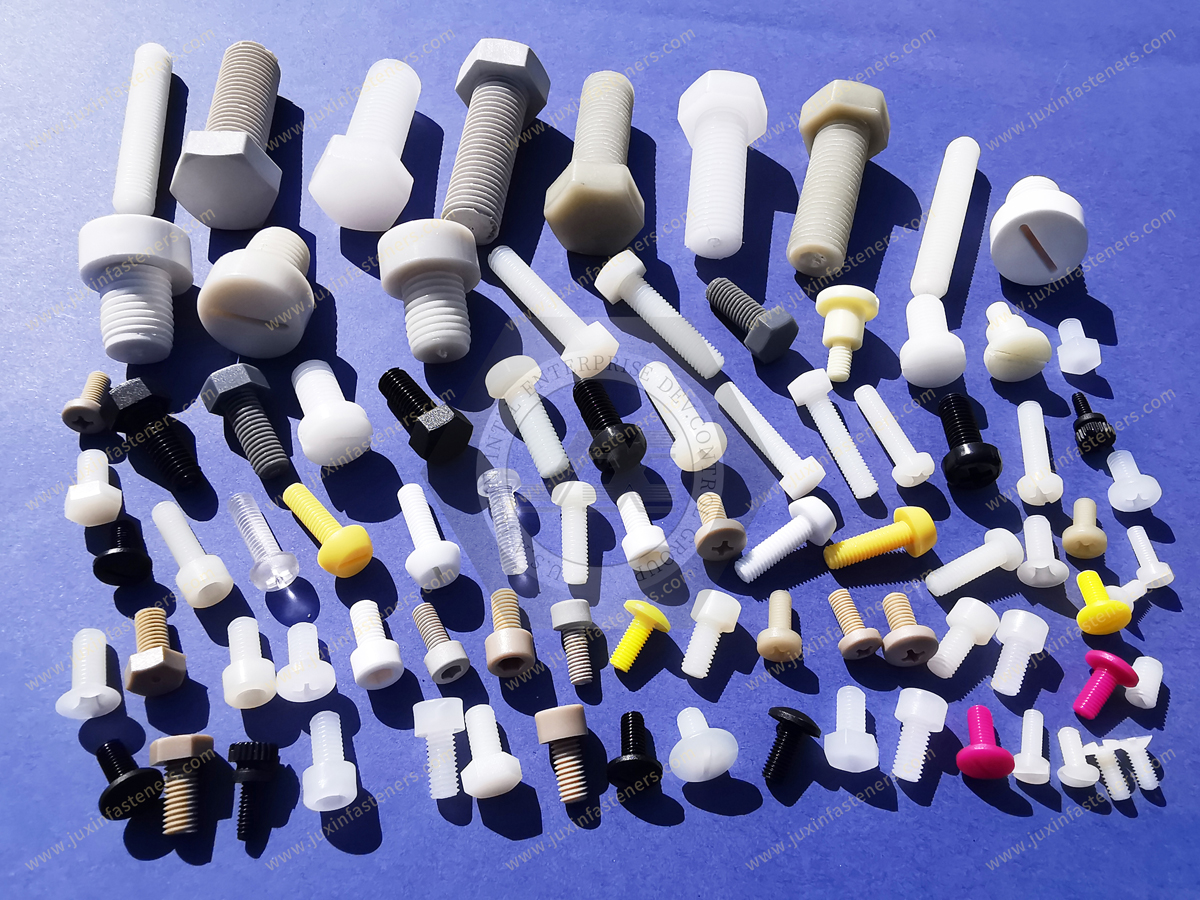

Plastic Screws, Machine Screws and Bolts

Plastic screws, nylon screws, plastic machine screws, nylon machine screws, plastic bolts, and nylon bolts may be considered for

applications where polymer fastening is compatible with the mechanical, electrical, thermal, and environmental requirements.

Common considerations include:

• Thread size and thread form

• Head style

• Overall length

• Thread engagement

• Mating material

• Installation method

• Clamping requirements

• Temperature

• Moisture

• Chemical exposure

• Electrical requirements

Metric and inch-threaded configurations may both be relevant depending on the equipment design and target market.

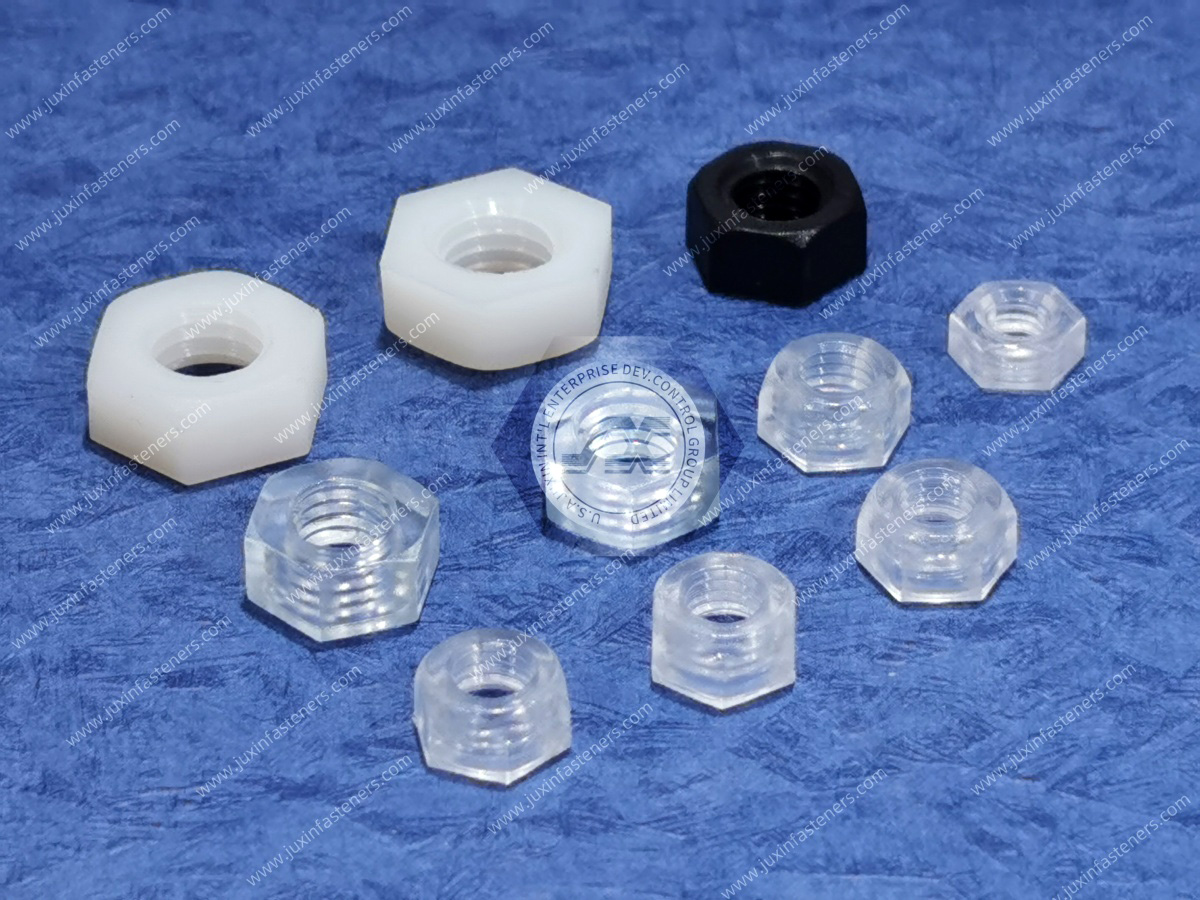

Plastic Nuts and Nylon Hex Nuts

Plastic nuts, nylon nuts, plastic hex nuts, nylon hex nuts, and custom plastic nuts can be used with compatible screws and bolts depending on the joint design.

For electrical enclosures, engineers may select polymer nuts where a non-conductive fastening interface is useful. Other designs may combine metallic structural fasteners with plastic washers or insulating interfaces.

The correct combination depends on the required mechanical load, thread durability, installation method, environment, and service conditions.

Nylon Washers and Insulating Washers

Nylon washers, plastic flat washers, nylon insulating washers, shoulder washers, cup washers, and insulating cup washers provide different types of interface control.

A flat washer may be used to distribute contact pressure or protect a surface.

A shoulder washer can additionally help isolate the fastener shank from a surrounding hole or conductive panel.

A cup washer may provide a different head-interface or protective geometry.

These products should therefore be selected according to the actual interface rather than treated as interchangeable components.

Plastic Spacers and Standoffs

Electrical cabinets frequently contain control boards, relays, sensors, terminal assemblies, brackets, and other components that require controlled spacing.

Depending on the assembly, the product family may include:

• Industrial plastic spacers

• Nylon spacers

• PCB spacers

• Threaded standoffs

• Male-to-female standoffs

• Female-to-female standoffs

• Custom polymer spacing components

These components can support mounting height, separation, routing space, component positioning, and electrical separation where required by the design.

Threaded Inserts and Compression Limiters

Some enclosure designs use plastic housings or molded polymer structures where the plastic itself does not provide the desired threaded or clamping interface.

In these cases, threaded inserts for plastic, heat-set inserts, ultrasonic inserts, molded-in inserts, expansion inserts, or other insert solutions may be considered.

Where a bolted joint applies concentrated clamping load to a plastic housing, compression limiters may also be considered as part of the joint architecture.

These technologies should not be selected automatically. The appropriate solution depends on housing material, boss geometry, installation process, loading, service conditions, and production method.

How Do Material Families Perform in Electrical Environments?

Selecting the polymer family is one of the important decisions in plastic hardware design.

The following comparison is a starting point for engineering evaluation rather than a universal material qualification.

A polymer family name alone is not sufficient to establish dielectric, thermal, mechanical, flame, tracking, or regulatory performance.

For critical electrical applications, the exact resin grade and component design should be evaluated against the requirements of the finished assembly.

When Is Plastic Hardware a Good Engineering Choice?

Plastic hardware may be a good candidate when several of the following conditions apply:

1. The joint does not require the mechanical performance of a metallic fastener.

2. Electrical non-conductivity is useful to the assembly design.

3. The operating temperature is compatible with the selected polymer.

4. Moisture exposure and dimensional changes are acceptable.

5. The chemical environment is compatible with the selected material.

6. The joint can tolerate the creep and stress-relaxation behavior of the polymer.

7. Thread engagement and installation requirements are appropriate.

8. The component can be manufactured consistently at the required production volume.

9. The finished assembly can satisfy its applicable electrical and mechanical requirements through complete-system evaluation.

This decision should be made from the actual application rather than from the word “nylon” or “plastic” alone.

When Is Plastic Hardware Not the Right Choice?

Plastic hardware is not automatically suitable for every electrical cabinet, control-panel, or switchgear assembly.

Engineers may need to reconsider polymer fastening when the joint requires:

• High structural or load-bearing capacity beyond the selected polymer design

• High and sustained clamping loads

• Significant vibration or shock resistance

• High-temperature exposure beyond the selected material capability

• Long-term dimensional stability under load

• Specialized grounding or bonding functions

• Specific flame, dielectric, tracking, or regulatory performance that has not been demonstrated for the selected component

• Metallic mechanical properties required by the joint design

• Tight dimensional control that is difficult to maintain with the selected polymer and environmental conditions

In these situations, a hybrid fastening architecture may be more appropriate.

For example, metallic structural hardware may be combined with nylon insulating washers, shoulder washers, cup washers, plastic spacers,

or other polymer interface components where the electrical and mechanical functions need to be separated.

Designing the Fastening Architecture Around the Electrical Assembly

The fastening component should be considered together with the surrounding structure.

For example, a control-panel mounting assembly may contain:

Panel → insulating washer → bracket → spacer/standoff → component → screw/bolt → nut

A PCB assembly may use:

Metal enclosure → insulating interface → threaded standoff → PCB → second standoff → screw

A plastic electrical housing may use:

Plastic housing → compression limiter or threaded insert → screw → external bracket

The exact architecture depends on the product design.

The purpose of this system-level approach is to ensure that the fastener, washer, spacer, standoff, insert, and mating materials work together rather than being specified independently.

This is also where multi-SKU BOM consolidation can become useful for OEM sourcing.

An electrical equipment manufacturer may require:

Plastic machine screws + nylon hex nuts + nylon washers + shoulder washers + cup washers + plastic spacers + threaded standoffs + PCB spacers + threaded inserts

across multiple cabinet models, control panels, or electronic assemblies.

Coordinating these related components through one sourcing program can simplify technical review, specification control, packaging, and production planning.

Industrial Applications Beyond Electrical Cabinets

Electrical cabinets and control panels are major application areas, but the same plastic hardware principles can apply to related industrial assemblies.

Automation Equipment and Industrial Machinery

Plastic screws, nylon nuts, washers, spacers, standoffs, and other polymer components may be used around sensors, control modules, wiring assemblies,

guards, brackets, and internal electrical components where the mechanical and environmental requirements permit.

Automotive and EV Electrical Systems

Plastic hardware can be considered for electrical and electronic modules, battery-related assemblies, battery management system mounting,

wiring support, thermal-management structures, and enclosure interfaces where electrical non-conductivity and material compatibility are relevant.

HVAC Equipment

Control boxes, sensor mounts, wiring systems, electrical panels, and equipment housings may use plastic hardware or insulating components depending on temperature, moisture, vibration, and chemical exposure.

Telecommunications and Base Stations

Plastic spacers, standoffs, insulating washers, screws, and other polymer hardware may be used around electronic modules, cable-routing systems, antenna-related assemblies, and equipment enclosures.

Electronics and PCB Assemblies

PCB spacers, threaded standoffs, male-to-female standoffs, female-to-female standoffs, shoulder washers, and small plastic fasteners can support board mounting, component separation, and enclosure integration.

Medical Equipment, Robotics and Instrumentation

Plastic hardware may be considered for selected internal mounting, positioning, insulation, or corrosion-sensitive applications where the polymer material and mechanical design are compatible with the equipment requirements.

What Information Should an Electrical OEM Include in a Plastic Hardware RFQ?

A complete technical package helps a supplier evaluate the actual component rather than quoting an ambiguous generic plastic fastener.

1. Component Type and System Function

Identify the required product clearly, such as:

• Plastic machine screw

• Nylon machine screw

• Plastic screw

• Nylon screw

• Plastic bolt

• Nylon bolt

• Plastic nut

• Nylon hex nut

• Nylon insulating washer

• Plastic flat washer

• Shoulder washer

• Cup washer

• Insulating cup washer

• Plastic spacer

• Nylon spacer

• PCB spacer

• Threaded standoff

• Male-to-female standoff

• Female-to-female standoff

• Threaded insert

• Compression limiter

• Custom polymer fastening component

Also indicate where the component is used within the electrical cabinet or enclosure.

2. Drawings and CAD

Provide 2D technical drawings and, where available, 3D CAD files showing:

• Critical dimensions

• Thread size and thread form

• Head geometry

• Overall length

• Hole dimensions

• Wall thickness

• Spacer or standoff height

• Tolerance requirements

• Mating components

• Assembly orientation

Metric and inch-thread specifications should be identified clearly according to the actual design requirement.

3. Material Requirements

Specify the required polymer family and grade where already established.

For example:

• PA6

• PA66

• Glass-filled nylon where required

• POM

• PVDF

• PEEK

• Other specified polymer

If the material has not yet been finalized, provide the operating conditions so that material selection can be evaluated against the application.

4. Electrical Requirements

Where relevant, provide the actual electrical requirements rather than simply requesting “insulating plastic.”

The technical package may need to identify:

• Voltage environment

• Required insulation function

• Creepage and clearance constraints

• Electrical spacing

• Environmental contamination

• Temperature

• Moisture

• Relevant product-level electrical requirements

• Customer-specific qualification requirements

The exact compliance requirements should come from the finished equipment specification and applicable standards rather than being assumed from the fastener material.

5. Environmental Conditions

Provide information about:

• Operating temperature

• Temperature cycling

• Humidity and moisture

• Cleaning agents

• Oils or chemicals

• Outdoor exposure

• UV exposure

• Vibration

• Shock

• Expected service conditions

This information is especially important when selecting between polymer families.

6. Multi-SKU BOM Requirements

If the electrical cabinet program contains multiple plastic hardware items, provide the complete BOM where possible.

For example, one project may require:

Plastic machine screws + nylon hex nuts + nylon washers + shoulder washers + cup washers + plastic spacers + threaded standoffs + PCB spacers + threaded inserts

A consolidated BOM can make it easier to review dimensional compatibility, material requirements, packaging, labeling, and production planning across related components.

7. Production and Quality Requirements

The RFQ should also identify:

• Prototype requirements

• Expected production volume

• Annual demand

• Release schedule

• Inspection requirements

• Packaging requirements

• Labeling or barcode requirements

• Traceability requirements where applicable

• Customer-specific quality documentation

Where standards, certifications, or qualification documents are required, the exact requirement should be stated so the supplier can evaluate and respond to it rather than assuming compliance.

What Should Engineers Verify Before Releasing Plastic Hardware?

Before approving a plastic hardware component for production, engineers should review the complete fastening interface.

A practical checklist includes:

• Material: Is the selected polymer and grade appropriate for the environment?

• Geometry: Does the component fit the surrounding enclosure and electrical architecture?

• Thread: Is the thread form, size, engagement, tolerance, and mating material appropriate?

• Electrical function: Does the component provide the intended non-conductive interface?

• Creepage and clearance: Does the complete assembly maintain the required distances?

• Mechanical loading: Is the joint compatible with polymer creep and stress-relaxation behavior?

• Temperature: Is the application compatible with the selected material?

• Moisture: Has moisture absorption been considered, particularly for nylon?

• Chemical exposure: Is the polymer compatible with the actual environment?

• Assembly: Is the installation process appropriate for the component?

• Quality: Can critical dimensions and characteristics be controlled consistently?

• BOM: Can related plastic hardware items be coordinated across the assembly?

How Should OEMs Qualify a Plastic Hardware Supplier?

For electrical equipment programs, supplier qualification should extend beyond the ability to supply a catalog fastener.

Engineers and procurement teams can evaluate whether the supplier can:

• Review technical drawings before quotation

• Identify ambiguous or conflicting specifications

• Evaluate polymer selection against application conditions

• Control critical dimensions and thread characteristics

• Maintain consistency across multiple plastic hardware SKUs

• Support prototype and production stages

• Coordinate screws, nuts, washers, spacers, standoffs, inserts, and related components

• Provide appropriate inspection information where required

• Support packaging and labeling requirements

• Handle recurring production releases

• Maintain communication across engineering, purchasing, and production stages

For OEM electrical equipment, the ability to manage a multi-SKU plastic hardware program can be as important as supplying an individual screw, nut, washer, spacer, or standoff.

Frequently Asked Questions

Why is plastic hardware used in electrical cabinet design?

Plastic hardware may be used where electrical non-conductivity, component separation, surface protection, weight reduction, or material compatibility is useful.

The suitability of the selected component depends on the complete mechanical and electrical design.

Does using nylon fasteners automatically eliminate arc-flash or short-circuit risks?

No.

Nylon and other polymer fasteners are generally non-conductive, but changing a metal fastener to plastic does not by itself eliminate arc-flash or short-circuit risks.

Electrical safety depends on the complete equipment design, including insulation systems, creepage, clearance, barriers, component layout, and applicable requirements.

Can plastic screws be used for switchgear?

They can be considered for selected switchgear components when their mechanical, thermal, environmental, electrical, and installation requirements are compatible with the application.

Structural and high-load joints may require a different fastening architecture.

Can plastic hardware use standard metric or inch threads?

Yes. Plastic machine screws, nylon screws, plastic bolts, and related hardware can be designed or supplied with metric or inch thread configurations where appropriate.

The required thread size, form, tolerance, engagement, and mating component should be specified on the drawing or RFQ.

What is the difference between a plastic flat washer and a shoulder washer?

A plastic flat washer primarily provides an interface beneath a fastener head or nut and can distribute contact pressure or provide surface separation.

A shoulder washer additionally incorporates a raised shoulder that can help isolate a fastener shank from a surrounding hole or conductive panel.

Should nylon always be selected for electrical enclosure hardware?

No.

Nylon is only one polymer family.

PA6, PA66, POM, PVDF, PEEK, and other materials have different combinations of moisture behavior, rigidity, temperature capability, chemical compatibility, and mechanical performance.

The material should be selected from the actual application requirements.

Can plastic hardware be combined with metal fasteners?

Yes.

Hybrid fastening architectures can be useful when mechanical and electrical functions have different requirements.

For example, a metallic structural fastener may be combined with a nylon insulating washer, shoulder washer, cup washer, or plastic spacer where the assembly design requires an insulating interface.

What should an OEM provide when sourcing custom plastic hardware?

The most useful information includes 2D drawings, 3D CAD files, material requirements, thread specifications, critical dimensions and tolerances,

 electrical and environmental conditions, annual volumes, packaging requirements, inspection requirements, and the complete multi-SKU BOM where available.

Submit Your Plastic Hardware Requirements to JUXIN FASTENERS

Selecting plastic hardware for electrical cabinets and enclosures requires more than choosing a non-metallic fastener from a catalog.

The polymer, grade, geometry, mating components, electrical environment, mechanical loading, temperature, moisture, chemical exposure,

 and production requirements should be evaluated as part of the complete fastening architecture.

JUXIN FASTENERS can review OEM requirements for plastic and nylon fastening components used in electrical cabinets, control panels,

 switchgear, automation equipment, PCB assemblies, and related industrial equipment.

For a technical review, provide your 2D drawings, 3D CAD files, material requirements, electrical and environmental conditions, critical dimensions,

BOM information, annual volume, and quality requirements.

Contact JUXIN FASTENERS at info@juxinfasteners.com for product selection, drawing review, multi-SKU sourcing, and OEM quotation support.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
