Thread Knurled Insert Nuts for HVAC Systems

Thread Knurled Insert Nuts for HVAC Systems – Reliable Fastening Solutions for Heating, Ventilation, and Air Conditioning Equipment

Modern HVAC systems (Heating, Ventilation, and Air Conditioning) require reliable fastening solutions to ensure structural integrity, vibration resistance, and long-term operational stability. Many HVAC components use plastic housings and engineering-polymer parts to reduce weight, improve corrosion resistance, and simplify manufacturing.

However, plastic materials alone cannot provide durable internal threads capable of withstanding repeated assembly, vibration, and temperature variations. Threaded knurled insert nuts, especially injection-molded threaded inserts, provide a reliable solution by creating strong metal internal threads embedded within plastic components.

Through their specialized knurled structure and integrated molding process, these inserts deliver high-strength connections, simplified assembly, and improved system durability in HVAC equipment.

Core Technical Features and Advantages

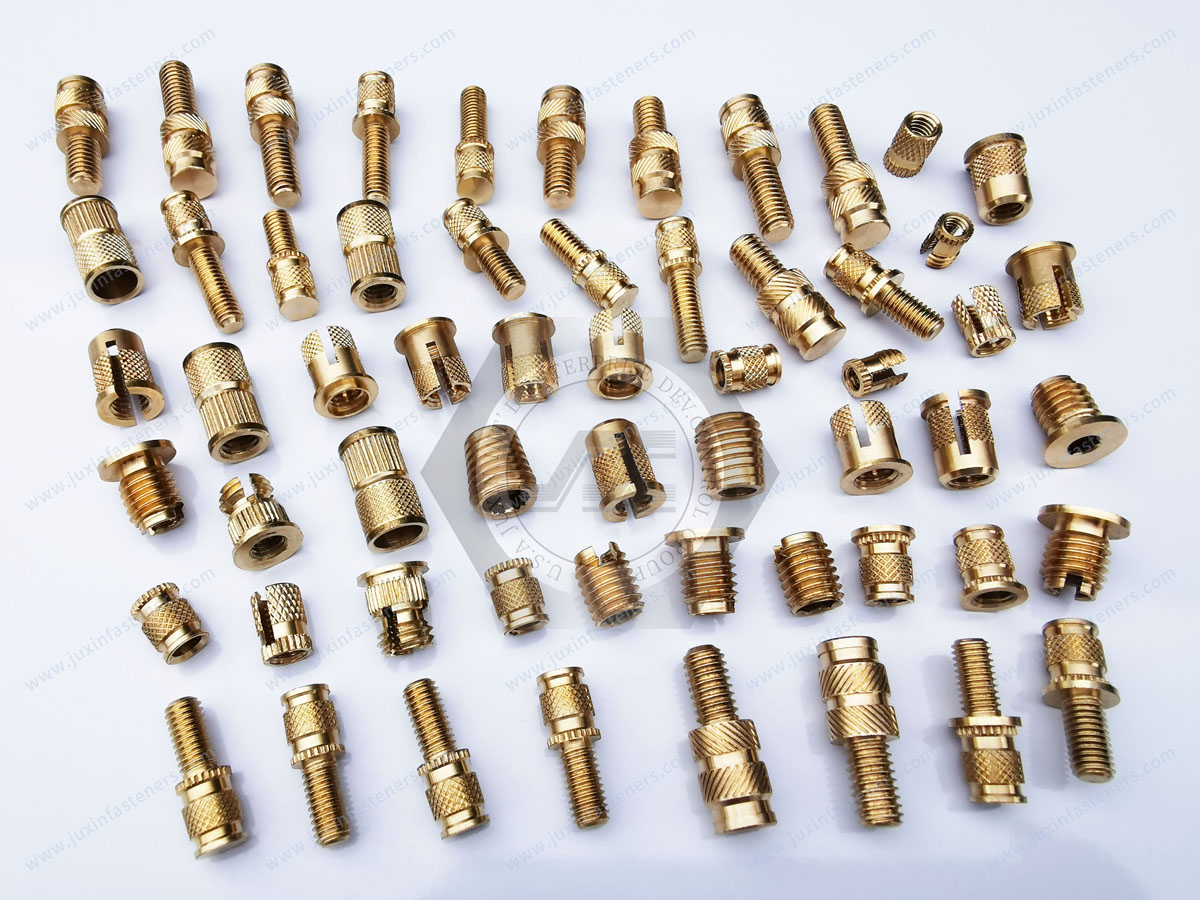

Thread knurled insert nuts used in HVAC systems are typically manufactured from brass (C3604, H59), stainless steel (SUS303), or carbon steel. Their external surfaces feature precision knurling patterns, including:

Straight knurling

Cross or diamond patterns

Herringbone knurling

Chevron-style patterns

These knurled structures allow the insert to form a strong mechanical interlock with plastic materials, preventing rotation or pull-out under operational loads.

High-Strength Bonding Performance

Thread insert nuts can be integrated into plastic parts through several installation methods, such as:

Injection molding pre-embedding

Hot-melt insertion

Ultrasonic embedding

These processes allow the insert to become firmly integrated with the plastic housing, providing high resistance to:

Tensile loads

Torque forces

Equipment vibration

Such performance is critical for HVAC equipment that operates continuously under mechanical stress and airflow vibration.

Thin-Wall Plastic Component Design

Many knurled inserts include progressive outer diameters and rounded guide heads, which reduce stress concentration during installation. This allows manufacturers to design thinner plastic housings without risking cracking or deformation.

The result is:

Reduced material usage

Lower component weight

Improved equipment efficiency

Simplified Assembly and Production Efficiency

As pre-embedded components, thread insert nuts can be installed directly during the plastic molding process. This eliminates additional operations such as:

Welding

Riveting

Manual fastening steps

By integrating the insert into the molding process, manufacturers achieve:

Higher assembly efficiency

Improved production consistency

Lower overall manufacturing costs

Excellent Environmental Adaptability

Metal materials such as brass and stainless steel provide excellent resistance to corrosion, humidity, and temperature variations, making them well-suited for HVAC equipment operating in diverse environments.

Additionally, brass inserts offer good thermal and electrical conductivity, supporting applications that require grounding or thermal stability.

Typical Applications in HVAC Equipment

Threaded knurled insert nuts are widely used in plastic components of HVAC systems where durable threaded connections are required.

Equipment Housing and Panel Fixing

Plastic housings used in fan units, control panels, filter covers, and equipment enclosures require reliable fastening points. Thread inserts provide secure internal threads that remain stable under vibration and temperature fluctuations.

Installation of Internal Components

In many HVAC systems, plastic structural parts such as air ducts, baffles, and sensor brackets require strong threaded connections to install motors, sensors, valves, or other metal components.

Embedded thread insert nuts provide durable mounting points that maintain stability throughout long-term operation.

Pipe and Valve Connections

Certain HVAC assemblies incorporate plastic pipe fittings or valve housings where threaded metal connections are required. Insert nuts enable secure connections between plastic components and metal piping systems, ensuring reliable sealing and structural strength.

Lightweight Mounting Structures

Thread insert nuts can also be used in plastic brackets, lifting mounts, and pipe support components, combining the lightweight benefits of plastic structures with the strength of metal threads.

Key Considerations for HVAC Fastener Selection

When selecting thread-insert nuts for HVAC system applications, several factors should be considered.

Material Selection

The material should match environmental conditions such as humidity, corrosion exposure, or temperature.

Typical choices include:

Brass inserts – excellent thermal and electrical conductivity

Stainless steel inserts – superior corrosion resistance

Zinc-plated carbon steel inserts – cost-effective for standard applications

Thread Standards

Thread specifications must match the fasteners used in the HVAC assembly.

Common options include:

Metric threads (M3, M4, M6, etc.)；Inch threads(#6-32.#8-32,1/4-20,5/16-18UNC,1/2-13UNC)

Unified inch threads

In some applications, blind hole inserts are preferred to prevent plastic from entering the thread during injection molding.

Installation Method Compatibility

Different plastic materials and component designs require appropriate installation processes:

Hot-melt insertion – suitable for thermoplastics such as ABS and PC

Ultrasonic embedding – ideal for precision components and localized heating

Injection molding pre-embedding – offers the strongest bonding for mass production

Performance Testing

For critical HVAC components, mechanical testing, such as verification of torque resistance and pull-out strength, should be performed to ensure the connection meets long-term operational load requirements.

Future Trends in HVAC Fastening Solutions

As HVAC technology advances toward higher energy efficiency, intelligent control systems, and lightweight designs, the demand for reliable fastening solutions continues to increase.

Thread knurled insert nuts support these industry trends by:

 Reducing the number of external fasteners

Improving assembly efficiency

Enhancing structural reliability of plastic components

Lowering overall system weight

Innovations, such as high-profile anti-slip knurled designs, further improve installation performance in confined spaces or applications where traditional fastening tools are difficult to use.

Conclusion

Thread-knurled insert nuts provide an efficient and durable fastening solution for plastic components in HVAC systems. Through their precision knurling structure, optimized material selection, and compatibility with modern molding processes, these inserts enable manufacturers to achieve:

High-strength internal threaded connections

Improved vibration resistance

Simplified assembly processes

Lightweight and cost-efficient system designs

As HVAC equipment continues to evolve, embedded threaded insert solutions will remain a key technology for reliable and efficient fastening in modern heating, ventilation, and air conditioning systems.

For technical support, custom insert designs, or sample requests, contact Juxin Fasteners for professional threaded insert solutions for HVAC equipment.
