 Automotive Weld Nuts in Modern OEM Manufacturing

In modern automotive manufacturing, weld nuts are critical fastening components widely used in body-in-white (BIW) structures, engine bay systems, chassis reinforcement assemblies, and modular metal structures.

As vehicle production continues to evolve toward fully automated manufacturing systems, global OEMs, including:

• Mercedes-Benz

• BMW

• Volkswagen Group

• Toyota

• Honda

are increasingly adopting advanced projection-weld nuts and flange-weld nuts to meet demanding production and performance requirements.

These fastening solutions are engineered to support:

• High-speed robotic welding compatibility

• Stable positioning on thin sheet metal structures

• Elimination of secondary tapping or machining processes

• High vibration resistance in automotive operating environments

Our automotive weld nut solutions are designed specifically for high-volume OEM production lines and automated assembly systems, ensuring consistent performance in demanding industrial applications.

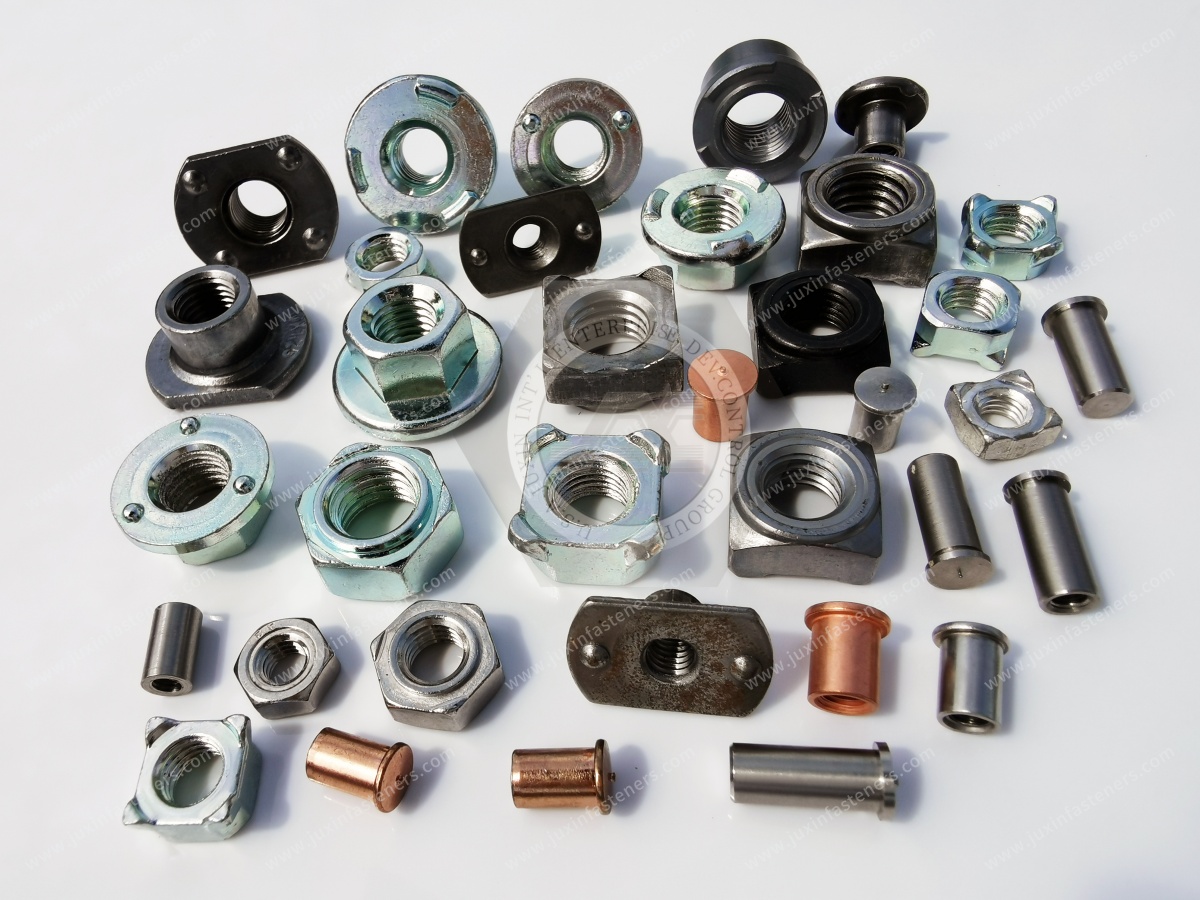

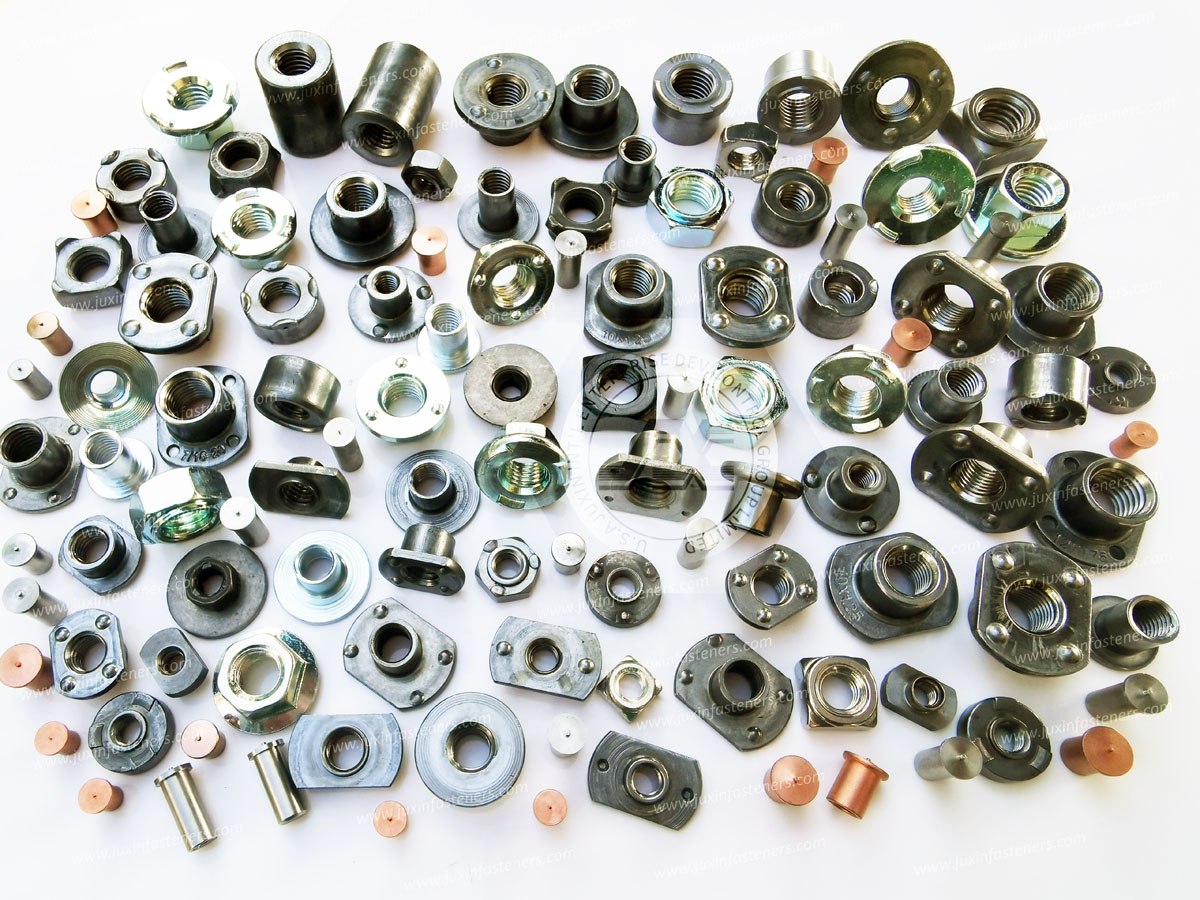

 Key Product Types: Automotive Weld Nut Solutions

Our product portfolio covers a full range of automotive weld nuts for sheet metal assemblies, including:

• Hex Flange Projection Weld Nuts
       Designed for robotic welding systems with high positioning accuracy and      structural stability.

• Square Projection Weld Nuts
       Commonly used in body panel structures with strong anti-rotation      performance.

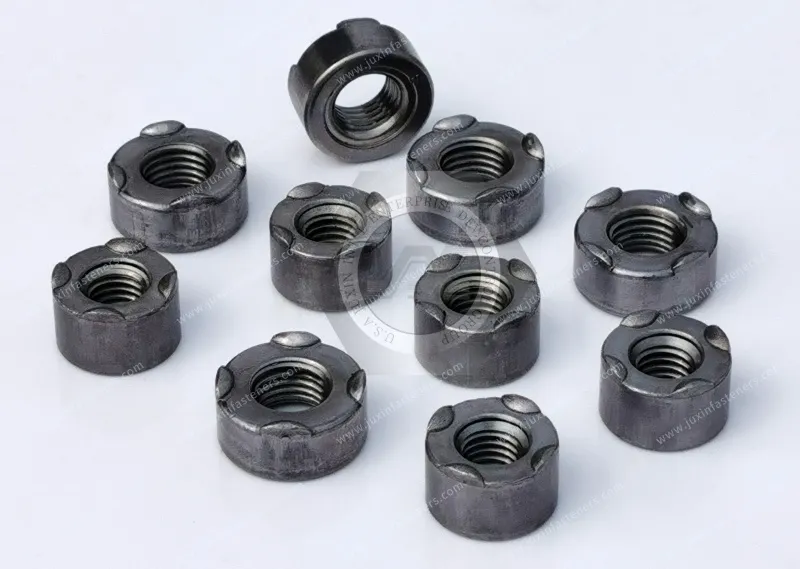

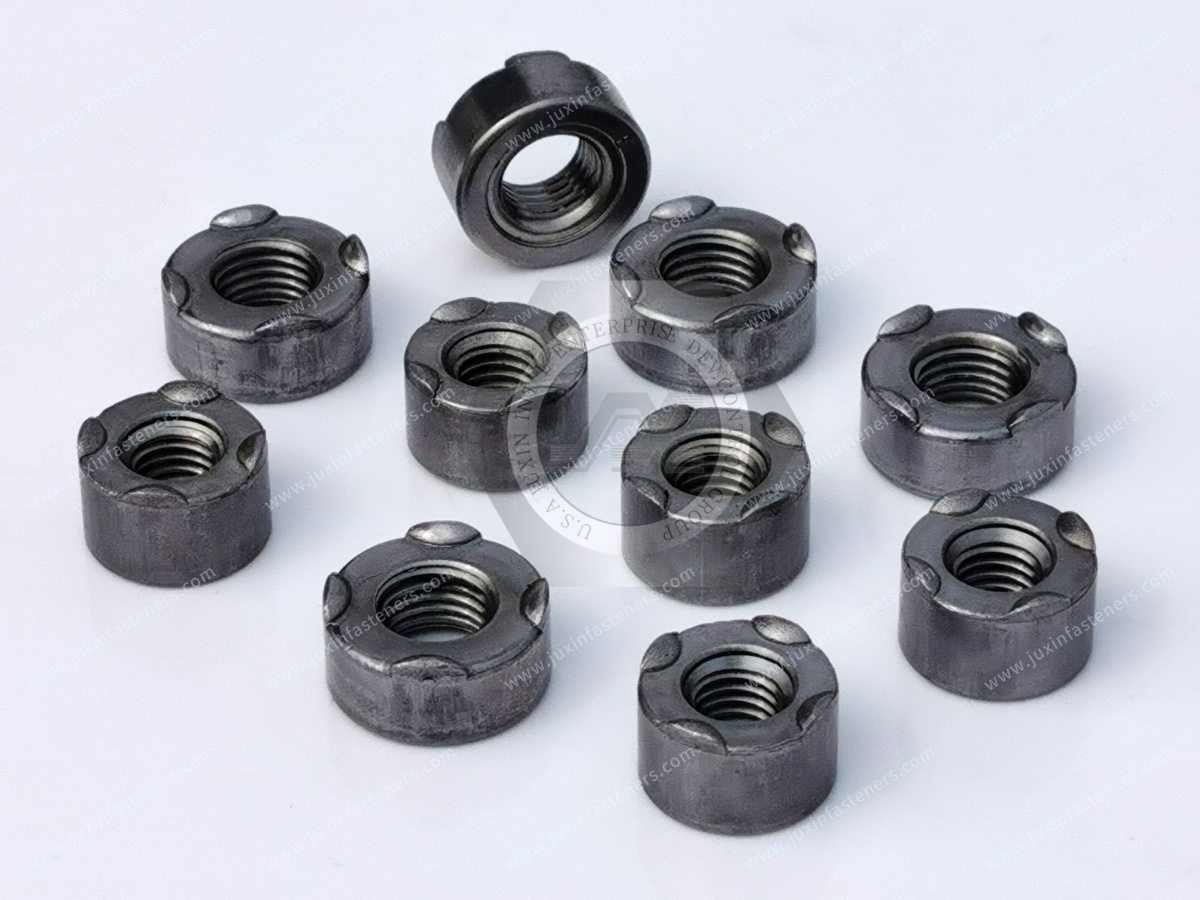

• Round Weld Nuts
       Suitable for general sheet metal fastening applications and      space-constrained assemblies.

• Pilot Type Weld Nuts
       Engineered for self-centering installation in automated production      environments.

• Custom OEM Weld Nuts for Robotic Welding Systems
       Developed for platform-specific requirements in advanced automotive      programs.

Each type is optimized for integration into automotive sheet metal fastening systems under high-volume production conditions.

OEM Application Areas in Automotive Manufacturing

Our projection weld nuts and flange weld nuts are widely used across multiple automotive subsystems, including:

Engine Bay Structural Assemblies

Used in high-temperature and high-vibration environments where reliable fastening is critical for long-term durability.

Cooling Module Mounting Systems

Applied in radiator supports, intercooler brackets, and thermal management system structures requiring precise alignment.

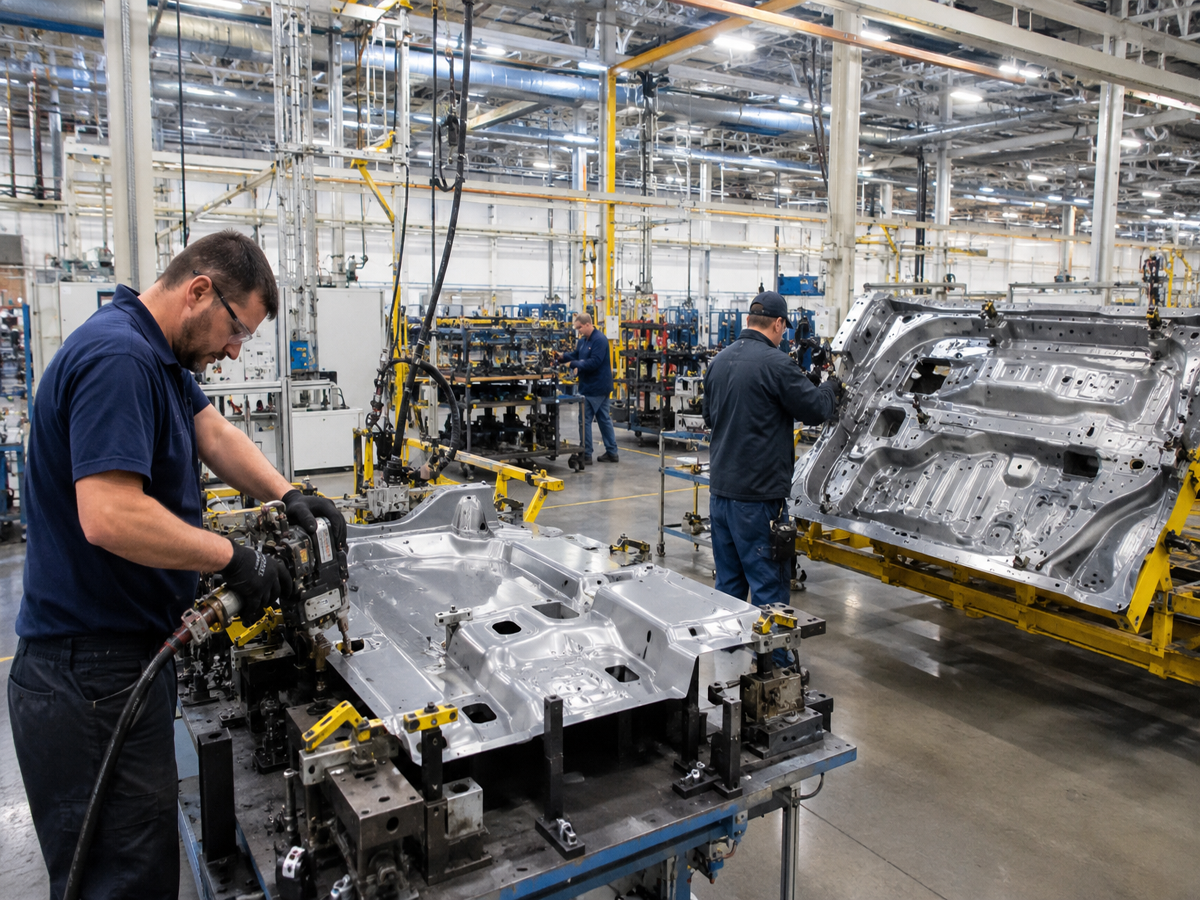

Body-in-White Sheet Metal Structures

Integrated into vehicle body panels where high-speed robotic welding and consistent joint quality are required.

Chassis Reinforcement Brackets

Provide structural integrity in load-bearing areas exposed to dynamic mechanical stress.

Seat Frames and Interior Metal Assemblies

Ensure stable fastening points for interior structural components and seating systems.

 Engineering Value of Automotive Weld Nut Systems

Our automotive weld nut solutions are engineered to meet the strict requirements of modern OEM production systems.

✔ Resistance Welding Automation

Designed for seamless integration into robotic welding lines, ensuring stable and repeatable weld quality across high-volume production cycles.

 ✔ High-Volume Stamping Integration

Compatible with progressive stamping processes, enabling efficient mass production of sheet metal assemblies.

 ✔ Sheet Metal Tolerance Compensation

Engineered to accommodate variations in stamped sheet metal components, ensuring consistent assembly performance without additional machining.

 ✔ Long-Term Vibration Durability

Optimized for automotive environments where components are exposed to continuous vibration, thermal cycling, and dynamic mechanical loads.

 Why OEMs Choose Projection and Flange Weld Nuts

In modern automotive engineering, projection weld nuts and flange weld nuts have become standard solutions due to their ability to:

• Integrate directly into automated production systems

• Eliminate secondary tapping operations

• Improve manufacturing efficiency and cycle time

• Ensure consistent weld quality under robotic control

• Support lightweight sheet metal design strategies

These advantages make them essential components in next-generation vehicle platforms focused on automation and structural optimization.

Internal Engineering Resources

For more technical insights and application references, explore the following resources:

• Mercedes Engine Bay Weld Nut Application (M177 Platform)

• Flange vs Square Weld Nut Engineering Comparison

• Robot Welding Fastener Design Guide

 Conclusion

Automotive weld nuts are no longer simple fastening components—they are integral elements of modern OEM manufacturing systems.

From engine bay assemblies to body-in-white structures, projection weld nuts, flange weld nuts, and square weld nuts play a critical role in enabling:

• Fully automated production lines

• High-precision sheet metal integration

• Long-term structural reliability

• Efficient large-scale OEM manufacturing

Our automotive weld nut solutions for OEM sheet metal assemblies are designed to meet these evolving industry demands, supporting global automotive manufacturers in achieving higher efficiency, consistency, and production stability.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
