Weld Stud with 3 Projections On Top of the Head: Technology, Applications, and Future Development

Unveiling the Secrets of Weld Stud with 3 Projections On Top of the Head: Technology, Applications, and Future Development

In modern industrial manufacturing, high-strength welding fasteners play a critical role in improving structural integrity, assembly efficiency, and long-term reliability. Among them, the Weld Stud with 3 Projections on Top of the Head has become an increasingly popular fastening solution in industries such as automotive manufacturing, shipbuilding, and electronic equipment production.

This specialized fastener integrates projection welding technology with a three-point structural design, enabling a stable, high-strength connection between the stud and base material without the need for pre-drilled holes. As industrial production continues to evolve toward automation, lightweight design, and smart manufacturing, the application of three-projection weld studs is expected to expand even further.

This article explores the manufacturing technology, key industrial applications, and future development trends of this innovative welding fastener.

 6-32 Weld Stud with 3 Projections On Top of Head

8-32 Weld Stud with 3 Projections On Top of Head

10-24 Weld Stud with 3 Projections On Top of Head

10-32 Weld Stud with 3 Projections On Top of Head

1/4-20 Weld Stud with 3 Projections On Top of Head

5/16-18 Weld Stud with 3 Projections On Top of Head

3/8-16 Weld Stud with 3 Projections On Top of Head

M3.5 x 0.60 Weld Stud with 3 Projections On Top of Head

M4 x 0.70 Weld Stud with 3 Projections On Top of Head

M5 x 0.80 Weld Stud with 3 Projections On Top of Head

M6 x 1.00 Weld Stud with 3 Projections On Top of Head

M8 x 1.25 Weld Stud with 3 Projections On Top of Head

M10 x 1.50 Weld Stud with 3 Projections On Top of Head

What is a Weld Stud with 3 Projections on the Top of the Head?

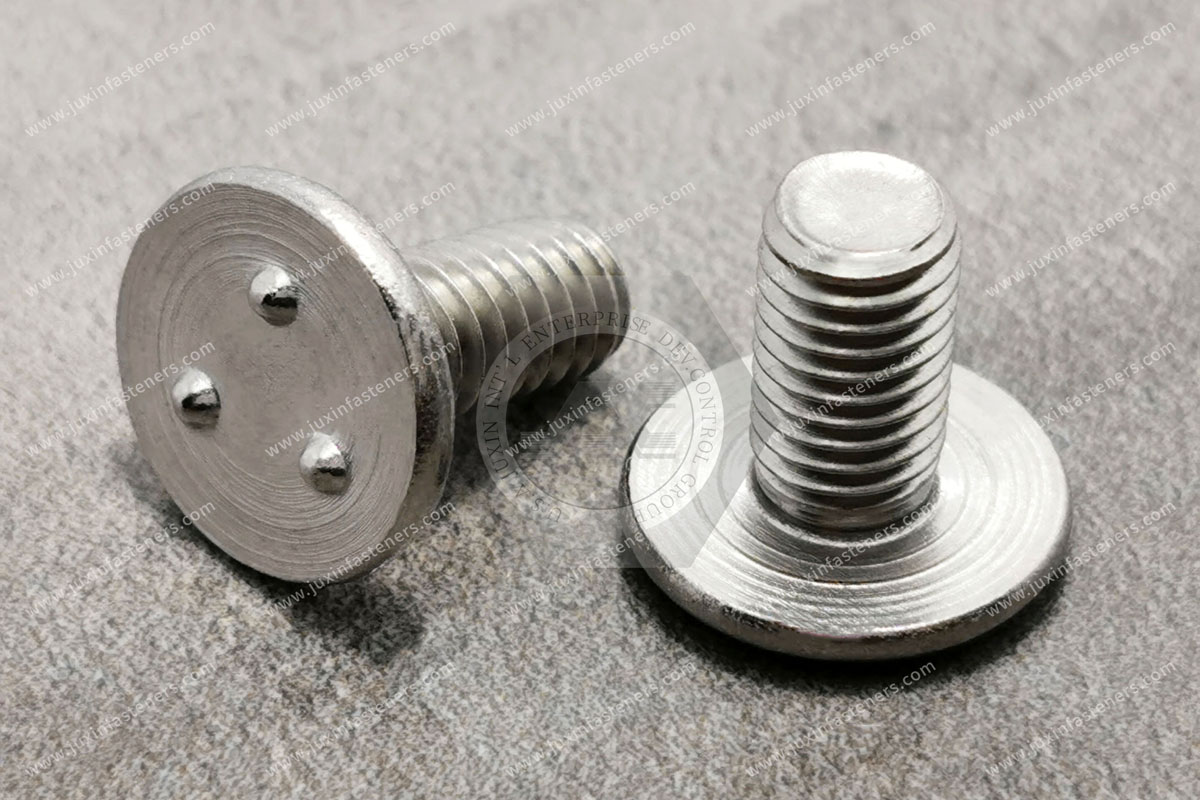

A Weld Stud with 3 Projections On Top of Head, sometimes referred to as a three-projection weld stud, is a specialized stud fastener designed for projection welding onto sheet metal surfaces.

The stud head features three precisely formed welding projections positioned evenly across the top surface. These projections create controlled contact points during welding, enabling concentrated heat generation and consistent weld penetration.

Key structural characteristics include:

• Three equally sized weld projections on the head

• Uniform height and mass distribution for balanced welding

• A triangular projection structure for stable weld positioning

• Designed for direct welding to sheet metal surfaces

This design allows manufacturers to achieve fast, reliable, and repeatable weld joints, making it ideal for high-volume automated production environments.

 Manufacturing Technology of Three-Projection Weld Studs

The manufacturing and welding processes for projection weld studs combine precision forming technology with controlled welding parameters.

During production, the weld projections on the stud head are formed by cold forming or precision machining, ensuring consistent geometry and dimensional accuracy.

In the welding stage, electrical resistance or arc welding technology is used to attach the stud to the base material. When electric current passes through the projections, heat is concentrated at the contact points, causing the projections to melt and fuse with the sheet metal.

To ensure high welding quality, several critical parameters must be precisely controlled:

Key Welding Parameters

• Welding Current – Determines heat      generation during welding

• Welding Time – Controls the fusion      depth of the weld

• Projection Geometry – Ensures      balanced energy distribution

• Welding Pressure and Angle –      Maintains proper alignment and penetration

By optimizing these parameters, manufacturers can achieve strong weld joints, excellent electrical conductivity, and high corrosion resistance.

Industrial Applications of 3 Projection Weld Studs

Because of their structural strength, installation efficiency, and electrical performance, three-projection weld studs are widely used across multiple industrial sectors.

Automotive Industry

The automotive industry is one of the largest users of projection weld studs. These fasteners are widely applied in:

• Body-in-white (BIW) structural assemblies

• Chassis mounting points

• Seat and safety component brackets

• Electrical grounding connections

Thanks to their high tensile strength and stable welding structure, weld studs help improve vehicle safety, durability, and manufacturing efficiency.

Shipbuilding Industry

In the shipbuilding industry, fastening systems must perform reliably in extremely harsh environments, including saltwater exposure and continuous vibration.

Three-projection weld studs are used for:

• Hull structural connections

• Equipment mounting brackets

• Deck component fastening

Their excellent corrosion resistance and strong weld integrity ensure stable performance even under demanding marine conditions.

Electronics and Electrical Equipment Manufacturing

The electronics industry requires fastening solutions that provide both mechanical stability and reliable electrical conductivity.

Projection weld studs are widely used for:

• Electrical grounding connections

• Mounting internal components

• Securing electrical enclosures and panels

Their ability to create low-resistance conductive joints makes them particularly suitable for modern electrical and electronic equipment.

Key Advantages of Weld Studs with Three Projections

High Structural Strength

The three-projection triangular structure ensures uniform heat distribution during welding, resulting in strong and consistent weld joints.

Improved Production Efficiency

Projection weld studs are designed for automated stud welding systems, enabling high-speed production suitable for large-scale industrial manufacturing.

Excellent Electrical Conductivity

The welding process creates direct metal-to-metal contact, ensuring reliable electrical conductivity, which is essential in automotive and electronic applications.

No Pre-Drilling Required

Because the studs are welded directly to the sheet material, manufacturers can eliminate drilling, reducing production time and preserving structural integrity.

Future Development Trends of Three-Projection Weld Stud Technology

As global manufacturing shifts toward automation, lightweight engineering, and sustainable production, the technology behind projection weld studs continues to evolve.

Advanced Materials

The development of high-strength alloys, stainless steel grades, and lightweight materials will further improve the performance of weld studs in demanding applications such as electric vehicles and aerospace components.

Intelligent Manufacturing

Integration with robotic welding systems and smart manufacturing lines will significantly enhance production efficiency and consistency in quality.

Real-time monitoring systems will enable manufacturers to control welding parameters, detect defects, and optimize processes.

Sustainable Manufacturing

With increasing environmental awareness, manufacturers are adopting energy-efficient welding technologies, recyclable materials, and environmentally friendly surface treatments.

These innovations will help reduce the environmental footprint of industrial fastener production while maintaining high performance standards.

Conclusion

The Weld Stud with 3 Projections on the Head is a highly efficient and reliable fastening solution for modern industrial manufacturing. Through advanced projection welding technology, robust structural design, and compatibility with automated production systems, these fasteners provide strong, consistent connections across a wide range of industries.

From automotive and shipbuilding to electronics manufacturing, three-projection weld studs continue to deliver high performance, improved productivity, and durable structural connections.

As new materials and intelligent manufacturing technologies emerge, the future of projection weld stud technology will offer even greater opportunities for industries seeking efficient, reliable, and sustainable fastening solutions.
