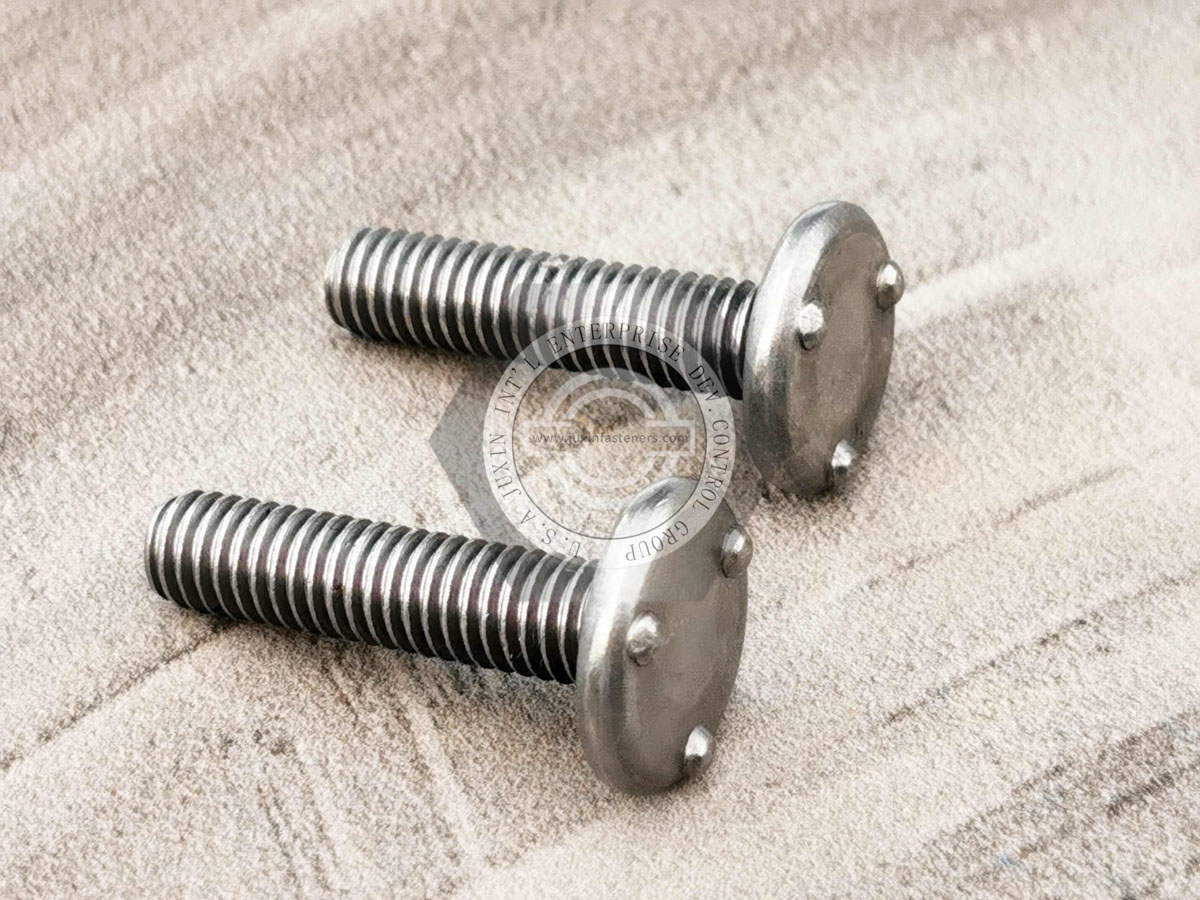

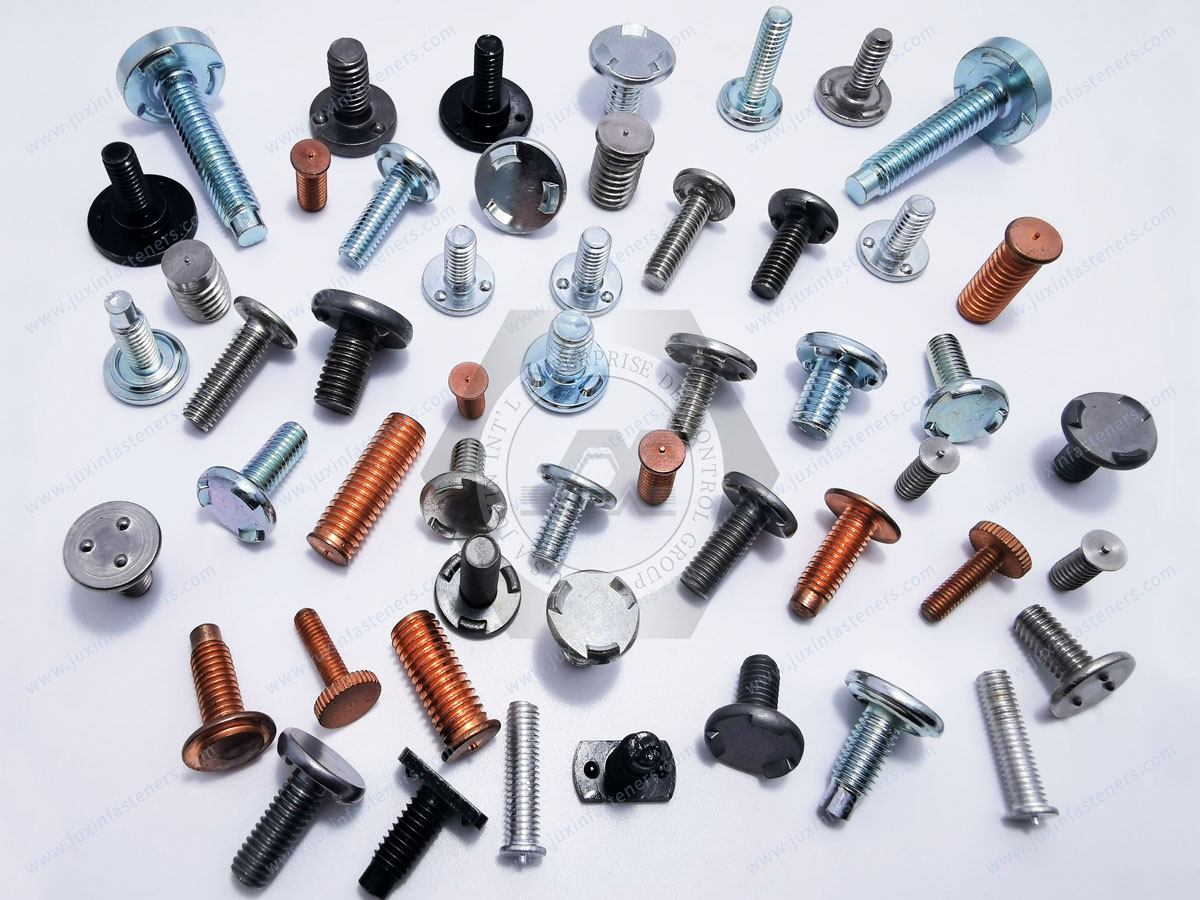

Key Automotive Applications of Carbon Steel 3 Projection Weld Studs

Key Automotive Applications of Carbon Steel 3 Projection Weld Studs

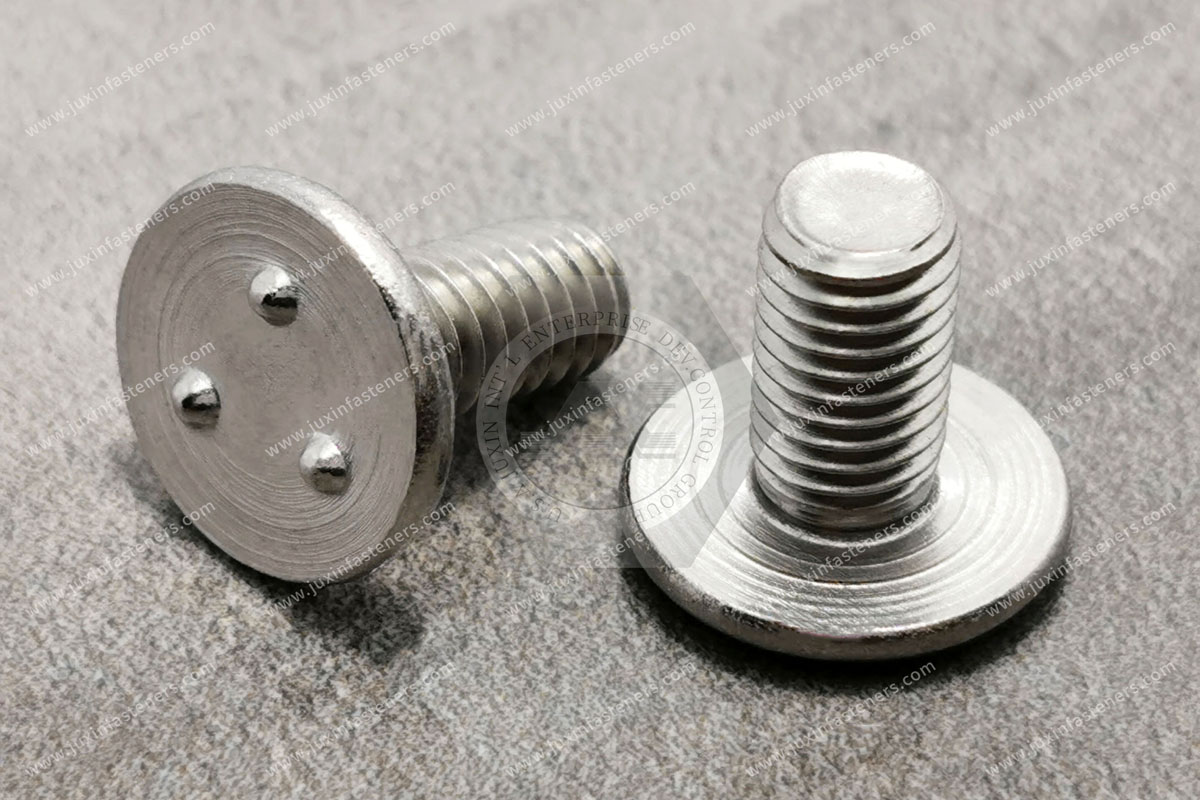

6-32 Weld Stud with 3 Projections On Top of Head

8-32 Weld Stud with 3 Projections On Top of Head

10-24 Weld Stud with 3 Projections On Top of Head

10-32 Weld Stud with 3 Projections On Top of Head

1/4-20 Weld Stud with 3 Projections On Top of Head

5/16-18 Weld Stud with 3 Projections On Top of Head

3/8-16 Weld Stud with 3 Projections On Top of Head

M3.5 x 0.60 Weld Stud with 3 Projections On Top of Head

M4 x 0.70 Weld Stud with 3 Projections On Top of Head

M5 x 0.80 Weld Stud with 3 Projections On Top of Head

M6 x 1.00 Weld Stud with 3 Projections On Top of Head

M8 x 1.25 Weld Stud with 3 Projections On Top of Head

M10 x 1.50 Weld Stud with 3 Projections On Top of Head

Automotive Body Structure

In vehicle body manufacturing, weld studs are widely used to secure various interior and structural components.

Typical applications include:

• Wiring harness mounting points

• Interior trim fastening

• Carpet retention

• Heat insulation panel installation

• Seat belt bracket mounting

• Door hinge and body hardware connections

By enabling direct welding to sheet metal surfaces, these studs improve body sealing performance and overall structural rigidity, while also enhancing NVH (Noise, Vibration, and Harshness) performance.

Chassis System Assembly

Automotive chassis systems require fastening solutions capable of withstanding dynamic loads, vibration, and long-term mechanical stress.

Carbon steel weld studs are used to secure critical chassis components such as:

• Suspension system brackets

• Steering mechanism supports

• Brake line mounting points

• Structural reinforcement brackets

The three-projection design ensures stable weld penetration and high joint strength, helping maintain vehicle safety and driving stability.

 Engine Compartment Components

The engine compartment contains numerous sensors, brackets, pipe clamps, and wiring assemblies that must remain securely mounted under demanding conditions.

Three-projection weld studs provide reliable fastening for:

• Sensor mounting brackets

• Cable routing clips

• Pipe clamps and tubing supports

• Wiring harness protective sheaths

These applications require fasteners with excellent heat, corrosion, and vibration resistance, making carbon steel weld studs a suitable solution.

 Brackets and Sheet Metal Parts

In automotive manufacturing, a large number of light-load brackets and auxiliary sheet metal components must be installed quickly and consistently.

Carbon steel weld studs enable fast and reliable assembly of sheet metal parts, supporting:

• Non-load-bearing brackets

• Cable management hardware

• Mounting plates and structural supports

Because they are compatible with automated stud welding equipment, they significantly improve production efficiency on automotive assembly lines.

 Materials and Technical Specifications

Material Options

Most 3-projection weld studs used in automotive manufacturing are produced from carbon steel, providing an ideal balance between strength, cost efficiency, and weldability.

Common material options include:

• Low-carbon steel (Q235 equivalent)

• Property Class 4.8 carbon steel

• Property Class 8.8 carbon steel

For applications requiring enhanced corrosion resistance, 304 stainless steel weld studs may also be used.

Common Thread Specifications

Typical metric thread sizes used in automotive sheet metal assembly include:

• M5 × 16

• M6 × 12

• M8 × 16

• M10 × 20

Most automotive weld studs follow standard metric thread pitches, such as M6 × 1.0, ensuring compatibility with standard automotive hardware.

 Welding Methods for Automotive Stud Welding

The Carbon Steel Weld Stud with 3 Projections on the Head is typically installed using advanced stud-welding processes designed for high-speed industrial production.

Common welding methods include:

Energy Storage Stud Welding

Energy storage welding uses capacitor-discharge technology to enable a rapid welding cycle. This method is ideal for thin-sheet metal applications, providing precise, controlled weld quality.

 Short-Cycle Arc Stud Welding

Short-cycle arc welding is widely used in automotive manufacturing to produce strong, durable weld joints. The process is suitable for sheet metal materials such as:

• Low-carbon steel

• Galvanized steel sheets

• High-strength automotive steel

Typical sheet thickness range:

0.7 mm – 2.0 mm

This welding method ensures fast installation speed, strong weld penetration, and high repeatability, making it ideal for automated vehicle production lines.

 Advantages of Carbon Steel 3 Projection Weld Studs in Automotive Production

Automotive manufacturers prefer three-projection weld studs because they offer several important advantages:

High Strength Connection
The three projection points create a balanced heat distribution during welding, producing strong, reliable weld joints.

Improved Manufacturing Efficiency
These studs support automated welding systems, enabling fast installation and high-volume production.

No Pre-Drilling Required
Studs can be welded directly onto sheet metal surfaces, reducing manufacturing steps and preserving structural integrity.

Consistent Weld Quality
Projection welding ensures repeatable and stable weld results across large production batches.

 Conclusion

The Carbon Steel Weld Stud with 3 Projections on the head plays a vital role in modern automotive manufacturing. From vehicle body structures and chassis assemblies to engine compartment components and sheet metal brackets, these projection weld studs provide strong, efficient, and reliable fastening solutions.

With their excellent weldability, compatibility with automated production lines, and cost-effective material properties, carbon steel three-projection weld studs continue to support the evolving needs of the global automotive industry.
