In modern automotive manufacturing, reliable welded fastening solutions are essential for ensuring vehicle structural integrity, production efficiency, and long-term durability. The Weld Stud with 3 Projections on Top of Head is a specialized welding fastener designed to provide strong, hole-free attachment to metal sheets, making it ideal for high-volume automotive production environments.

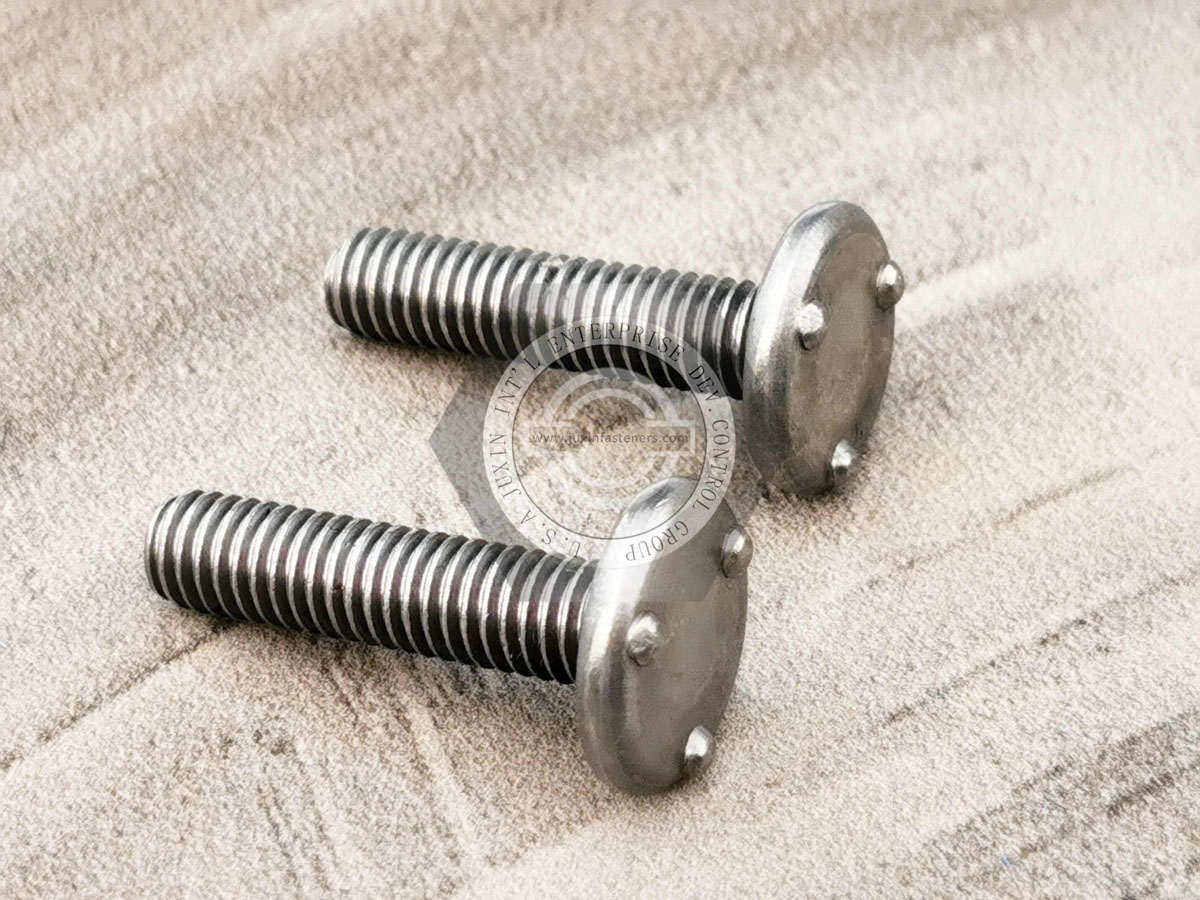

This projection weld screw features three precision-engineered weld projections on the top surface of the stud head, allowing the fastener to be welded directly to the sheet metal rather than through it. The three projections are evenly distributed and identical in height and mass, forming a stable triangular welding structure that ensures consistent weld quality and excellent mechanical performance.

Because of these advantages, three-projection weld studs are widely used by automotive manufacturers in body structures, chassis systems, interior assemblies, and electric-vehicle battery installations.

Key Applications of 3 Projection Weld Studs in the Automotive Industry

Body Structure Assembly

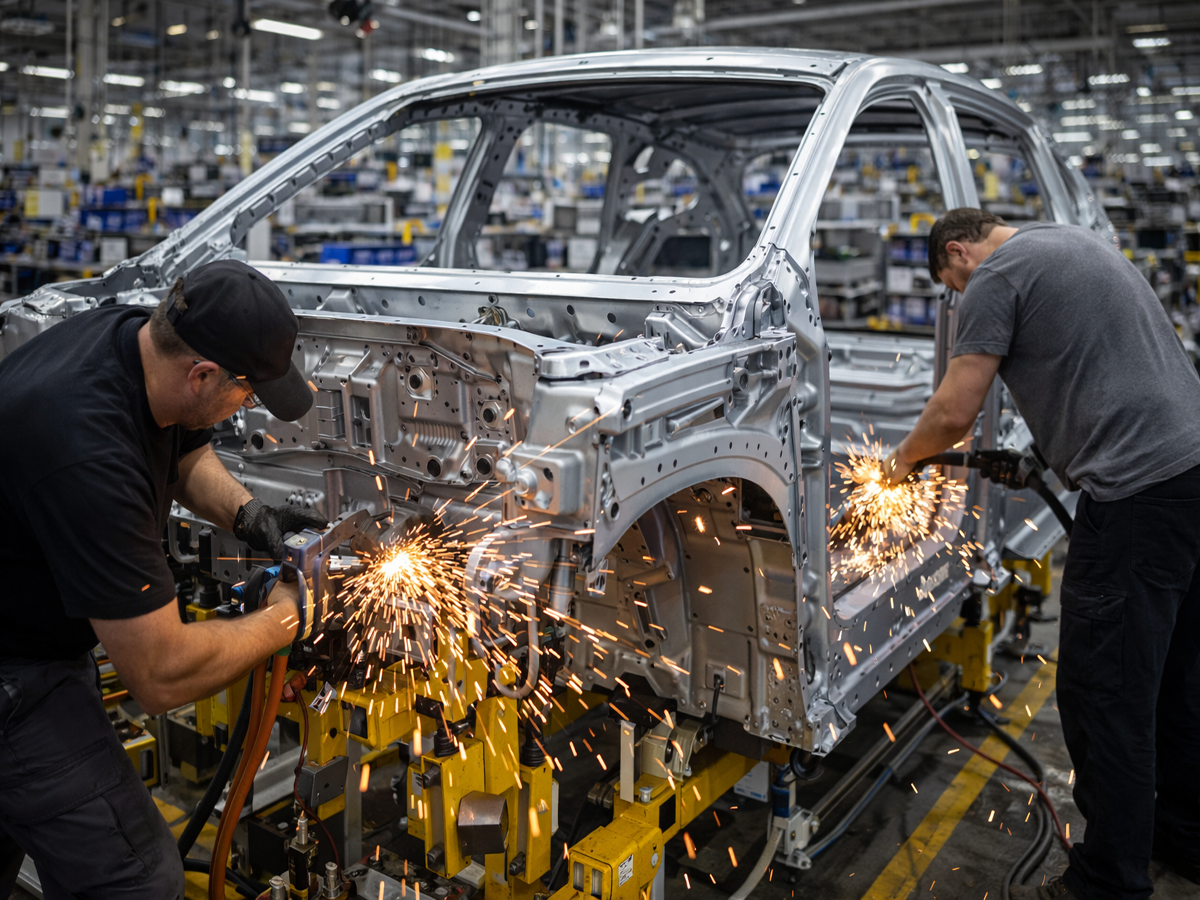

In automotive Body-in-White (BIW) manufacturing, welded studs are widely used for structural attachment points.

Typical applications include:

• Seat belt mounting points

• Door hinge brackets

• Body reinforcement structures

• Anti-collision beam connections

For example, M8–M12 metric studs or equivalent imperial sizes are commonly used in structural areas requiring high tensile strength. In critical safety components such as anti-collision beams, welded studs must withstand tensile loads exceeding 12 kN to ensure passenger safety and structural reliability.

The three-projection welding design provides strong fusion between the stud head and sheet metal while eliminating the need for pre-drilled holes.

 Chassis System Fastening

Automotive chassis systems require robust fastening solutions capable of withstanding continuous vibration, dynamic loads, and harsh road conditions.

Three-projection weld studs are used to secure components such as:

• Suspension system brackets

• Steering assemblies

• Brake line supports

• Structural mounting brackets

The triangular projection structure distributes welding heat and pressure evenly, creating stable, high-strength weld joints that remain reliable over long-term vehicle operation.

 Interior Trim and Cable Management

In vehicle interiors, welded studs provide efficient attachment points for lightweight components while maintaining body sealing performance.

Typical uses include:

• Carpet mounting

• Heat insulation panel installation

• Wiring harness clip mounting

• Interior trim fastening

By enabling hole-free surface welding, these studs help maintain body-sealing integrity, reduce assembly complexity, and improve NVH (Noise, Vibration, and Harshness) performance in modern vehicles.

 Electric Vehicle Battery Pack Installation

With the rapid growth of electric vehicles (EVs), welded studs are increasingly used in battery pack housings and electrical connection systems.

Applications include:

• Battery pack enclosure mounting

• Electrical grounding connections

• Structural fastening inside battery modules

For these applications, weld studs must offer:

• Excellent conductivity

• High corrosion resistance

• Strong vibration resistance

They are often manufactured from carbon steel, stainless steel, or aluminum-compatible materials, ensuring compatibility with lightweight EV structures.

 Core Advantages of 3 Projection Weld Stud Fasteners

Superior Structural Stability

The three-projection welding design forms a rigid triangular support structure, which evenly distributes welding energy and mechanical loads. This improves weld strength and reduces the risk of deformation or vibration failure.

 Hole-Free Installation

Unlike conventional fastening methods, projection weld studs do not require drilled holes in the sheet material. This offers several benefits:

• Maintains sheet metal structural integrity

• Eliminates stress concentration around holes

• Improves corrosion resistance and sealing performance

High-Efficiency Automated Manufacturing

Stud welding technology can be fully integrated into automated automotive production lines.

Using short-cycle arc stud welding, manufacturers can achieve:

• Welding speeds exceeding 30 studs per minute

• Highly repeatable weld quality

• Reduced assembly time and labor costs

This makes three-projection weld studs ideal for high-volume automotive manufacturing environments.

Lightweight Vehicle Design

Automotive manufacturers are increasingly focused on vehicle lightweighting to improve fuel efficiency and EV range.

Projection weld studs can be manufactured using:

• High-strength carbon steel

• Stainless steel

• Aluminum-compatible materials

• Titanium alloys for specialized applications

These materials help reduce vehicle weight while maintaining structural performance.

Welding Process and Technical Parameters

Common Welding Method

The most widely used welding method for projection weld studs in automotive production is:

Short-Cycle Arc Stud Welding

This process is suitable for materials such as:

• Carbon steel

• Stainless steel

• Aluminum alloys

Typical Welding Parameters

While parameters vary depending on stud size and material, typical reference values include:

These parameters ensure stable weld penetration and consistent joint strength.

Quality Control Methods

Automotive manufacturers implement strict quality control procedures for welded studs, including:

• Visual weld inspection

• Hammer testing

• Torque testing

• Tensile strength sampling

These methods ensure the long-term reliability and safety of welded connections.

Conclusion

The Weld Stud with 3 Projections on Top of Head provides a highly efficient and reliable fastening solution for the automotive industry. Its triangular projection welding structure, hole-free installation capability, and compatibility with automated manufacturing lines make it an ideal choice for modern vehicle production.

From body structure assembly and chassis systems to interior components and EV battery installations, these projection weld studs deliver high strength, improved production efficiency, and long-term durability, supporting the evolving demands of global automotive manufacturers.
