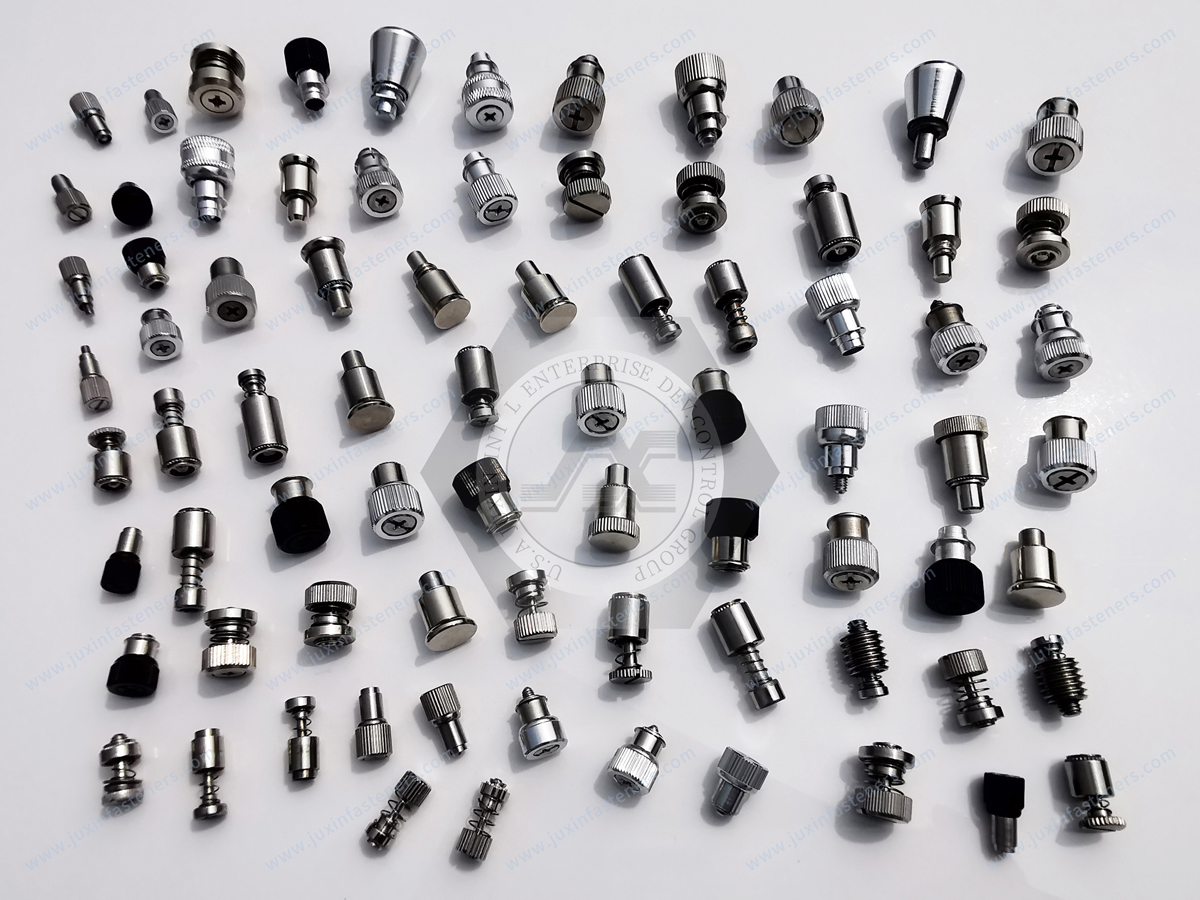

PCB Broaching Captive Screws – Type JX-PFC2, JX-PFS2

Spring-Loaded Captive Panel Screws – JX-PFC2 / JX-PFS2

Screw-Head Captive Fastening Solutions for Industrial Enclosures and Removable Equipment Panels

JUXIN FASTENERS supplies JX-PFC2 and JX-PFS2 spring-loaded captive panel screws for equipment manufacturers requiring retained threaded hardware in thin sheet-metal panels.

These fasteners combine a compact screw head, an integrated spring mechanism and a captive mounting assembly.

The screw remains attached to the panel when disengaged from its mating thread, helping reduce loose hardware during inspection, repair and routine maintenance.

The spring-loaded mechanism supports the screw's intended disengaged position and facilitates repeated panel access.

JX-PFC2 and JX-PFS2 are particularly relevant to electronic enclosures, electrical control cabinets, industrial equipment consoles and serviceable machinery covers.

Product Overview

Product series: JX-PFC2 and JX-PFS2

Product category: Spring-loaded captive panel screws

Head configuration: Compact screw head

Operating method: Tool or finger operation where geometry and tightening conditions permit

Mechanism: Spring-loaded captive screw assembly

Installation concept: Self-clinching retention in compatible sheet-metal panels

Referenced thread sizes: Unified #4 and #6; metric M3

Screw lengths: Multiple configurations, with three lengths referenced for most sizes

Material options: Steel and stainless steel, subject to product-specific confirmation

Application: Removable equipment panels and enclosure covers

Technical documentation: Product PDF and CAD drawings, pages 45–46

Customization: Drawing-based OEM technical review

The exact part number must identify the thread, screw length, mounting dimensions and required material.

Spring-Loaded Captive Screw Design

The primary function of the JX-PFC2 / JX-PFS2 series is to provide a threaded fastening point while retaining the screw in the mounting panel.

When the screw is disengaged, it remains captive within its installed assembly.

The spring mechanism supports controlled axial movement according to the selected configuration.

This can make panel removal more convenient because the screw does not become a separate loose component.

The spring does not replace the clamping force produced by the threaded connection.

When the panel is secured, the screw must engage the mating thread sufficiently to satisfy the joint requirements.

The exact spring travel, screw extension and disengaged position must be verified using the approved product drawing.

Steel and Stainless Steel Configurations

The supplied product information identifies steel and stainless steel options.

JX-PFC2 and JX-PFS2 should be selected according to their confirmed material and dimensional specifications.

For steel configurations, material and surface finish should be defined according to the approved purchasing specification.

For stainless steel configurations, the supplied material references include grades such as SUS302, SUS303, SUS316, SUS410, SUS420 and SUS430.

These grades differ in corrosion resistance, mechanical properties and manufacturability.

The availability of a particular stainless steel grade must be confirmed for the selected part number.

A spring-loaded captive panel screw contains multiple functional components.

The screw, spring, retainer and any other assembly elements may require different materials.

Therefore, the complete assembly should not be assumed to use one stainless steel grade.

Where stainless steel passivation is specified, ASTM A967/A967M may be relevant.

Compliance must be supported by the actual material and processing documentation.

Compact Screw-Head Construction

The JX-PFC2 / JX-PFS2 series uses a compact screw-head arrangement rather than a large knurled operating knob.

This can be useful where equipment designers need to minimize external projection.

Compact captive screws may be appropriate for closely spaced access panels, electronics housings and machinery covers.

However, head height is only one part of the clearance requirement.

The engineer must also consider the screw's disengaged position and the access required for the operating tool.

The exact head dimensions should be confirmed from the product drawing.

Tool and Finger Operation

The supplied product information references tool or finger operation.

Whether manual operation is practical depends on the head geometry, available access and required tightening conditions.

For production assembly, tool operation may be preferable where controlled tightening is required.

The exact drive configuration must be confirmed for the selected JX-PFC2 or JX-PFS2 part number.

A screwdriver should match the actual recess geometry.

An unsuitable tool can damage the screw head or interfere with reliable tightening.

No universal tightening torque should be assumed without validated joint requirements.

Self-Clinching Installation

The product family is associated with self-clinching installation into compatible sheet-metal panels.

The fastener is installed into a properly prepared mounting hole using controlled pressing force.

The mounting features engage the sheet material to establish mechanical retention.

The captive screw assembly must remain securely installed while allowing the intended screw movement.

Installation suitability depends on the panel material, sheet thickness, hardness and mounting-hole dimensions.

The supplied technical reference identifies applications involving relatively thin sheets, including a 0.060 in. / approximately 1.53 mm thickness reference.

It also identifies an HRB 70 substrate-hardness reference for certain configurations.

These values must not be treated as universal limits for every JX-PFC2 or JX-PFS2 variant.

The applicable installation conditions must be confirmed from the approved model-specific drawing.

Panel Material Compatibility

Self-clinching installation requires a suitable relationship between the fastener and the mounting panel.

The panel must provide enough material for the retention features to engage.

A panel that is too thin may not provide adequate retention.

A panel that is too hard may resist the required material deformation.

An incorrectly sized mounting hole may cause poor installation or damage.

Steel and aluminum panels should be evaluated according to their actual material properties.

Stainless steel panel compatibility must be confirmed separately.

The presence of stainless steel in the fastener assembly does not automatically establish suitability for installation into stainless steel sheet.

Installation trials should use representative production panels.

Mounting-Hole Design and Edge Distance

The mounting hole must be prepared according to the selected fastener drawing.

Hole diameter, tolerance and surrounding material influence the installation result.

Insufficient edge distance can reduce the panel's ability to support the installed fastener.

Excessive installation force may deform the sheet or interfere with the captive screw mechanism.

The designer should evaluate the local panel geometry, nearby bends and available tooling clearance.

The fastener should be installed using a controlled process appropriate for its retention design.

After installation, the screw should move through its intended range without binding.

The mounting retainer should remain securely fixed.

Thread Selection

The supplied product information references Unified #4 and #6 threads and metric M3 threads.

Unified threads are commonly specified according to ASME B1.1.

Metric threads are commonly specified according to ISO 261 and ISO 965.

The exact pitch and tolerance class must be confirmed.

A nominal #4, #6 or M3 designation does not replace a complete thread specification.

The mating threaded component must be compatible with the selected screw.

Unified and metric threads are not interchangeable.

For international OEM projects, the correct thread designation should be maintained throughout drawing approval, sampling and production.

Screw-Length Selection

The supplied reference indicates that most sizes are available in three screw lengths.

The correct screw length depends on the complete assembly stack-up.

This may include the mounting panel, mating component, spacers and any intermediate elements.

A screw that is too short may not engage the mating thread adequately.

A screw that is too long may bottom out or interfere with internal components.

The engineer should consider both the engaged and disengaged positions.

The required screw reach must be evaluated together with spring travel.

Actual available lengths must be confirmed from the product drawing.

Engineering Trade-Off: Spring-Loaded Versus No-Spring Captive Screws

A spring-loaded captive screw provides controlled axial movement through an integrated spring mechanism.

A no-spring captive screw uses a different retention arrangement without spring-assisted retraction.

Spring-loaded designs can be useful where screw positioning during panel removal is important.

No-spring designs may be suitable where compactness and simpler construction are the primary requirements.

The correct selection depends on the panel removal path, available space and maintenance procedure.

For example, a cover that must slide sideways after the screws are disengaged may benefit from a screw that retracts sufficiently to avoid interference.

However, the actual clearance must be verified using the selected fastener's operating dimensions.

Engineering Trade-Off: Captive Screws Versus Loose Screws

A conventional screw becomes a separate component when fully removed.

A captive screw remains associated with the mounting panel.

This can reduce the chance of lost hardware during maintenance.

For electrical and electronic equipment, loose metallic components can create additional handling risks.

Captive fastening can therefore support more controlled service procedures.

However, the captive assembly requires specific installation geometry.

The design team should evaluate the complete assembly cost, service frequency and mounting requirements.

For equipment opened frequently, retained hardware may offer meaningful operational benefits.

Engineering Trade-Off: Installed Height Versus Service Access

A compact captive screw head can reduce external projection.

However, a smaller head may provide less manual gripping area.

The designer should verify the required tool access.

A screw located close to a panel wall may be difficult to operate even if the head fits within the available space.

The spring-loaded mechanism also requires consideration of the disengaged screw position.

The complete operating envelope should be evaluated rather than only the installed head height.

Industrial Applications

Electronic Equipment Enclosures

Spring-loaded captive panel screws can secure removable covers while retaining hardware during maintenance.

The compact head design can be useful where external clearance is limited.

Industrial Control Cabinets

Control cabinet panels may require repeated opening for wiring inspection, component replacement and servicing.

Captive screws can reduce loose hardware and simplify reassembly.

Electrical Equipment Housings

Electrical enclosures may benefit from retained screws on service covers.

The complete assembly must still satisfy applicable electrical safety and enclosure requirements.

Industrial Machinery

Machine access panels may require periodic removal for inspection or adjustment.

Spring-loaded captive screws can be considered where threaded fastening and hardware retention are appropriate.

Test and Measurement Equipment

Instrument housings may have limited external space and require repeated maintenance access.

Compact captive screws can provide retained fastening in suitable panel designs.

Telecommunications Equipment

Communication equipment enclosures may require removable service panels.

Captive fastening can help keep hardware attached to the correct cover.

Server and Networking Equipment

Serviceable electronic housings may benefit from retained panel screws where compact installation geometry is required.

The designer must verify clearance, thread compatibility and panel thickness.

Engineering Example: Industrial Control Cabinet Access Panel

Consider a control cabinet with a removable service cover.

The cover is opened periodically for inspection and maintenance.

Using ordinary screws requires technicians to handle separate loose fasteners.

A JX-PFC2 or JX-PFS2 spring-loaded captive screw arrangement can retain the screws in the cover.

The spring-loaded mechanism supports the intended disengaged screw position.

Before approving the design, the engineer must verify the mounting panel thickness, hole dimensions, mating thread location and screw extension.

The selected material must be compatible with the operating environment.

The installation process must be validated using representative production panels.

This example illustrates why captive panel screws should be selected using complete assembly requirements rather than thread size alone.

JX-PFC2 / JX-PFS2 Versus Low-Profile Knob Captive Screws

JX-PFC2 and JX-PFS2 use a compact screw-head configuration.

Low-profile knob captive screws such as JX-PF30, JX-PF50 and JX-PF60 use larger operating knobs with different drive and mounting configurations.

The larger knob may provide improved manual accessibility in certain applications.

The compact screw-head configuration may be preferable where external clearance is limited.

The correct choice depends on available space, tool access and maintenance requirements.

These product families should not be treated as interchangeable without dimensional verification.

JX-PFC2 / JX-PFS2 Versus Quarter-Turn Fasteners

Quarter-turn fasteners use a different locking mechanism from conventional threaded captive panel screws.

They may be appropriate for rapid access panels.

JX-PFC2 and JX-PFS2 are identified as spring-loaded captive threaded fasteners.

Their operating mechanism should not be described as quarter-turn unless the specific product drawing establishes that function.

The correct selection depends on the mating hardware, access frequency and joint requirements.

OEM Procurement and Supplier Qualification

Purchasing teams should specify the exact captive panel screw configuration rather than purchasing solely by nominal thread size.

A complete purchasing specification should identify the series, thread, screw length, material and mounting geometry.

For replacement projects, the engineering team should compare the complete installed dimensions.

A visually similar captive screw may have a different mounting-hole requirement or spring travel.

Drawing review and sample approval can help reduce sourcing risk.

RFQ Information

Product series: JX-PFC2 or JX-PFS2

Required thread size and pitch

Screw length and operating travel

Mounting panel material and thickness

Mounting-hole dimensions

Head clearance and tool-access requirements

Mating thread specification

Steel or stainless steel material requirements

Surface finish or passivation requirements

Expected order quantity and annual demand

Engineering drawing and revision level

Inspection and functional testing requirements

Packaging and labeling requirements

Providing these details helps JUXIN FASTENERS evaluate the intended configuration and prepare an accurate technical quotation.

Quality Verification and Functional Testing

A suitable inspection plan may include dimensional verification, thread inspection, material confirmation and functional operation checks.

The mounting retainer should remain securely installed.

The spring-loaded mechanism should operate smoothly.

The screw should move through its intended range without binding.

The screw should engage the mating thread correctly.

For equipment requiring repeated service, the OEM may specify functional cycle testing.

The required cycle count and acceptance criteria should be established before production.

No fixed spring force, retention load, tightening torque or service-life rating should be assumed without validated product data.

Frequently Asked Questions

What is a spring-loaded captive panel screw?

It is a retained threaded fastener incorporating a spring mechanism that supports controlled screw movement during engagement and disengagement.

What is the difference between JX-PFC2 and JX-PFS2?

They are related captive panel screw configurations. Their exact material, dimensional and installation differences must be confirmed using the approved drawings.

Are steel and stainless steel versions available?

The supplied product information references both material families, subject to model-specific availability.

What thread sizes are referenced?

The supplied information identifies Unified #4 and #6 and metric M3 configurations.

Are multiple screw lengths available?

Most sizes are referenced as having three screw-length options. Exact availability must be confirmed.

Can these fasteners be installed in thin panels?

Certain configurations are intended for thin sheet-metal panels. Minimum sheet thickness and hardness limits must be verified for the selected model.

Are these quarter-turn fasteners?

No quarter-turn function is established by the supplied JX-PFC2 / JX-PFS2 product information.

Can custom dimensions be requested?

Custom requirements can be reviewed using customer engineering drawings and application specifications.

Related JUXIN FASTENERS Solutions

Low-Profile Slotted Captive Panel Screws – JX-PF30 / JX-PF31 / JX-PF32

For removable panels requiring spring-loaded captive screws with low-profile operating knobs.

Phillips and Six-Lobe Captive Panel Screws – JX-PF50 / JX-PF60

For low-profile spring-loaded captive fastening with recessed-drive options.

Compact No-Spring Captive Panel Screws – JX-PFHV

For space-constrained applications requiring retained screws without spring-assisted retraction.

PCB Broaching Fasteners

For mechanically retained fastening points in compatible printed circuit board substrates.

Self-Clinching Standoffs

For threaded support and spacing in compatible sheet-metal assemblies.

Floating Self-Clinching Nuts

For sheet-metal mounting points requiring limited compensation for mating-hole misalignment.

These related product categories should be linked to their corresponding verified JUXIN FASTENERS product pages using descriptive anchor text.

Request a JX-PFC2 / JX-PFS2 OEM Quotation

JUXIN FASTENERS supplies captive panel fastening solutions for industrial equipment manufacturers, electronic enclosure designers, sheet-metal fabricators and international OEM procurement teams.

For JX-PFC2 or JX-PFS2 inquiries, please provide the required thread size, screw length, mounting panel material, sheet thickness, head-clearance restriction and mating thread specification.

For production projects, include the engineering drawing, estimated order quantity, annual demand and any material, inspection or packaging requirements.

Our team can review the technical requirements and prepare a quotation based on the confirmed product configuration.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com

JUXIN FASTENERS – Spring-Loaded Captive Panel Screws and OEM Industrial Fastening Solutions.

JX-PFC2 and JX-PFS2 spring-loaded captive panel screws can be supplied with protective inner packaging and export cartons, with palletized shipment arrangements where required.

Packaging specifications are determined according to product dimensions, order quantities and customer requirements to help protect the screw heads, threads, springs and captive retention components during handling and transportation.

Custom carton quantities, OEM labeling, part-number identification, batch identification and project-specific packaging arrangements can be reviewed before order confirmation.

For bulk-order quotations and packaging requirements, contact info@juxinfasteners.com.

Website: www.juxinfasteners.com
